Supplemental Restraint System: Preparation

SST

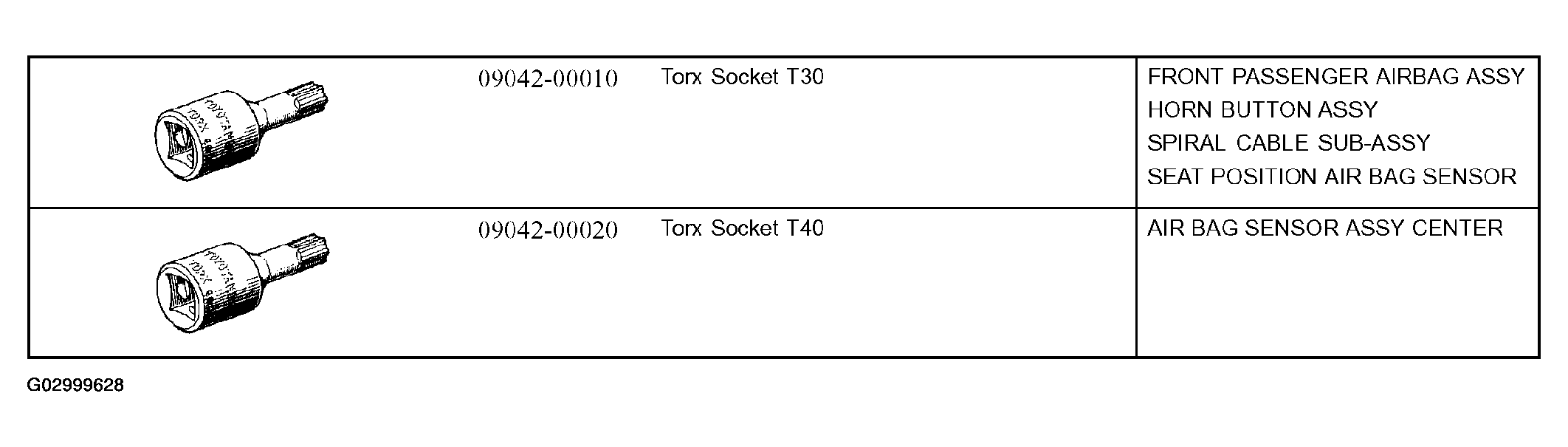

Fig 1: Supplemental Restraint System Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

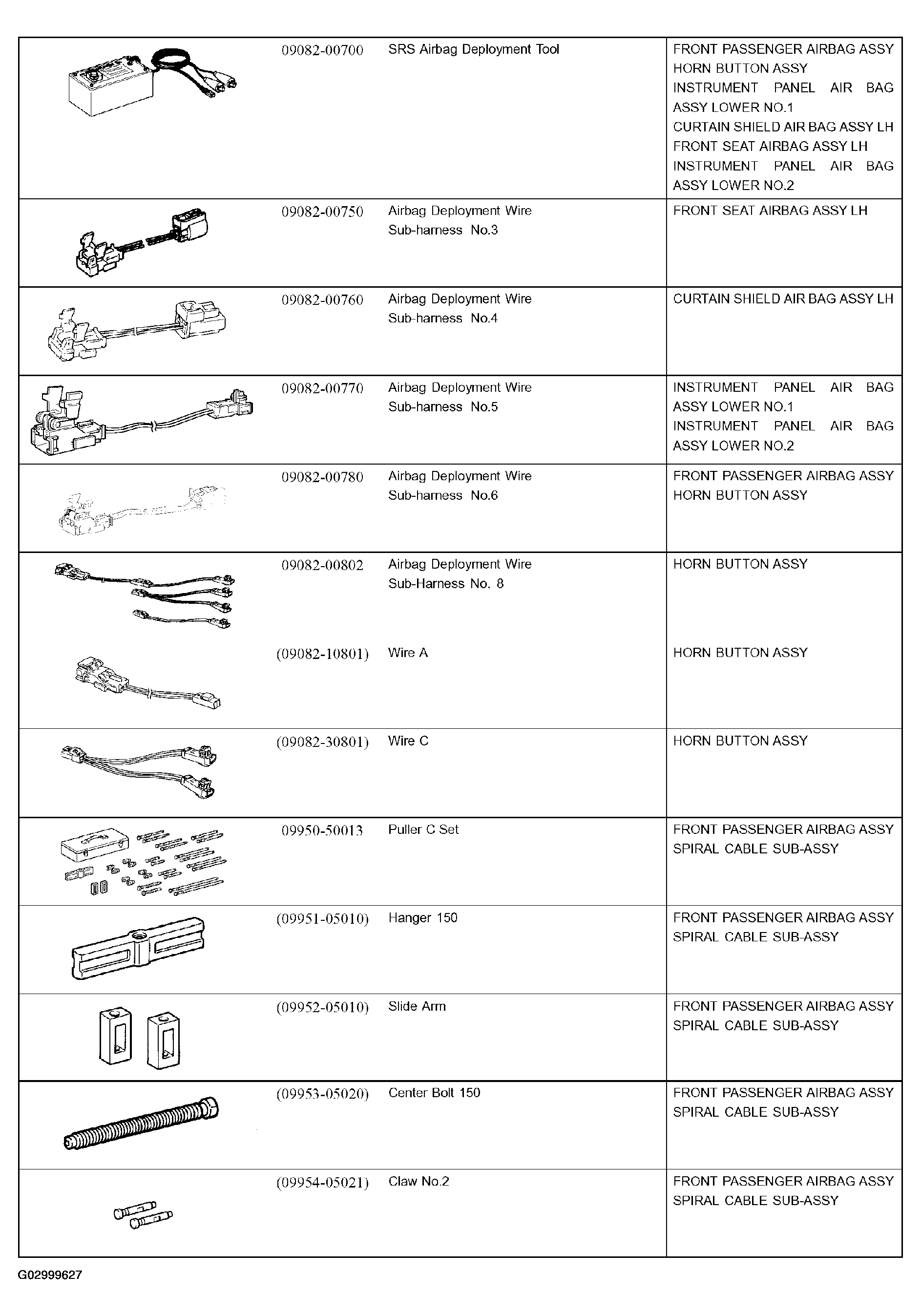

Fig 2: Recommended Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

Equipment

EQUIPMENT

Torque wrench
Bolt Length: 35.0 mm (1.378 in.) Pitch: 1.0 mm (0.039 in.) Diameter: 6.0 mm (0.236 in.)	Airbag disposal
Tire Width: 185 mm (7.28 in.) Inner diameter: 360 mm (14.17 in.)	Airbag disposal
Tire with disc wheel Width: 185 mm (7.28 in.) Inner diameter: 360 mm (14.17 in.)	Airbag disposal
Plastic bag	Airbag disposal
