Cruise Control Main Switch ASSY: Replacement

  1. SEPARATE BATTERY NEGATIVE TERMINAL
  2. REMOVE SWITCH & VOLUME CASE
  3. REMOVE STEERING WHEEL COVER LOWER NO. 2
  4. REMOVE HORN BUTTON ASSY (See step 5 in  REPLACEMENT  )
  5. REMOVE STEERING WHEEL ASSY (See step 7 in  OVERHAUL  )
  6. REMOVE CRUISE CONTROL MAIN SWITCH ASSY
    1. Remove the 2 screws and steering wheel damper.

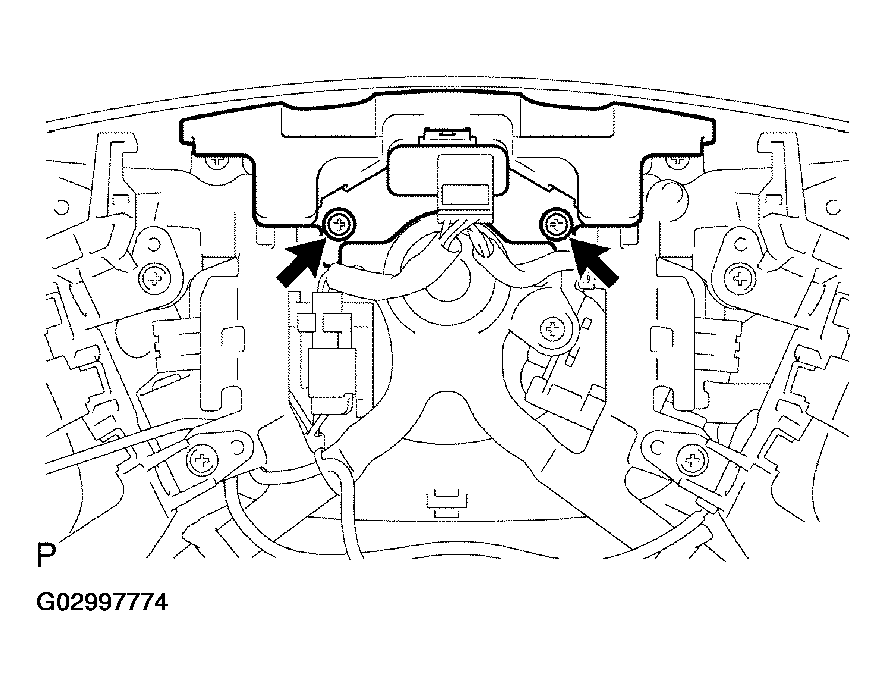

      Fig 1: Removing Steering Wheel Damper
      G02997774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors.
    3. Remove screw (A) and disengage the claw.

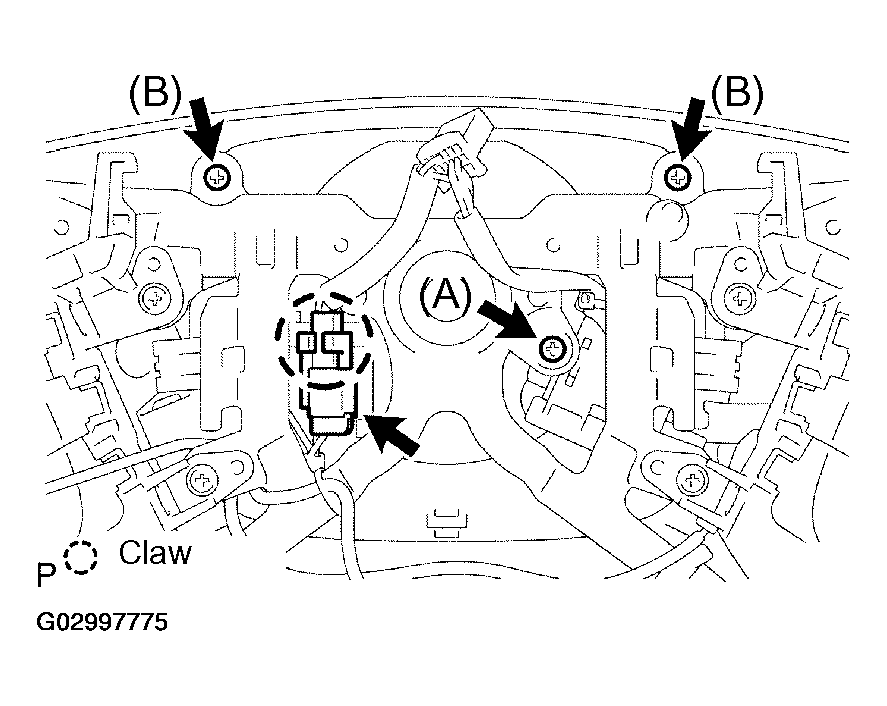

      Fig 2: Removing Screw (A) And Disengaging Claw
      G02997775Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove 2 screws (B) and the steering wheel LWR cover.
    5. Remove the 2 screws and cruise control main switch assy.

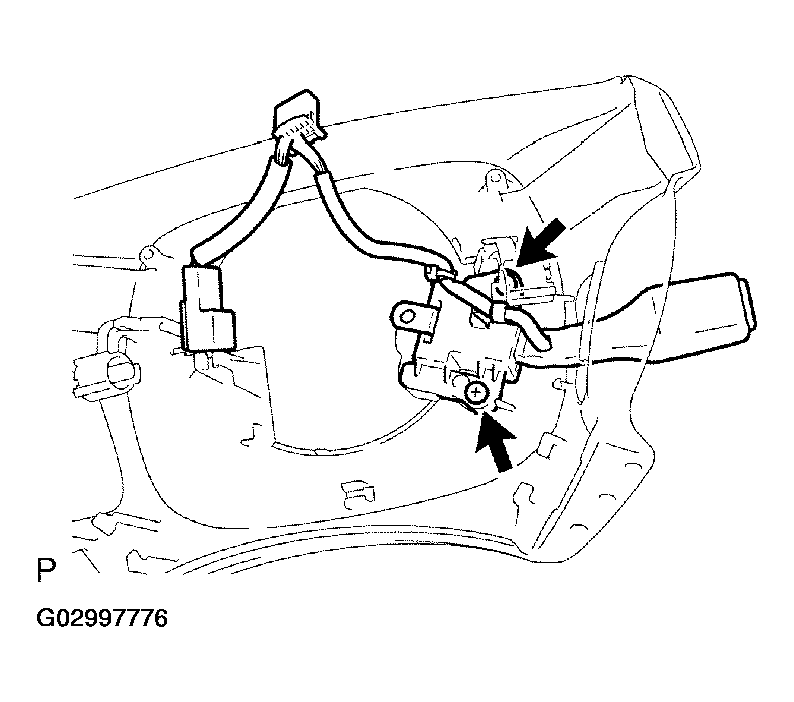

    Fig 3: Removing Cruise Control Main Switch Assy
    G02997776Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT STEERING WHEEL CENTER POINT
  8. INSTALL STEERING WHEEL ASSY (See step 96 in  OVERHAUL  )
  9. INSTALL HORN BUTTON ASSY (See step 6 in  REPLACEMENT  )
  10. CONNECT BATTERY NEGATIVE TERMINAL
  11. INSPECT HORN BUTTON ASSY
  12. INSPECT SRS WARNING LIGHT
