Smart Key System - Diagnostics
>>
System Diagram
>>
Communication line
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Communication line

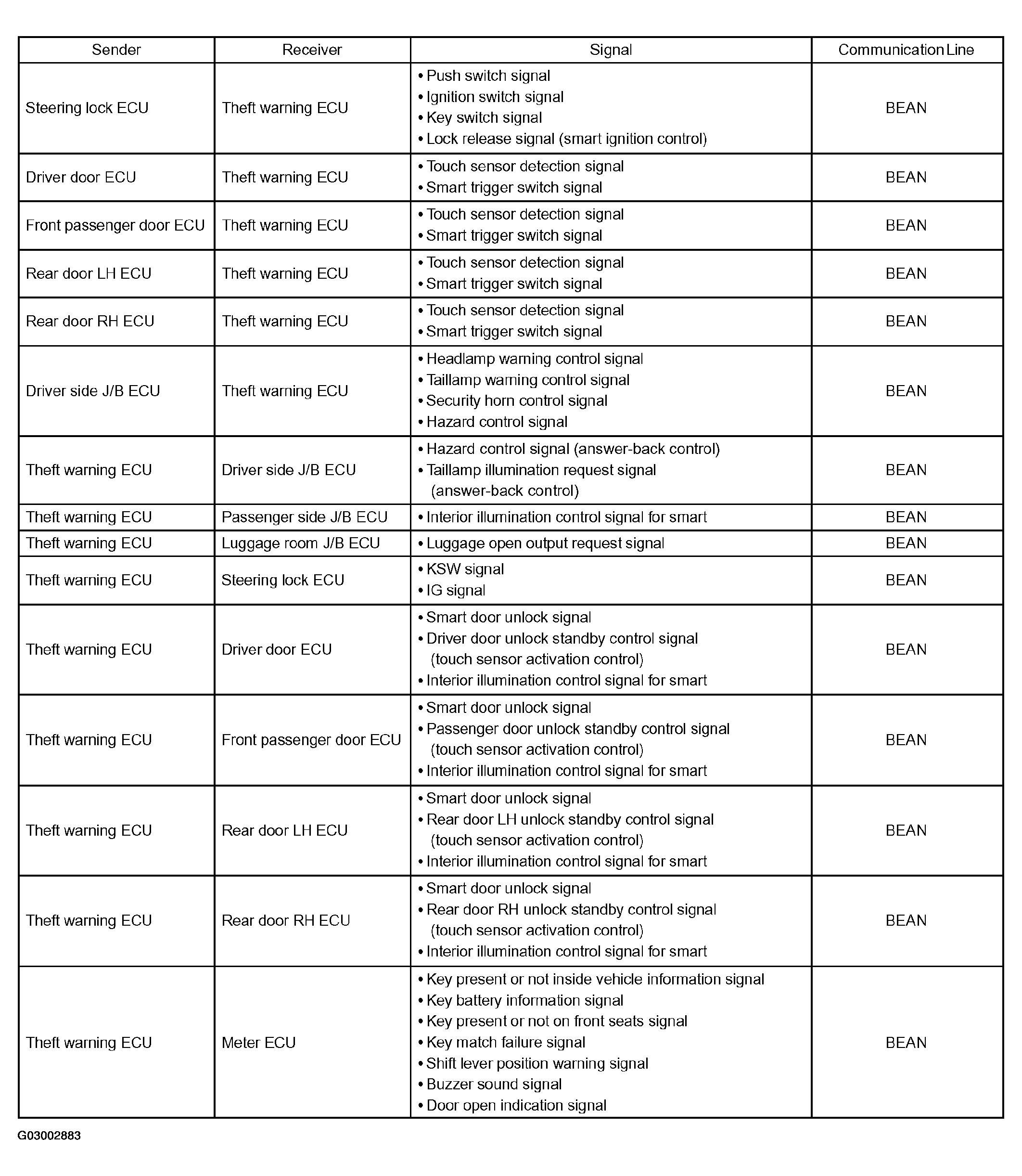

Fig 1: Communication Line Description Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
