Diagnostic Trouble Code Chart
HINT:
DTC is displayed on the multi-display (See SERVICE CHECK MODE (DTC CHECK) ).
- TELEVISION CAMERA ECU (Physical address: 1AC)
HINT:
- *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
- *2: This code may be stored when the ignition switch is turned to the START position again 1 minute after the engine start.
- *3: This code may be stored when the ignition switch is turned to the START position again after the engine start.
- *4: When 210 seconds have elapsed after pulling out the power supply connector of the master component with the ignition switch in the ACC or ON position, this code is stored.

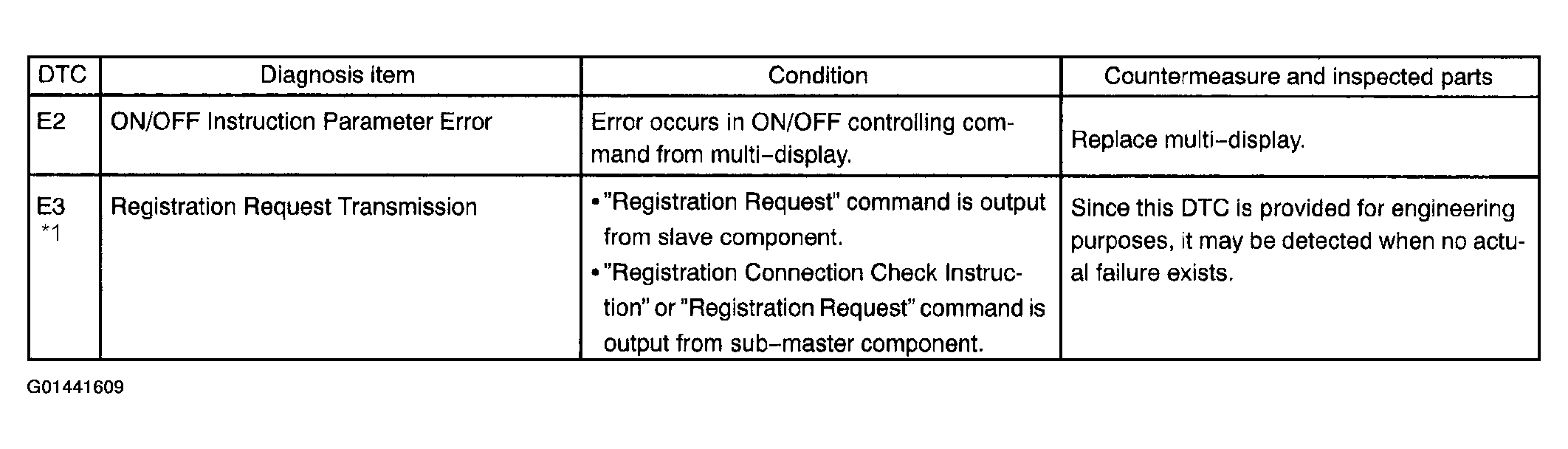

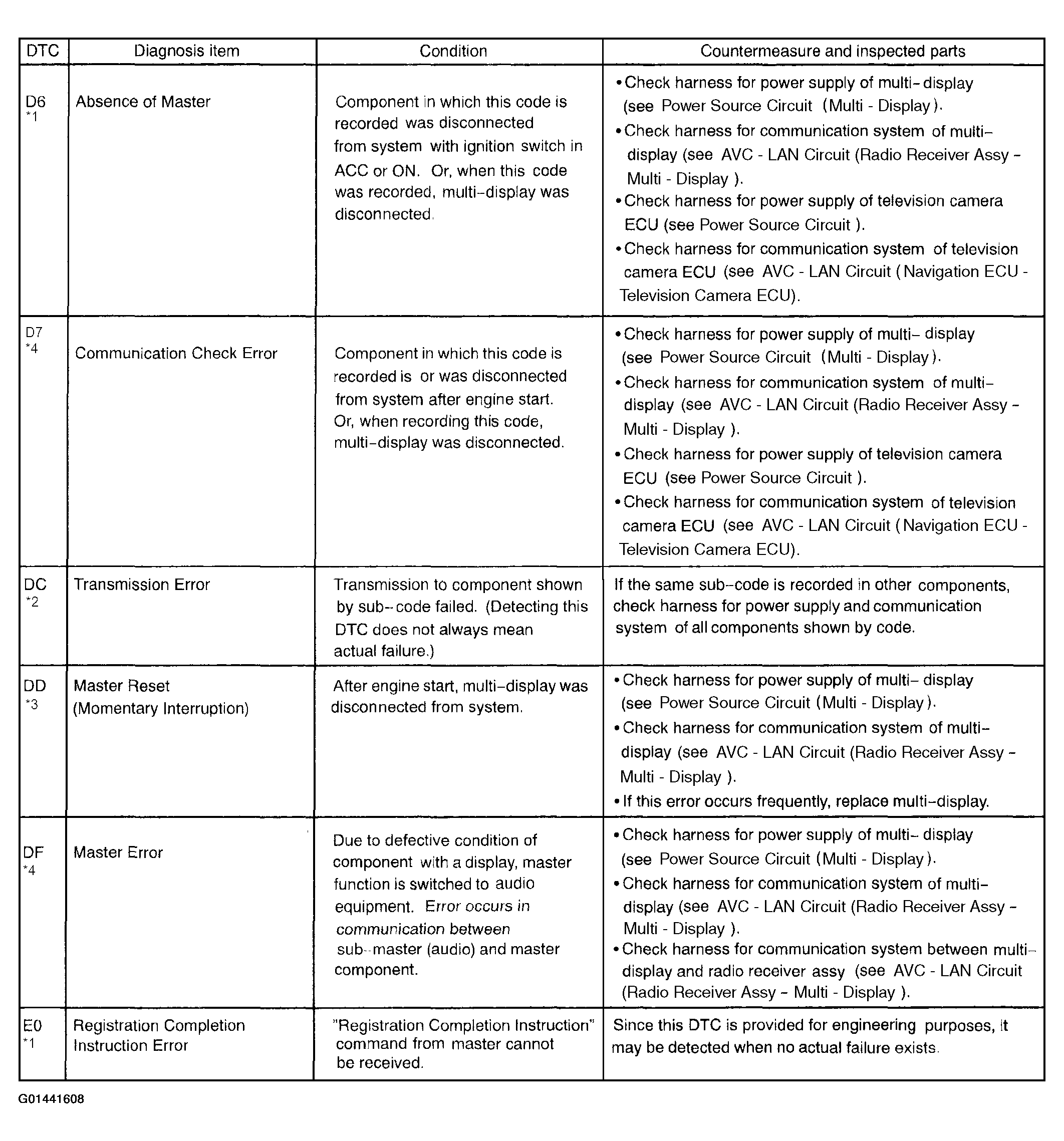

- Logical address: 01 (Communication control)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Logical address: 5C (Camera unit)
LOGICAL ADDRESS: 5C (CAMERA UNIT)
| DTC | Diagnosis item | Condition | Counter measure and inspected parts |
|---|---|---|---|
| 40 | Camera Picture Error | Synchronous signal from the camera cannot be transmitted. | Check the wire harness between television camera assy and television camera ECU (See DISPLAY SIGNAL CIRCUIT (TELEVISION CAMERA ASSY - TELEVISION CAMERA ECU) ). |
