Rear View Monitor System - Diagnostics: Location

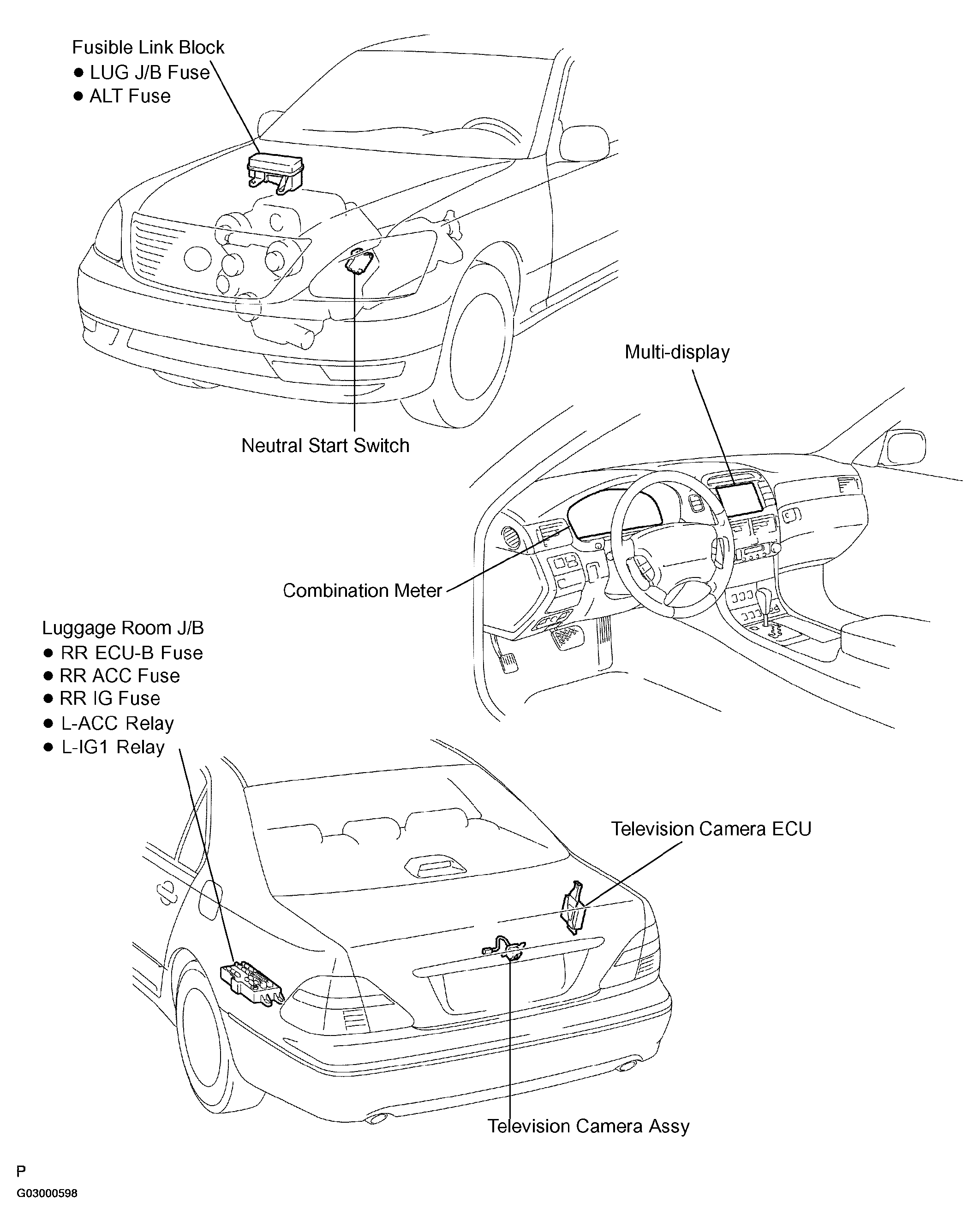

Fig 1: Identifying Rear View Monitor System Components And Replacements Location
G03000598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
