Climate Control Does Not Operate (Blinking Pattern 1): Wiring Diagram

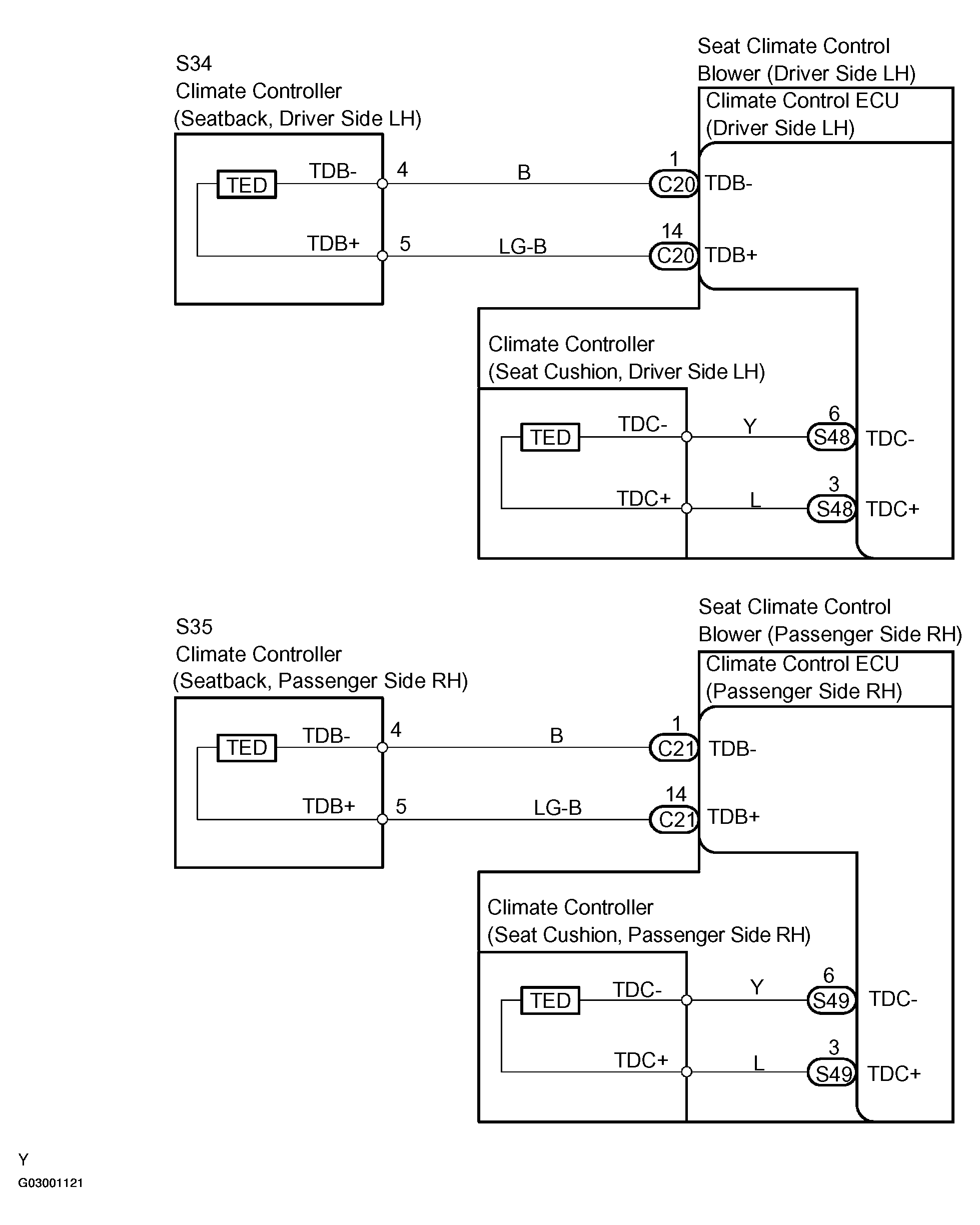

Fig 1: Climate Control Does Not Operate (Blinking Pattern 1) Wiring Diagram (1 Of 3)
G03001121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

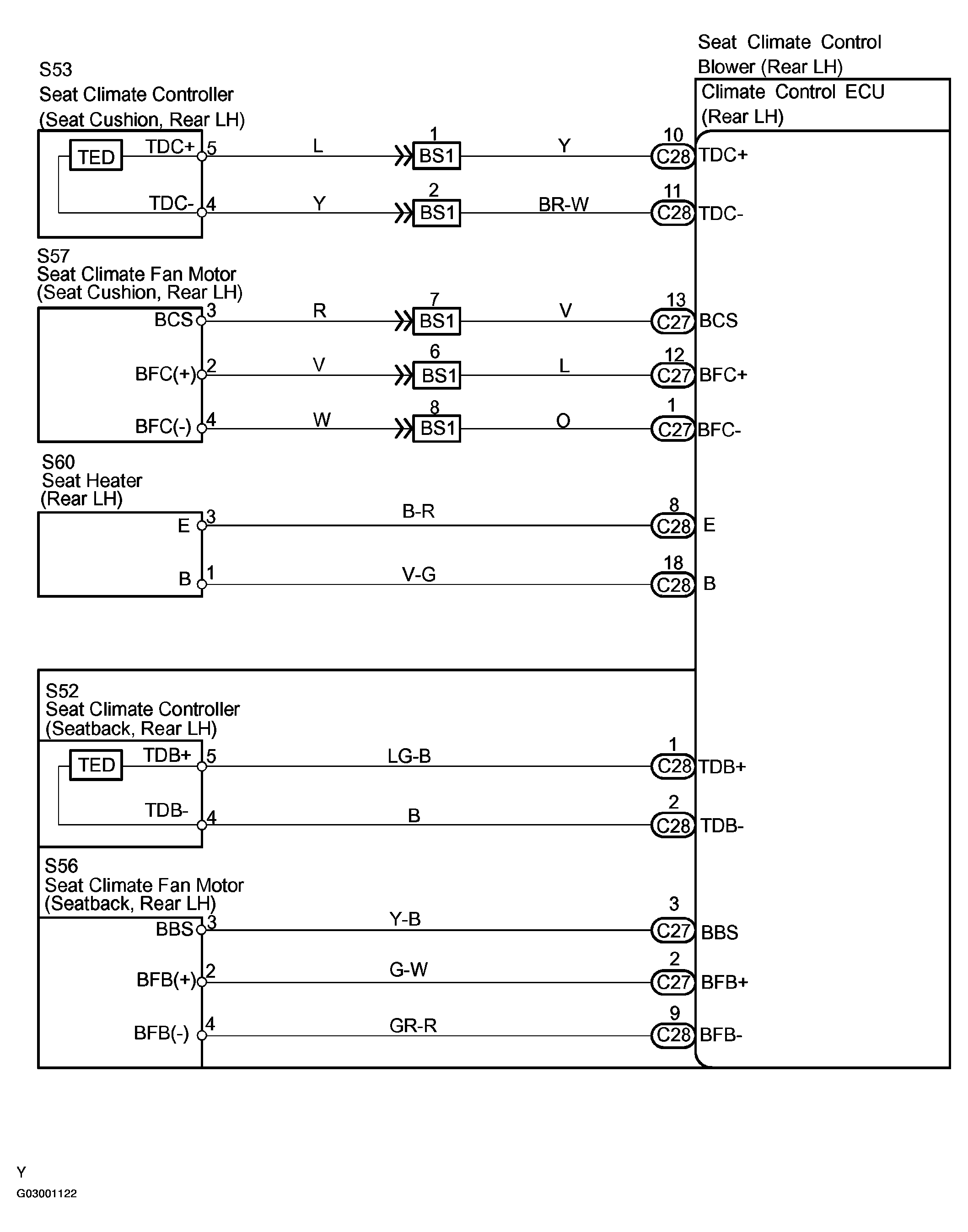

Fig 2: Climate Control Does Not Operate (Blinking Pattern 1) Wiring Diagram (2 Of 3)
G03001122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

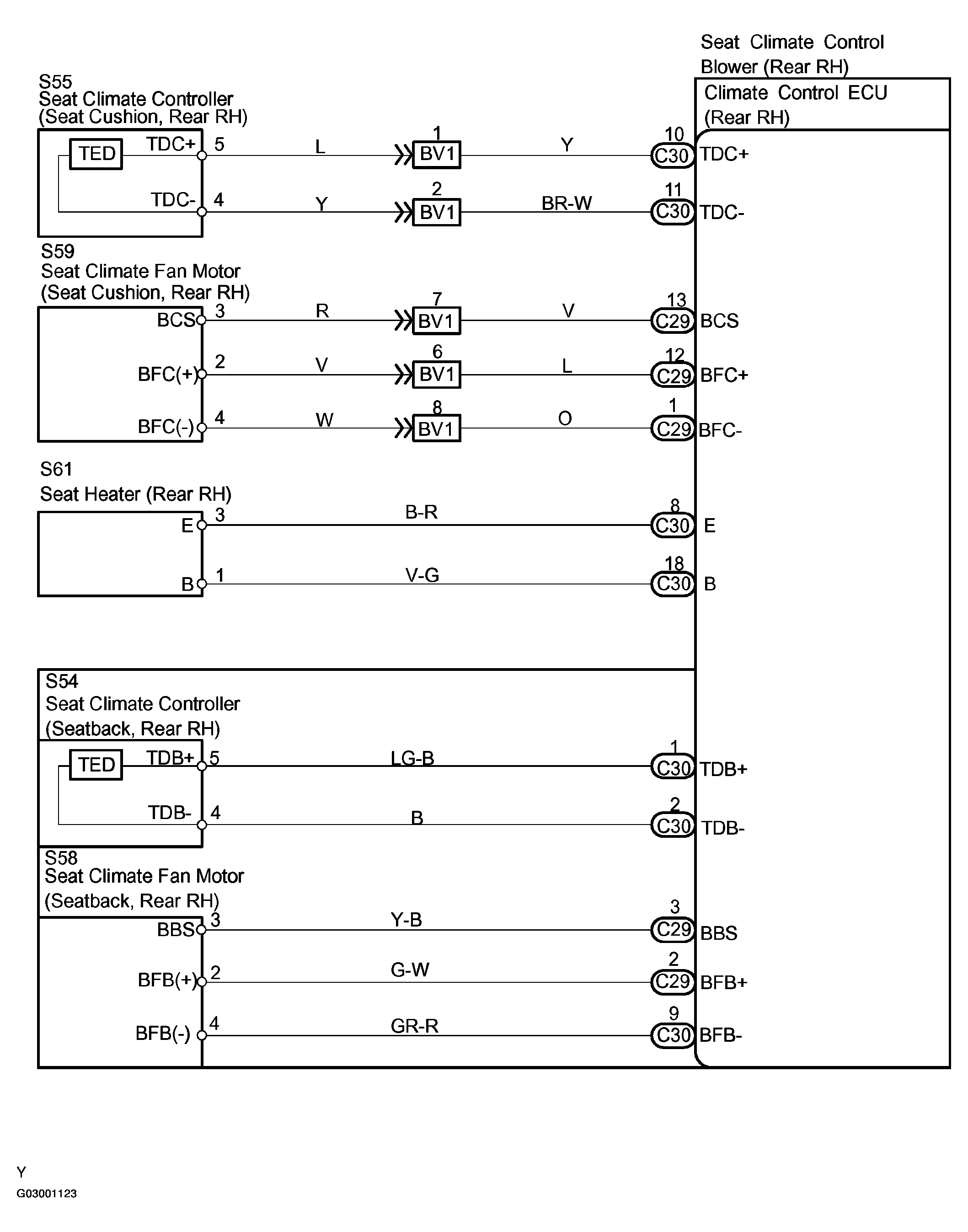

Fig 3: Climate Control Does Not Operate (Blinking Pattern 1) Wiring Diagram (3 Of 3)
G03001123Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
