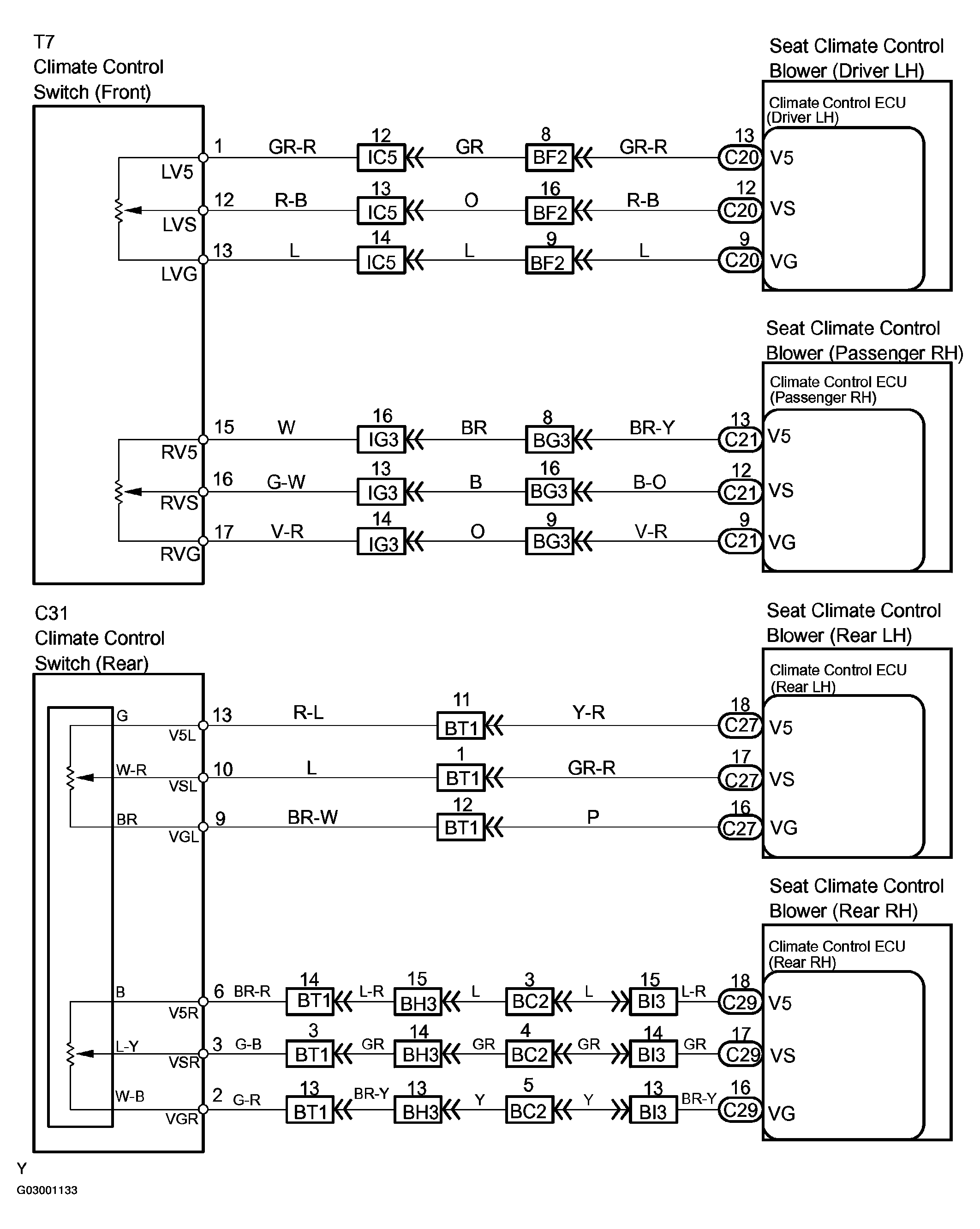

Climate Control Does Not Operate (Blinking Pattern 2): Wiring Diagram

Fig 1: Climate Control Does Not Operate (Blinking Pattern 2) Wiring Diagram
G03001133Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
