Wire Diagram

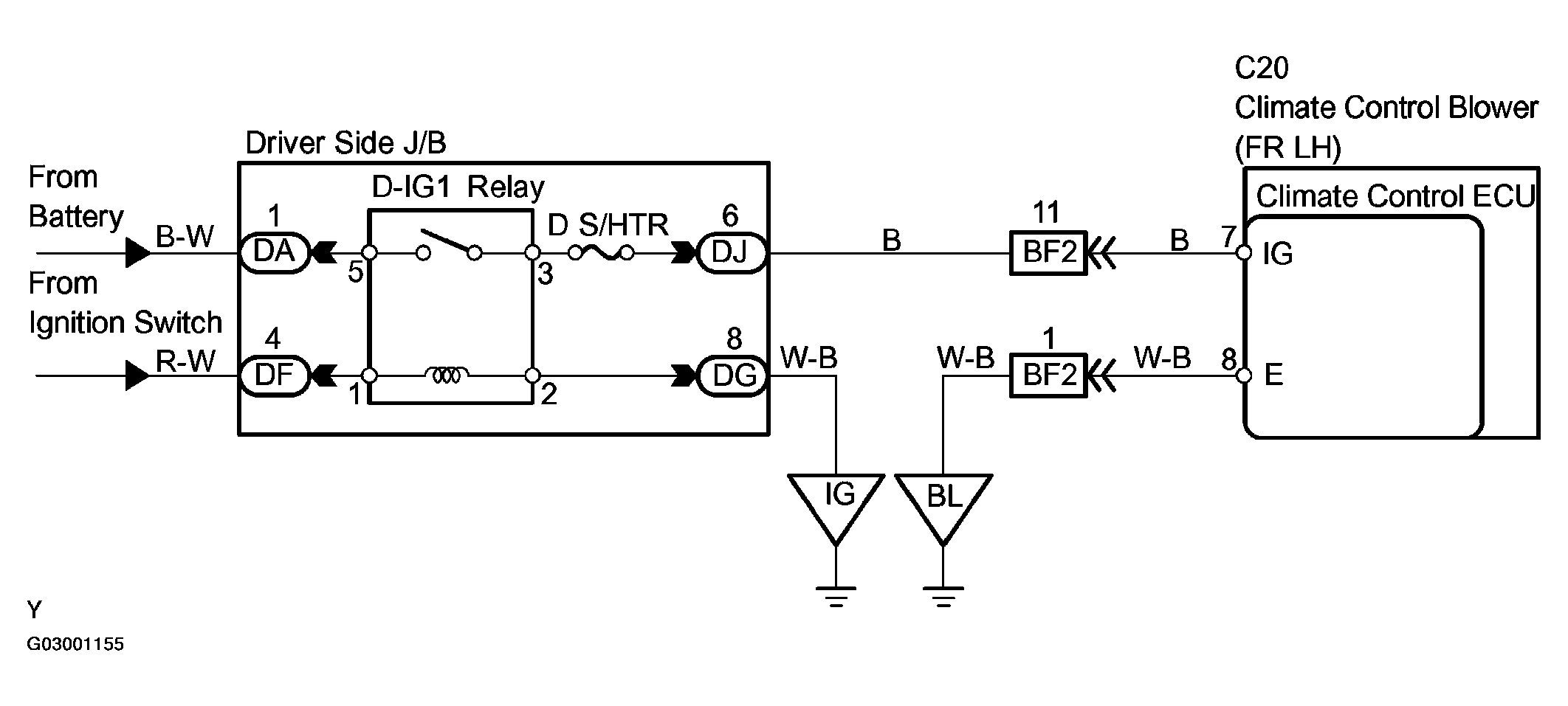

Fig 1: Climate Control System Does Not Operate On Driver Side - Wire Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
