Diagnostic Trouble Code Chart

HINT:

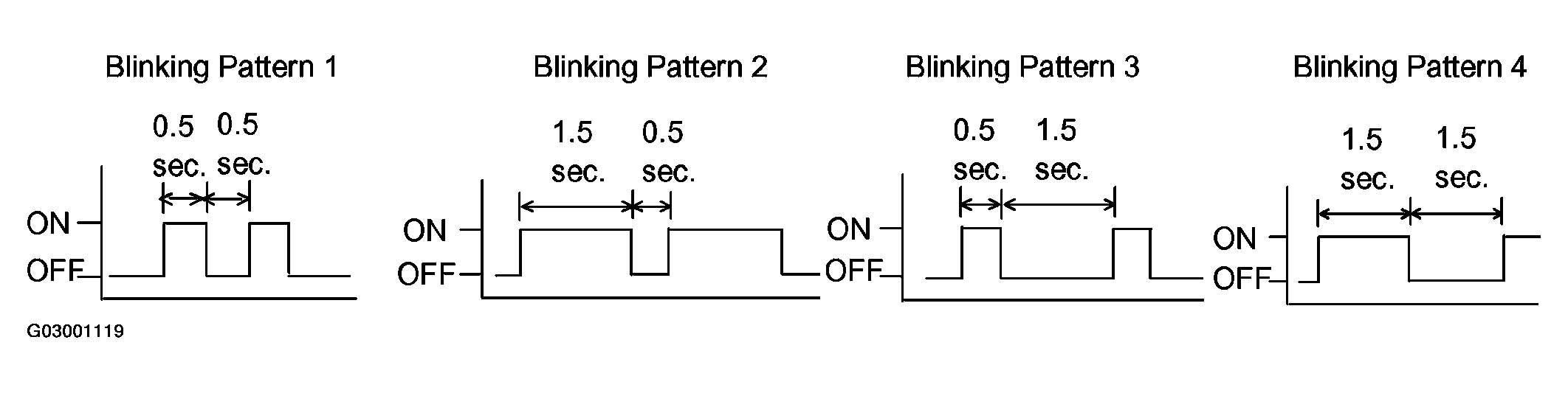

While the climate control seat is operated, if the indicator of the climate control switch blinks in any of the patterns shown in the illustration, the climate control ECU will enter fail-safe mode.

Fig 1: Climate Control Switch Blinking Patterns

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

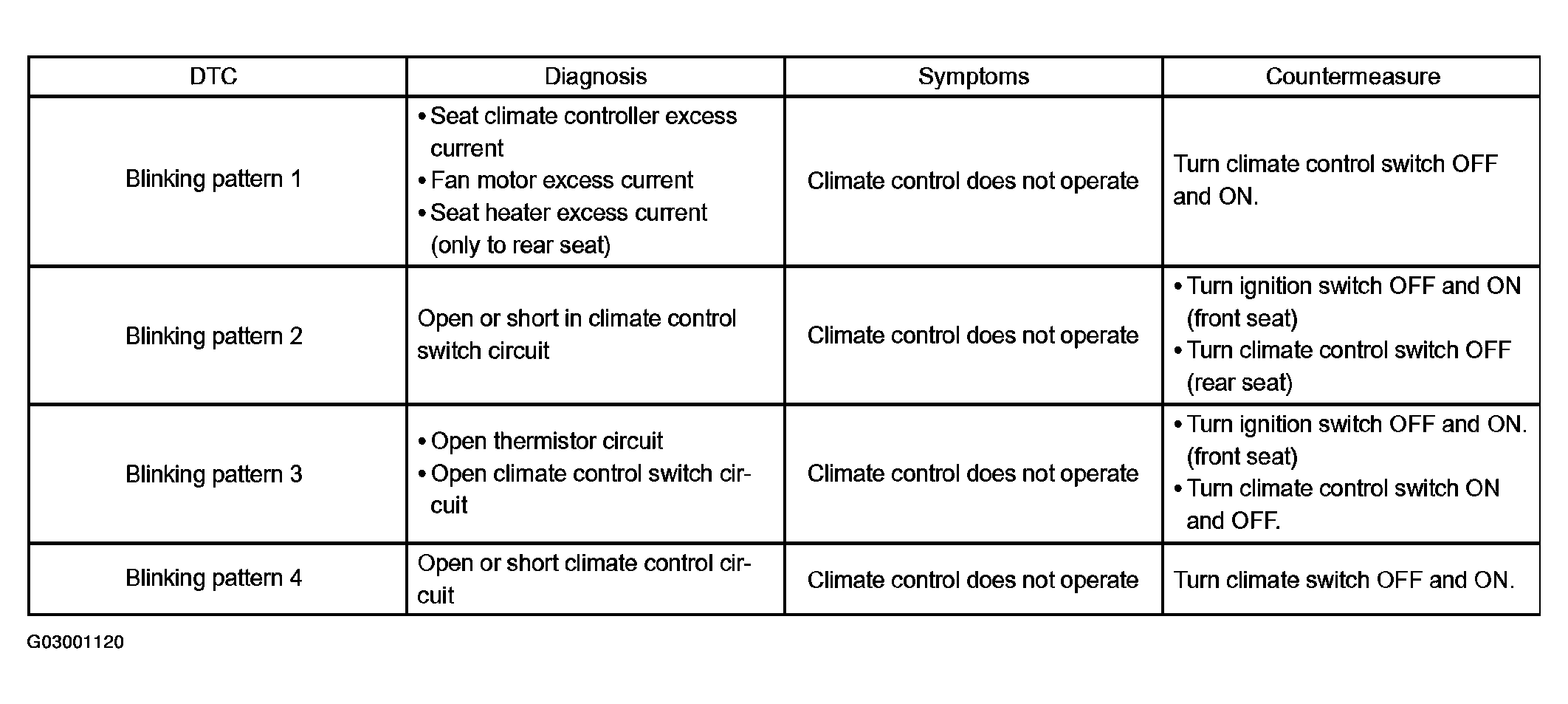

After identifying the blinking pattern, troubleshoot according to the flow chart below.

Fig 2: Diagnostic Trouble Code Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
