Position Sensor Circuit: Wiring Diagram

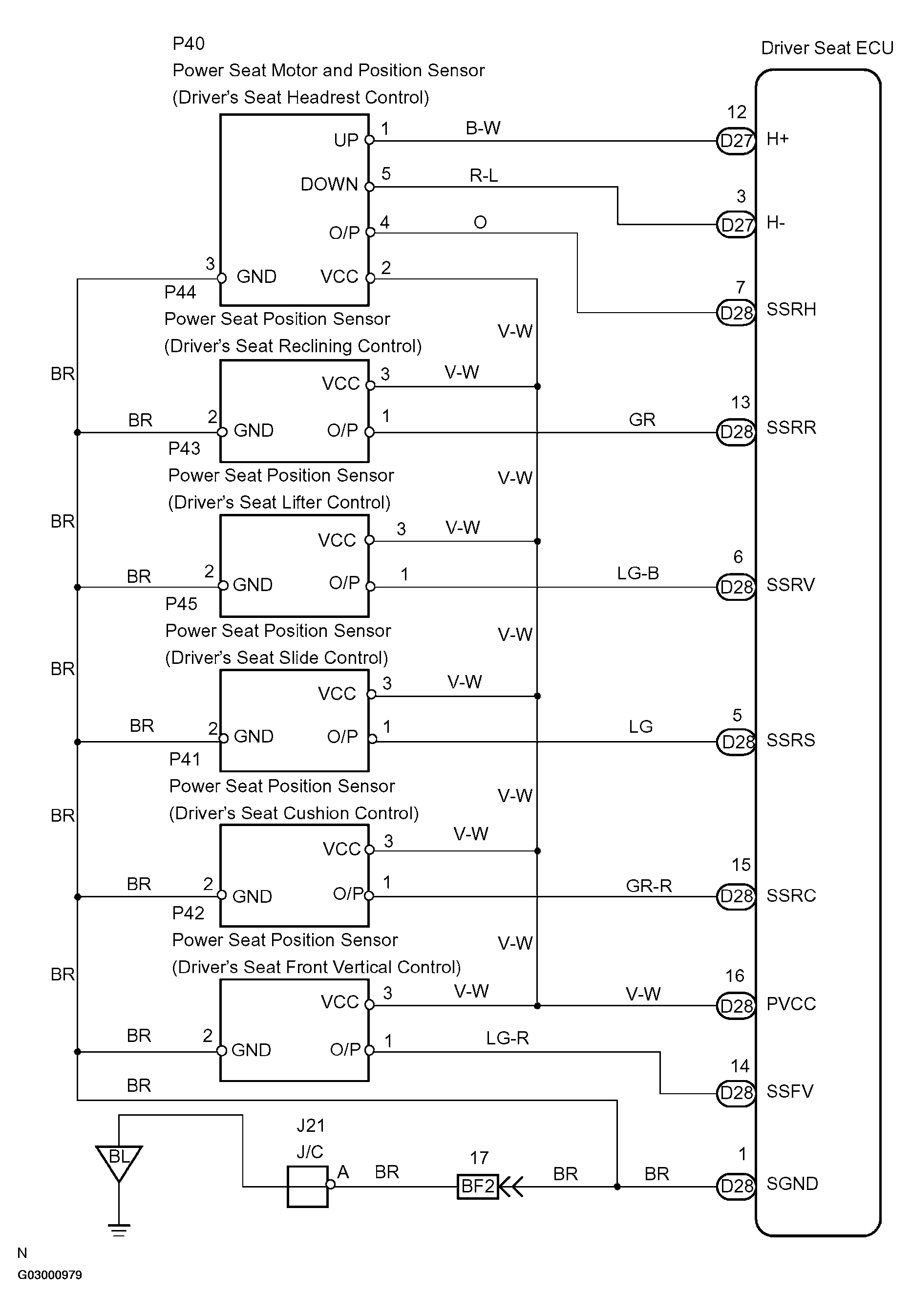

Fig 1: Position Sensor Wiring Diagram

G03000979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
