Circuit Description

This DTC is output when any of the switches on the power window regulator master switch assy is operated.

HINT:

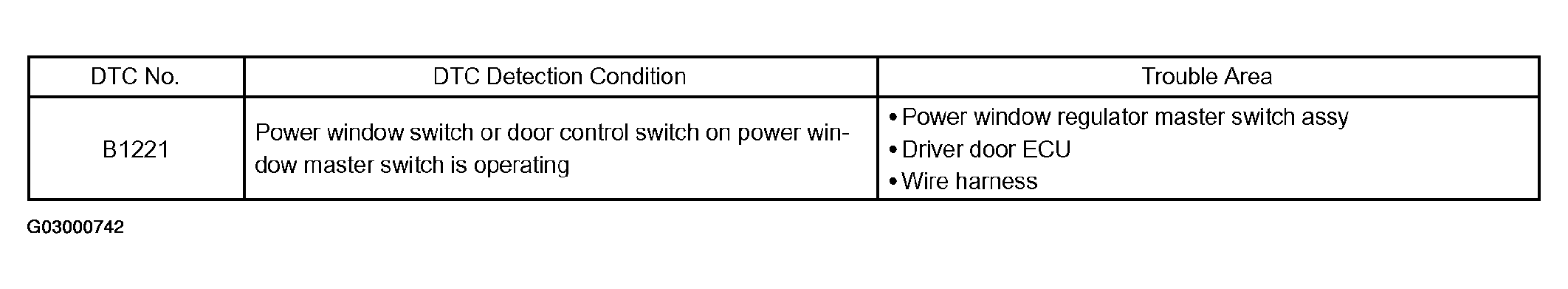

Fig 1: DTC - B1221 Trouble Detection Chart
G03000742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
