Power Window Regulator Master Switch Circuit (Driver Side): Wiring Diagram

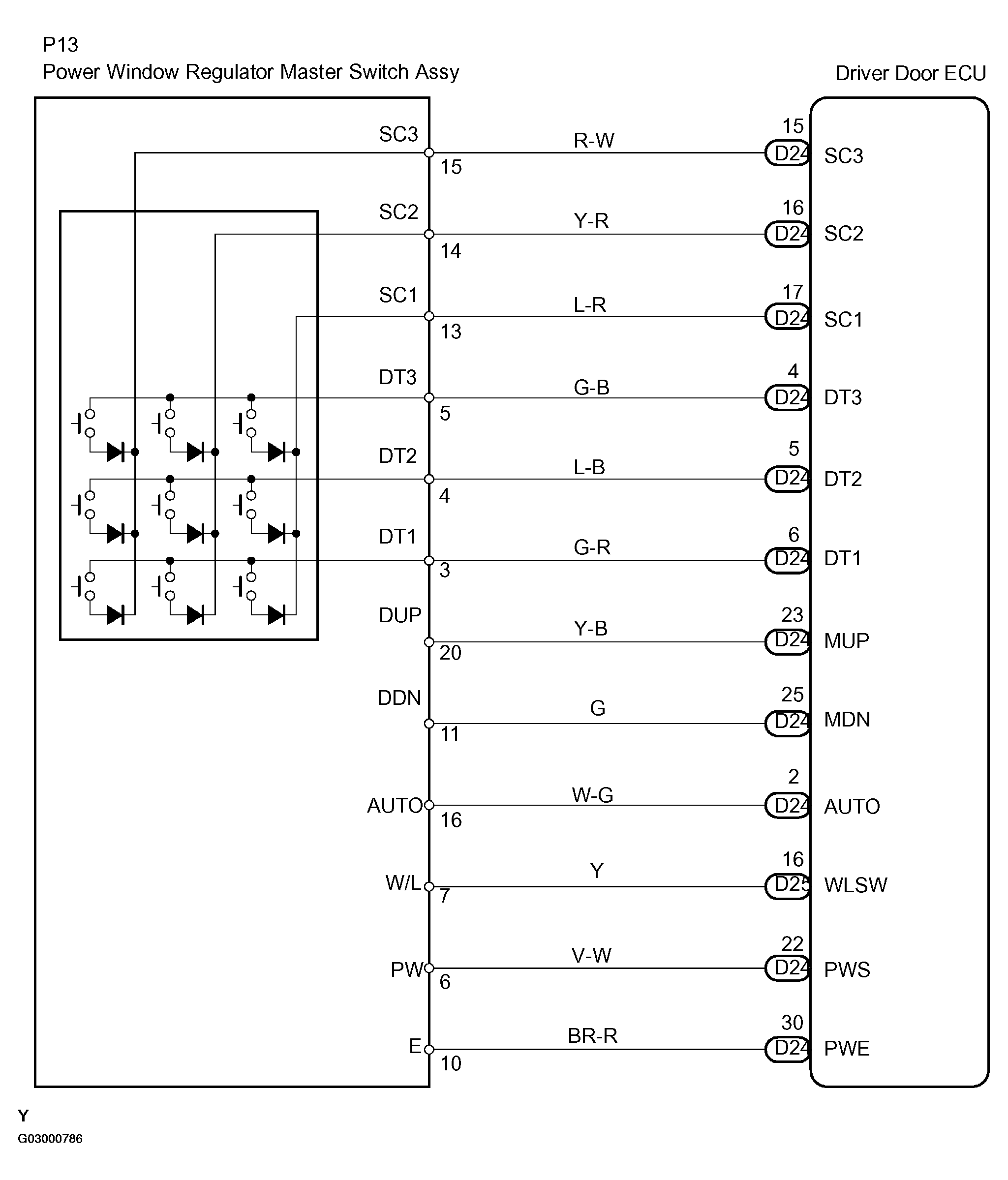

Fig 1: Power Window Regulator Master Switch Circuit Wiring Diagram (Driver Side)
G03000786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
