Power Window Regulator Switch Circuit (Passenger Side): Wiring Diagram

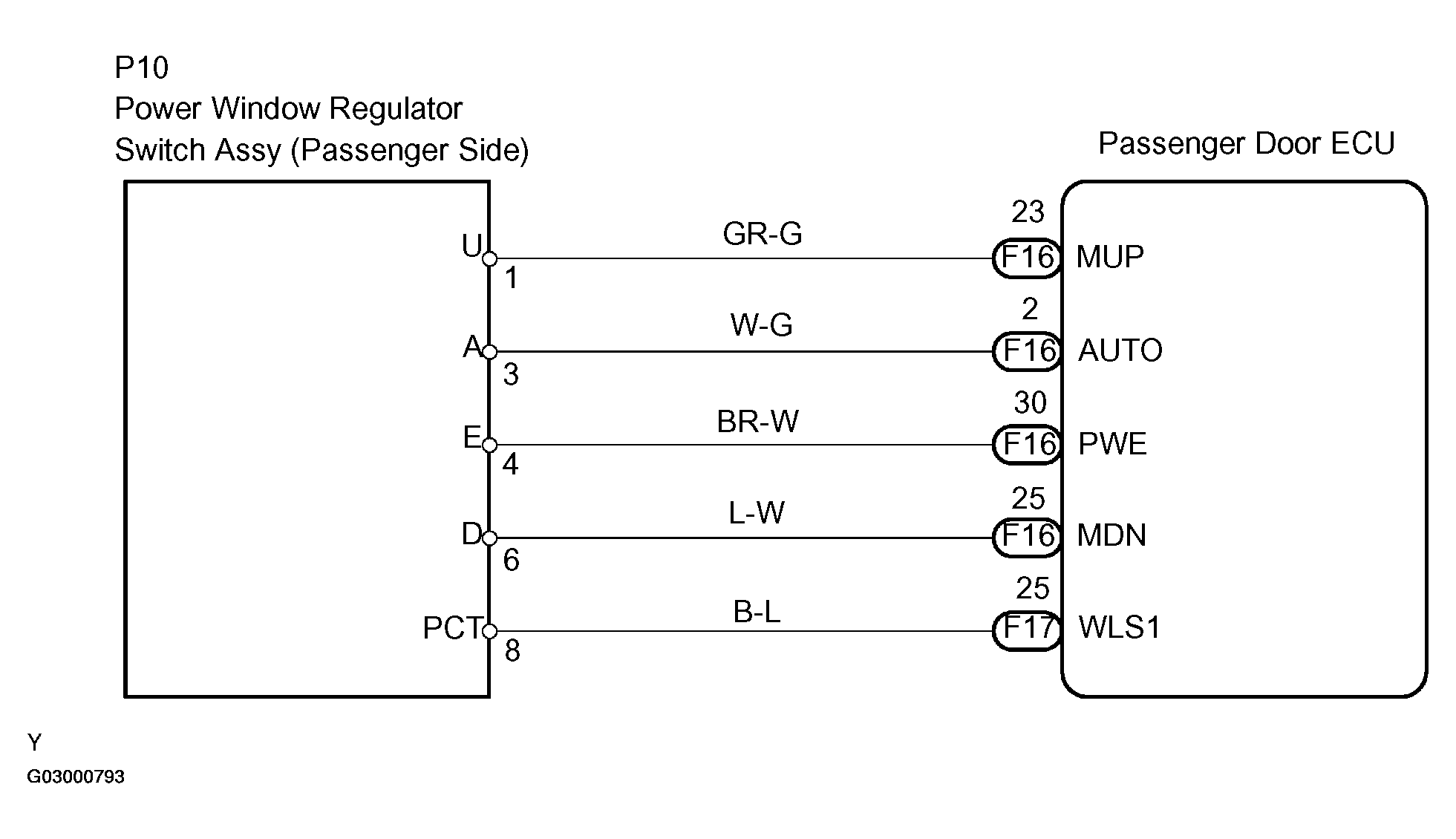

Fig 1: Power Window Regulator Switch Circuit Wiring Diagram (Passenger Side)
G03000793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
