Power Window Regulator Switch Circuit (Rear RH): Wiring Diagram

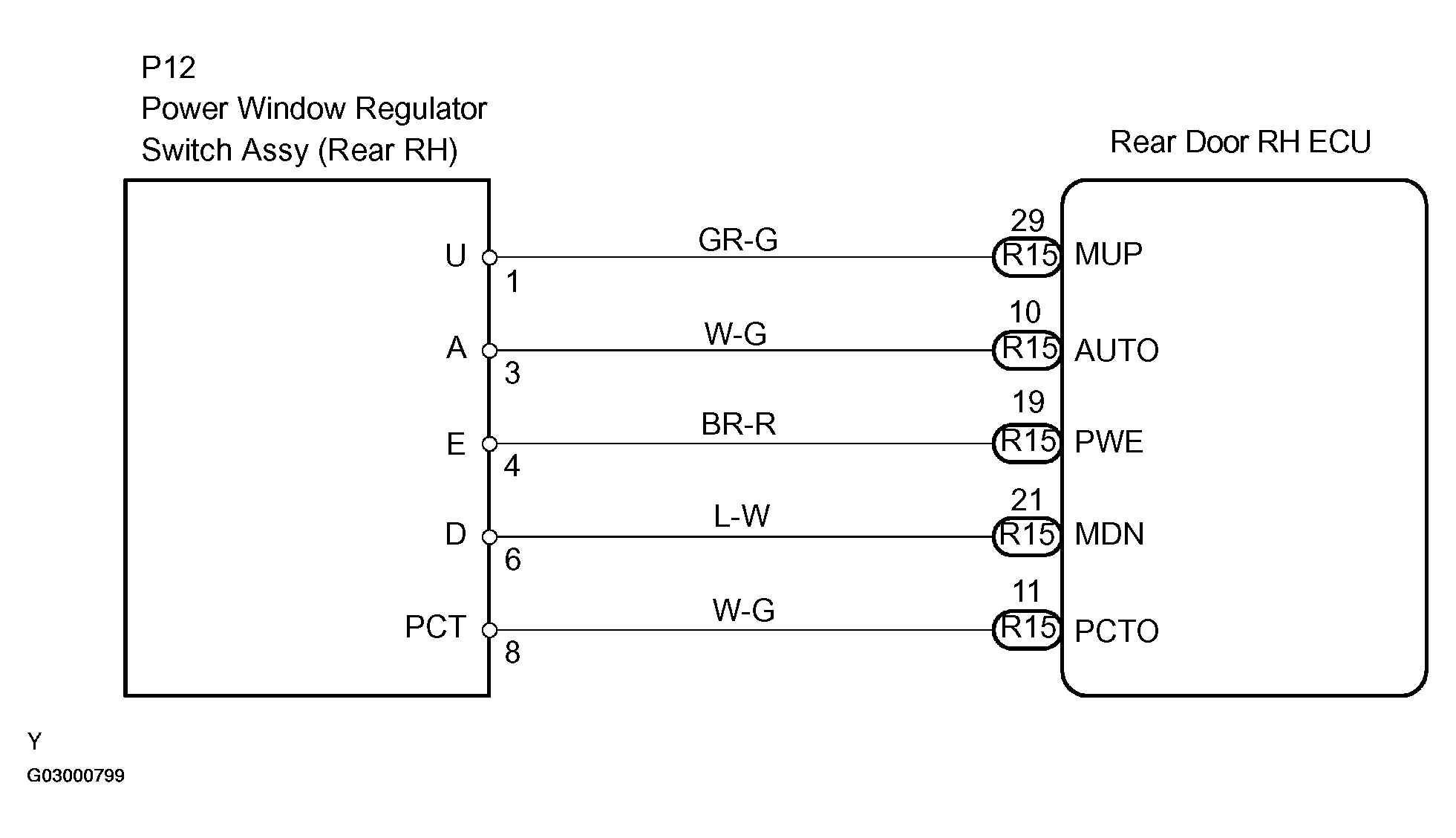

Fig 1: Power Window Regulator Switch Circuit Wiring Diagram (Rear RH)
G03000799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
