Outer Rear View Mirror ASSY: Replacement

HINT:

The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
Use the same procedures for the RH side and LH side.
The procedures listed below are for the LH side.
A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

REMOVE DOOR INSIDE HANDLE BEZEL NO. 2 LH (See OVERHAUL )
REMOVE FRONT ARMREST BASE PANEL UPPER LH (See OVERHAUL )
REMOVE FRONT DOOR TRIM BOARD SUB-ASSY LH (See step 4 in OVERHAUL )
REMOVE DOOR FRAME GARNISH LH (See step 5 in OVERHAUL )
REMOVE OUTER REAR VIEW MIRROR ASSY
1. Disconnect the connector.

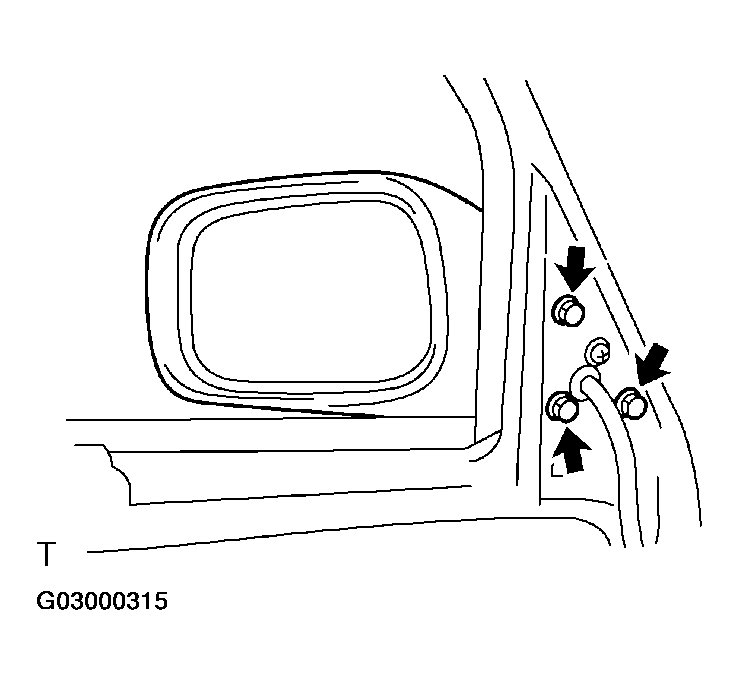

2. Remove the 3 bolts and mirror.
Fig 1: Removing Outer Rear View Mirror Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OUTER MIRROR COVER

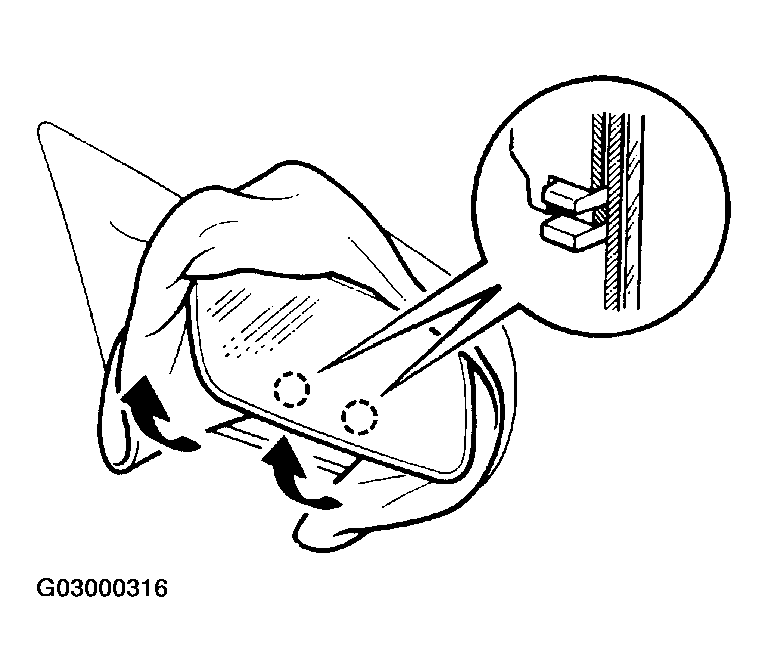

1. Insert the shop rag between the mirror and mirror body. Wrap the mirror in the shop rag.

  Fig 2: Wrapping Mirror In Shop Rap
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Pull up the lower side of the shop rag to disconnect the mirror joint.

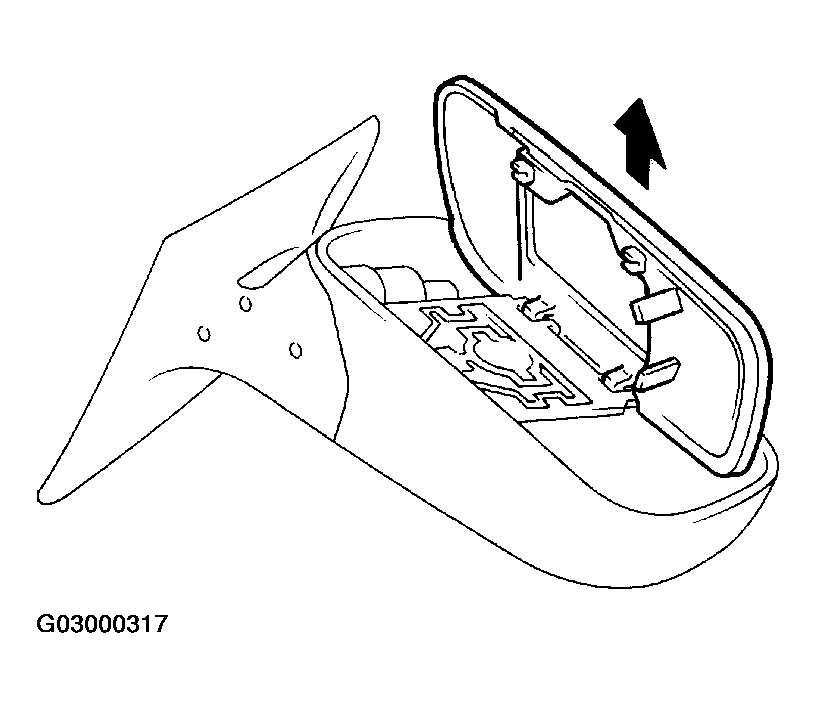

3. Pull up the mirror and disconnect it.

  Fig 3: Disconnecting Mirror
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

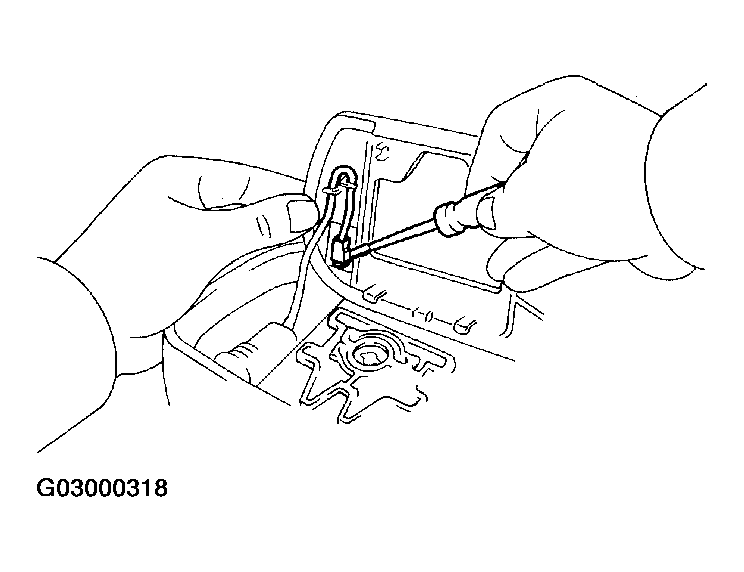

4. Using a small screwdriver, disconnect the connector.

  Fig 4: Disconnecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

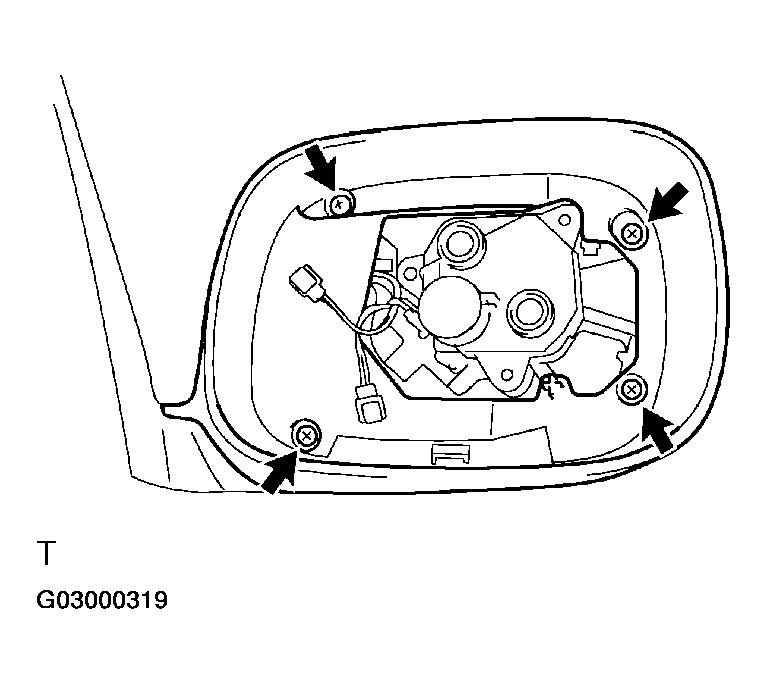

5. Remove the 4 screws and mirror cover.

  Fig 5: Removing Mirror Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

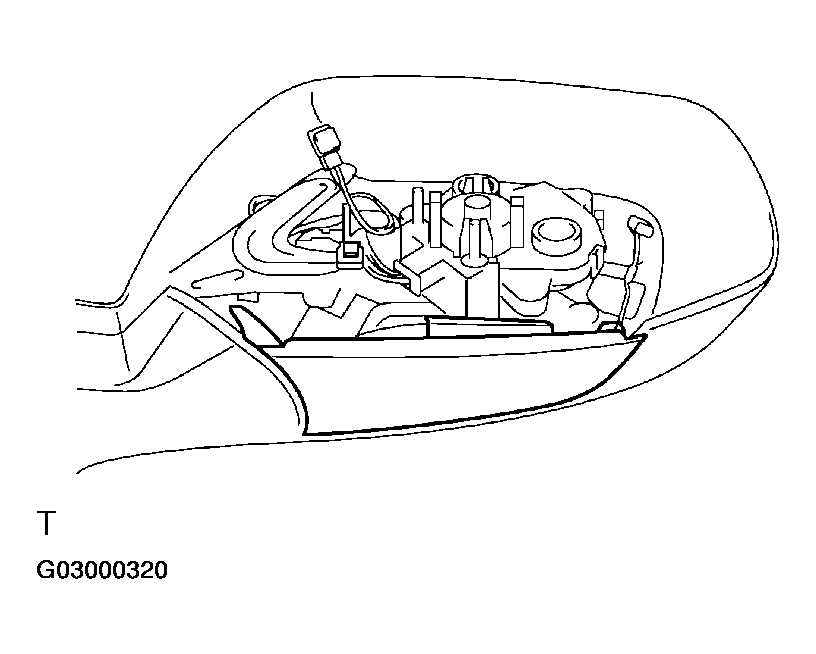

6. Remove the mirror lamp.

  Fig 6: Removing Mirror Lamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

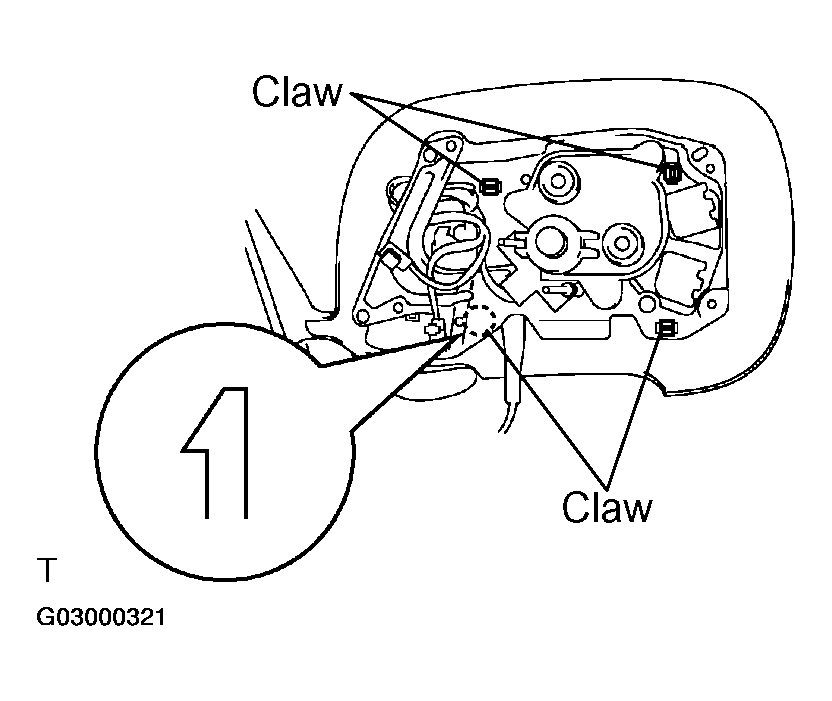

7. Using a screwdriver, disengage the 4 claws and remove the back mirror cover.
Fig 7: Removing Back Mirror Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL OUTER REAR VIEW MIRROR ASSY
1. Install the mirror with the 3 bolts.
1. Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
Fig 8: Installing Outer Rear View Mirror Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
