Data List/Active Test
DATA LIST
According to the DATA LIST displayed by the hand-held tester, you can read the value of the switch, sensor, actuator and so on without parts removal. Reading the DATA LIST as the first step of troubleshooting is one method to shorten work time.
- Warm up the engine.
- Turn the ignition switch to OFF.
- Connect the hand-held tester to DLC3.
- Turn the ignition switch to ON.
- Operate the hand-held tester according to the steps on the display and select "DATA LIST".

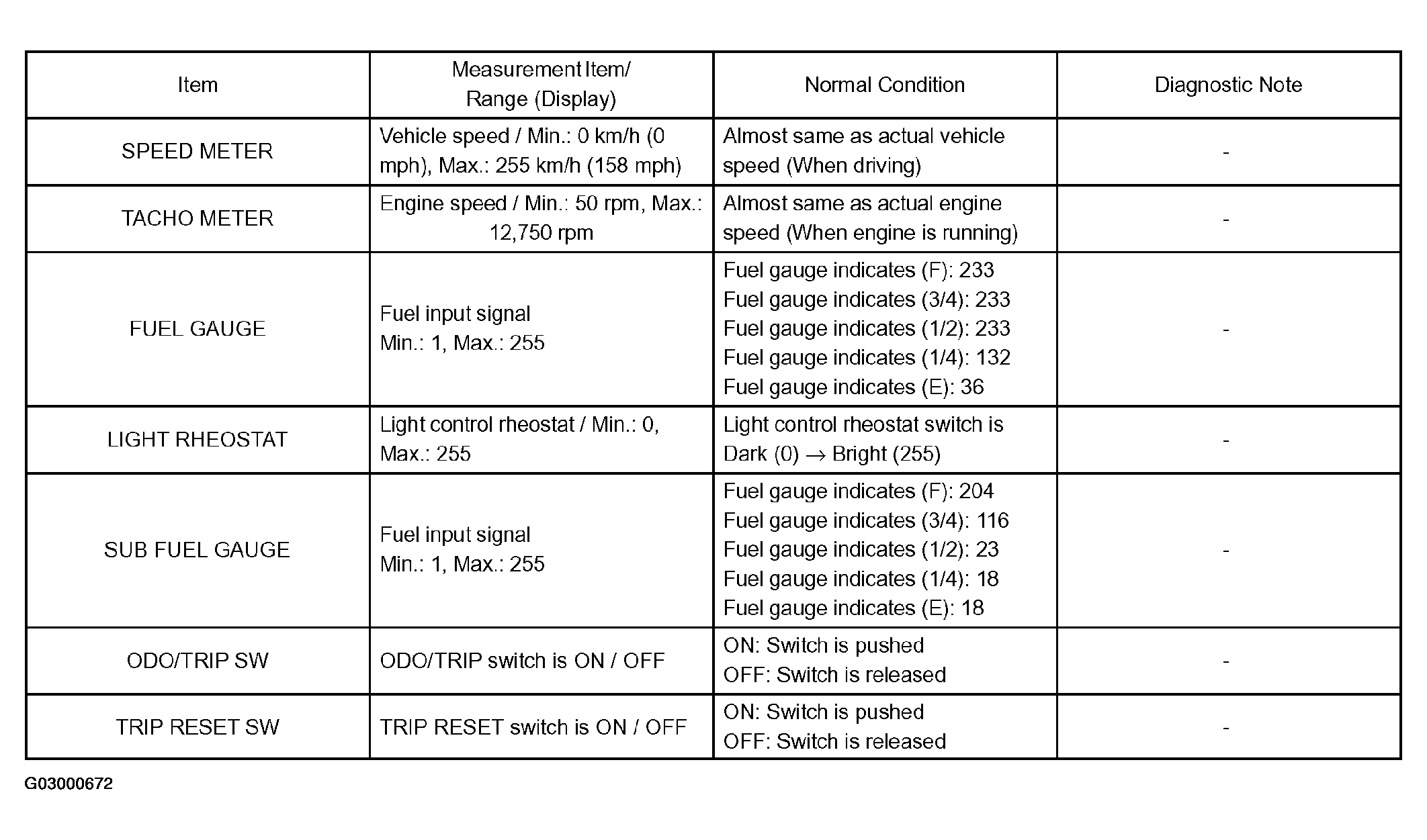

METER:

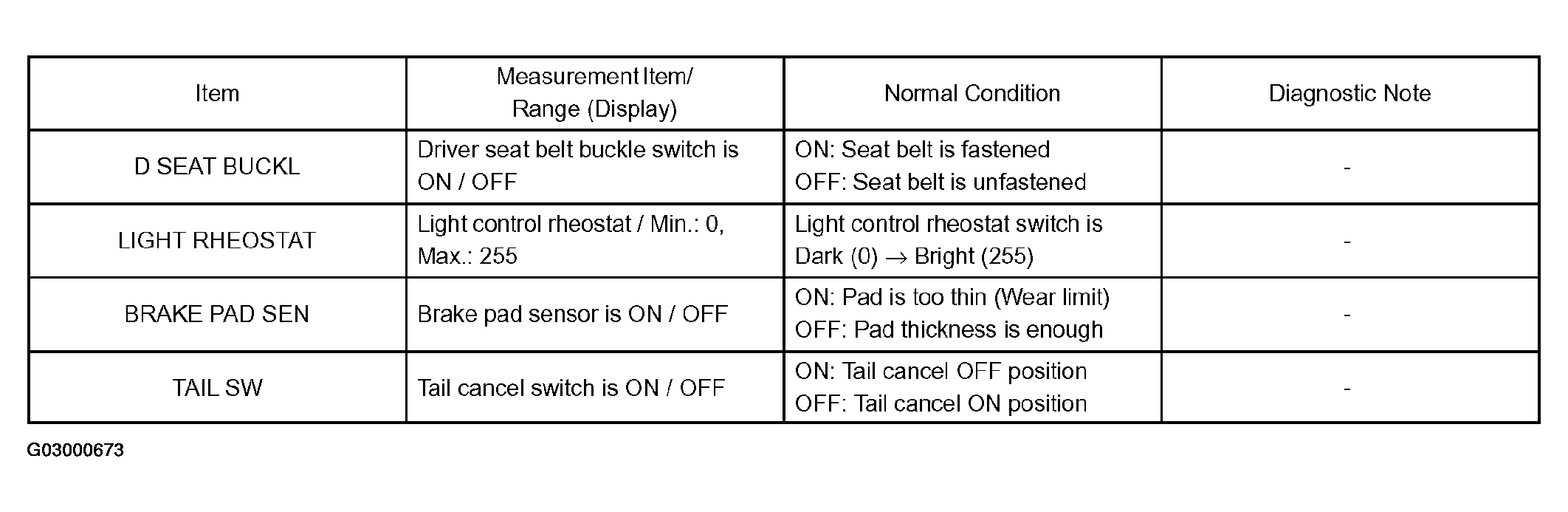

BODY No.2:

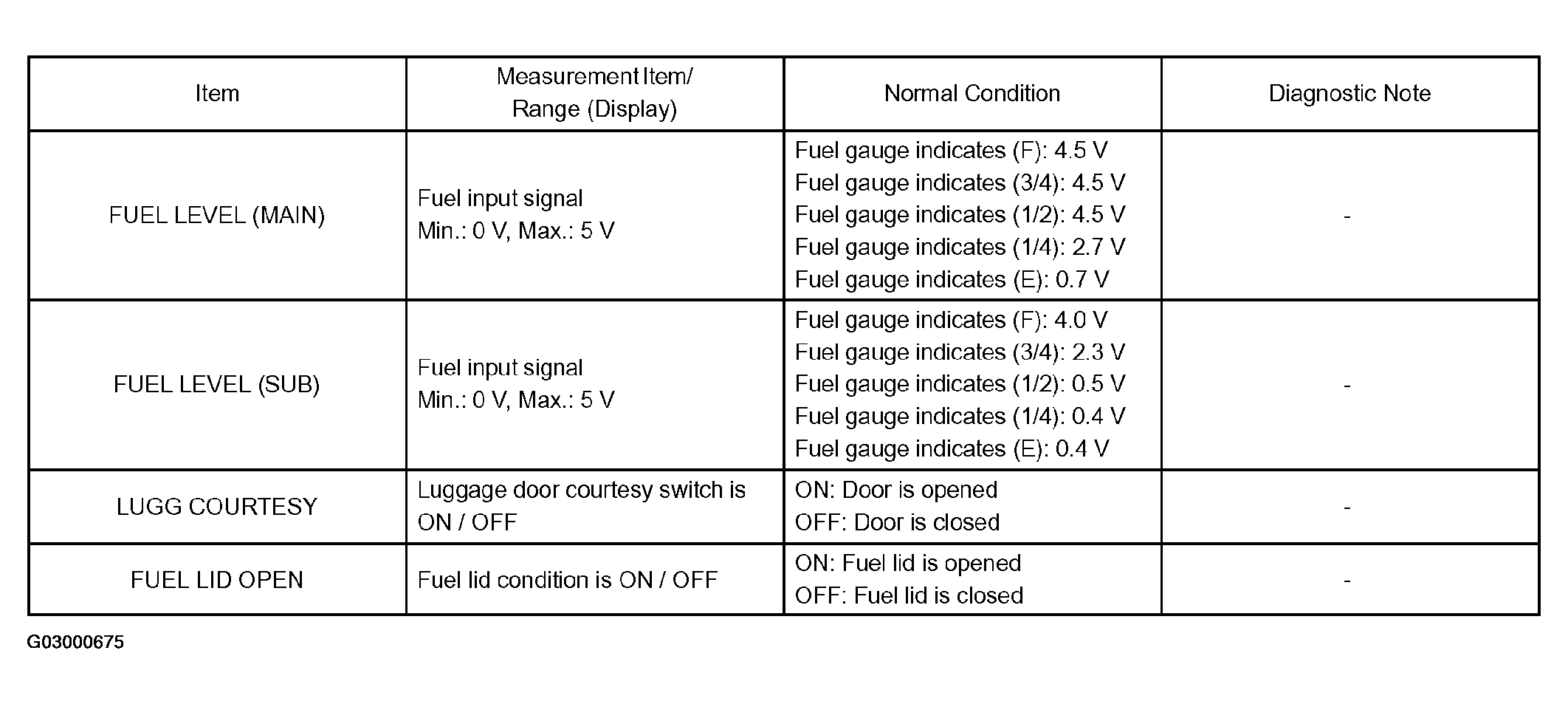

BODY No.3:

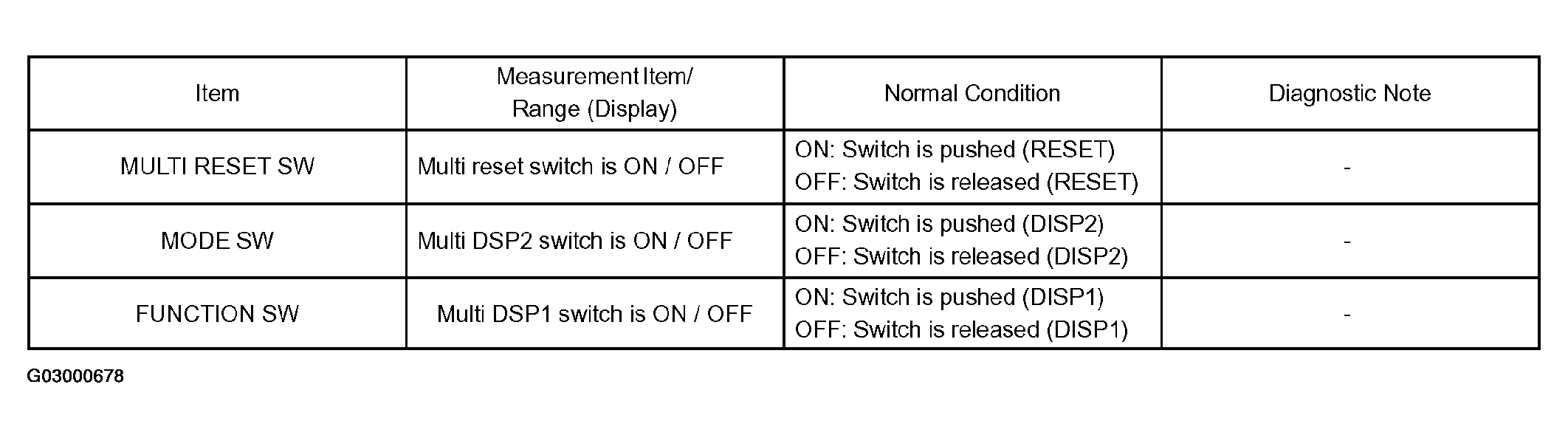

BODY No.4:

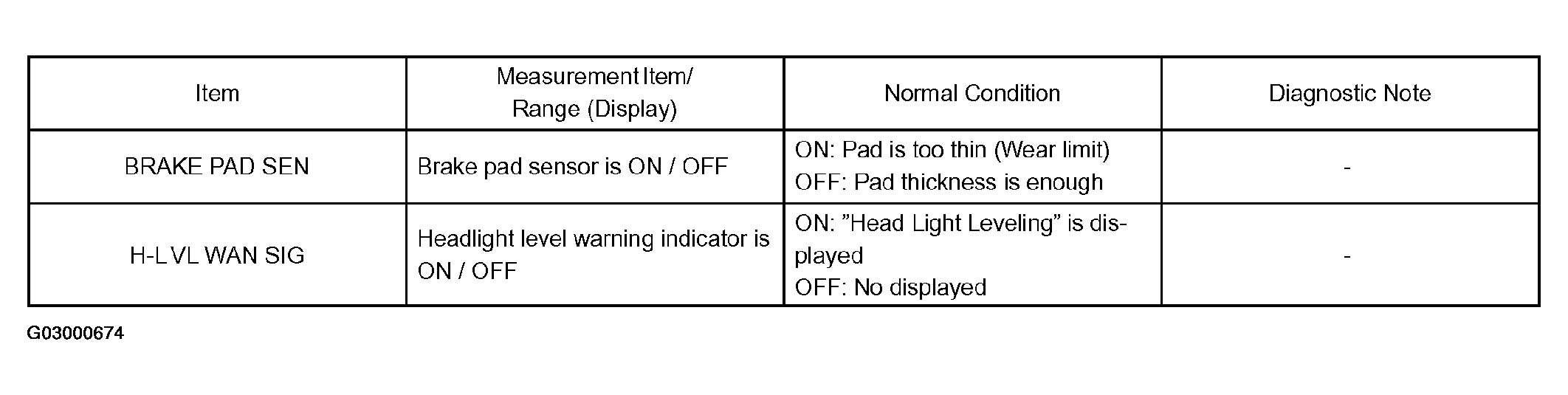

BODY No.5:

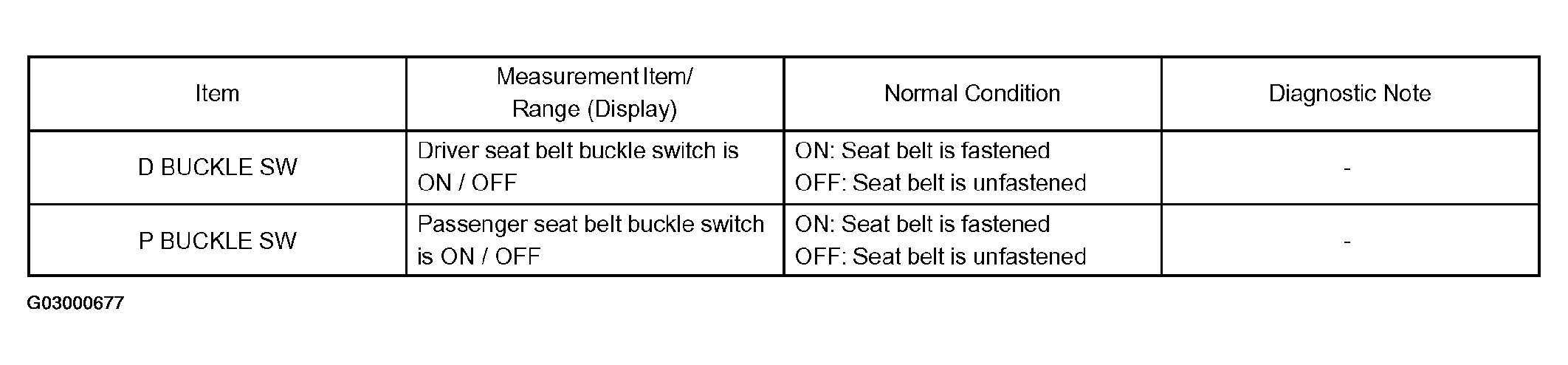

SRS AIRBAG:

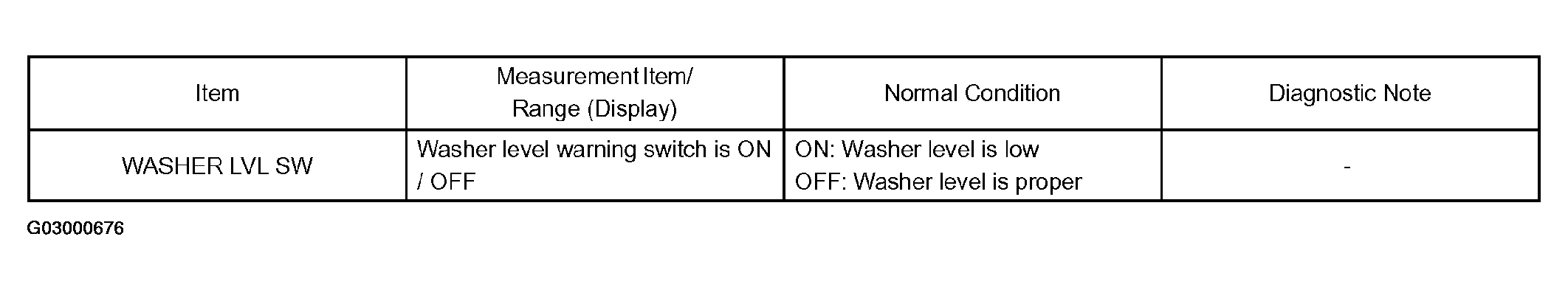

STEERING PAD:
ENGINE:
ENGINE DATA LIST ITEM REFERENCE
| Item | Measurement Item/ Range (Display) | Normal Condition | Diagnostic Note |
|---|---|---|---|
| VEHICLE SPEED | Vehicle speed / Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) | Almost same as actual vehicle speed (When driving) | - |
| ENGINE SPD | Engine speed / Min.: 0 rpm, Max.: 16,383 rpm | Almost same as actual engine speed (When engine is running) | - |
| COOLANT TEMP | Coolant Temperature / Min.: -40°C (-40°F), Max.: 140 °C (284 °F) | After warning up: 80 to 95°C (178 to 203°F) | If the value is "-40°C (-40°F)" or "140°C (248 °F)", sensor circuit is open or shorted |
ABS:
ABS DATA LIST ITEM REFERENCE
| Item | Measurement Item/ Range (Display) | Normal Condition | Diagnostic Note |
|---|---|---|---|
| (FR/FL/RR/RL) SPD | Vehicle speed / Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) | Almost samo as actual speed (When driving) | - |
ACTIVE TEST
Performing the ACTIVE TEST using the hand-held tester allows the meters, indicators and so on to operate without parts removal. Performing the ACTIVE TEST as the first step of troubleshooting is one way to shorten labor time.
It is possible to display the DATA LIST on hand-held tester during the ACTIVE TEST.
- Connect the hand-held tester to DLC3.
- Turn the ignition switch to the ON position.
- From the display on tester, perform the "ACTIVE TEST".
METER:
METER ACTIVE TEST REFERENCE
| Item | Test Details | Diagnostic Note |
|---|---|---|
| SPEED METER | 0 / 40(24) / 80(48) / 120(72) / 160(96) / 180(108) / 200(120) km/h(mph) | - |
| TACHOMETER | Orpm / 1000rpm / 2000rpm / 3000rpm / 4000rpm / 5000rpm / 6000rpm / 7000rpm | - |
| FUEL GAUGE | OFF, EMPTY, 1/2, FULL | - |
| COOLANT TEMP | LOW /NORMAL /HIGH | - |
| LOW FUEL WARN | Indicat. Lamp FUEL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| OPEN DOOR WARN | Indicat. Lamp DOOR (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| P-BELT REMIND | Indicat. Lamp P-SEAT BELT (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| D-BELT REMIND | Indicat. Lamp D-SEAT BELT (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| OIL PRESS WARN | Indicat. Lamp OIL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| DISCHARGE WARN | Indicat. Lamp CHARGE (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| BRAKE WARN | Indicat. Lamp BRAKE (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| HEADLIGHT INDIC | Indicat. Lamp HEAD (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TAILLIGHT INDIC | Indicat. Lamp TAIL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| CRUISE INDIC | Indicat. Lamp CRUISE (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ECT SNOW INDIC | Indicat. Lamp ECR SNOW (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ECT PWR INDIC | Indicat. Lamp ECT PWR (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| Rr FOG INDIC | Indicat. Lamp Rr FOG (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| OIL LEVEL WARN | Indicat. Lamp OIL LEVEL (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| Rr LIGHT INDIC | Indicat. Lamp Rr Light (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| VSC WARN | Indicat. Lamp VSC (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ARS WARN | Indicat. Lamp ARS (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| MIL (ENGINE) | Indicat. Lamp ENGINE (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| LOW WASHER WARN | Indicat. Lamp WASHER (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| Item | Test Details | Diagnostic Note |
| SRS WARN | Indicat. Lamp AIRBAG (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| HIGH BEAM INDIC | Indicat. Lamp BEAM (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TURN INDIC-L | Indicat. Lamp TURN L (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TURN INDIC-R | Indicat. Lamp TURN R (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ABS WARN | Indicat. Lamp ABS (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TRC OFF INDIC | Indicat. Lamp TRAC (TRC) OFF (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SLIP INDIC | Indicat. Lamp SLIP (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| O/D OFF INDIC | Indicat. Lamp O/D OFF (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ODO/TRIP DISP | Indicat. ODO/TRIP DISPLAY (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| A/T OIL TEMP | A/T OIL temperature operation (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| L-CRUISE DISP | Indicat. Laser Cruise DISPLAY (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| L-CRS CHECK IND | Indicat. Lamp L-CRUISE CHECK (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| L-CRS READY IND | Indicat. Lamp L-CRUISE READY (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| Fr FOG INDIC | Indicat. Lamp Fr FOG (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| TIRE PRESS WARN | Indicat. Lamp TIRE PRESS (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| AUTO LV INDIC | Indicat. Lamp HEADLAMP AUTO LEVELING (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| VSC INDIC | Indicat. Lamp VSC OFF (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| COMPASS DISP | Indicat. COMPASS DISPLAY (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| ECONO INDIC | Indicat. Lamp ECONO (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| KEY REMND BUZZR | Key remained buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| LGT REMND BUZZR | Light remained buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SEAT BELT BUZZR | Seat Belt buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| REVERSE BUZZER | Reverse buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| S SHIFT RJCT BUZ | Sports Shift reject buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| SPEED BUZZER | Speed buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| WARNING BUZZER | Warning buzzer (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
METER ACTIVE TEST REFERENCE
| Item | Test Details | Diagnostic Note |
|---|---|---|
| A/T SHIFT LCD | A/T shift LCD (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
| AFS INDICATOR | Indicat. Lamp AFS (OFF/ON) | Confirm that the vehicle is stopped and engine idling |
