Emission Control System: Inspection

  1. INSPECT CHARCOAL CANISTER ASSY
    1. Visually check the charcoal canister for cracks or damage.

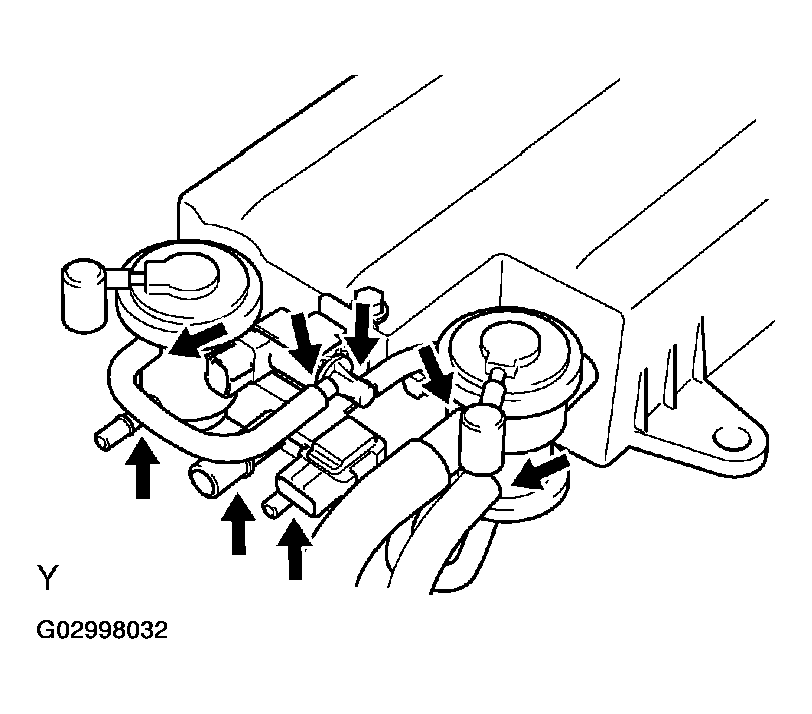

      Fig 1: Checking Charcoal Canister For Cracks Or Damage
      G02998032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect the charcoal canister operation.
      1. Plug the vent port with the cap.
      2. While holding the purge port closed, blow air (1.76 kPa, 18 gf/cm2 , 0.26 psi) into the EVAP port to check that air flows from the air drain port.

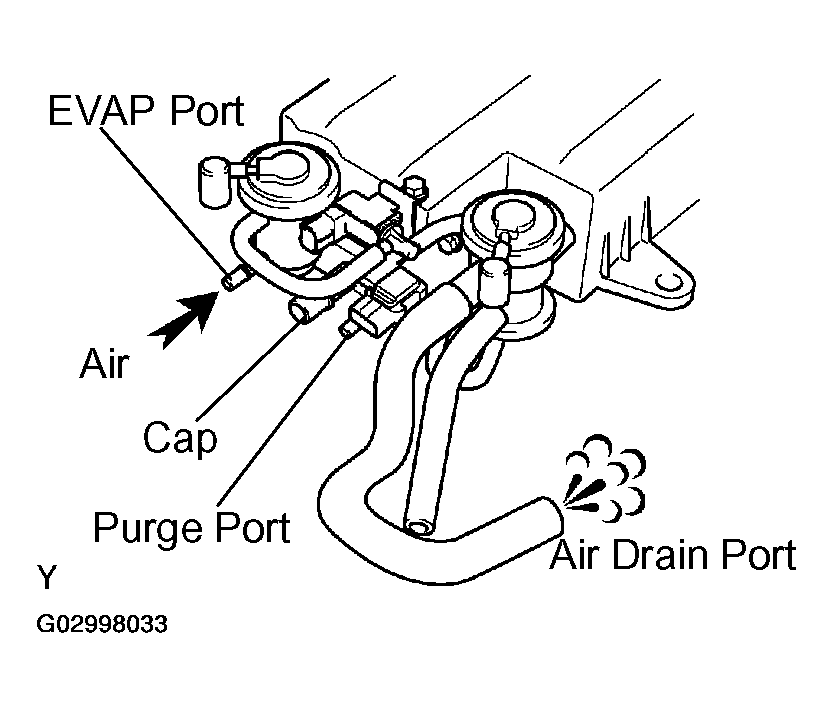

        Fig 2: Checking Air Flows From Air Drain Port
        G02998033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. While holding the purge port and the air drain port closed, blow air (1.76 kPa, 18 gf/cm2 , 0.26 psi) into the EVAP port to check that air does not flow from the air inlet port.

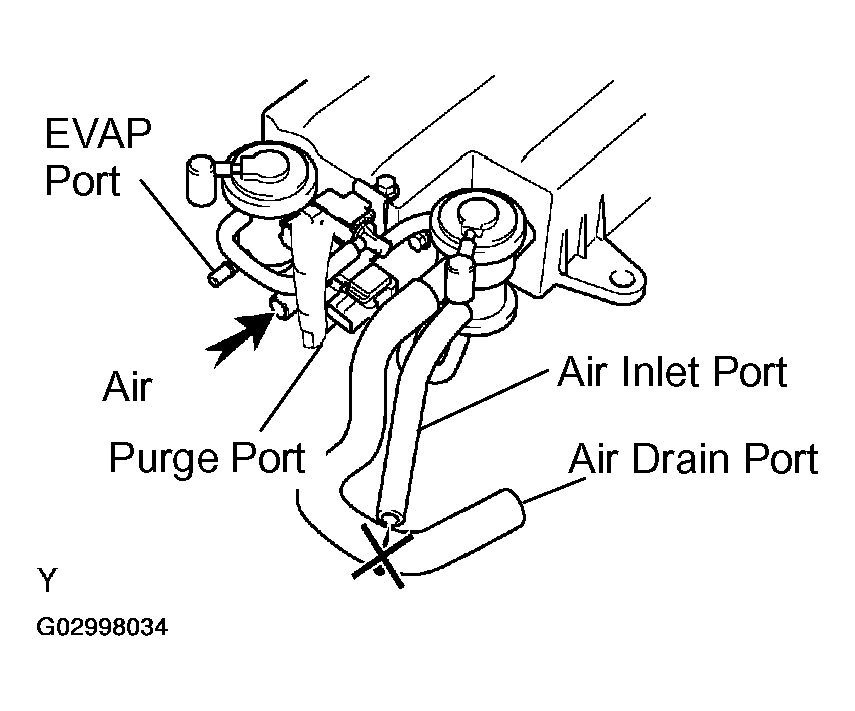

        Fig 3: Checking Air Does Not Flow From Air Inlet Port
        G02998034Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      4. Apply a vacuum (3.43 kPa, 25.7 mmHg, 1.01 in.Hg) to the purge port, check that the vacuum does not decrease when the air inlet port is closed, and check that the vacuum decreases when the air inlet port is released.

        If the result is not as specified, replace the charcoal canister assy.

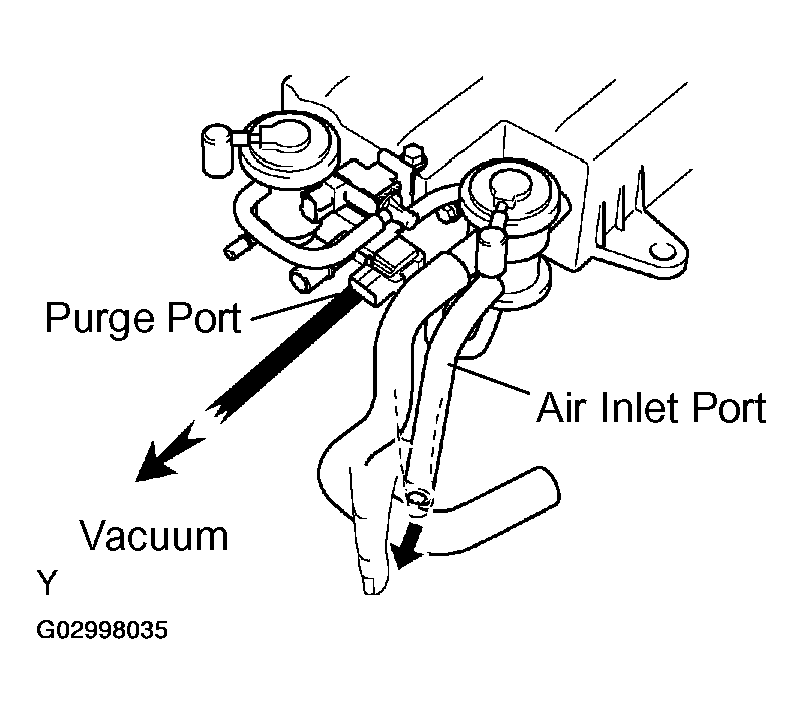

        Fig 4: Applying Vacuum To Purge Port
        G02998035Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      5. While holding the air inlet port closed, apply vacuum (3.43 kPa, 25.7 mmHg, 1.01 in.Hg) to the EVAP port and check that air flows into the purge port.

        If result is not as specified, replace the charcoal canister.

      6. Remove the cap from vent port.

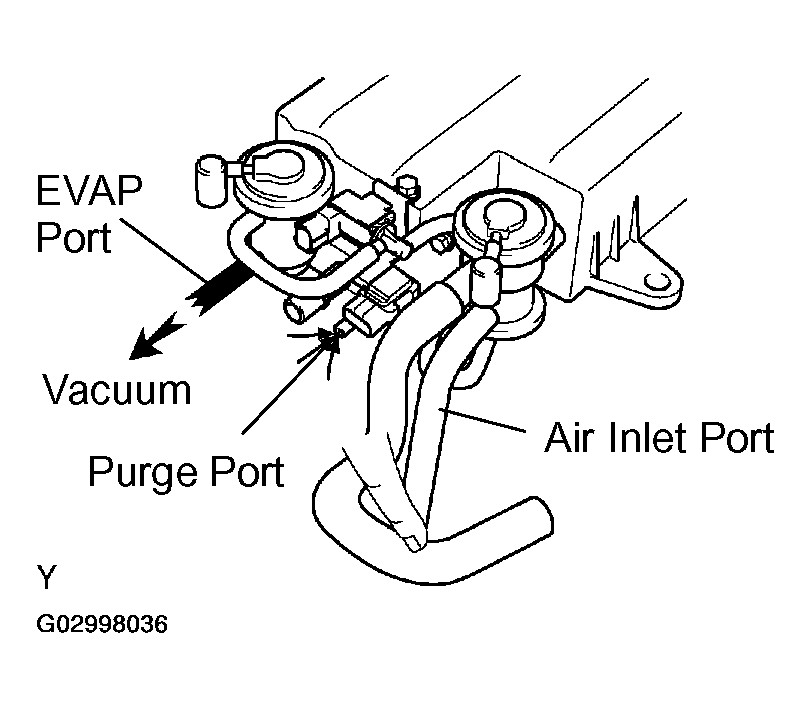

        Fig 5: Checking Air Flows Into Purge Port
        G02998036Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT VACUUM SWITCHING VALVE ASSY FOR ACIS
    1. Measure the VSV resistance.

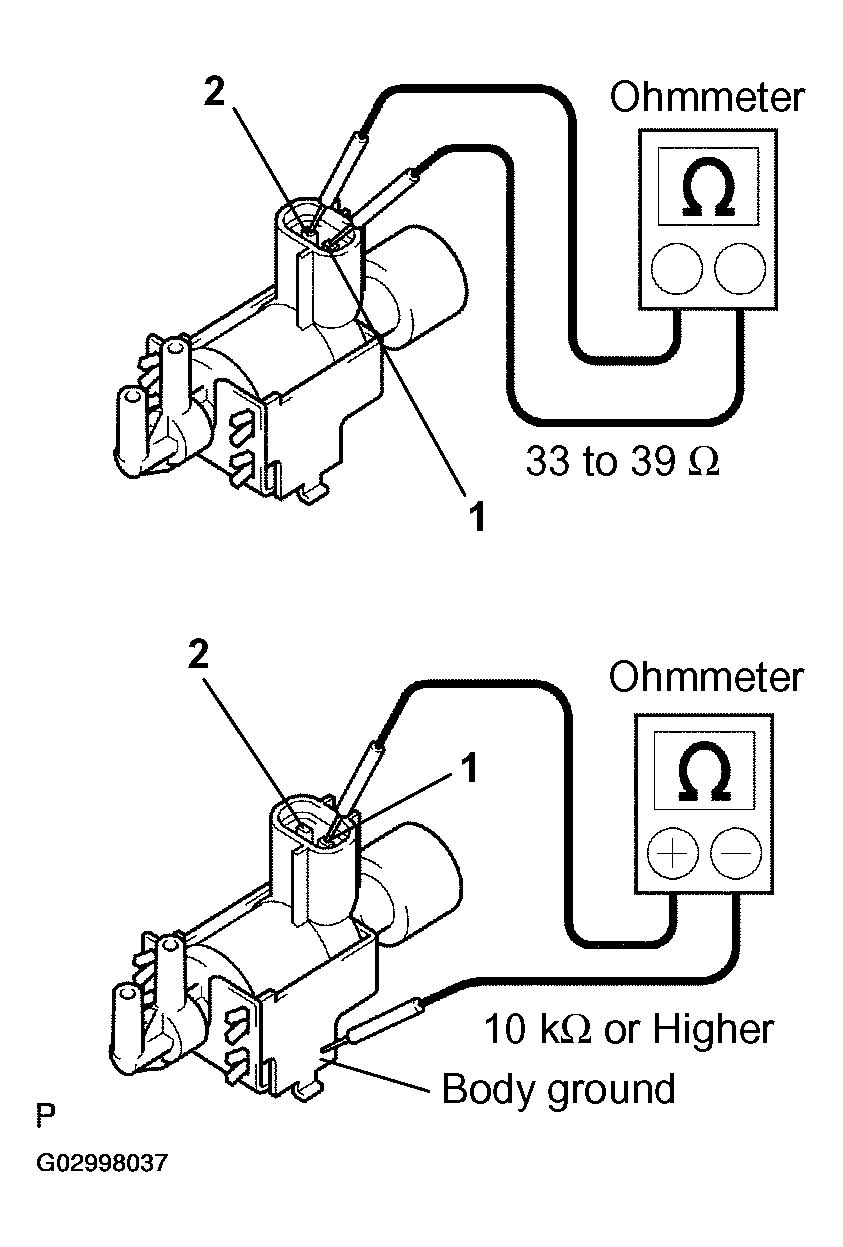

      Fig 6: Measuring VSV Resistance
      G02998037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      STANDARD:

      VACUUM SWITCHING VALVE ASSY FOR ACIS

      Tester Connection Specified Condition
      1 - 2 33 to 39 Ω at 20°C (68°F)
      1 - Body ground 2 - Body ground 10 kΩ or higher

      If the result is not as specified, replace the VSV assy.

    2. Check VSV operation.
    1. Check that air does not flow from port E to port F.

      If the result is not as specified, replace the VSV assy.

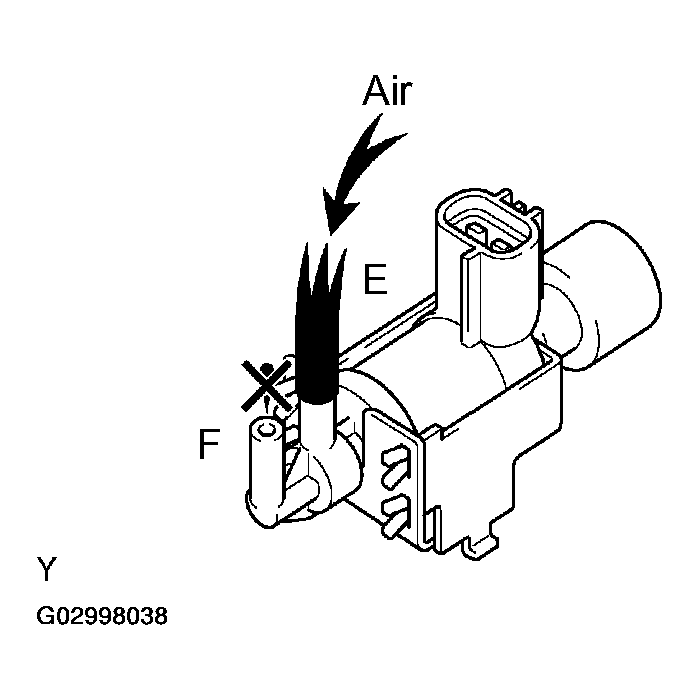

      Fig 7: Checking VSV Operation
      G02998038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery positive voltage across the terminals.
    3. Check that air flows from port E to port F.

    If the result is not as specified, replace the VSV assy.

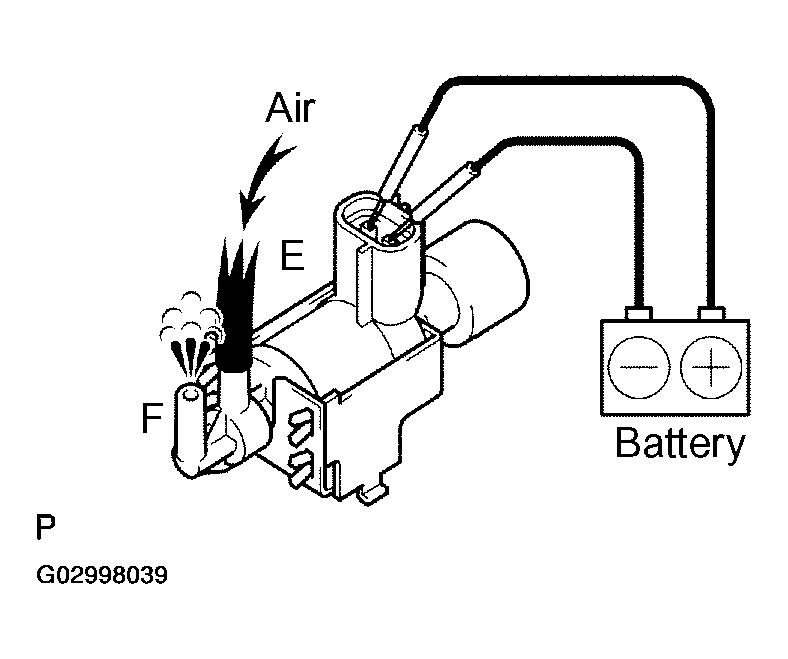

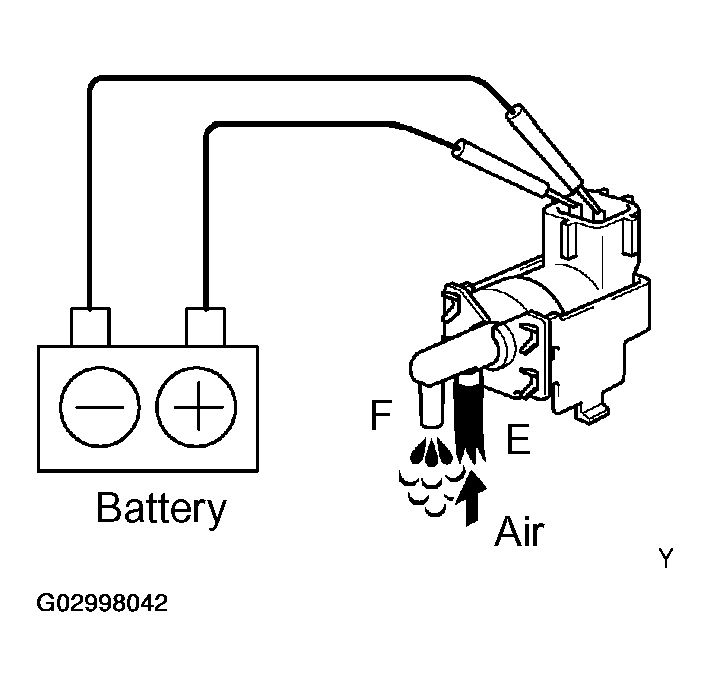

    Fig 8: Checking Air Flows From Port E To Port F
    G02998039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSPECT VACUUM SWITCHING VALVE ASSY FOR PRESSURE SWITCHING VALVE
    1. Measure the VSV resistance.

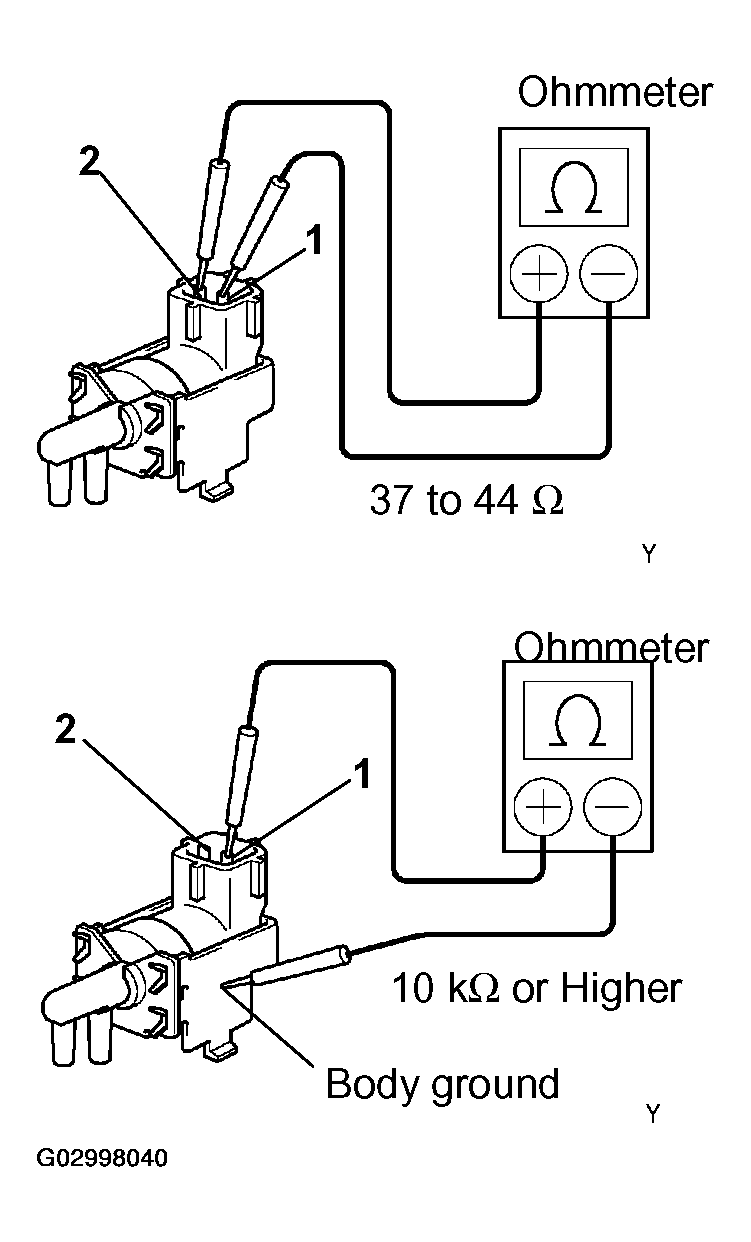

      Fig 9: Measuring VSV Resistance
      G02998040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      VACUUM SWITCHING VALVE ASSY FOR PRESSURE SWITCHING VALVE

      Tester Connection Specified Condition
      1 - 2 37 to 44 Ω at 20°C (68°F)
      1 - Body ground 2 - Body ground 10 kΩ or higher

      If the result is not as specified, replace the VSV assy.

    2. Check VSV operation.
    1. Check that air does not flow from port E to port F.

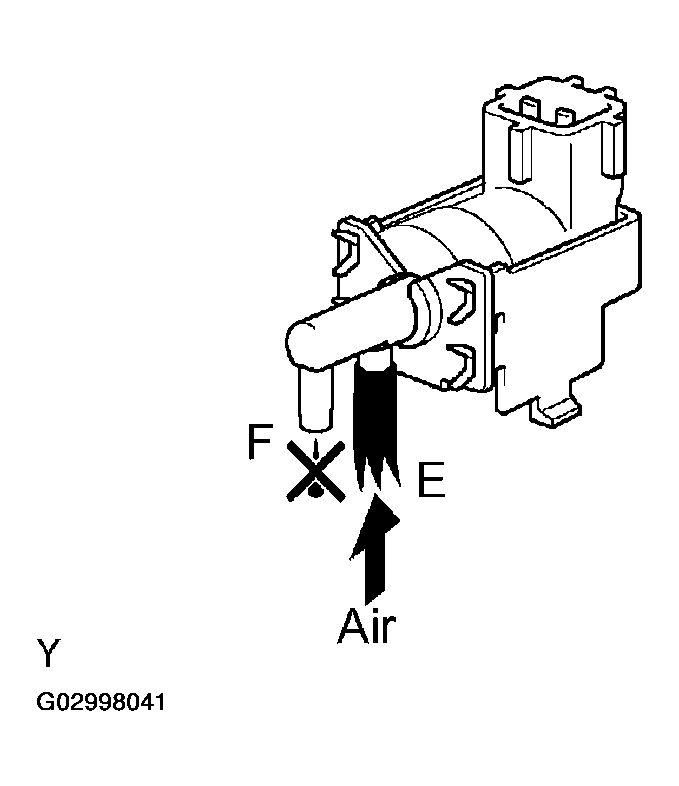

      Fig 10: Checking Air Does Not Flow From Port E To Port F
      G02998041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery positive voltage across the terminals.
    3. Check that air flows from port E to port F.

    If the result is not as specified, replace the VSV assy.

    Fig 11: Checking Air Flows From Port E To Port F
    G02998042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSPECT VENTILATION VALVE SUB-ASSY
    1. Install a clean hose to the ventilation valve.

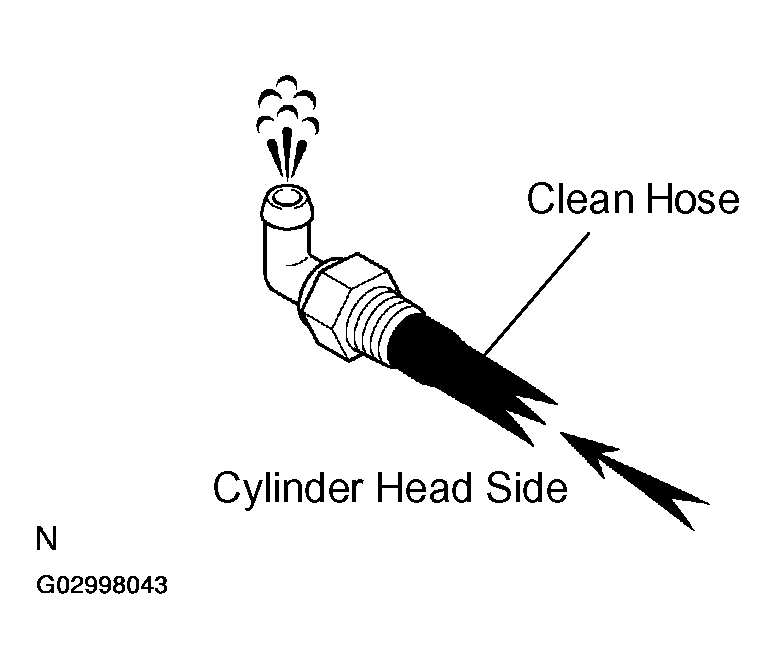

      Fig 12: Installing Clean Hose To Ventilation Valve
      G02998043Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Inspect ventilation valve operation.
      1. Blow air from the cylinder head side of the engine, and check that air passes through easily.
        CAUTION: Do not suck air through the valve. Petroleum substances stuck to the valve is harmful.
      2. Blow air from the intake manifold side of the engine, and check that air passes through with difficulty.

      If the result is not as specified, replace the ventilation valve.

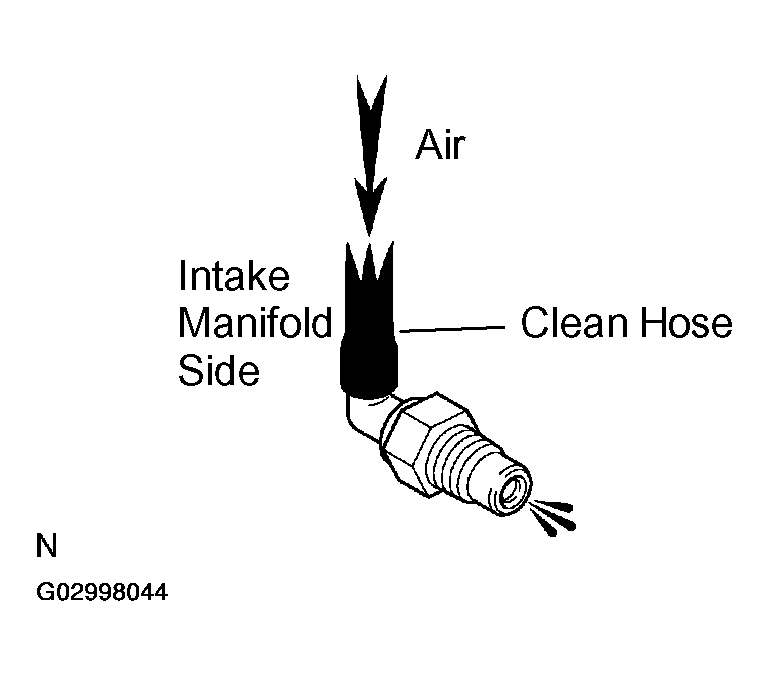

      Fig 13: Checking Air Passes Through With Difficulty
      G02998044Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the clean hose from the ventilation valve.
  5. INSPECT FUEL TANK CAP ASSY
    1. Visually check if cap and/or gasket are deformed or damaged.

    If necessary, repair or replace the cap.

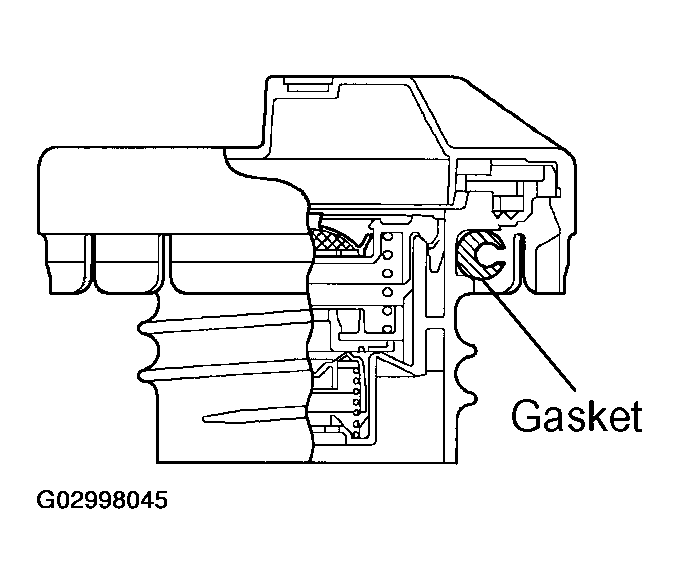

    Fig 14: Identifying Fuel Tank Cap Assy
    G02998045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSPECT VACUUM SWITCHING VALVE ASSY FOR EVAP
    1. Measure the VSV resistance.

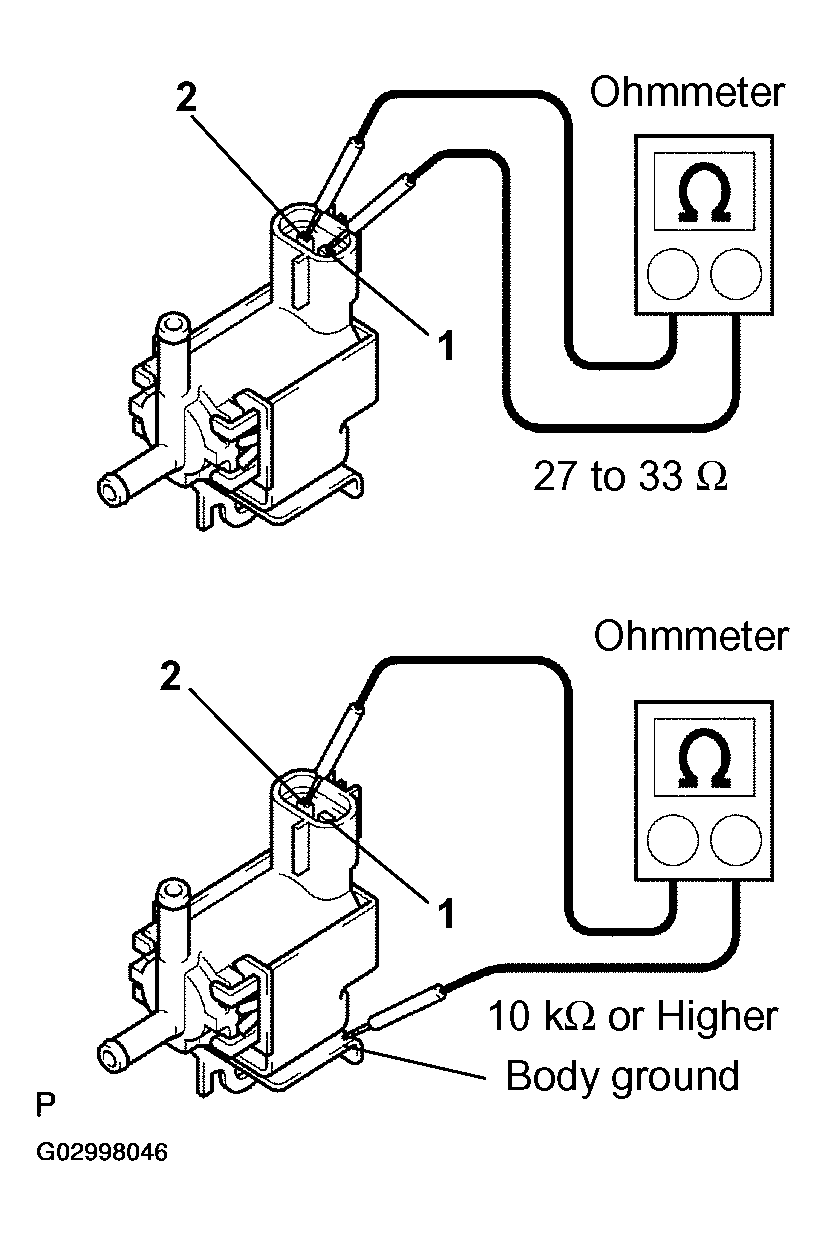

      Fig 15: Measuring VSV Resistance
      G02998046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      VACUUM SWITCHING VALVE ASSY FOR EVAP

      Tester Connection Specified Condition
      1 - 2 27 to 33 Ω at 20°C (68°F)
      1 - Body ground 2 - Body ground 10 kΩ or higher

      If the result is not as specified, replace the VSV assy.

    2. Check VSV operation.
    1. Check that air does not flow from port E to port F.

      If the result is not as specified, replace the VSV assy.

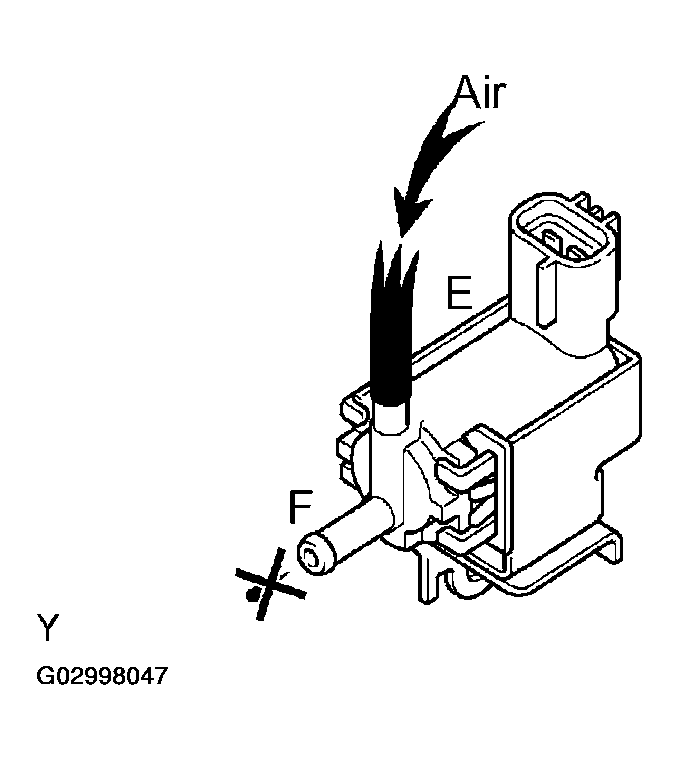

      Fig 16: Checking Air Does Not Flow From Port E to Port F
      G02998047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery positive voltage across the terminals.
    3. Check that air flows from port E to port F.

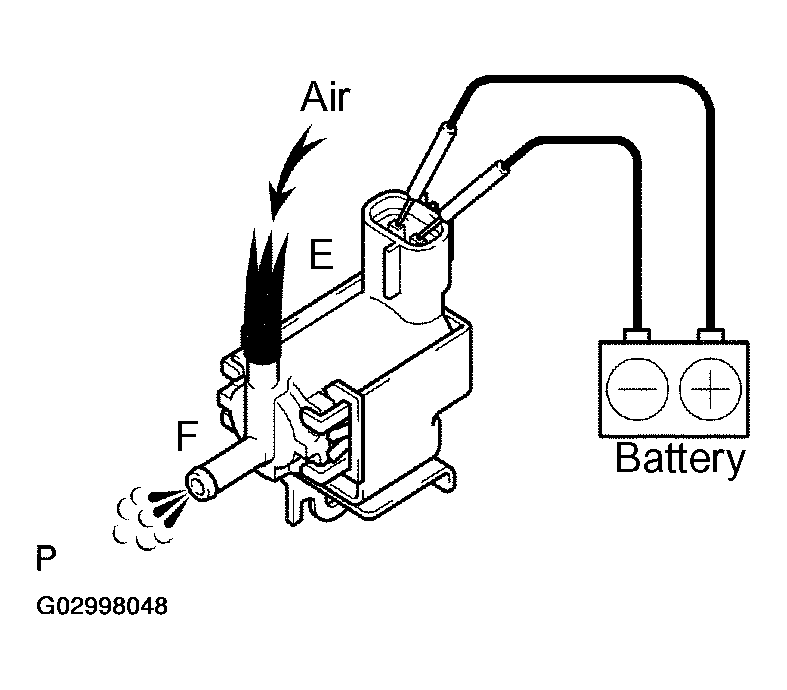

    If result is not as specified, replace the VSV assy.

    Fig 17: Checking Air Flows From Port E To Port F
    G02998048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSPECT VACUUM SWITCHING VALVE ASSY FOR CCV
    1. Measure the VSV resistance.

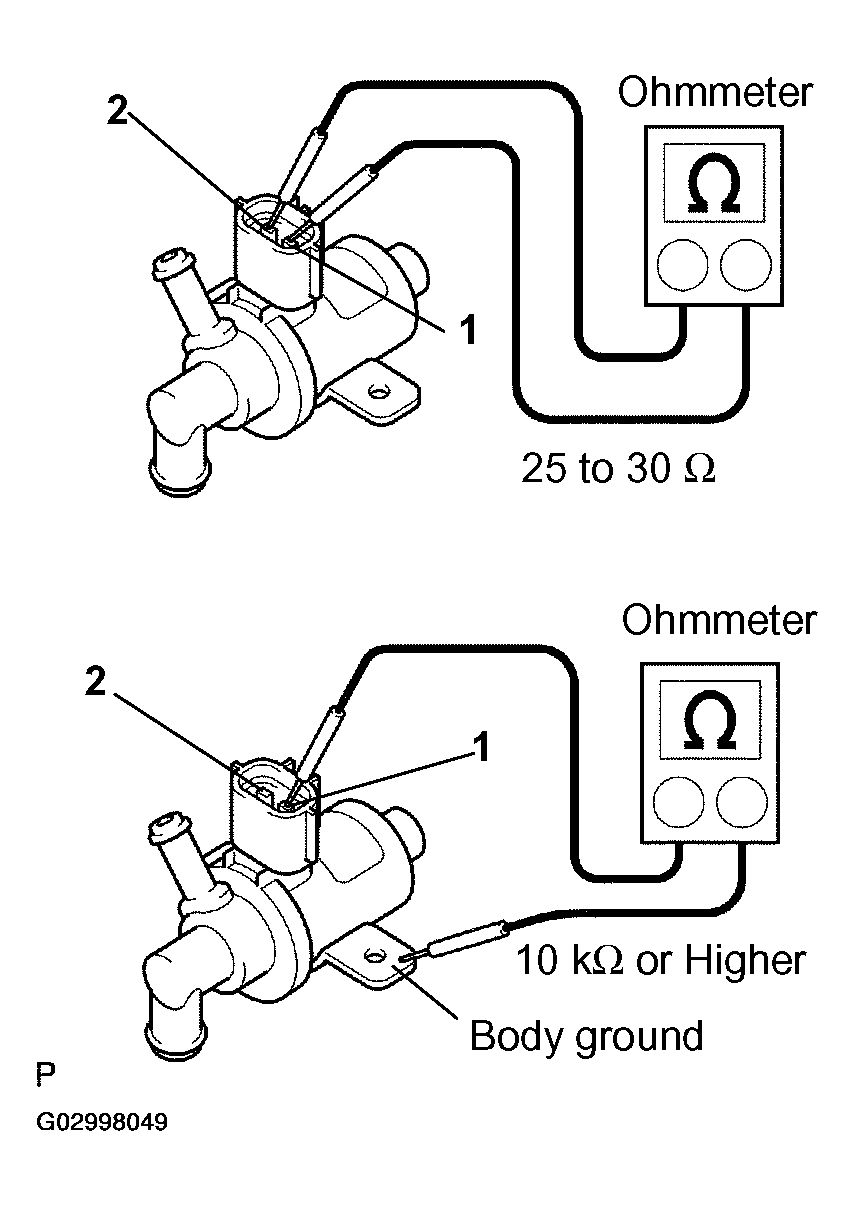

      Fig 18: Measuring VSV Resistance
      G02998049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard:

      VACUUM SWITCHING VALVE ASSY FOR CCV

      1 - 2 25 to 30 Ω at 20°C (68°F)
      1 - Body ground 2 - Body ground 10 kΩ or higher

      If the result is not as specified, replace the VSV assy.

    2. Check VSV operation.
    1. Check that air flows from port A to port B.
      Fig 19: Checking Air Flows From Port A To Port B
      G02998050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Apply battery positive voltage across the terminals.
    3. Check that air does not flow from port A to port B.

    If the result is not as specified, replace the VSV assy.

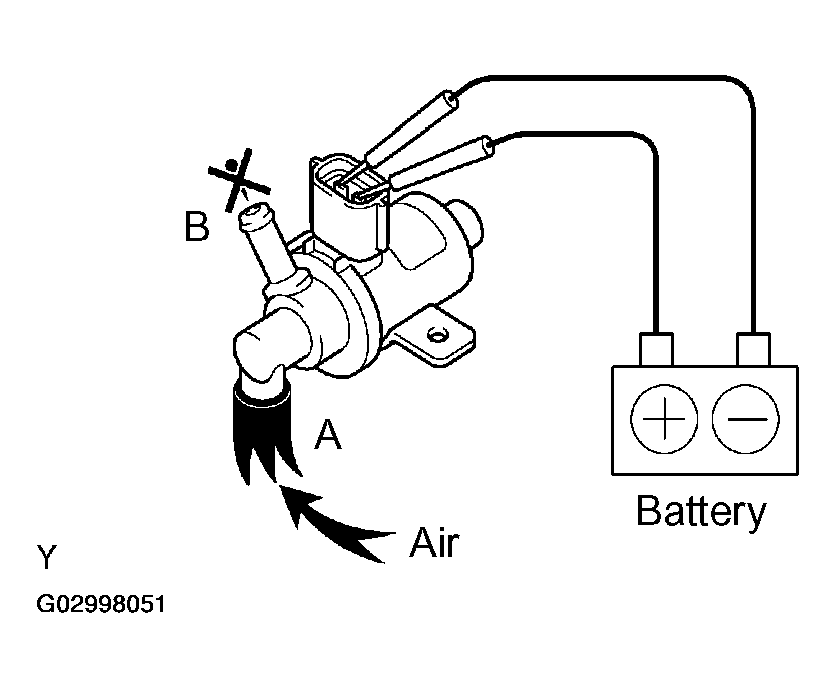

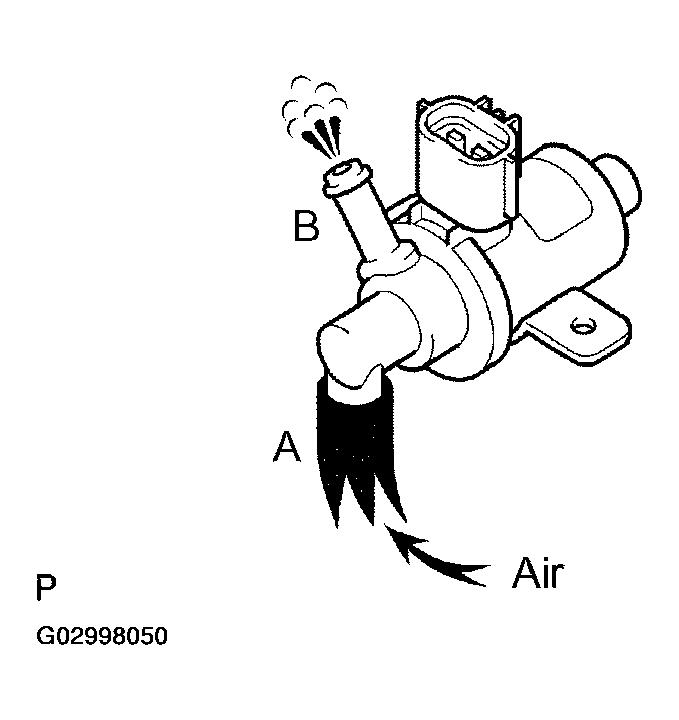

    Fig 20: Checking Air Does Not Flow From Port A To Port B
    G02998051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
