Ventilation Valve Sub-ASSY: Replacement

REMOVE V-BANK COVER
REMOVE VENTILATION VALVE SUB-ASSY
1. Disconnect the ventilation hose from the ventilation valve.
2. Remove the veneration valve.
3. Remove the ventilation valve.
INSTALL VENTILATION VALVE SUB-ASSY
1. Install the ventilation valve.
  1. Apply adhesive to 2 or 3 threads of the valve.
    Adhesive:

    Part No. 08833-00070, THREE BOND 1324 or equivalent

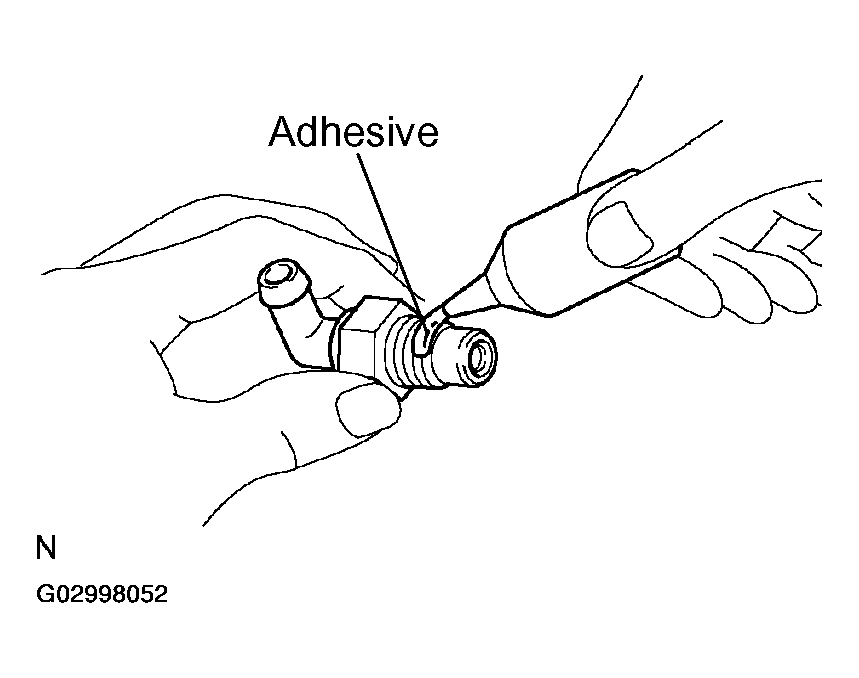

    Fig 1: Applying Adhesive To Valve Threads
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Install the valve.
  1. Torque: 27 N.m (275 kgf.cm, 20 ft.lbf)
  HINT:

  After applying the specified torque, rotate the valve clockwise with the port facing the direction shown in Fig 2 .

  Fig 2: Installing Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the ventilation valve cover.
3. Connect the ventilation hose to the valve.
INSTALL V-BANK COVER
