Oil Pump ASSY: Components

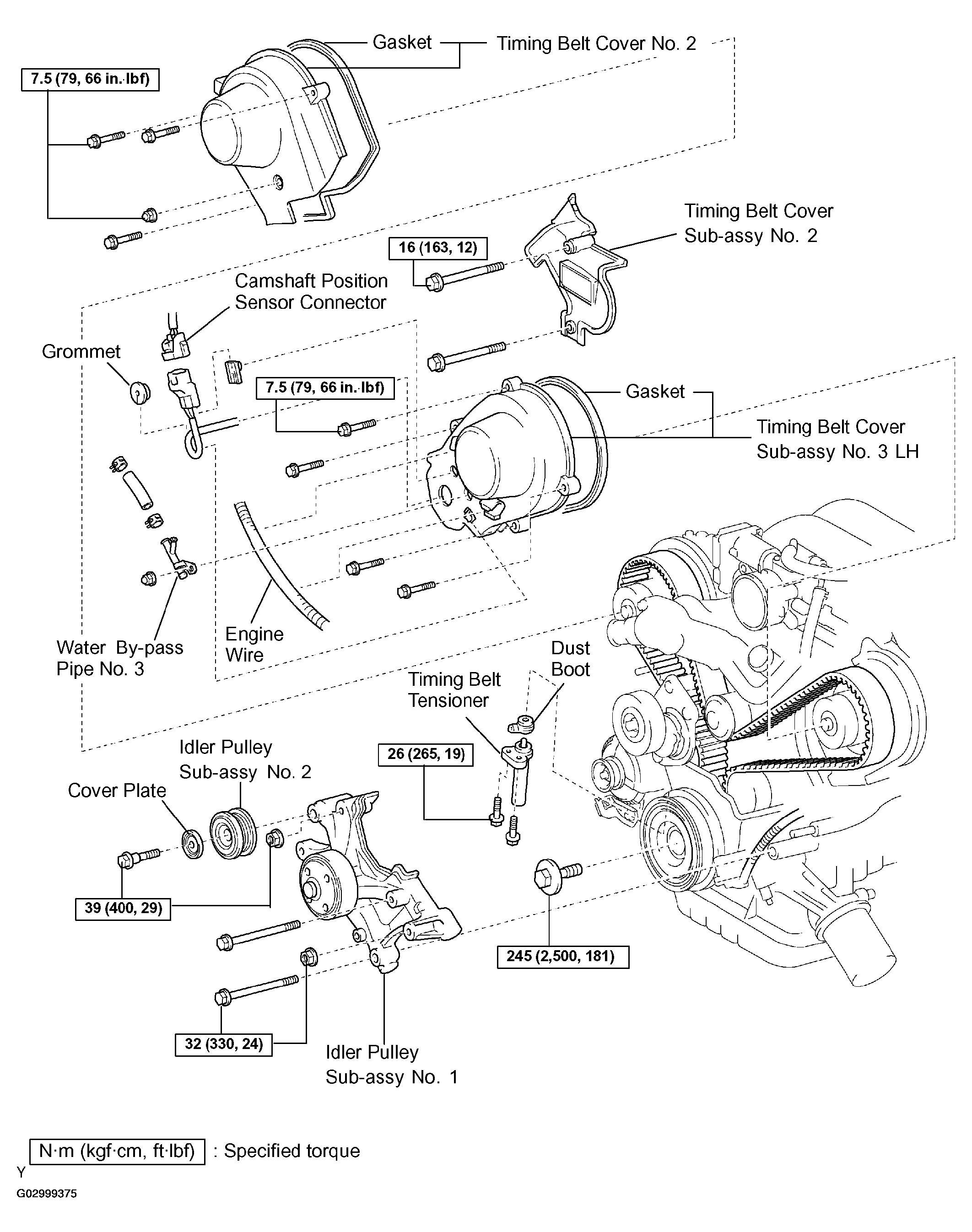

Fig 1: Identifying Oil Pump Assy Components And Replacements (1 Of 4)
G02999375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

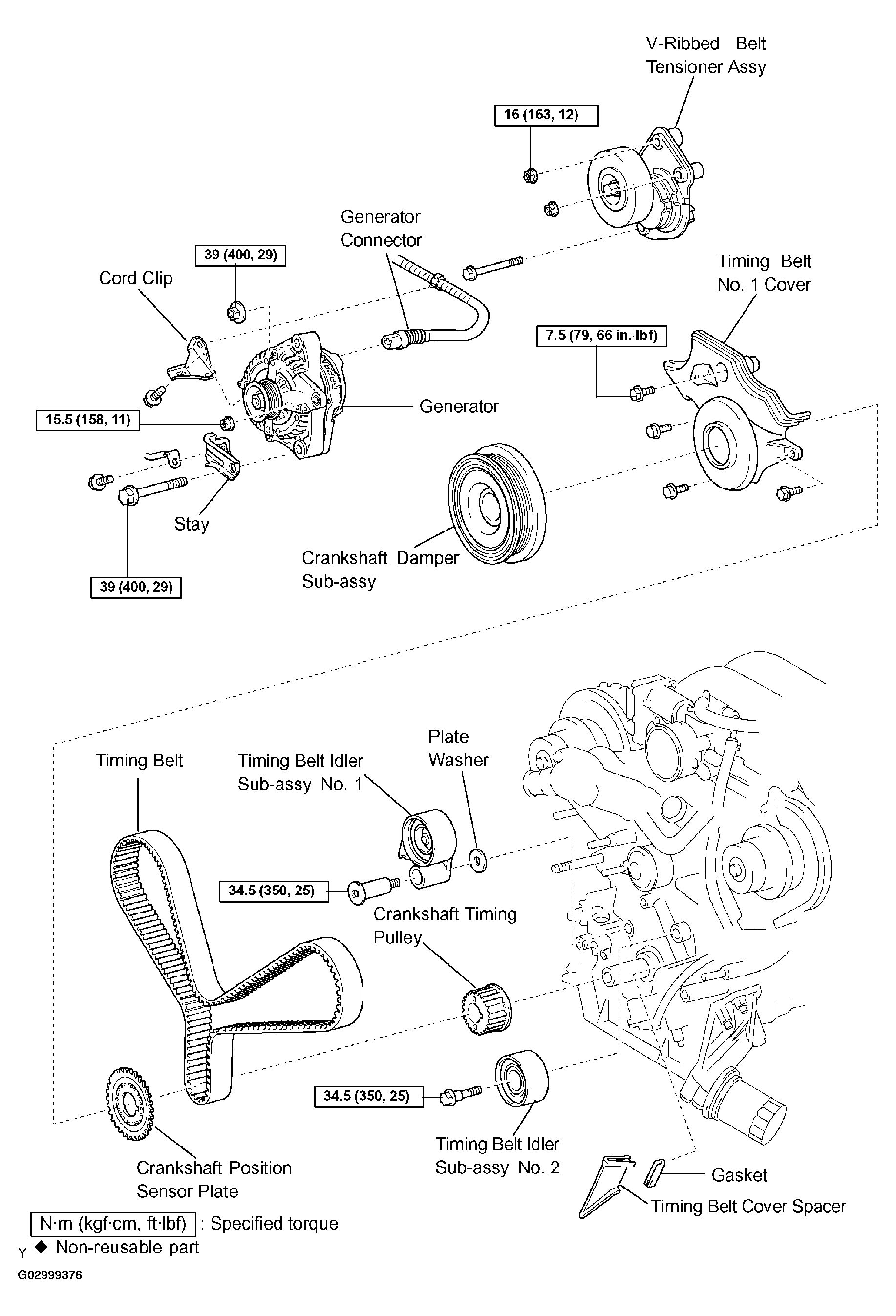

Fig 2: Identifying Oil Pump Assy Components And Replacements (2 Of 4)
G02999376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

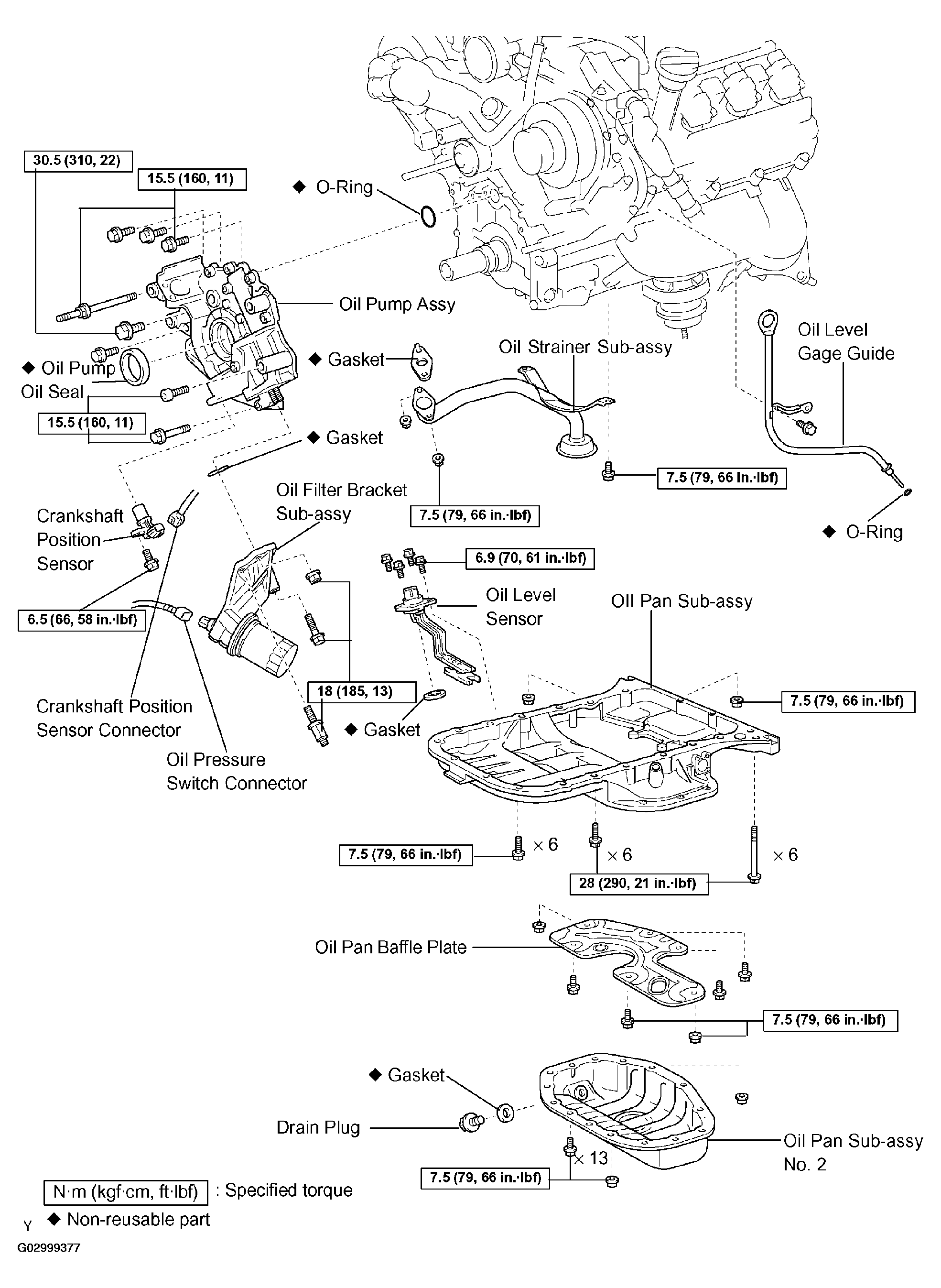

Fig 3: Identifying Oil Pump Assy Components And Replacements (3 Of 4)
G02999377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

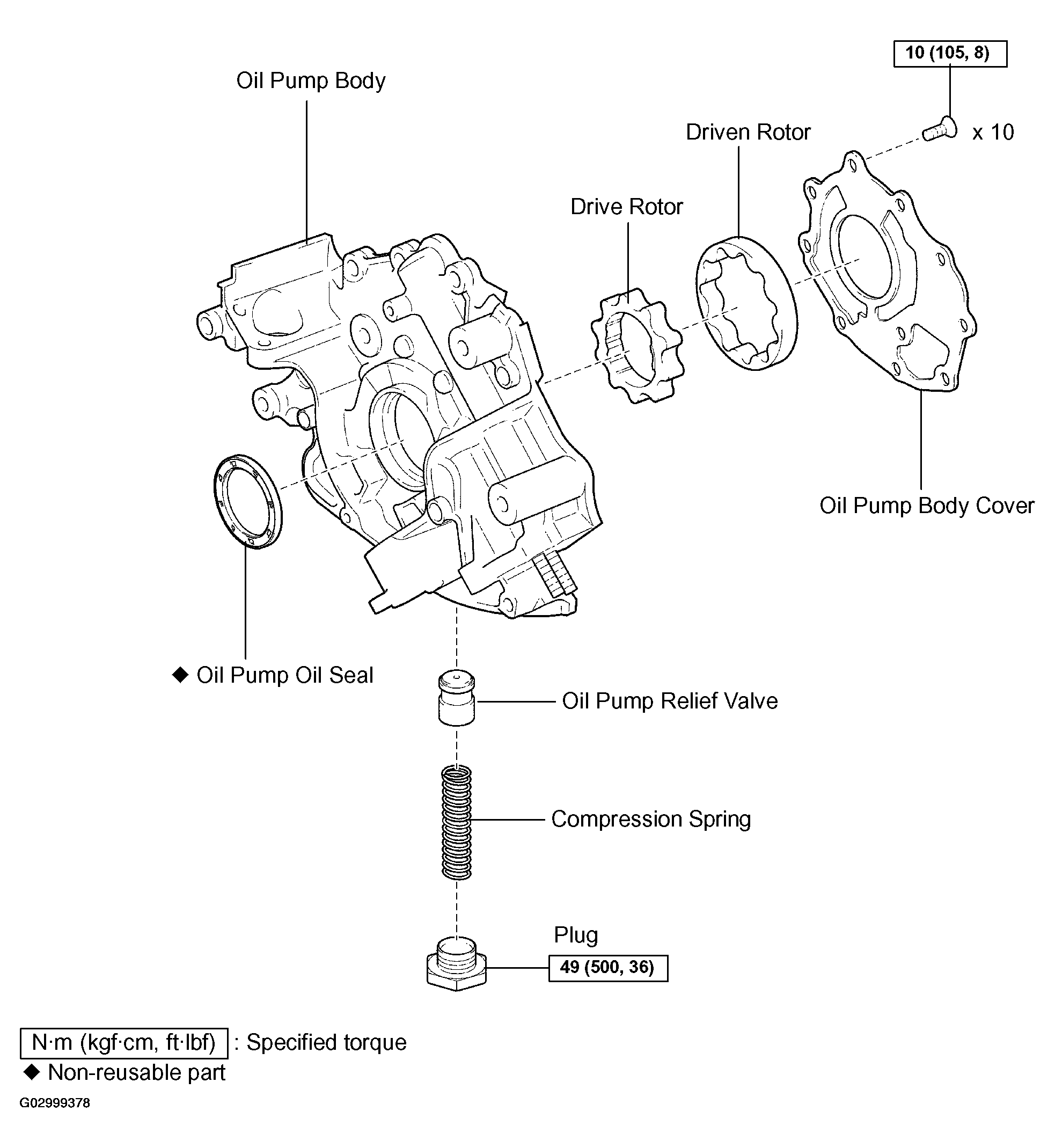

Fig 4: Identifying Oil Pump Assy Components And Replacements (4 Of 4)
G02999378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
