Engine Hood/Door: Preparation

SST

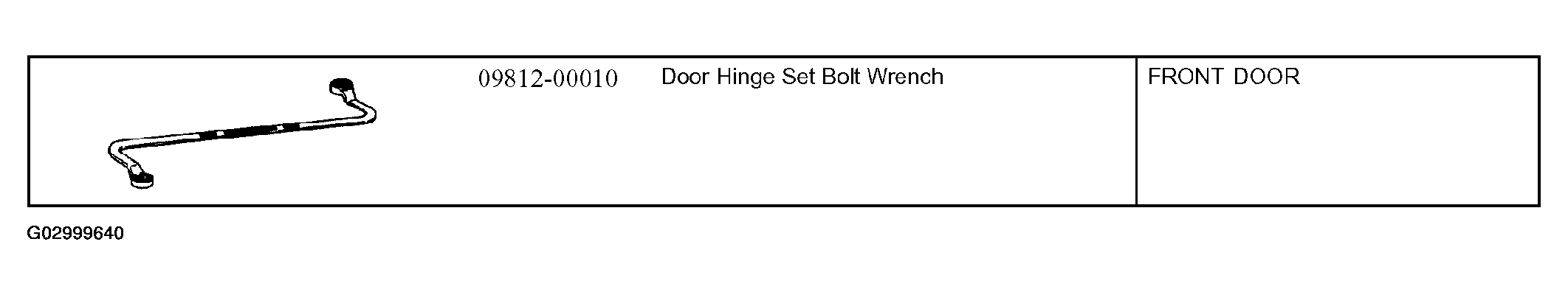

Fig 1: Engine Hood/Door Tools Reference
G02999640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

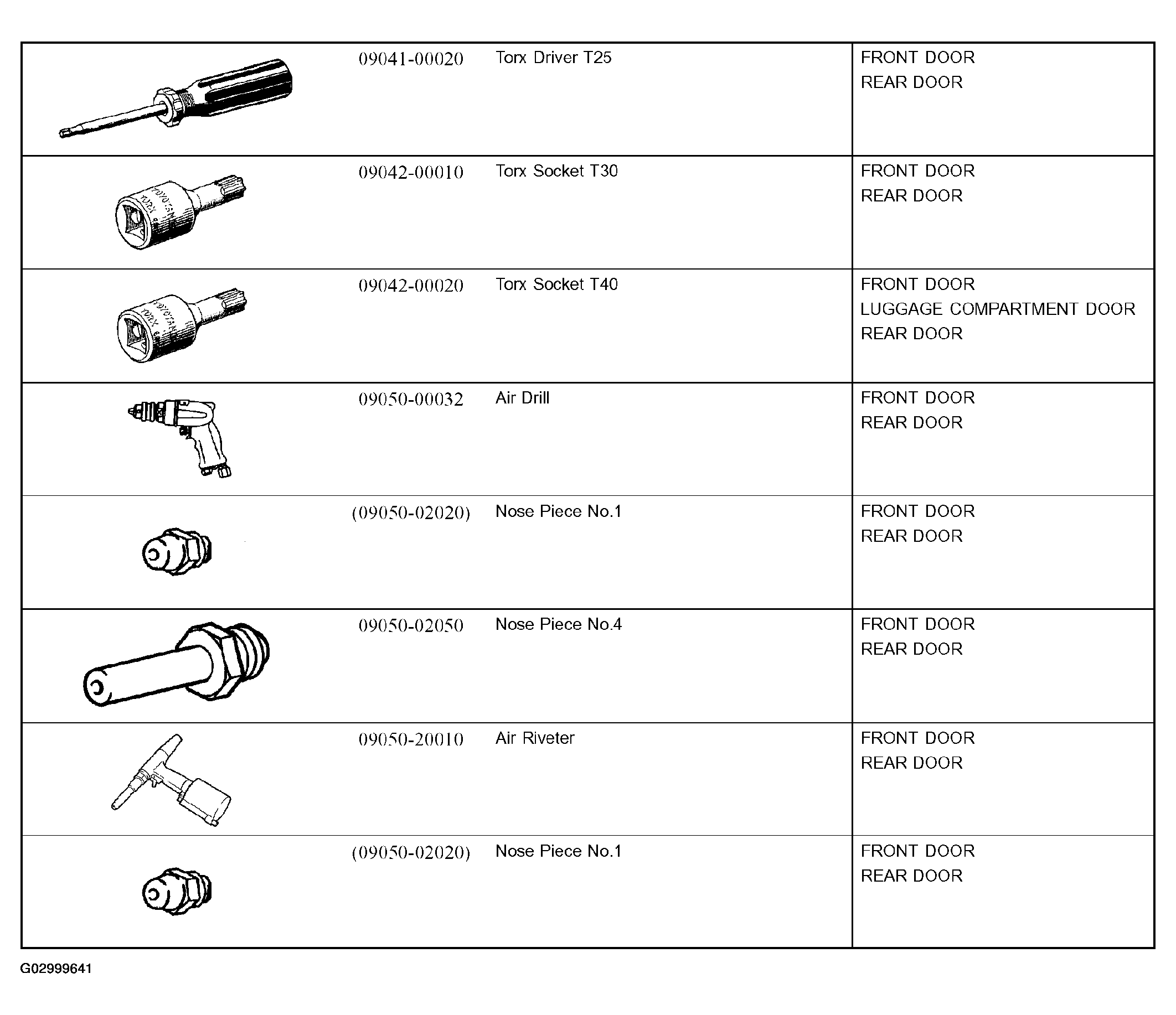

Fig 2: Recommended Tools Reference
G02999641Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

SSM

SSM REFERENCE

08833-00070 "Adhesive 1324," THREE BOND 1324 or equivalent FRONT DOOR REAR DOOR

Equipment

EQUIPMENT

Clip remover
Tape To avoid surface damage
Torque wrench
