Fuel Delivery: Preparation: Lubrication: Preparation

SST

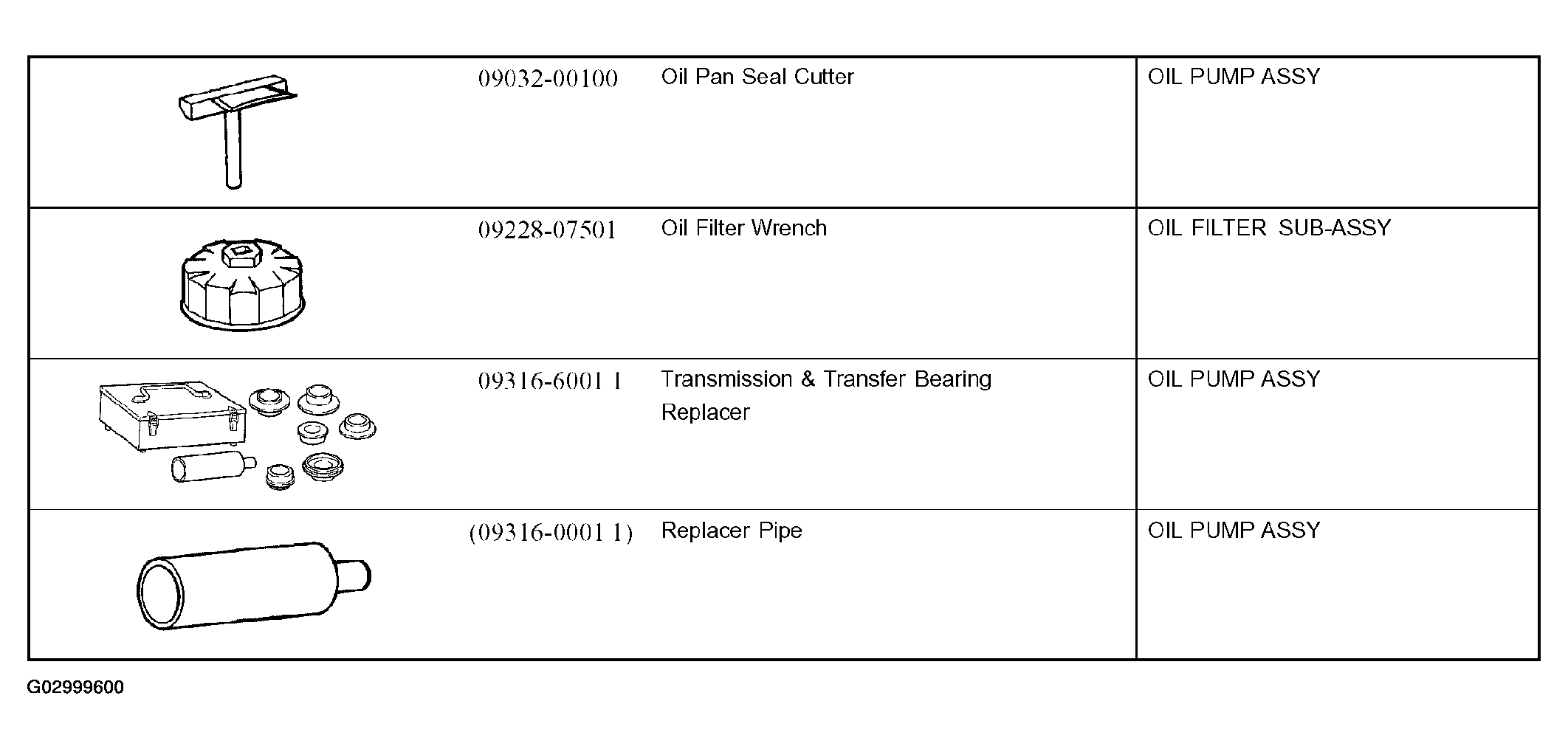

Fig 1: Lubrication Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

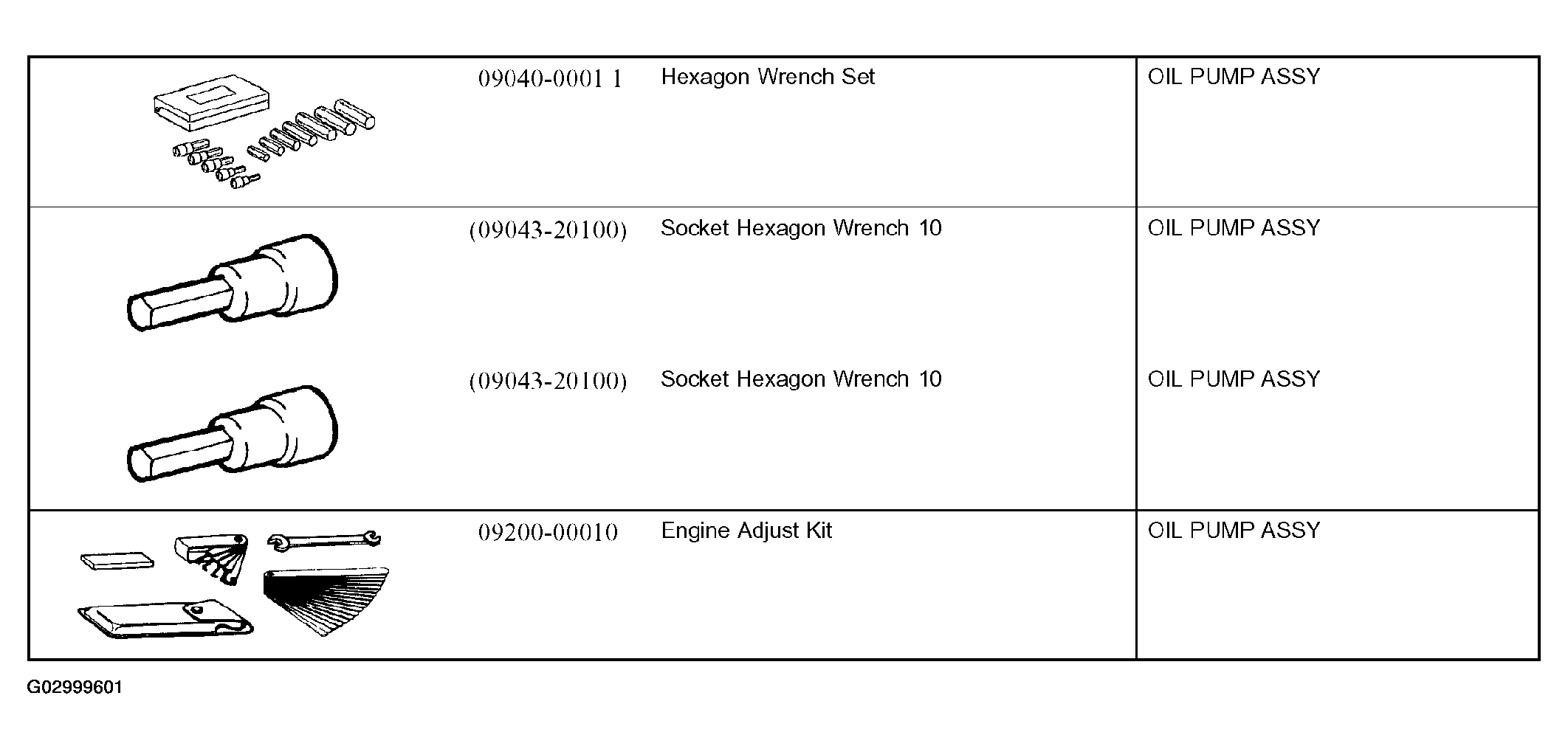

Fig 2: Recommended Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Oil pressure gauge
Straight edge	Oil pump
Torque wrench

SSM

SSM REFERENCE

08826-00080 Seal Packing Black or equivalent (FIPG)

OIL PUMP ASSY

Lubricant

LUBRICANT CLASSIFICATION

Item	Capacity	Classification
Oil grade	-	API grade SL, Energy-Conserving or ILSAC multi-grade engine oil, SAE 5W-30
Drain and refill w/ oil filter change w/o oil filter change	4.5 liters (4.8 US qts, 4.0 lmp. qts) 4.2 liters (4.4 US qts, 3.7 lmp. qts)
Dry fill	6.1 liters (6.4 US qts, 5.4 lmp. qts)
