Inspection Procedure

1. Turn the ignition switch to the LOCK position.
2. Disconnect the negative (-) terminal cable from the battery.
3. Disconnect the connectors from the seat belt control ECU and front seat outer belt assy LH.

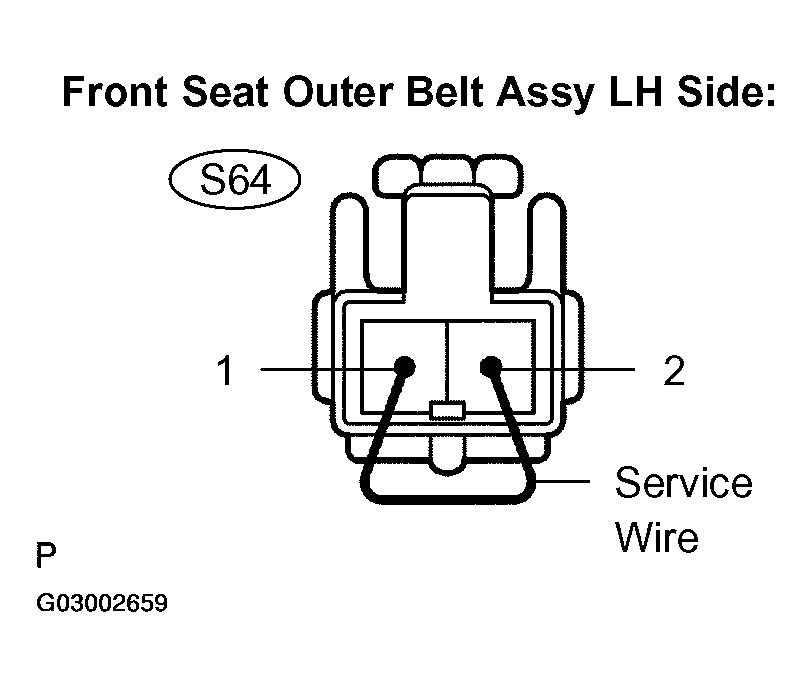

4. Using a service wire, connect S64-1 and S64-2 of the connector on the front seat outer belt assy LH side.
   NOTE: Do not forcibly insert a service wire into the terminals of a connector.
5. Measure the resistance according to the value(s) in FRONT SEAT OUTER BELT ASSY LH - SEAT BELT CONTROL ECU - REFERENCE TABLE  .

Standard:

Fig 1: Checking Wire Harness (Front Seat Outer Belt Assy LH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

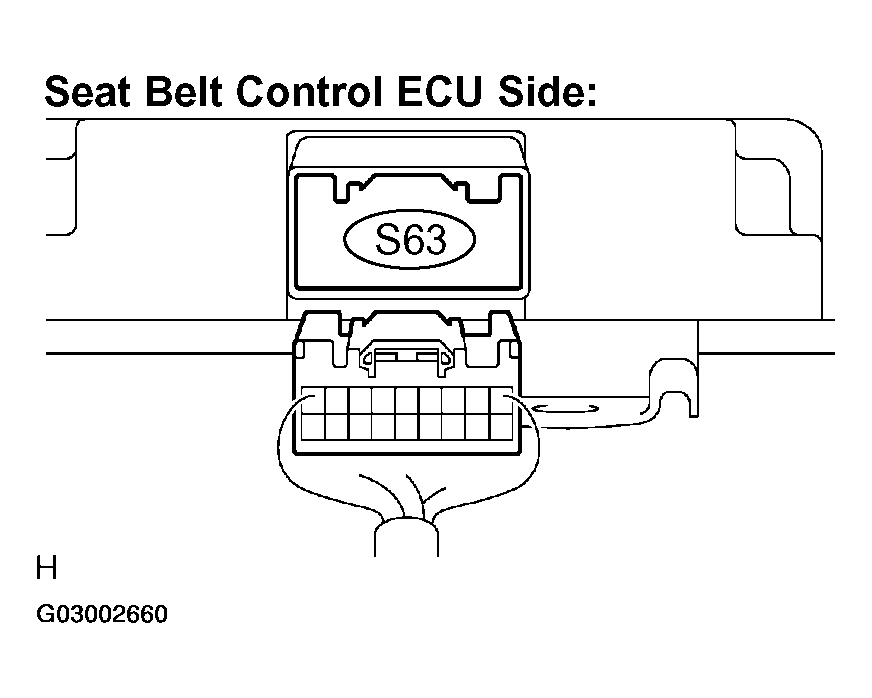

Fig 2: Checking Wire Harness (Seat Belt Control ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE WIRE HARNESS

OK: Go to next step

1. Measure the resistance according to the value(s) in FRONT SEAT OUTER BELT ASSY LH - RESISTANCE TABLE  .

Standard:

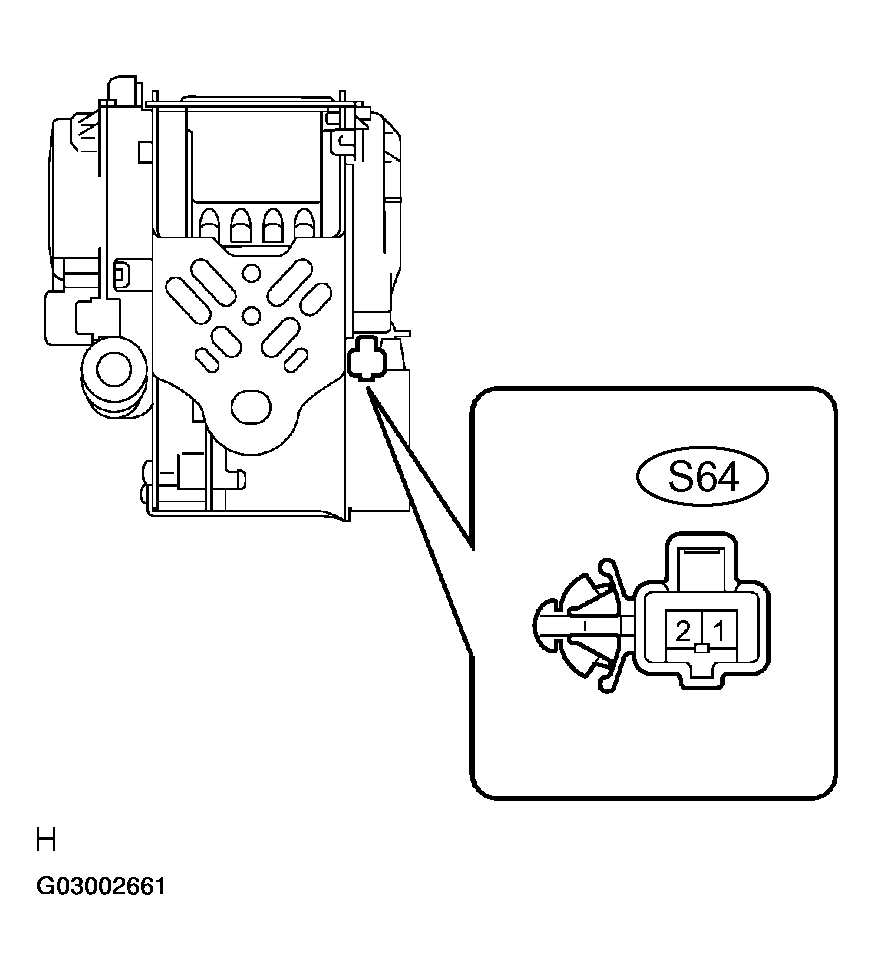

Fig 3: Checking Front Seat Outer Belt Assy LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT SEAT OUTER BELT ASSY LH (See step 8 in  REPLACEMENT  )

OK: REPLACE SEAT BELT CONTROL ECU (See step 10 in  REPLACEMENT  )
