Terminals Of Ecu
- CHECK DRIVER SIDE J/B (DRIVER SIDE J/B ECU)

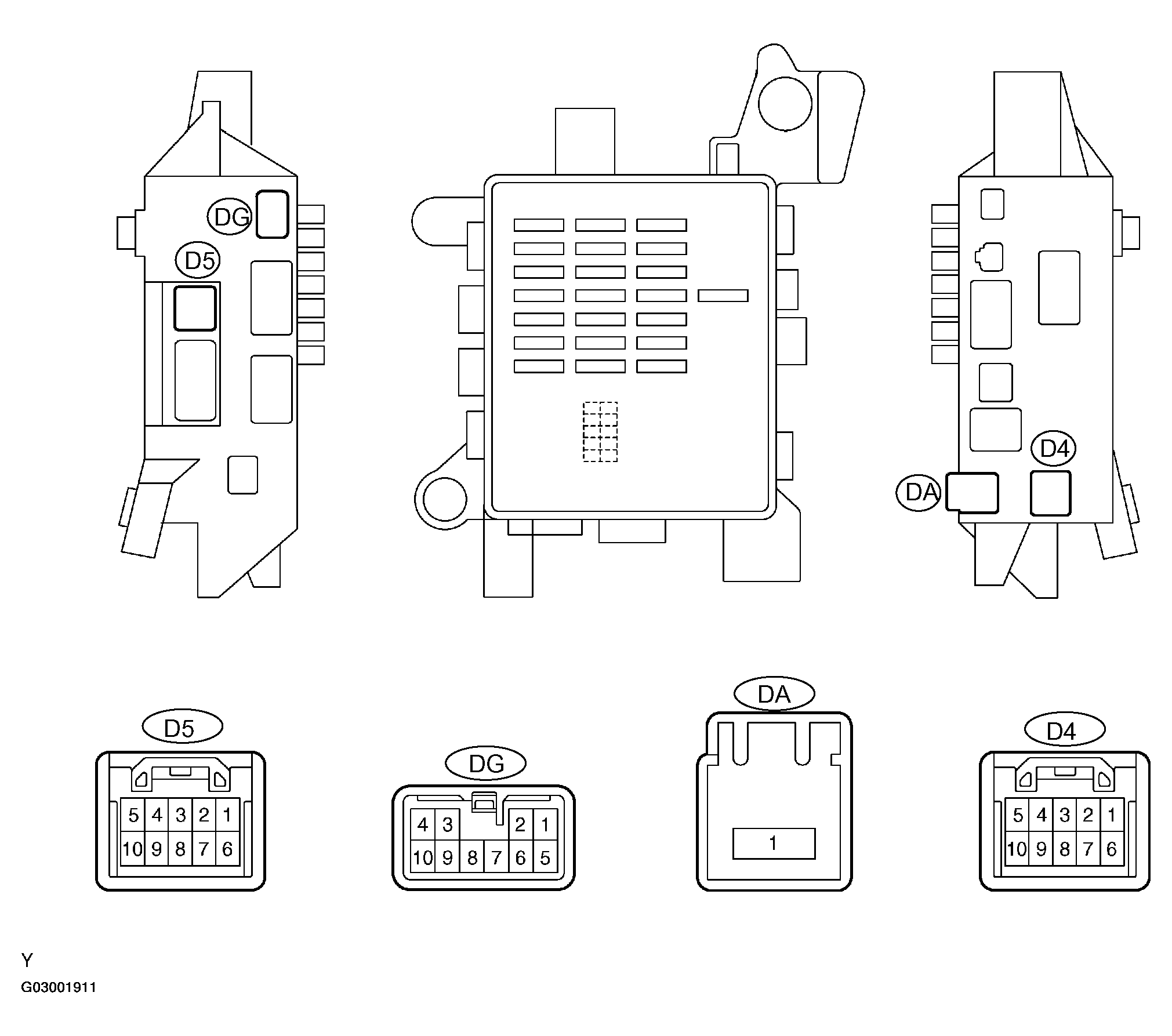

- Disconnect the DA, DG J/B and D5 ECU connectors.
- Measure the voltage of the wire harness side connectors.TERMINAL DESCRIPTION CHART
Symbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition GND (DG-8) - Body ground W-B - Body ground Ground Always Below 1 V MPX-IG (DA-1) - GND (DG-8) B-W - W-B Power supply Always 10 to 14V GND2 (D5-1) - Body ground W-B - Body ground Ground Always Below 1 V MPX-B (D5-5) - GND2 (D5-1) R-B - W-B Power supply Always 10 to 14V If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the DA, DG J/B and D5 ECU connectors.
- Measure the voltage of the connectors.

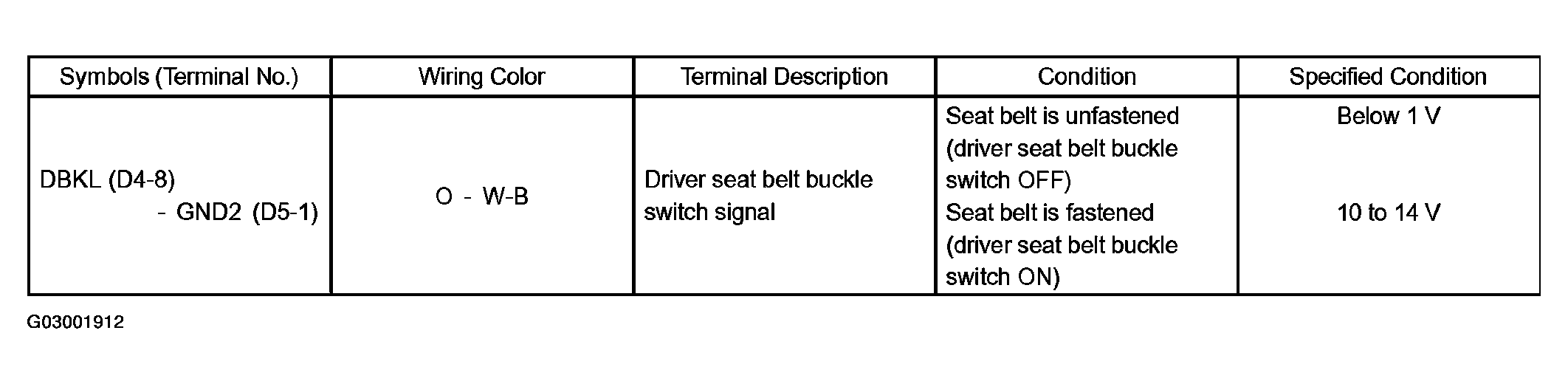

Standard:
If the result is not as specified, the seat belt buckle switch or the driver side J/B ECU may have a malfunction.
