System Description

LEXUS LS430 uses the rack and pinion type steering gear, and the vehicle speed sensing hydraulic reaction type electronically controlled PPS (Progressive Power Steering) system.

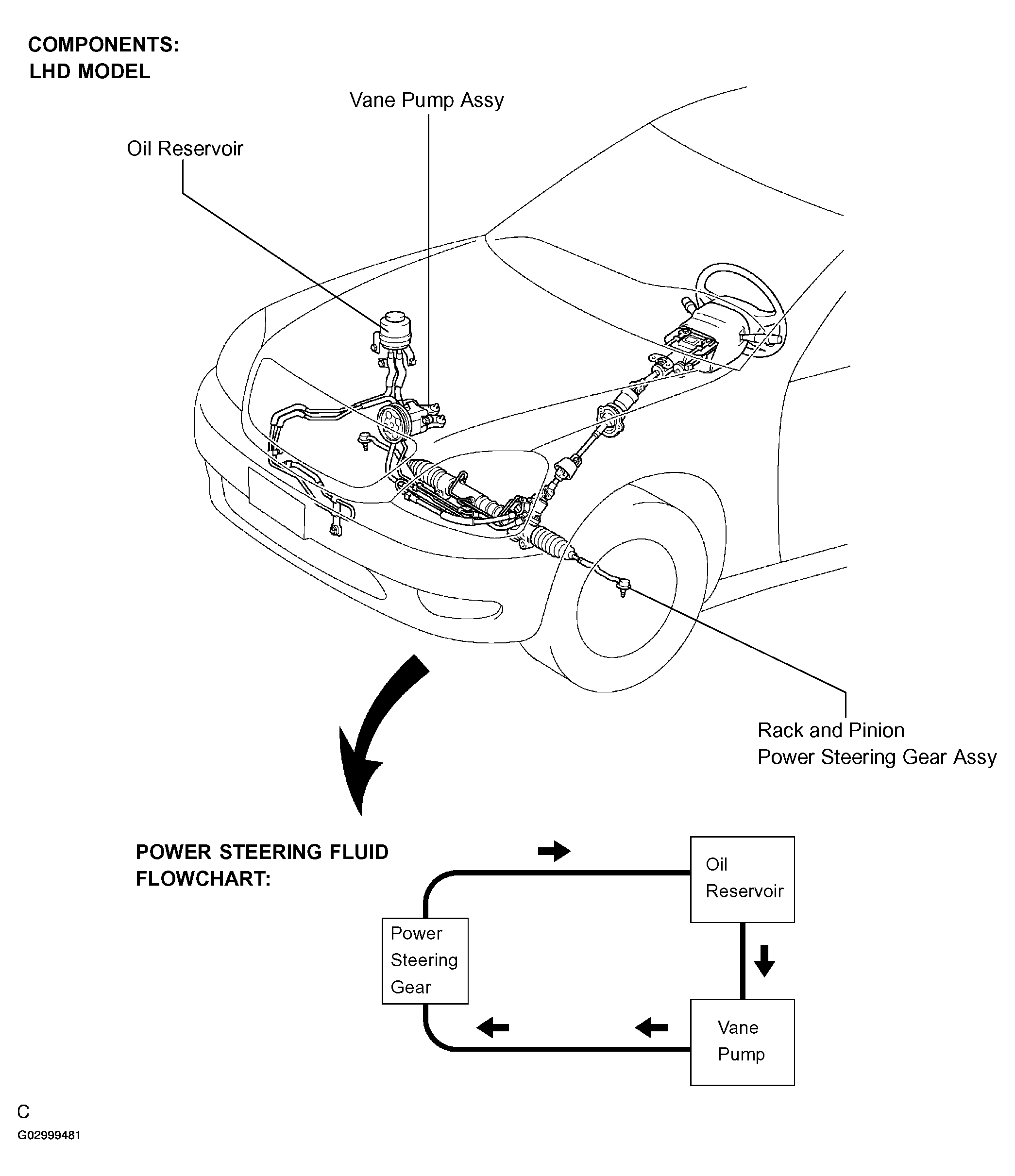

Fig 1: Power Steering System Description
G02999481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
