Automatic Transmission / Trans: Preparation

SST

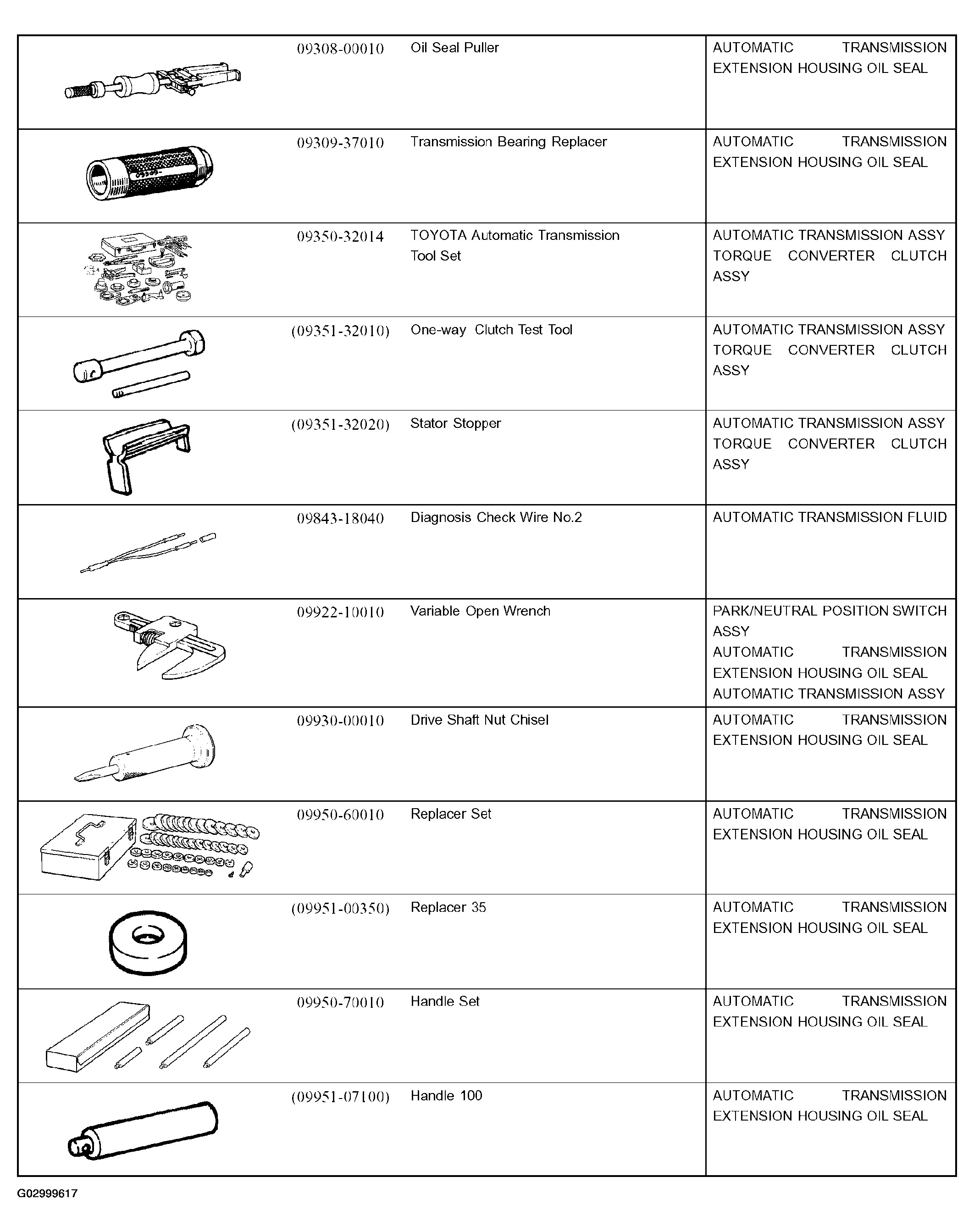

Fig 1: Automatic Transmission / Trans Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

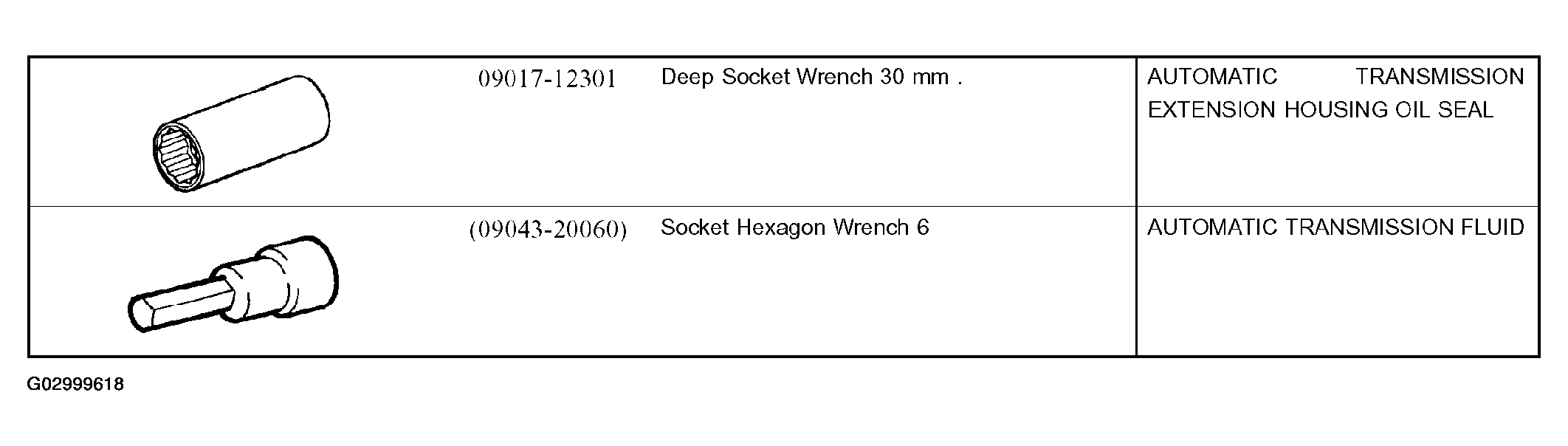

Fig 2: Recommended Tools Reference

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT

Straight edge	Torque converter
Vernier calipers	Torque converter
Dial indicator or dial indicator with magnetic base	Drive plate
Punch
Torque wrench

Lubricant

LUBRICANT CLASSIFICATION

Automatic transmission fluid Dry fill Drain and refill

10.9 liter (11.5 US qts, 9.6 lmp.qts) 3.0 liter (3.2 US qts, 2.6 lmp.qts)

ATF WS
