Light Control Switch Circuit

LIGHT CONTROL SWITCH CIRCUIT

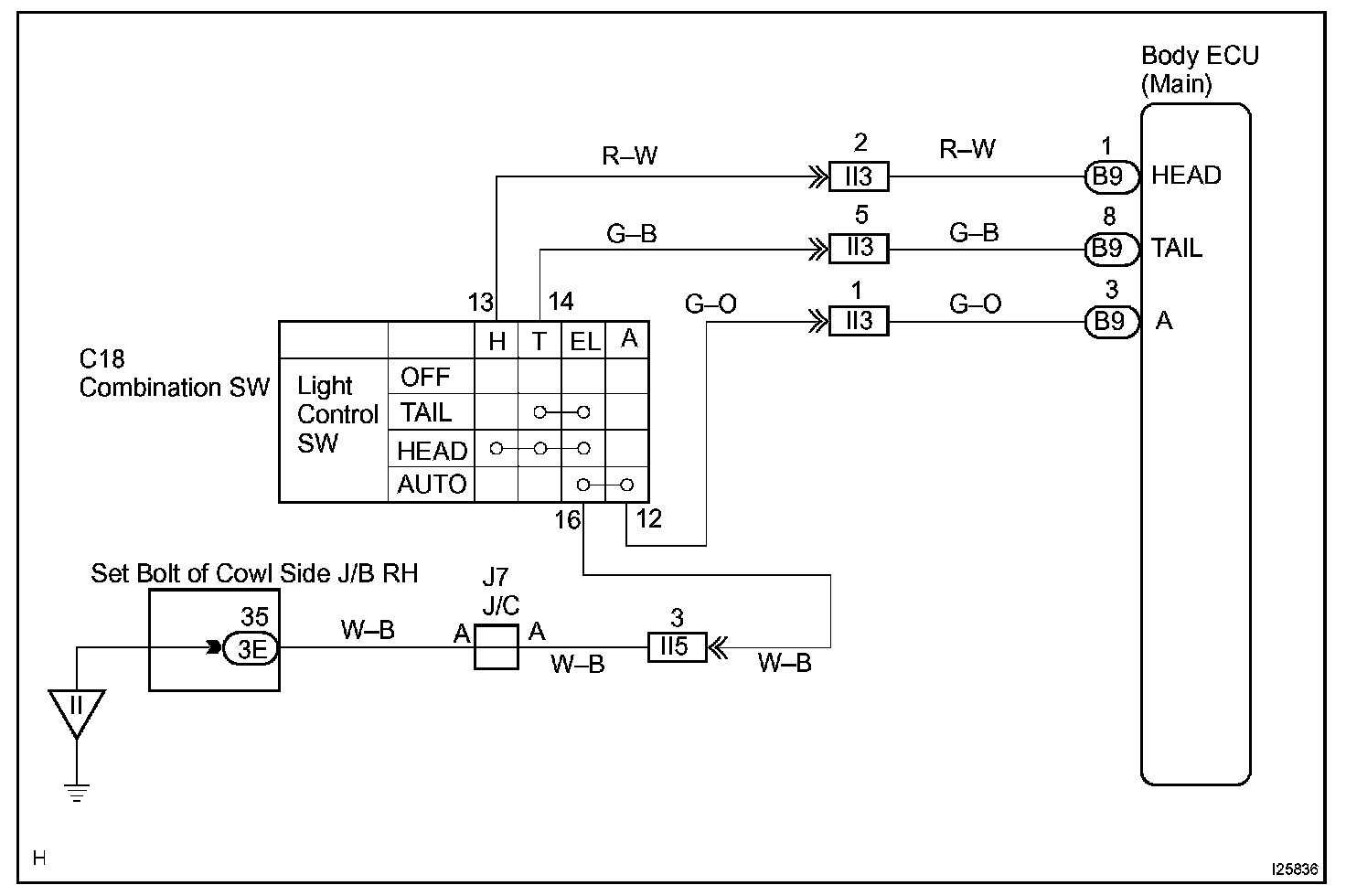

Wiring Diagram:

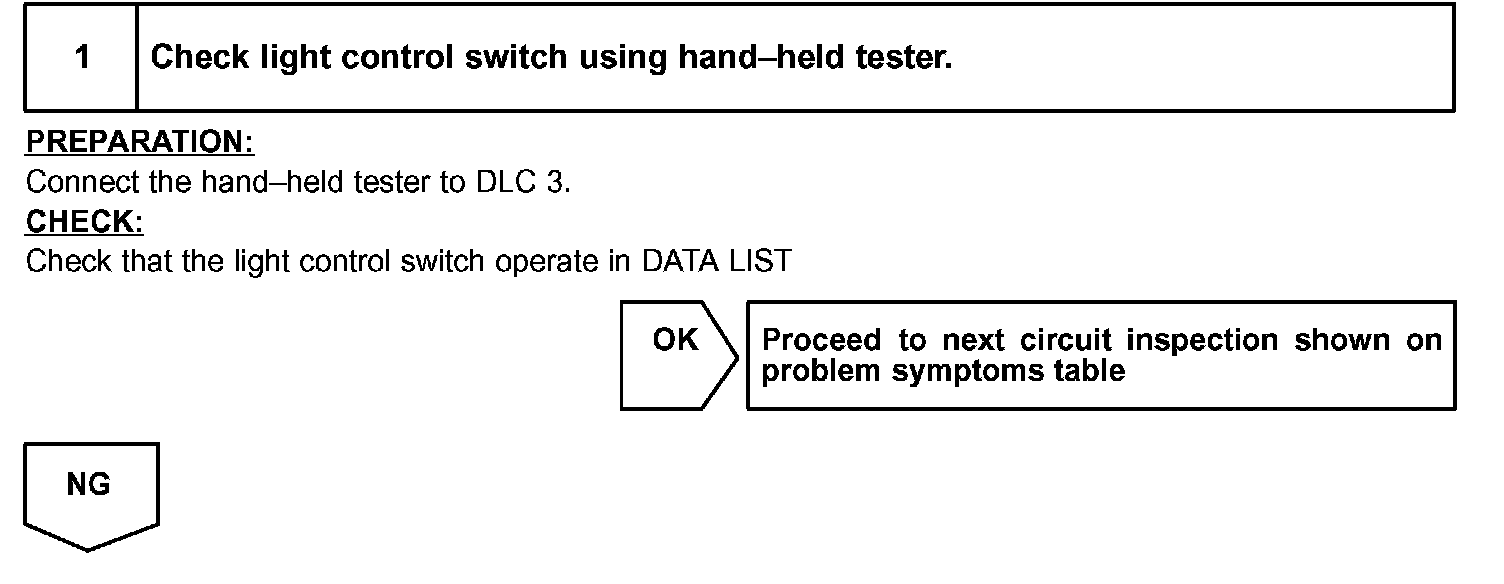

Step 1:

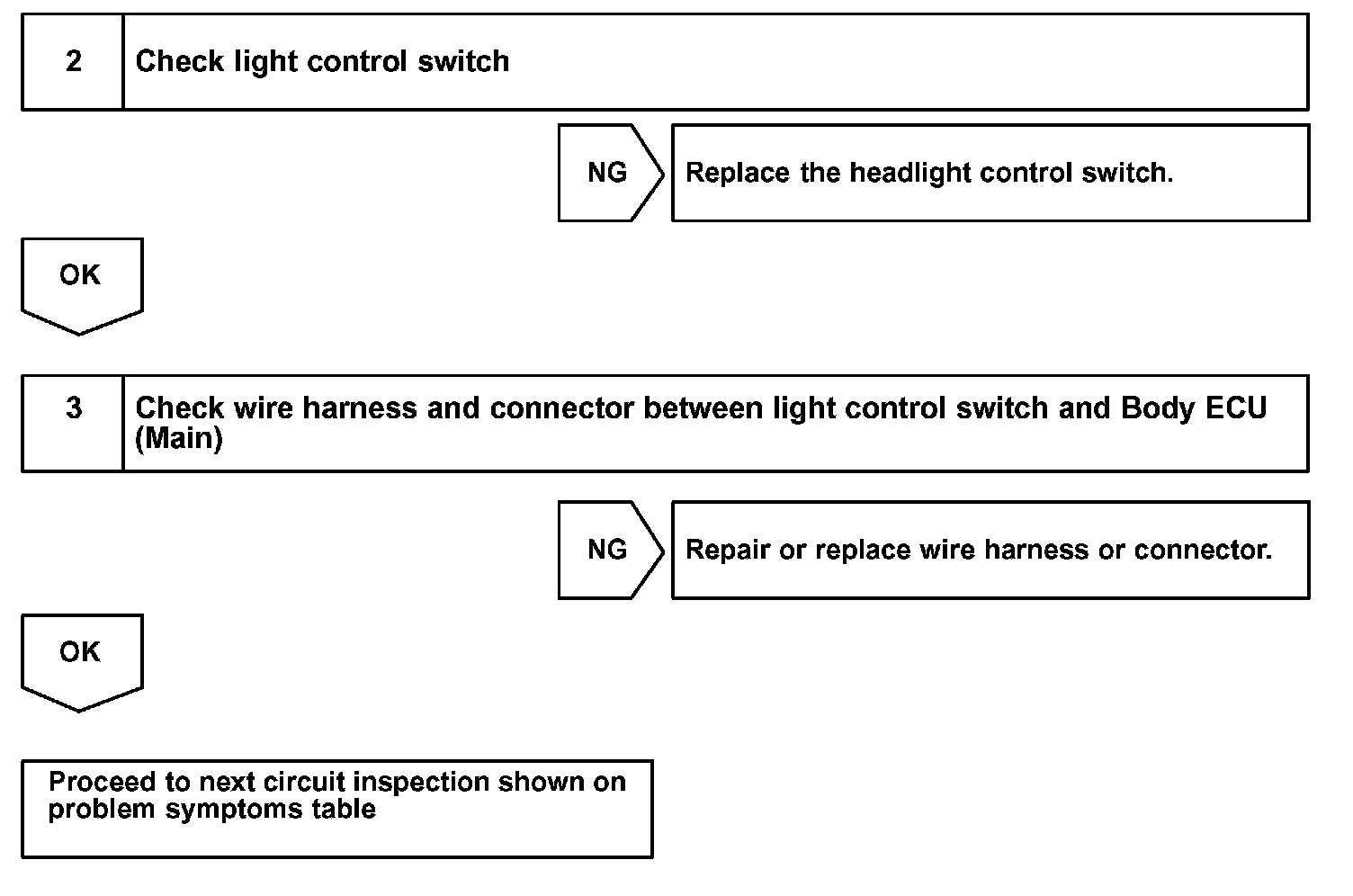

Step 2 - 3:




INSPECTION PROCEDURE

HINT: In case of using the hand-held tester, start the inspection from step 1 and in case of not using the hand-held tester, start from step 2.
