Data List

DATA LIST

HINT: By the DATA LIST displayed on the hand-held tester, you can read the value of the switch, sensor, actuator and so on without removing any parts. Reading the DATA LIST as a first step of troubleshooting is one of the method to shorten the labor time.

a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch ON.
c. According to the display on tester, read the "DATA LIST".

1. Body ECU (Main)

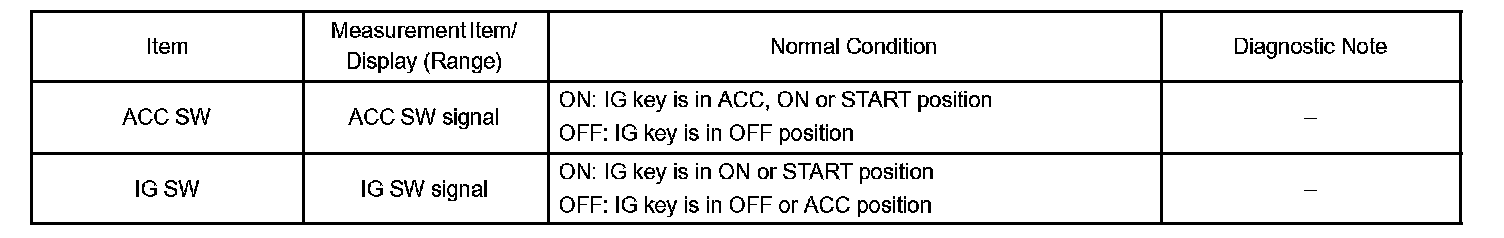

Power source & ignition switch:

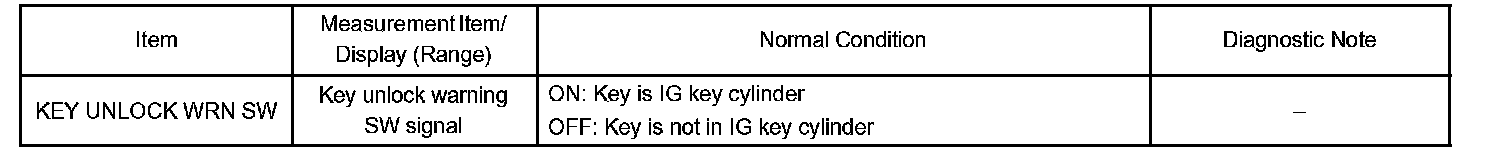

Key unlock warning switch:

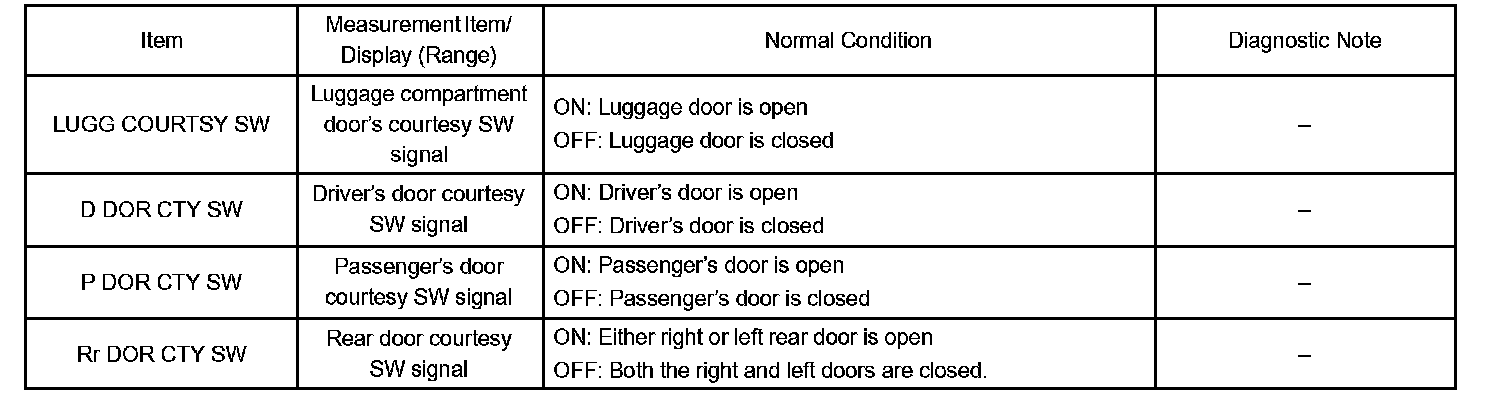

Door courtesy switch:

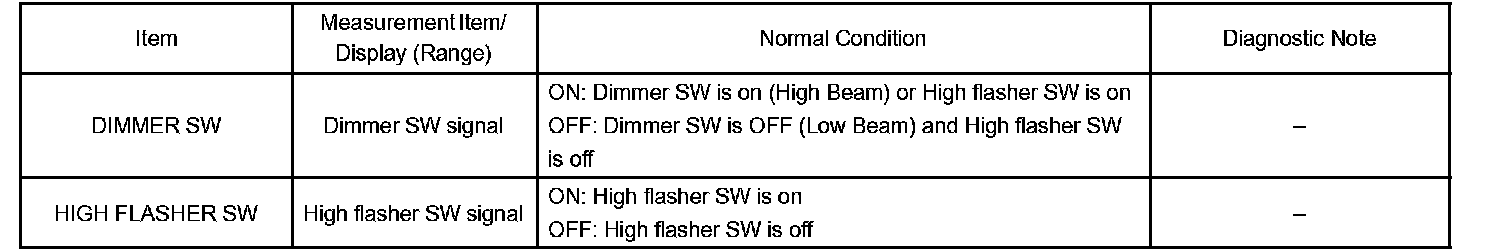

Headlight dimmer switch:

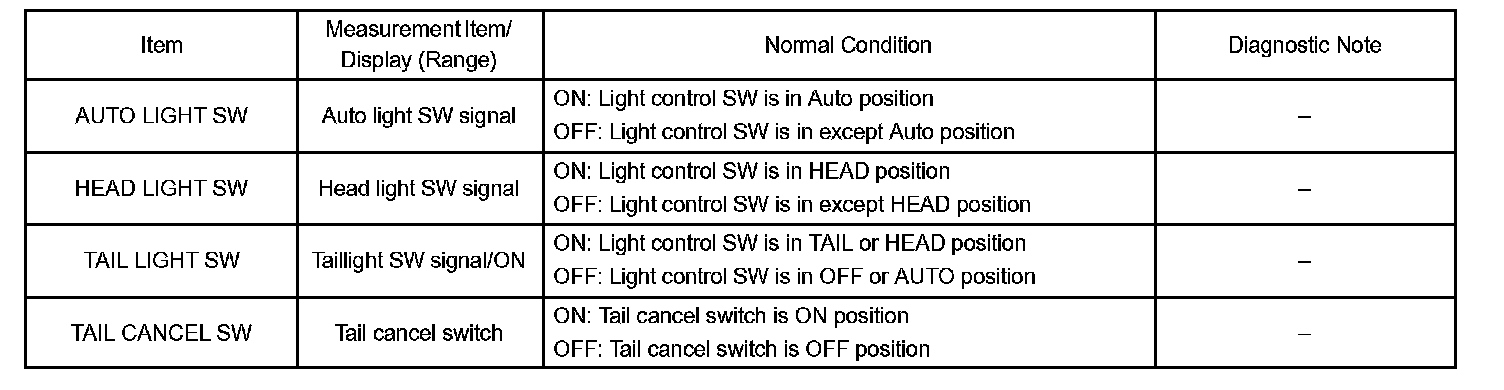

Light control switch:

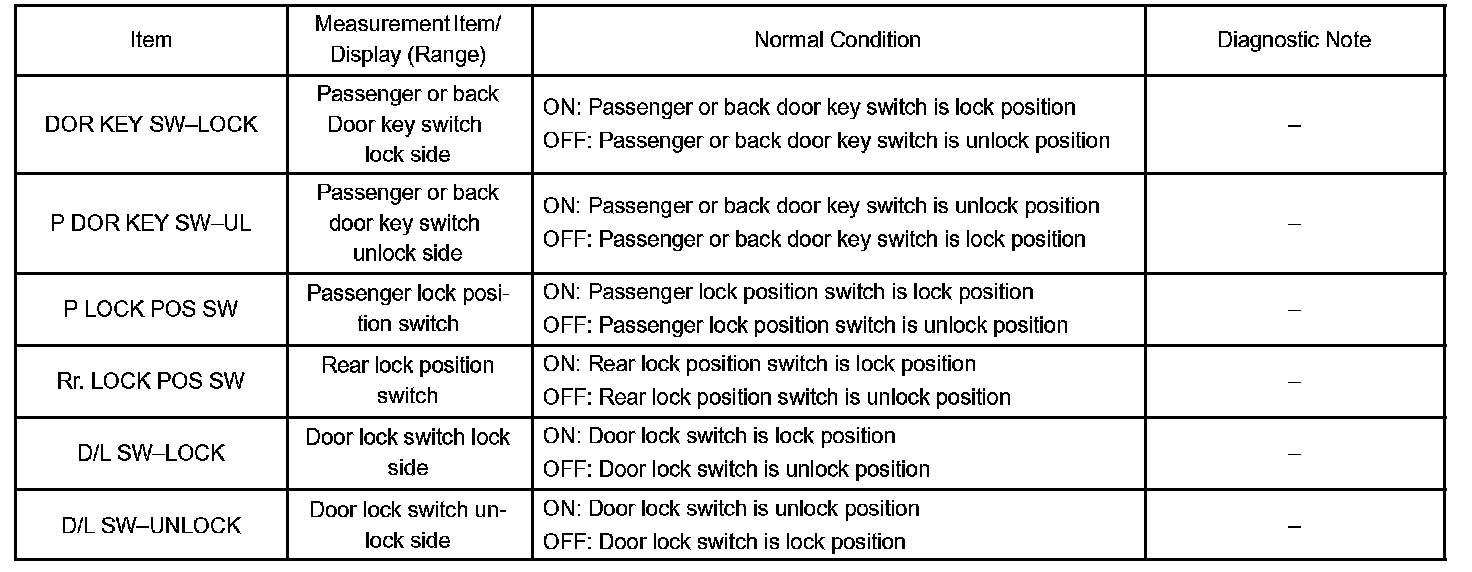

Door key lock and unlock switch:

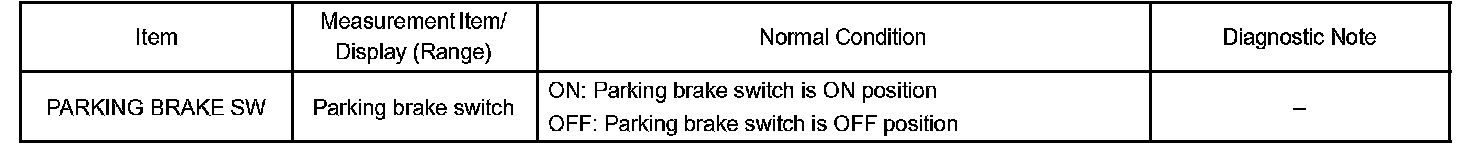

Parking brake switch:

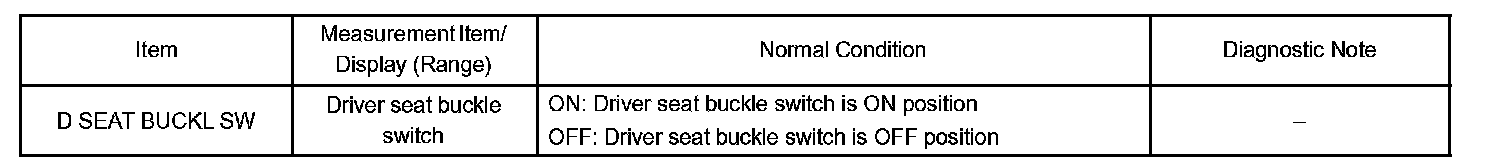

Driver seat buckle switch :

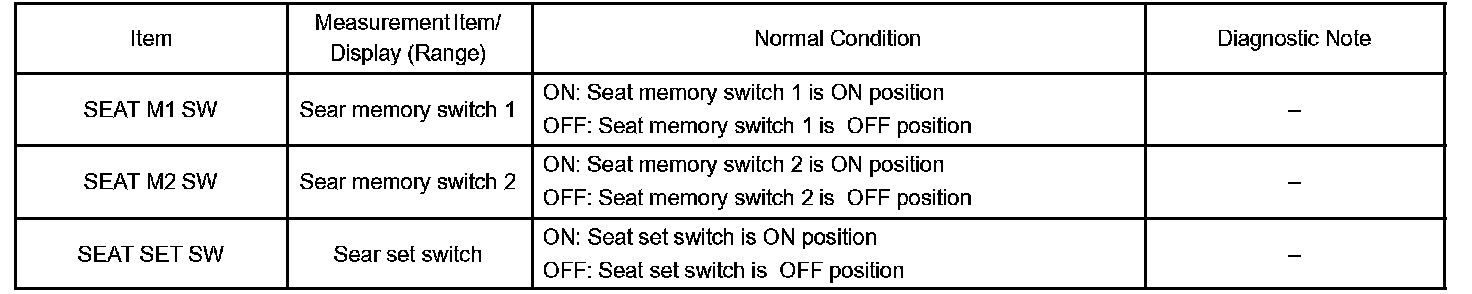

Seat memory switch:

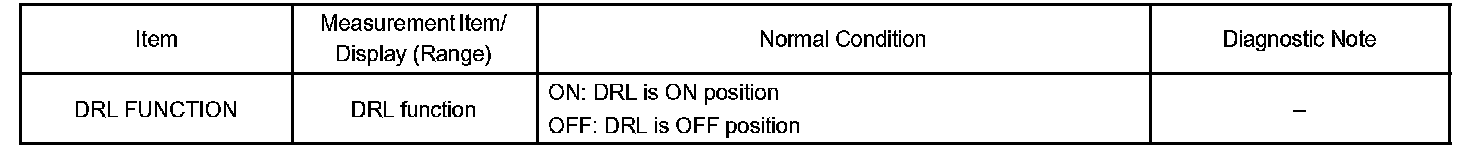

DRL relay circuit:

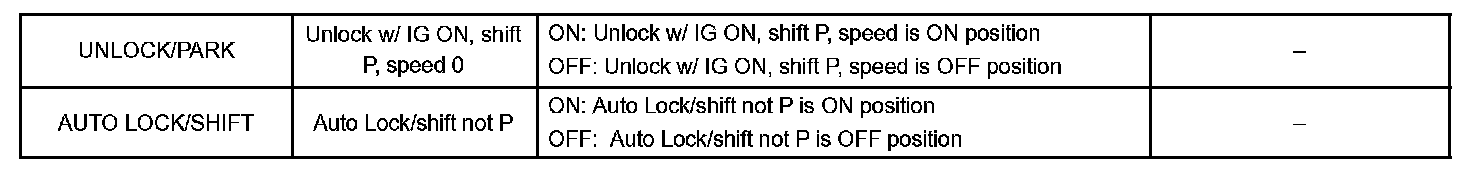

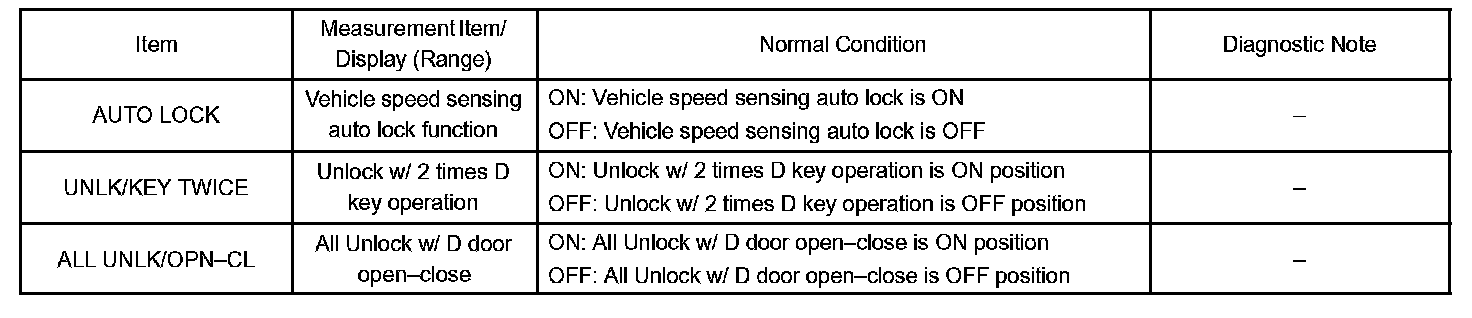

Door lock control:

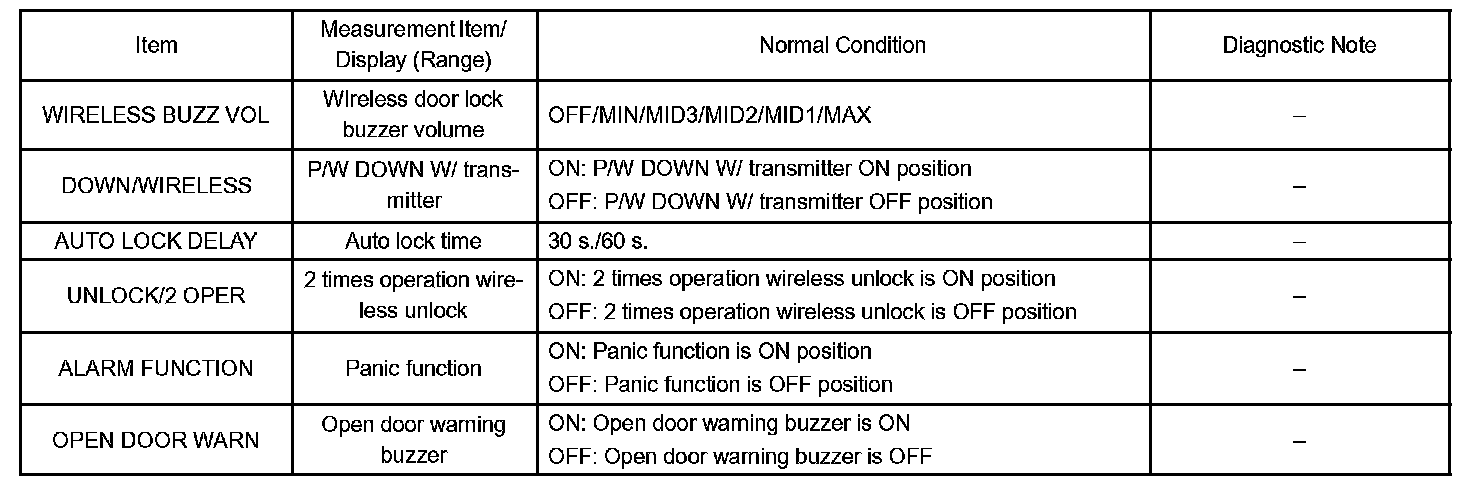

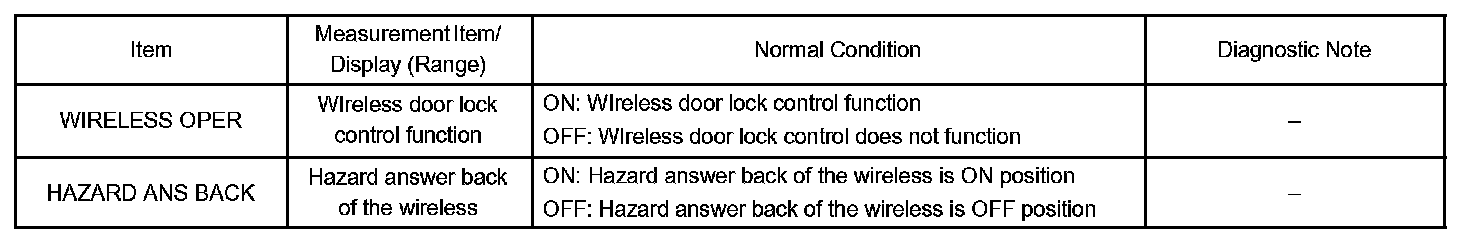

Wireless door lock control:




Wireless door lock buzzer:

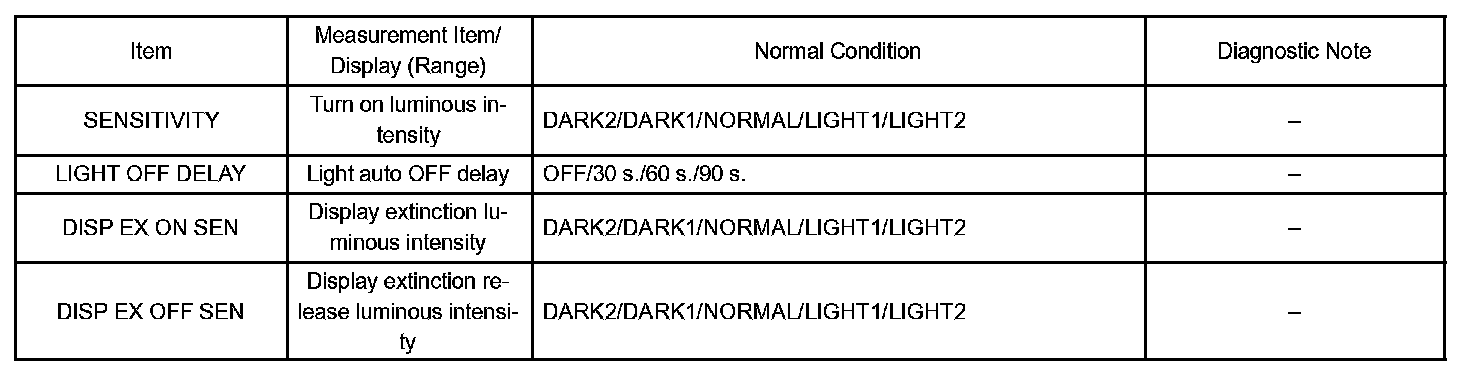

Light control sensor:

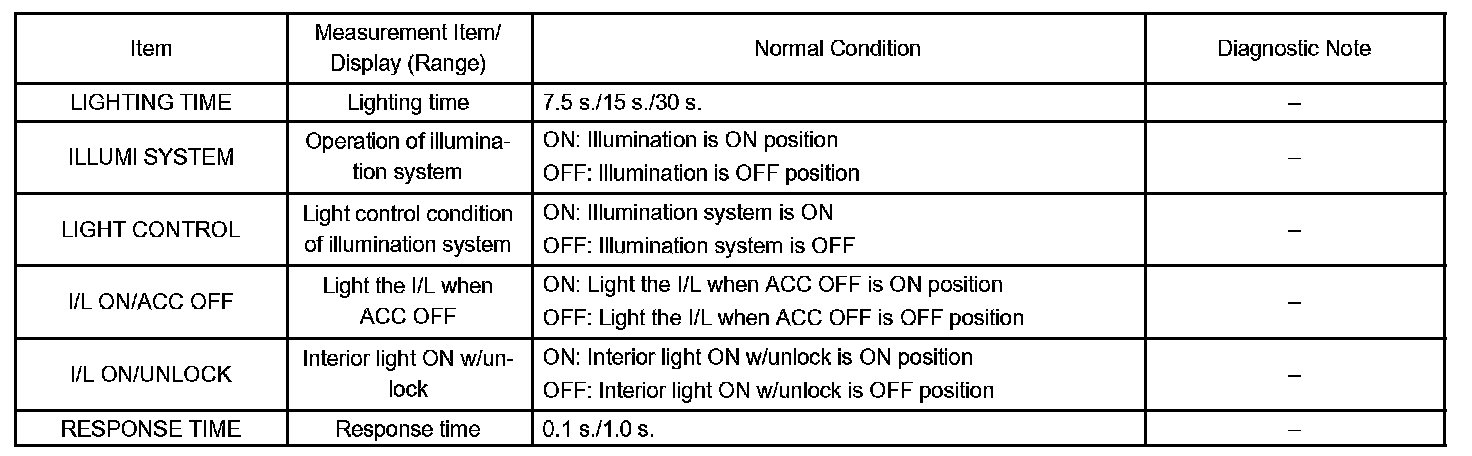

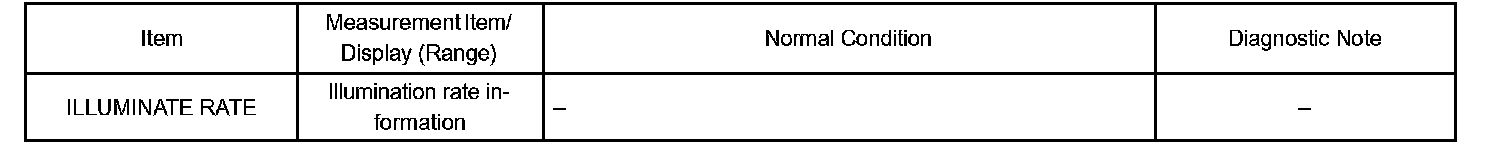

Illumination:

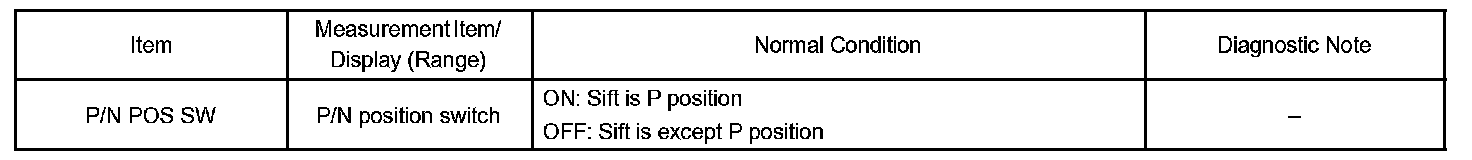

Park / Neutral position switch:

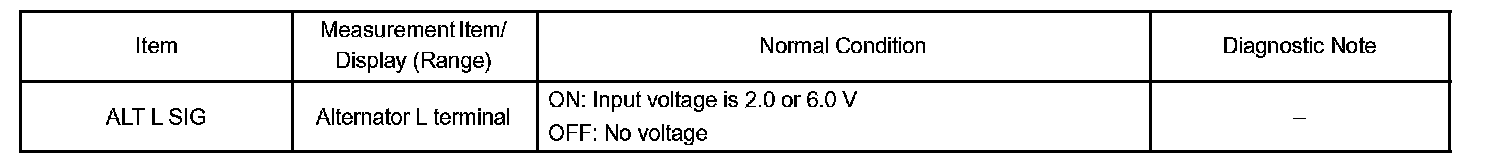

Alternator signal:




Others:

2. Body ECU (Sub)

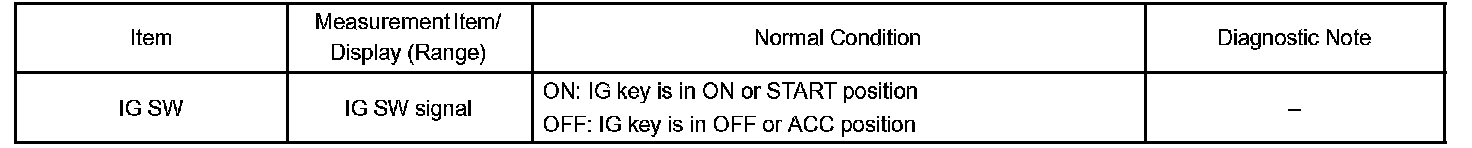

Power source & ignition switch:

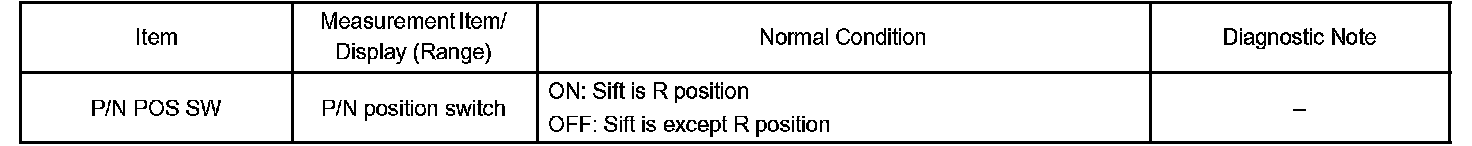

Park / Neutral position switch:

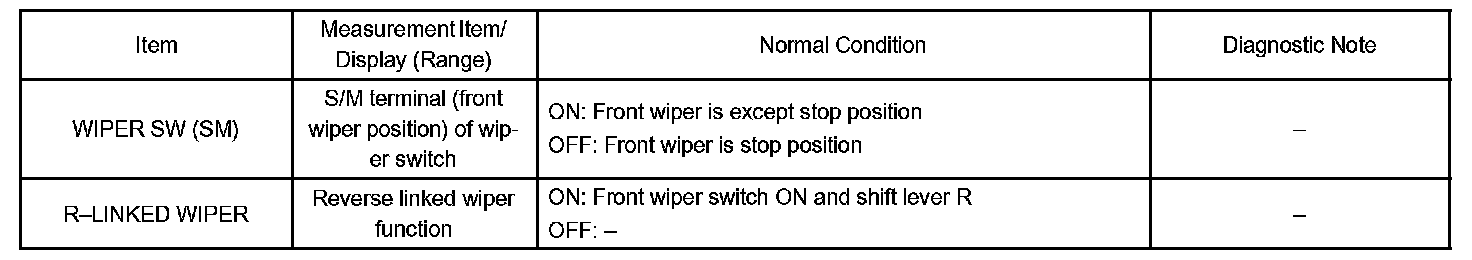

Wiper switch:
