System Diagram

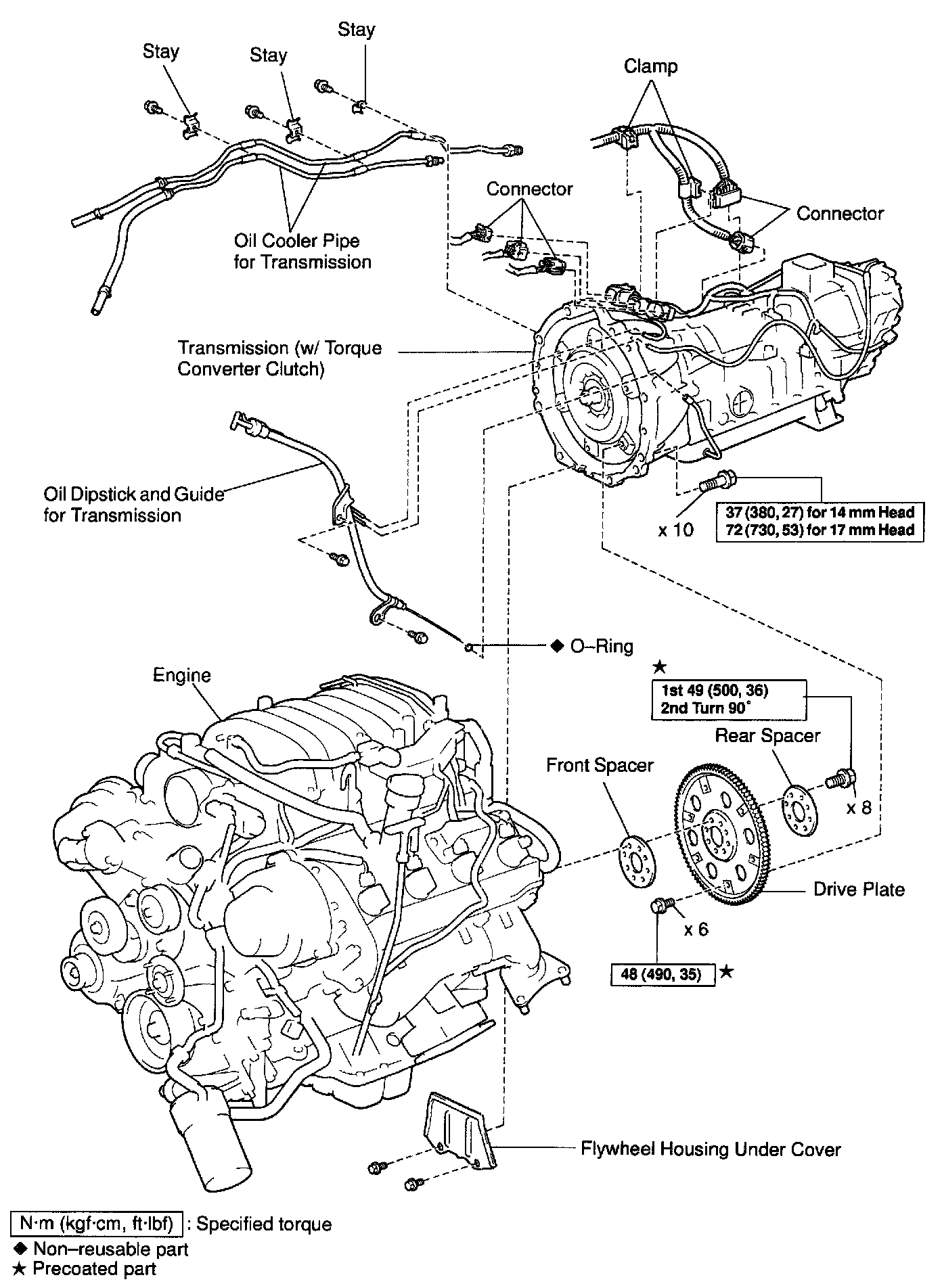

Part 1 Of 7:

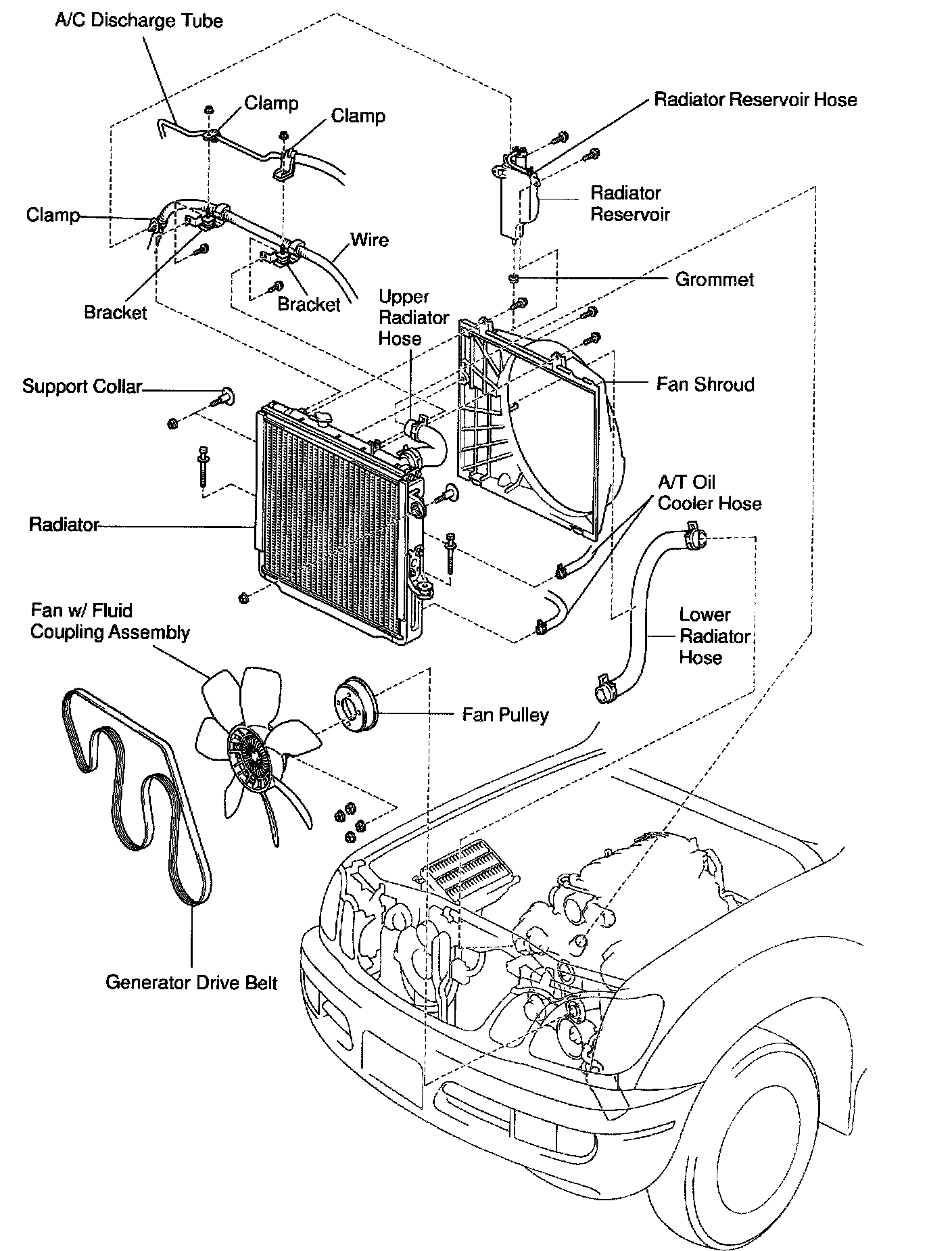

Part 2 Of 7:

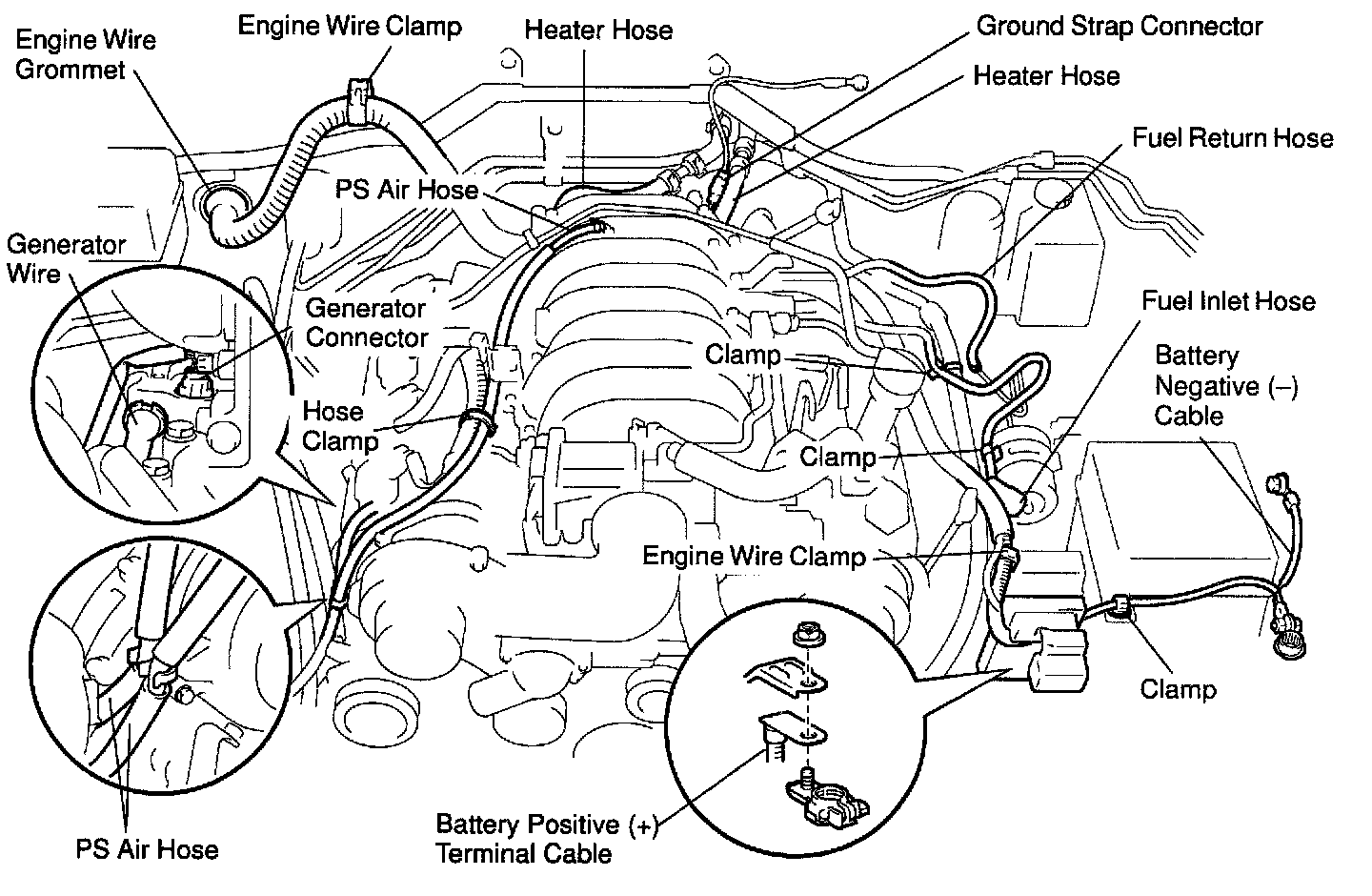

Part 4 Of 7:

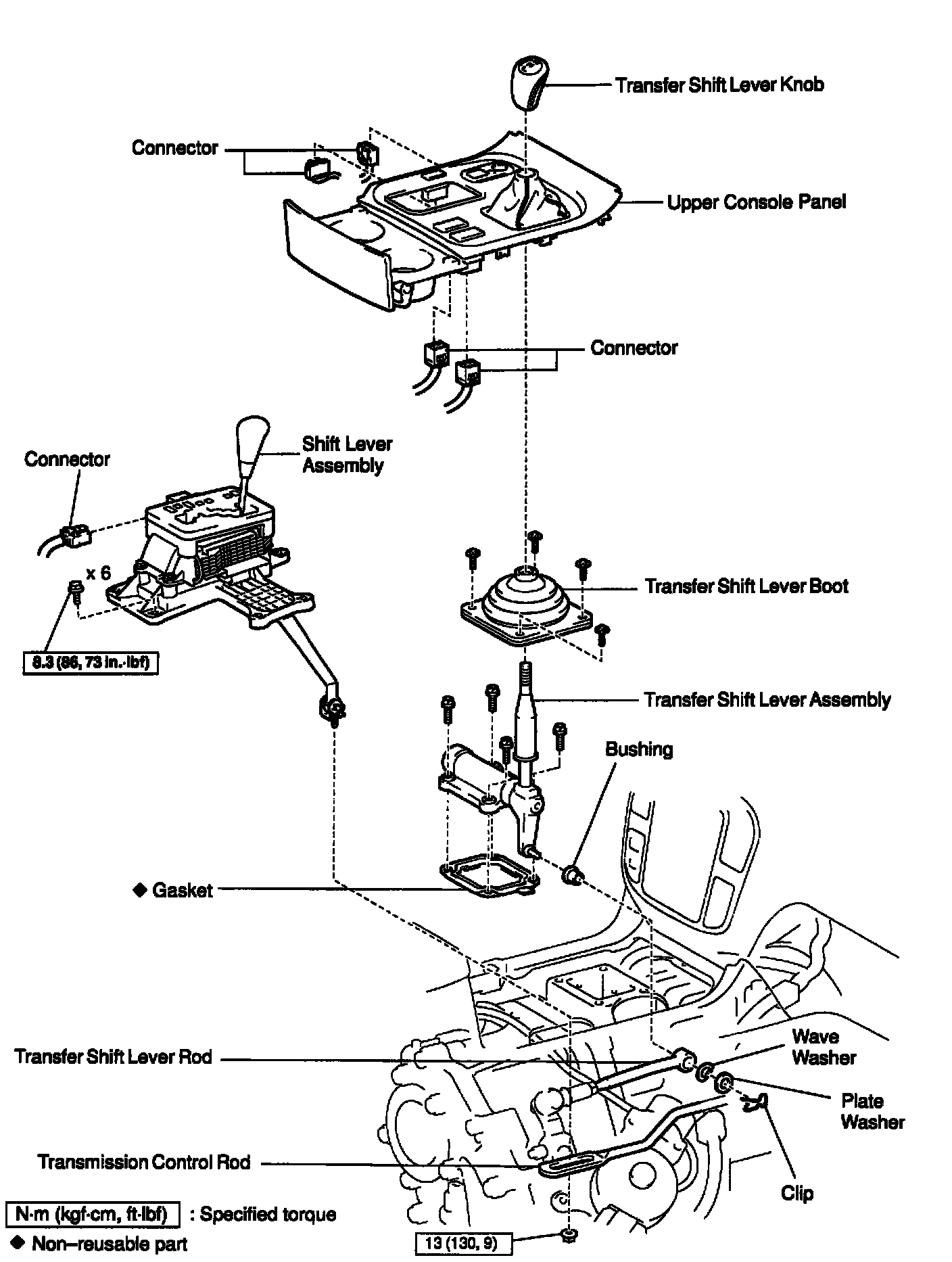

Part 5 Of 7:

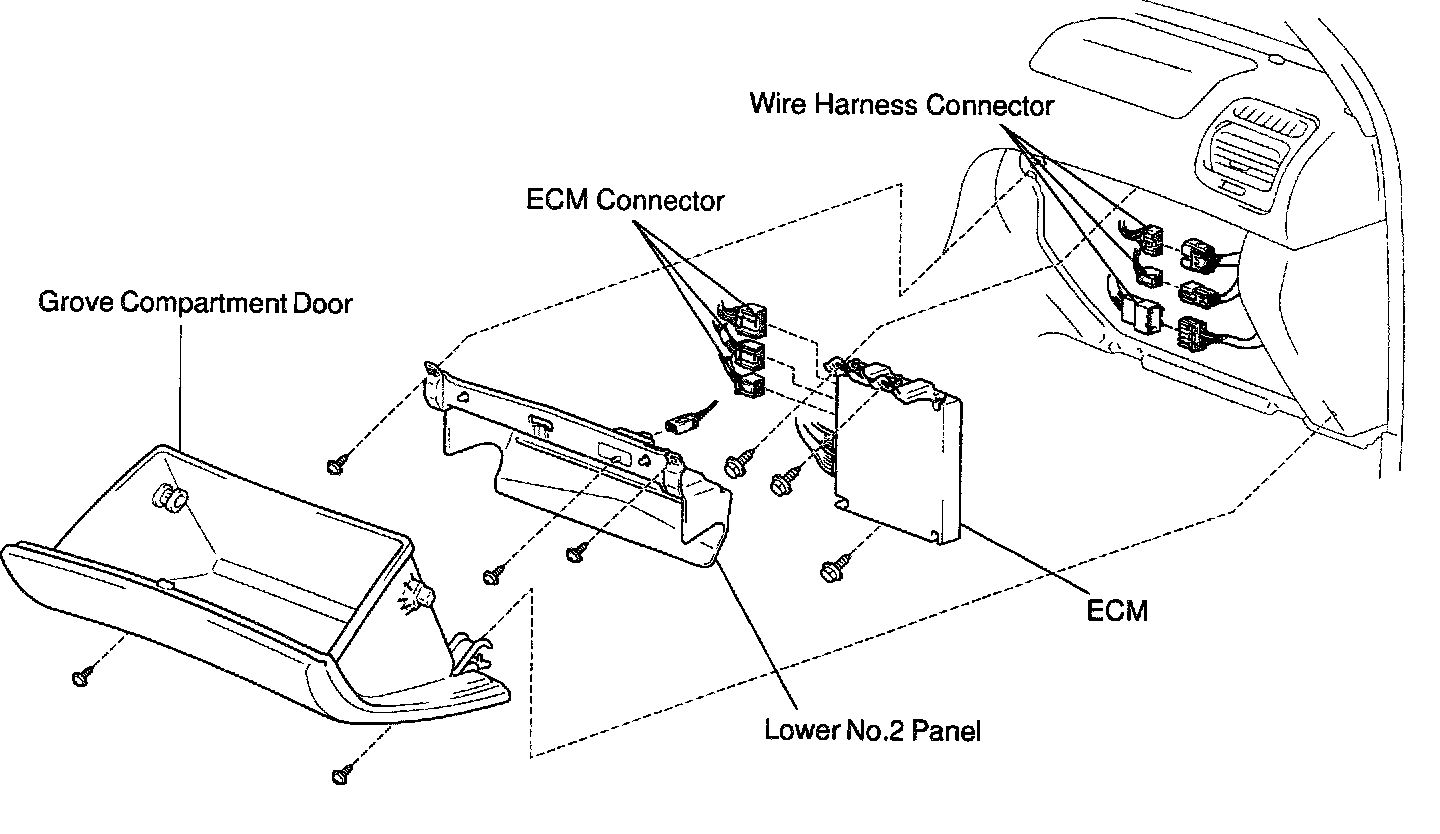

Part 6 Of 7:

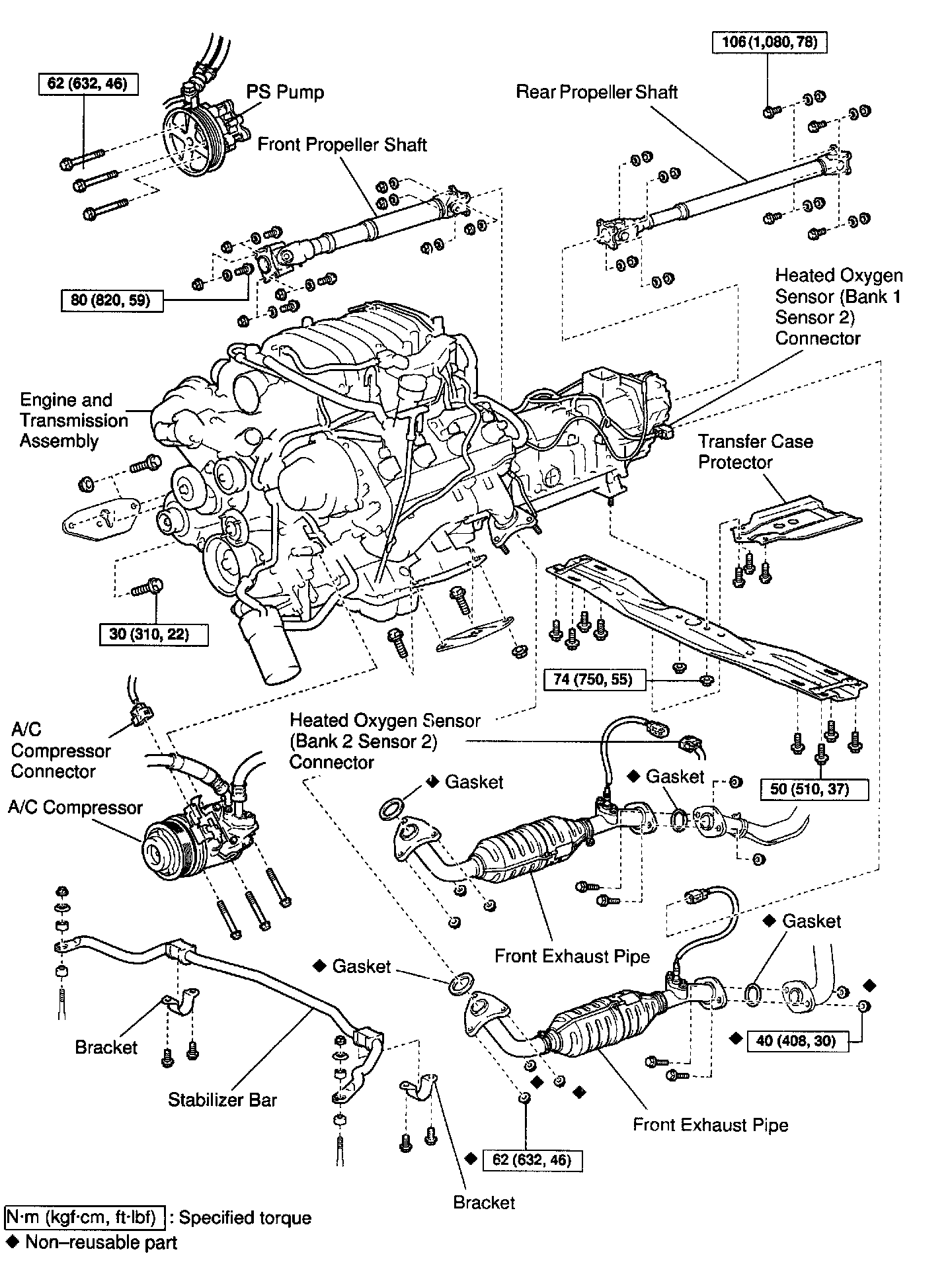

Part 7 Of 7:

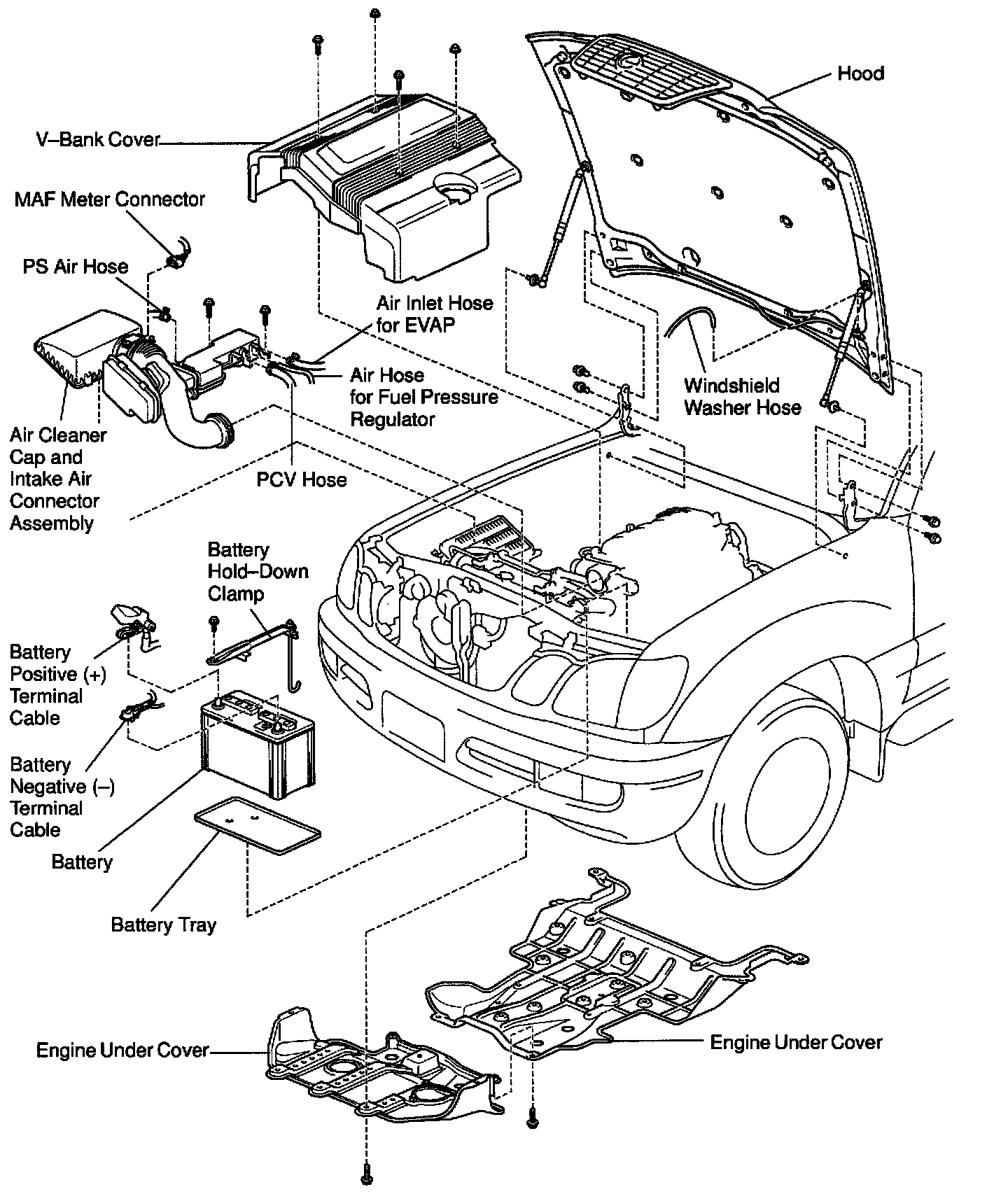

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS
