Torque Specifications

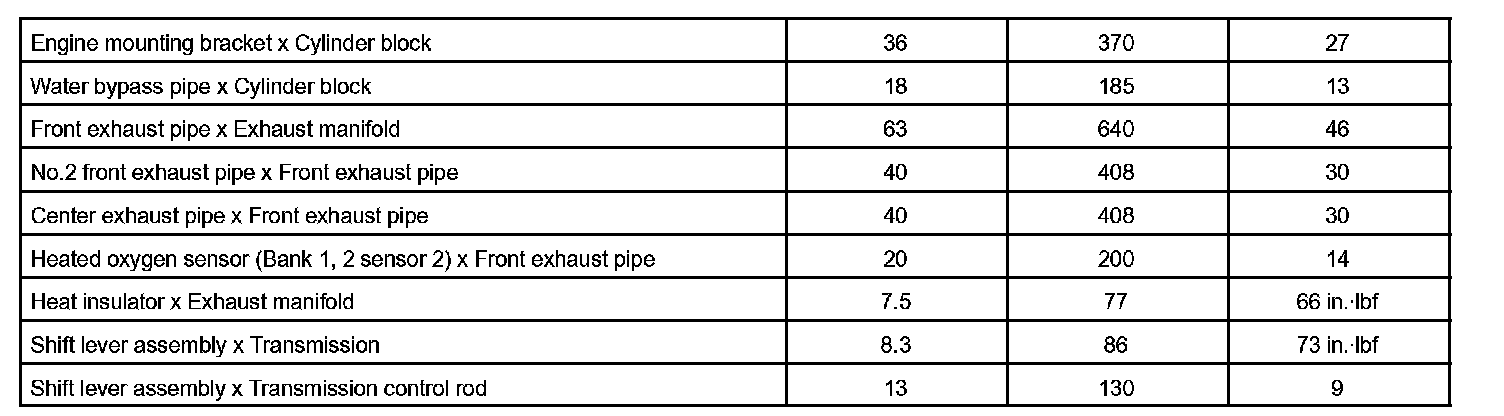

Engine Mechanical - Torque Specification Part 1:

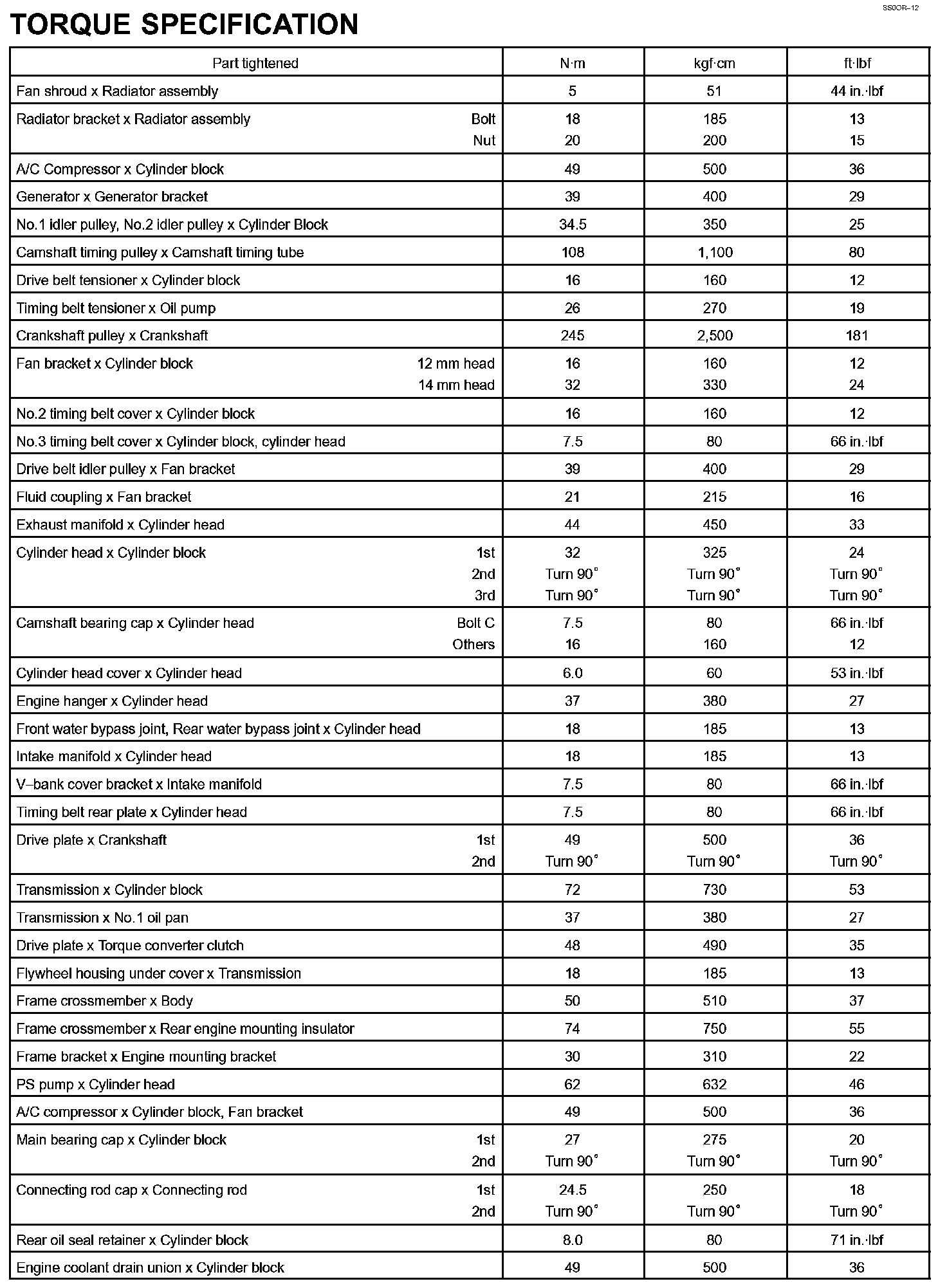

Engine Mechanical - Torque Specification Part 2:





Engine Mechanical - Torque Specifications
