Charging Systems: Charging: Generator: Components

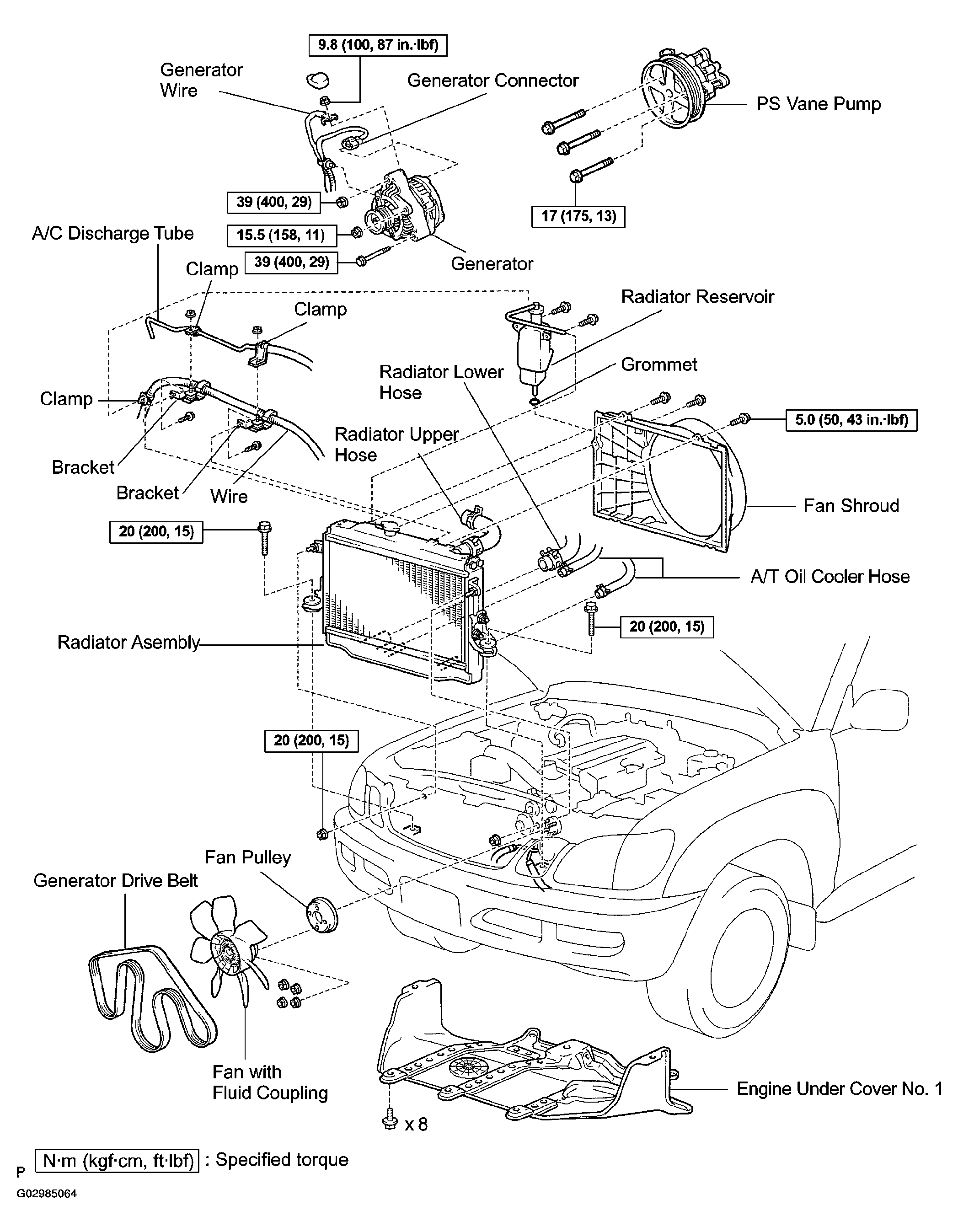

Fig 1: Exploded View Of Components With Torque Specifications
G02985064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

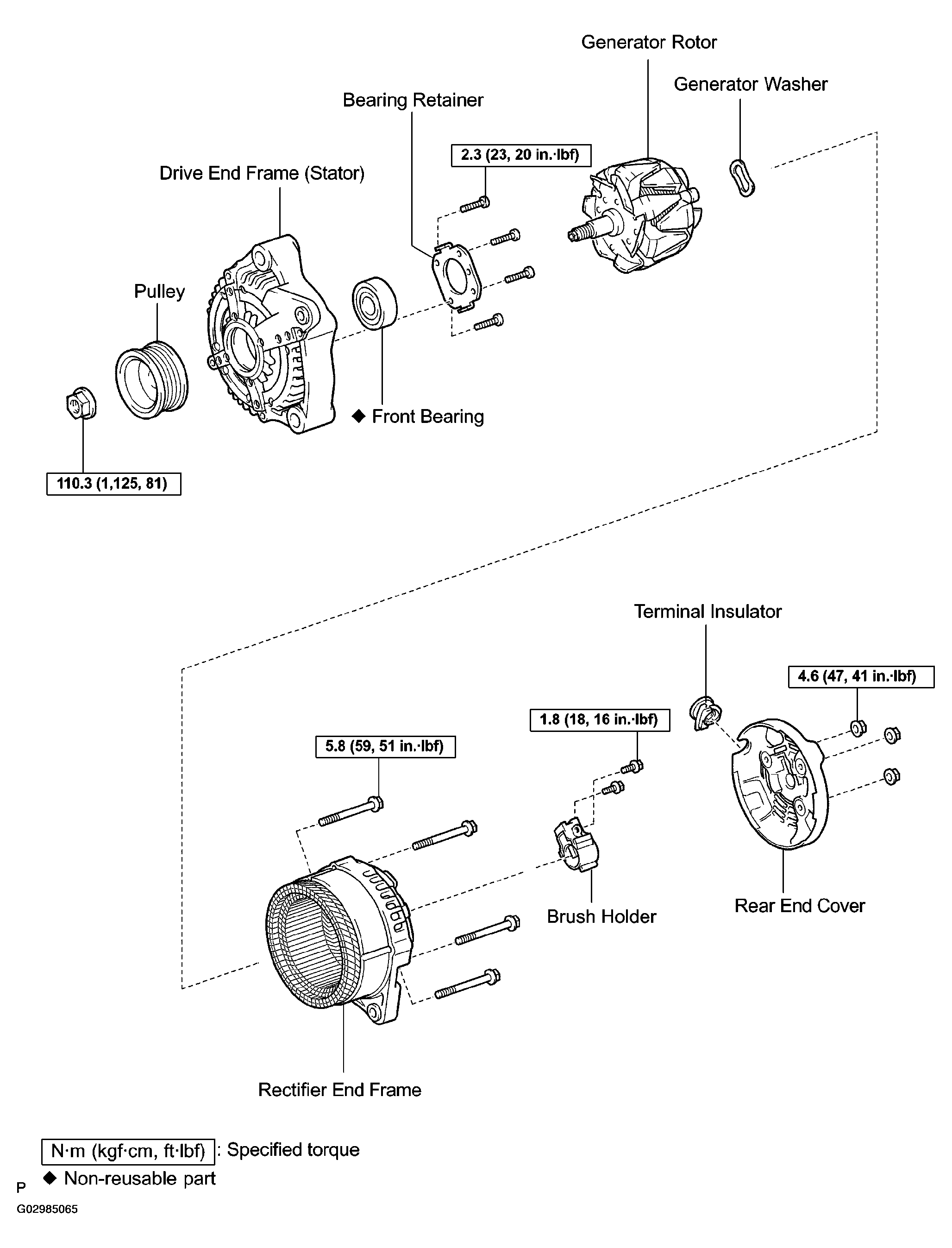

Fig 2: Exploded View Of Generator With Torque Specifications
G02985065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
