Charging Systems: Charging: Generator: Installation

1. Install the generator with the bolt and 2 nuts.

   Torque:

   39 N.m (400 kgf.cm, 29 ft.lbf) for bolt

   39 N.m (400 kgf.cm, 29 ft.lbf) for nut A

   15.5 N.m (158 kgf.cm, 11 ft.lbf) for nut B

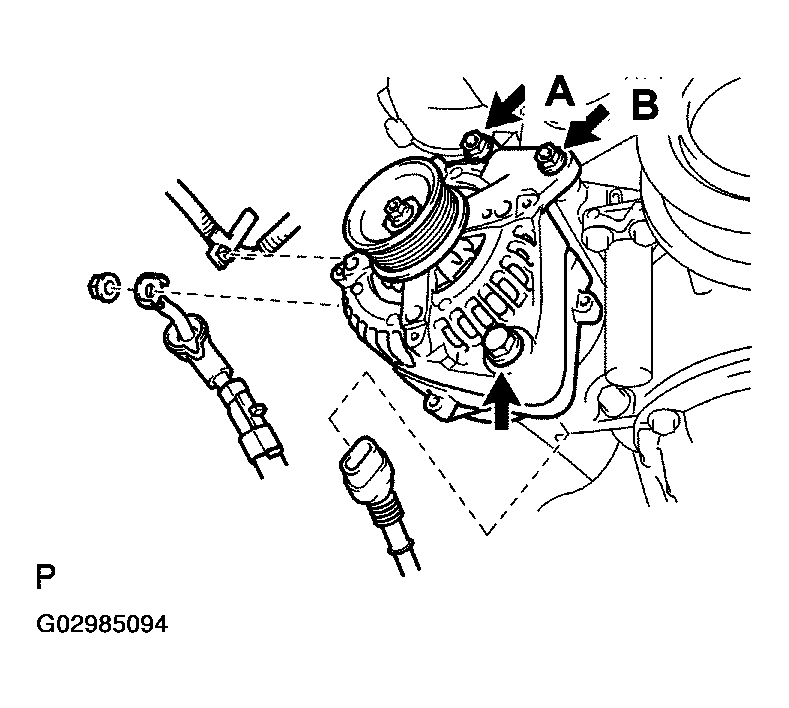

   Fig 1: Installing Generator

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the generator connector.
3. Connect the generator wire with the nut.

   Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

4. Install the terminal cap.
5. Install the wire clamp to the cord clip on the generator.

Install the belt.

HINT:

The pulley bolt for the belt tensioner has a left-hand thread.

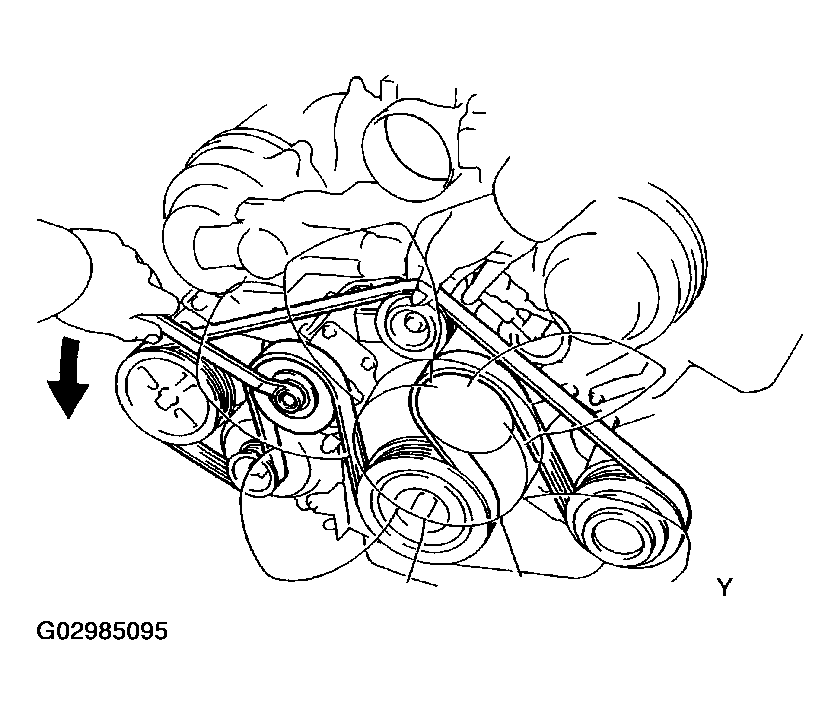

Fig 2: Installing Generator Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
