Engine Control Module (ECM): Components

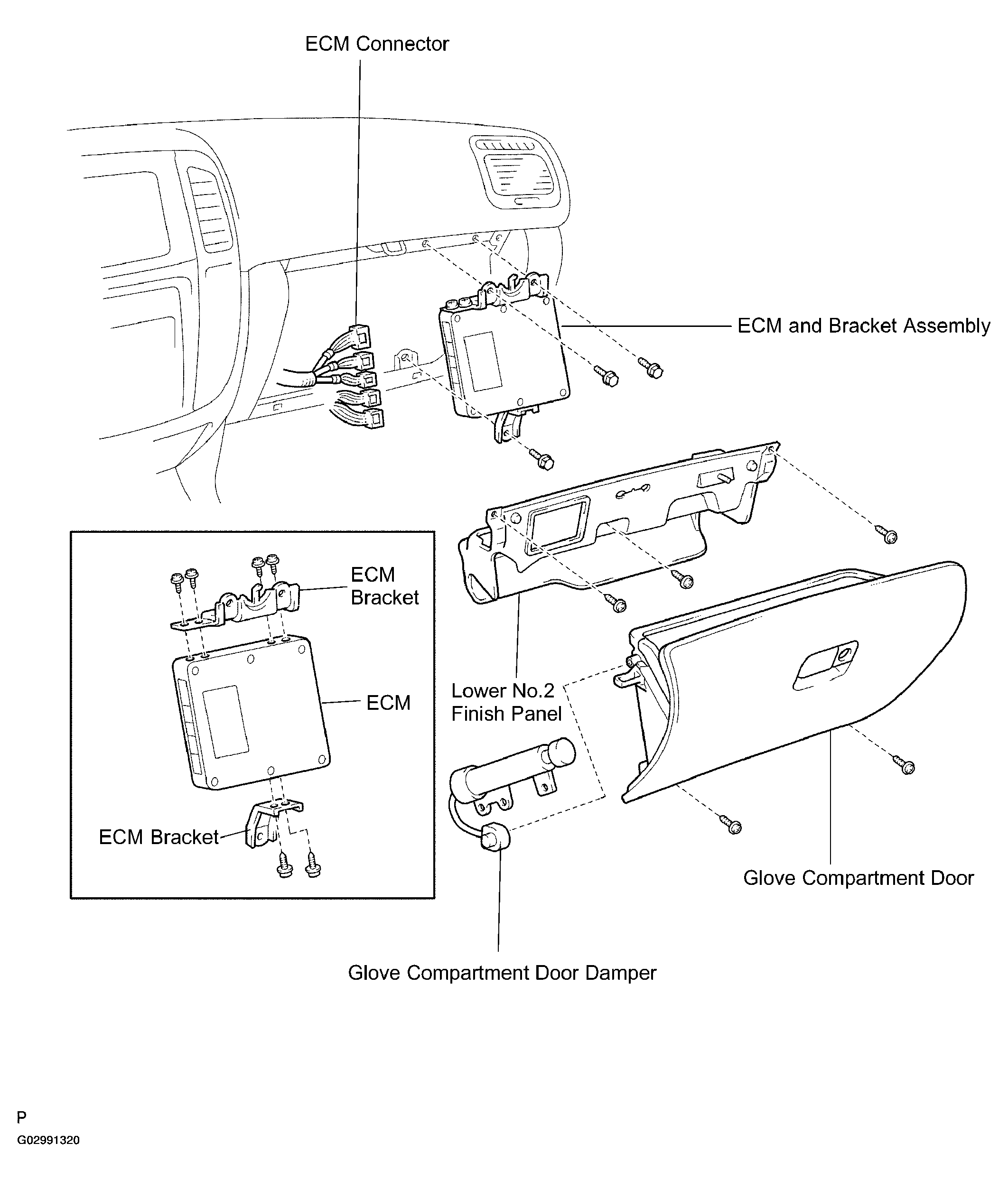

Fig 1: Identifying Engine Control Module (ECM) Connector
G02991320Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
