Control Valve Assembly: Components

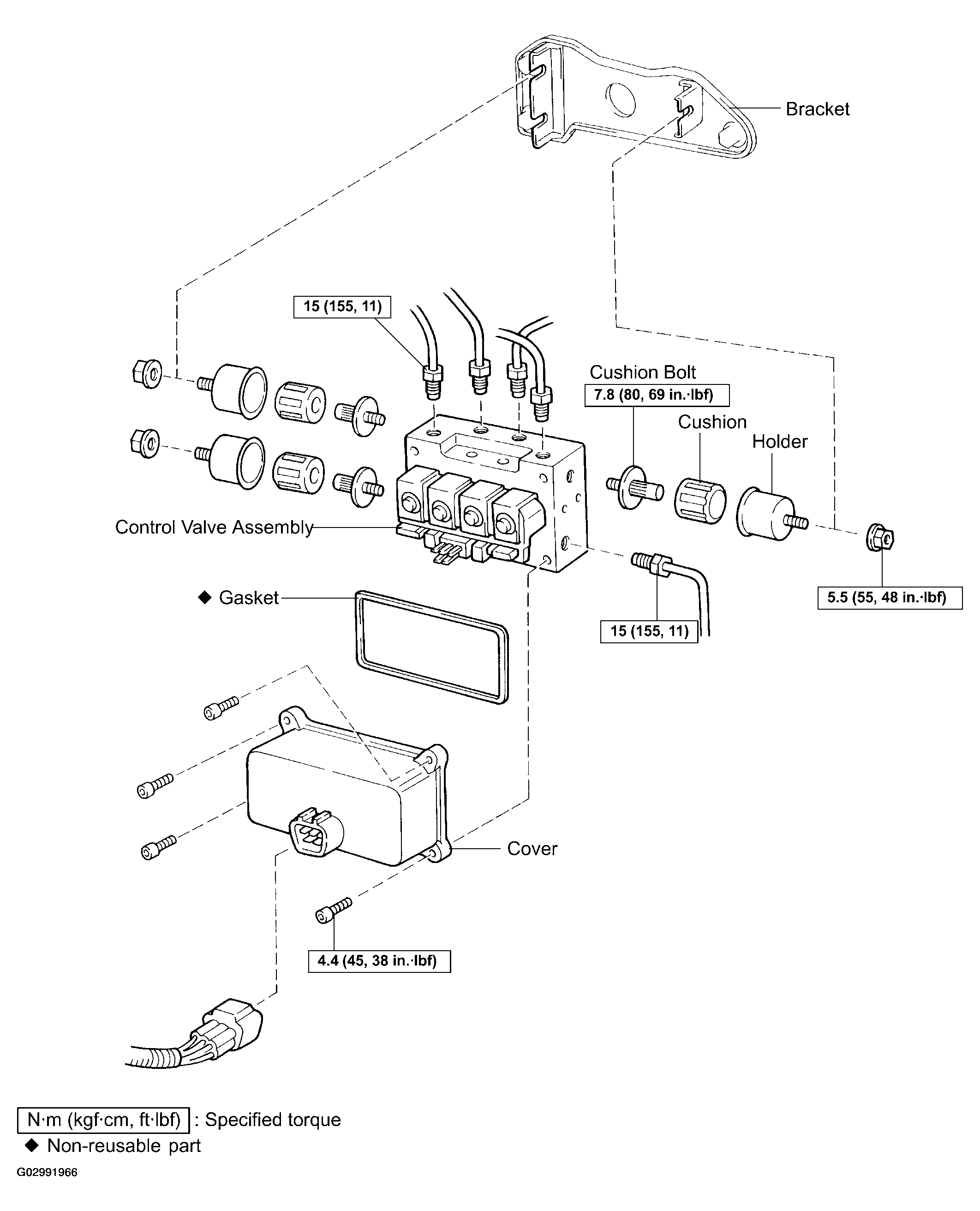

Fig 1: Exploded View Of Control Valve Assembly With Torque Specifications
G02991966Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
