Inspection Procedure

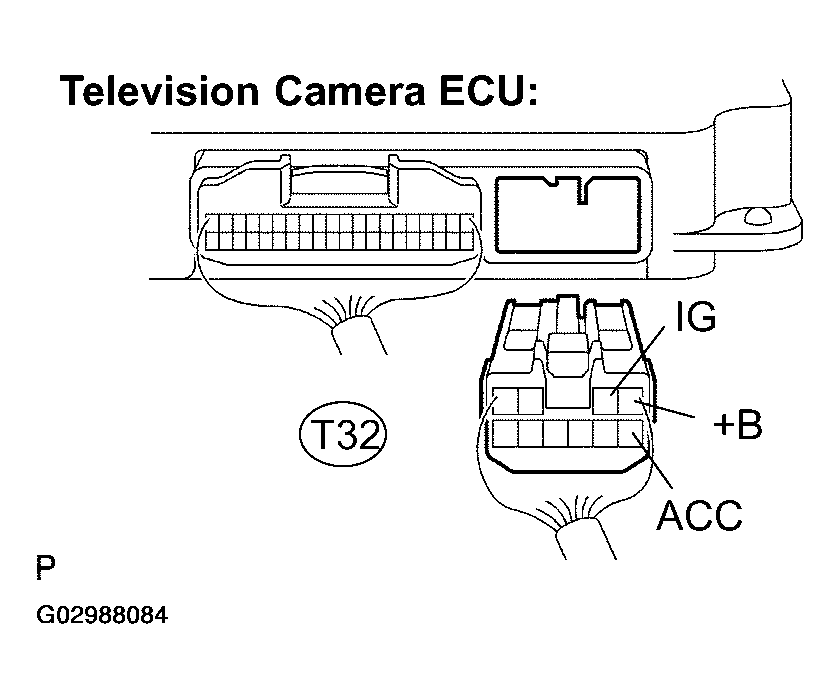

- Check voltage between terminals +B, ACC, IG and GND1 of television camera ECU.
- Disconnect the T32 connector from the television camera ECU.
- Measure the voltage according to the value(s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition +B - Body ground Always 10 to 14 V ACC - Body ground Ignition SW ACC 10 to 14 V IG - Body ground Ignition SW ON 10 to 14 V
- NG: Repair or replace harness or connector.
- OK: Go to Next Step.

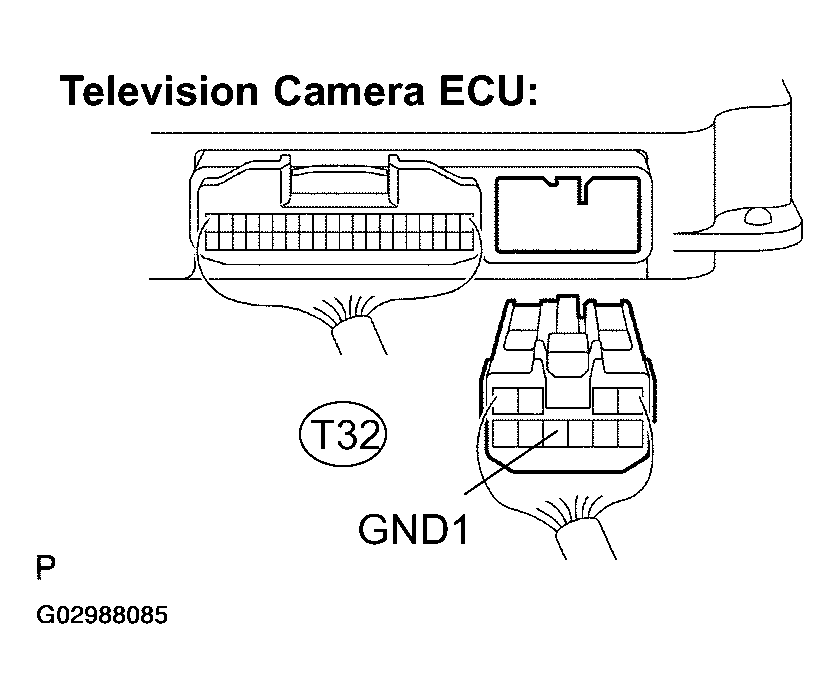

- Check continuity between terminal GND1 and body ground.
- Disconnect the T32 connector from the television camera ECU.
- Measure the resistance according to the value(s) in the table below.
Standard:
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition GND1 - Body ground Always Below 1 Ω
- NG: Repair or replace harness or connector.
- OK: Replace television camera ECU.
