Diagnostic Trouble Code Chart

HINT:

DTC is displayed on the multi-display (See PRE-CHECK  ).

1. TELEVISION CAMERA ECU (Physical address: 1AC)

   HINT:

   • *1: Even if no failure is detected, this code may be stored depending on the battery condition or voltage for starting the engine.
   • *2: This code may be stored when the ignition switch is turned to the START position again in 1 minute after the engine starts.
   • *3: This code may be stored when the ignition switch is turned to the START position again after the engine starts.
   • *4: When 210 seconds have elapsed after pulling out the power supply connector of the master component with the ignition switch in the ACC or ON position, this code is stored.
   1. Logical address: 01 (Communication control)

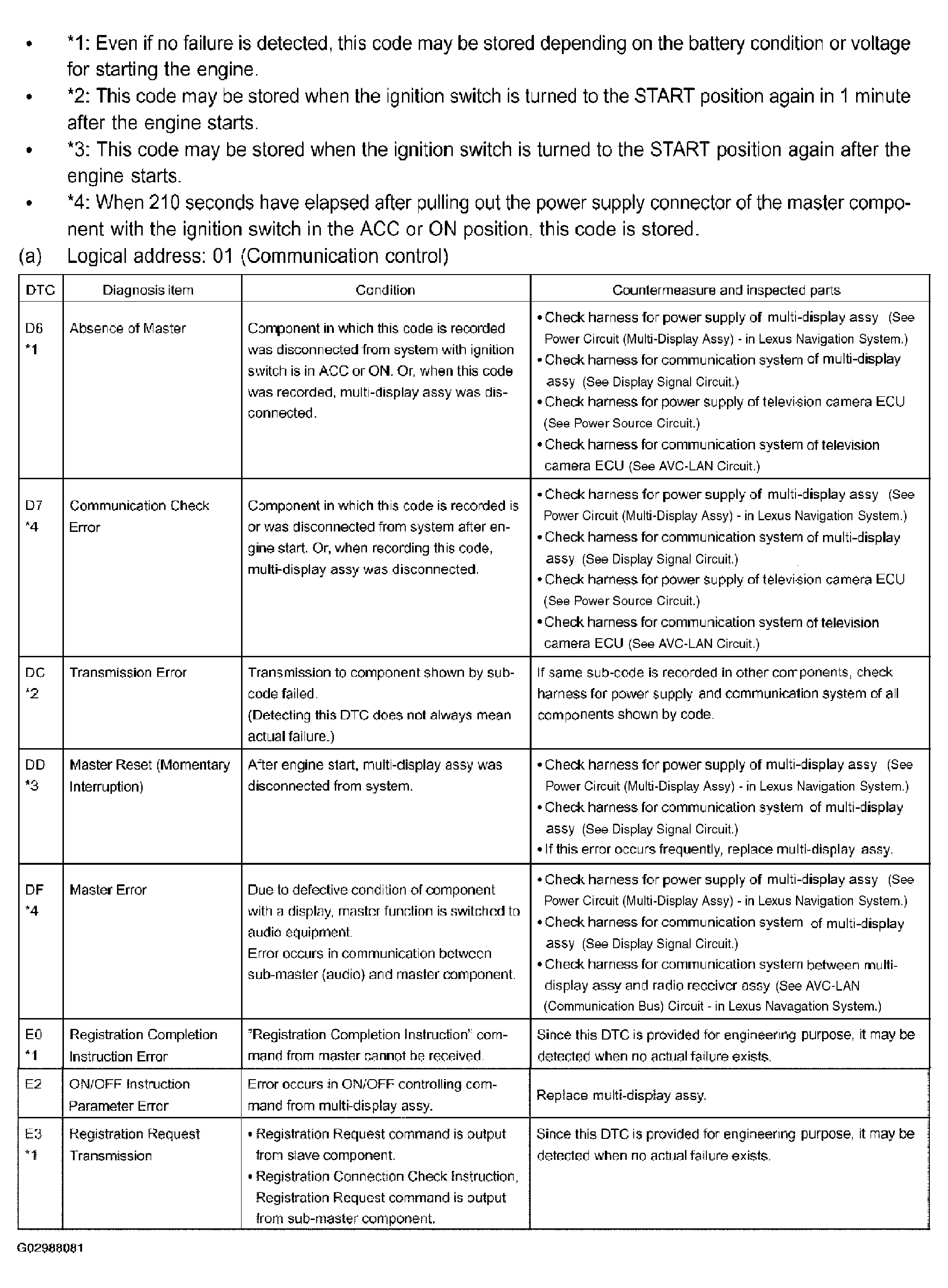

      Fig 1: Logical Address 01 Chart (Communication control)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Logical address: 5C (Camera unit)
      LOGICAL ADDRESS 5C Chart (Camera Unit)



      DTC	Diagnosis item	Condition	Countermeasure and inspected parts
      40	Camera Picture Error	Synchronous signal from the camera cannot be transmitted	Check the wire harness between television camera assy and television camera ECU (See DISPLAY SIGNAL CIRCUIT  ).
