Quarter Window Glass: Removal

  1. REMOVE ROOF HEADLINING REAR TRIM

    Using a screwdriver, remove the roof headlining rear trim.

    HINT:

    Tape up the screwdriver tip before use.

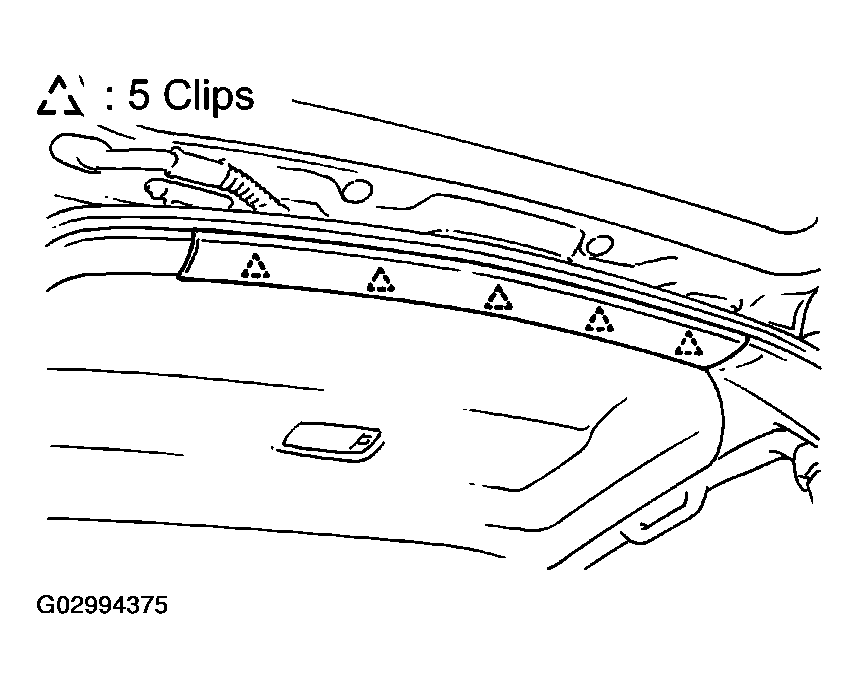

    Fig 1: Removing Roof Headlining Rear Trim
    G02994375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE REAR NO. 2 SEATS (See  DISASSEMBLY  )
  3. REMOVE REAR MAT SET PLATE
    1. Remove the 5 screws.
    2. Using a screwdriver, remove the rear mat set plate.

    HINT:

    Tape up the screwdriver tip before use.

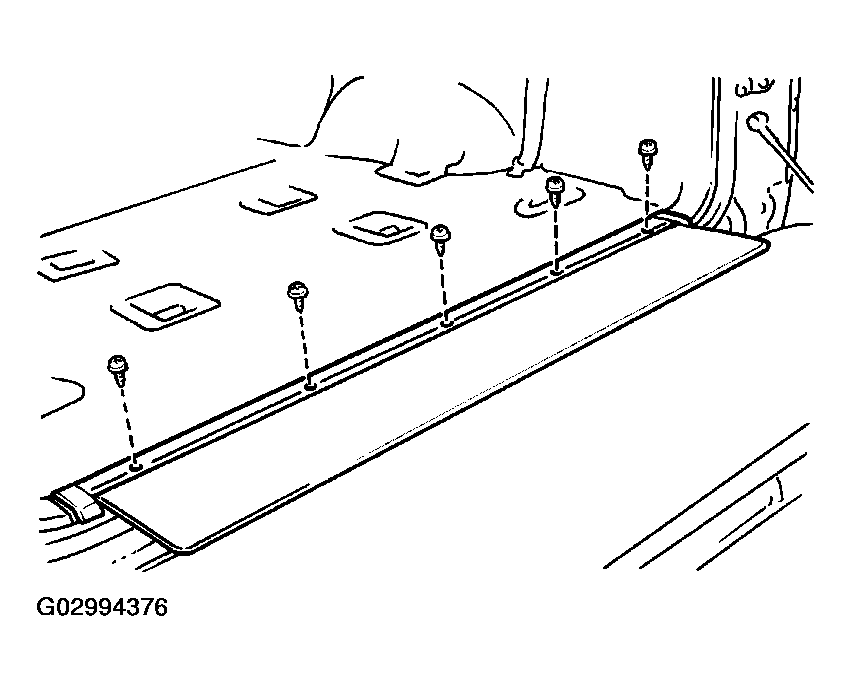

    Fig 2: Removing Rear Mat Set Plate
    G02994376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 3 REAR SEAT PROTECTOR

    Remove the 4 screws and the No. 3 rear seat protectors.

  5. REMOVE NO. 3 SEAT FRONT BRACKET COVER

    Remove the 2 screws and the No. 3 seat front bracket covers.

  6. REMOVE NO. 3 SEAT BRACKET SUPPORT COVERS

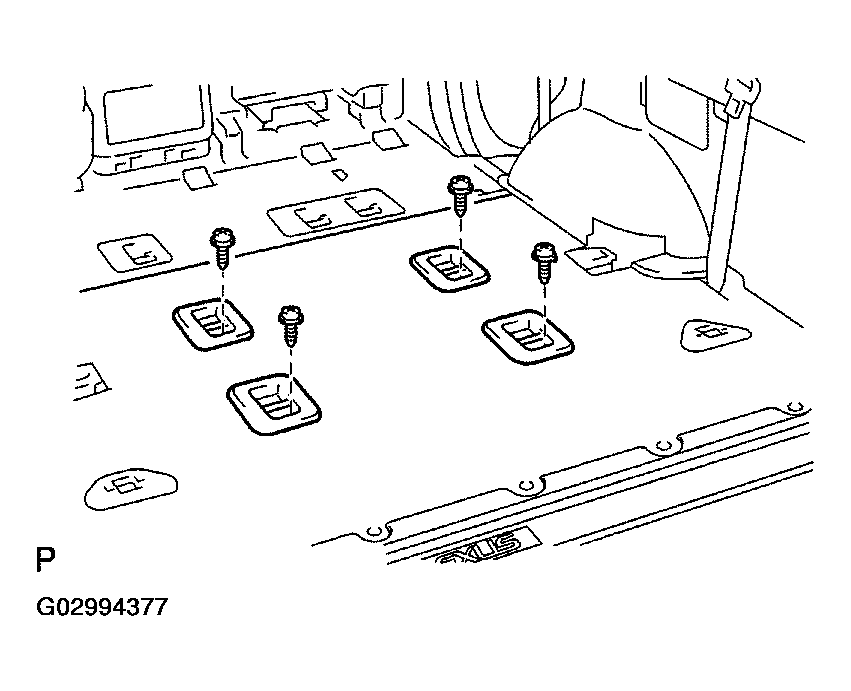

    Fig 3: Removing NO. 3 SEAT BRACKET SUPPORT COVERS
    G02994377Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE REAR FLOOR CARPET
  8. REMOVE REAR NO. 2 SEAT OUTER BELT FLOOR ANCHOR

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  9. REMOVE REAR NO. 1 SEAT OUTER BELT FLOOR ANCHOR

    Torque: 42 N.m (430 kgf.cm, 31 ft.lbf)

  10. REMOVE REAR DOOR SCUFF PLATES
  11. REMOVE REAR DOOR OPENING TRIMS
  12. REMOVE QUARTER TRIM PANEL
    1. Remove the quarter trim jack cover.
    2. Using a clip remover, remove the 2 clips.
    3. Remove the quarter trim panel, then disconnect the connector.

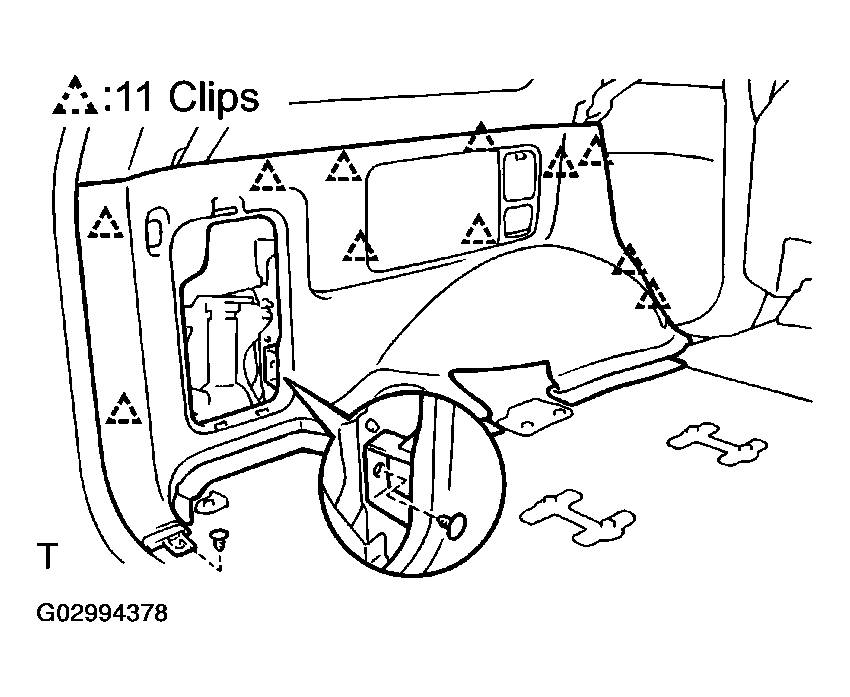

    Fig 4: Removing Quarter Trim Panel
    G02994378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE REAR NO. 2 SEAT OUTER BELT SHOULDER ANCHOR
  14. REMOVE REAR NO. 1 SEAT OUTER BELT SHOULDER ANCHOR
  15. REMOVE UPPER ROOF SIDE INNER GARNISH
    1. Using a screwdriver, remove the 2 assist grip plugs, then remove the 2 screws and the assist grip.

      HINT:

      Tape up the screwdriver tip before use.

    2. Using a clip remover, remove the clip.
    3. Using a screwdriver, remove the upper roof side inner garnish.

    HINT:

    Tape up the screwdriver tip before use.

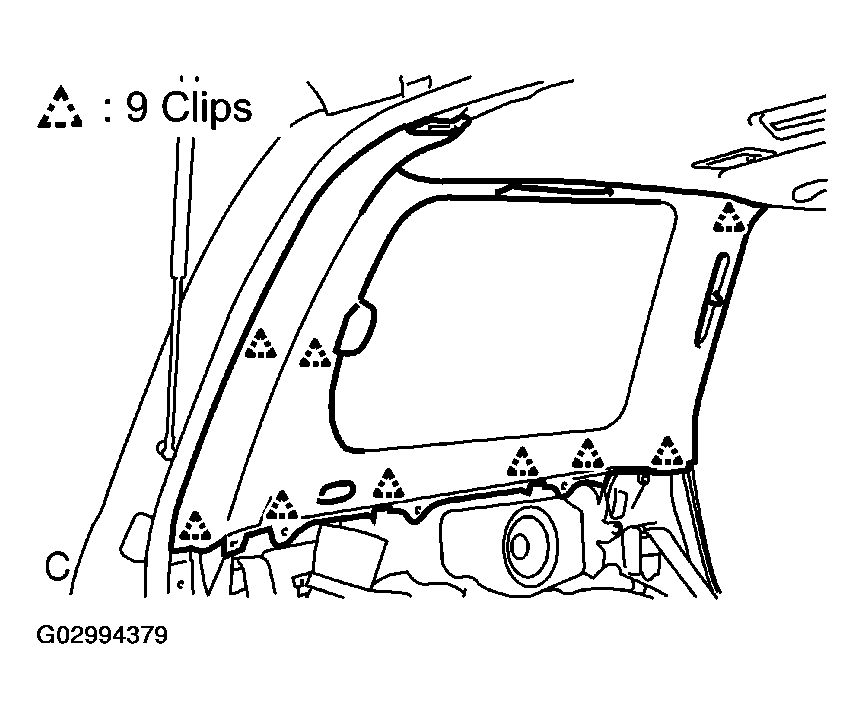

    Fig 5: Removing Upper Roof Side Inner Garnish
    G02994379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE QUARTER WINDOW GLASS
    1. Disconnect the connector.
    2. Remove the 2 bolts, the 2 nuts and the quarter window glass.

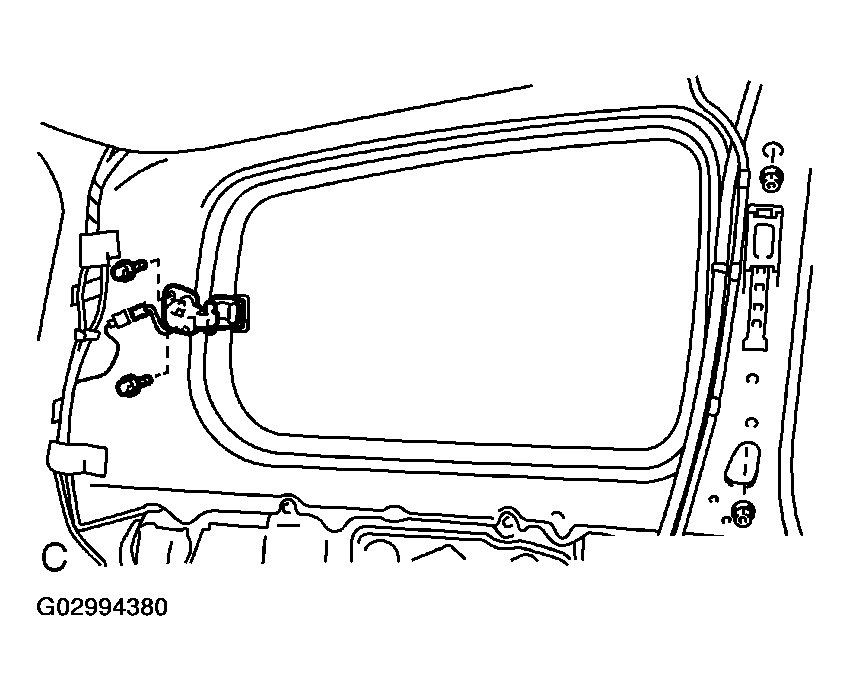

    Fig 6: Removing Quarter Window Glass
    G02994380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. REMOVE QUARTER WINDOW GLASS WEATHERSTRIP
  18. REMOVE QUARTER BELT MOLDING
    1. Remove the screw.
    2. Using a screwdriver, remove the quarter belt molding.

    HINT:

    Tape up the screwdriver tip before use.

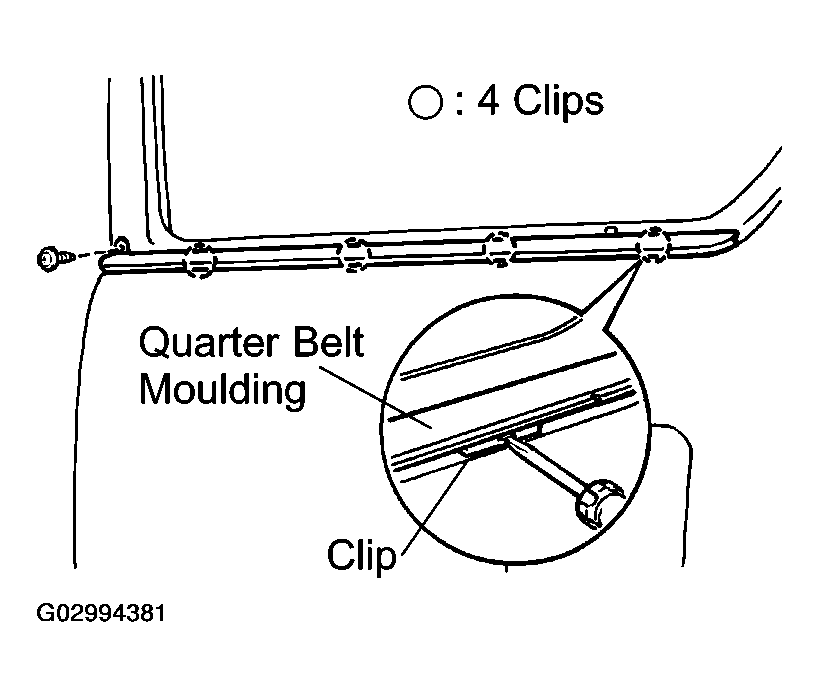

    Fig 7: Removing Quarter Belt Molding
    G02994381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. REMOVE REAR VENT WINDOW MOTOR

    Remove the screw and the rear vent window motor.

  20. REMOVE QUARTER WINDOW LOCK

    Remove the screw and the quarter window lock.

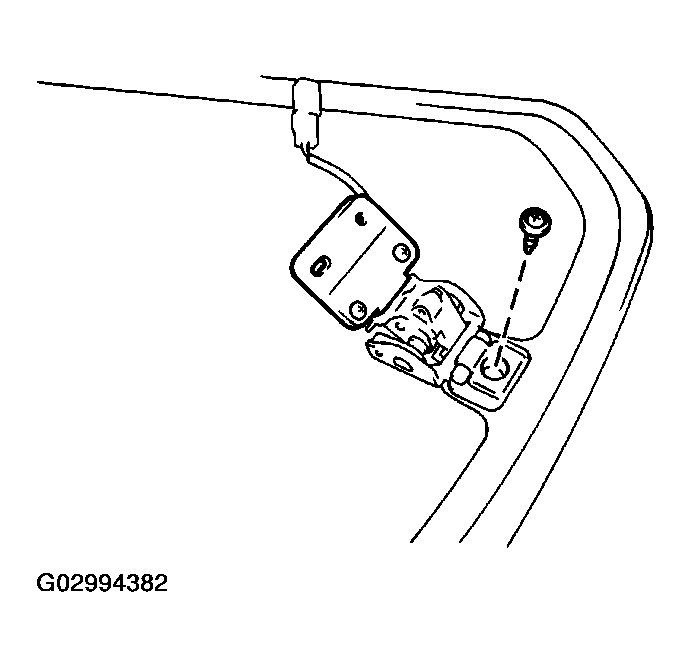

    Fig 8: Removing Quarter Window Lock
    G02994382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
