Power Source: Location

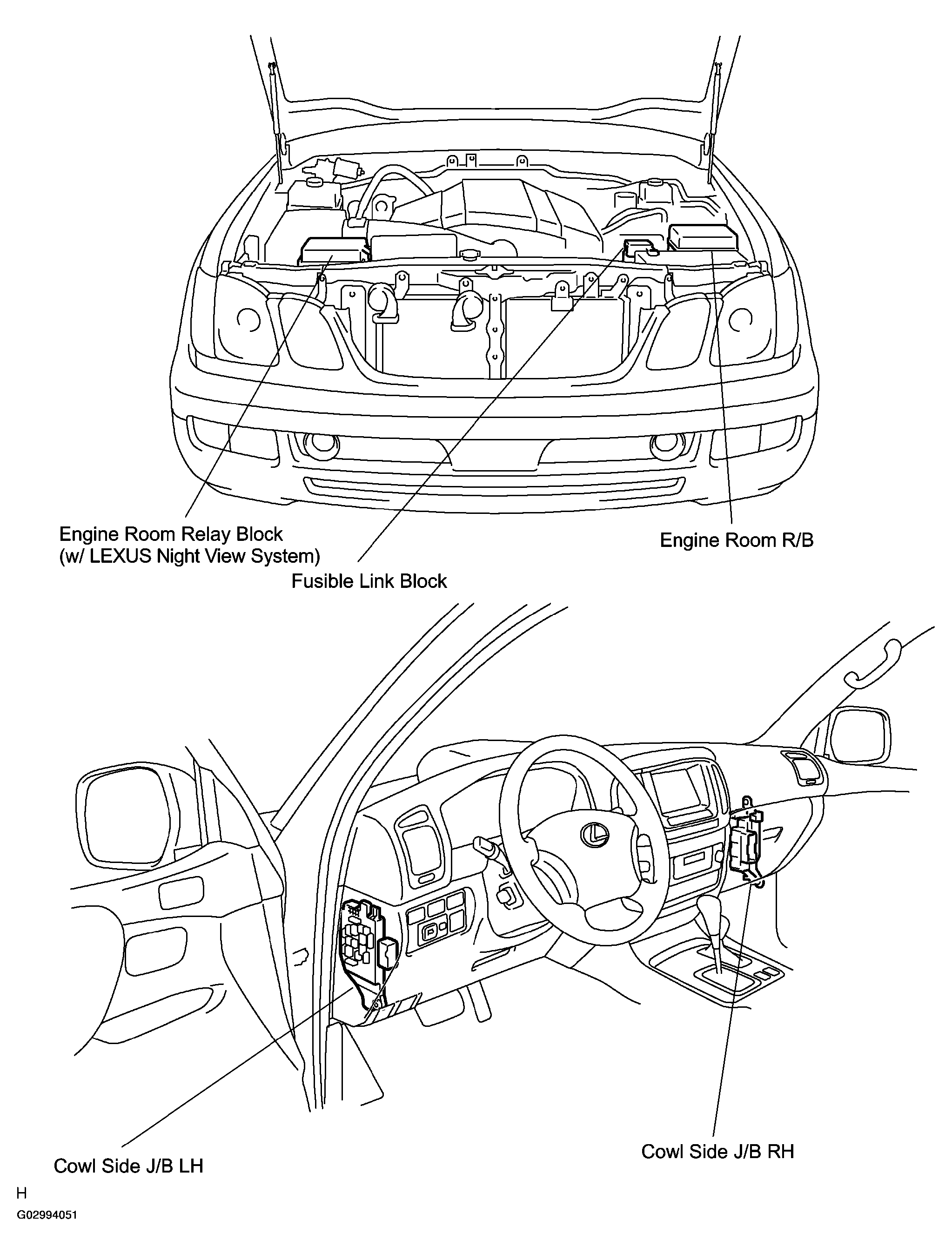

Fig 1: Identifying Power Source Locations
G02994051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

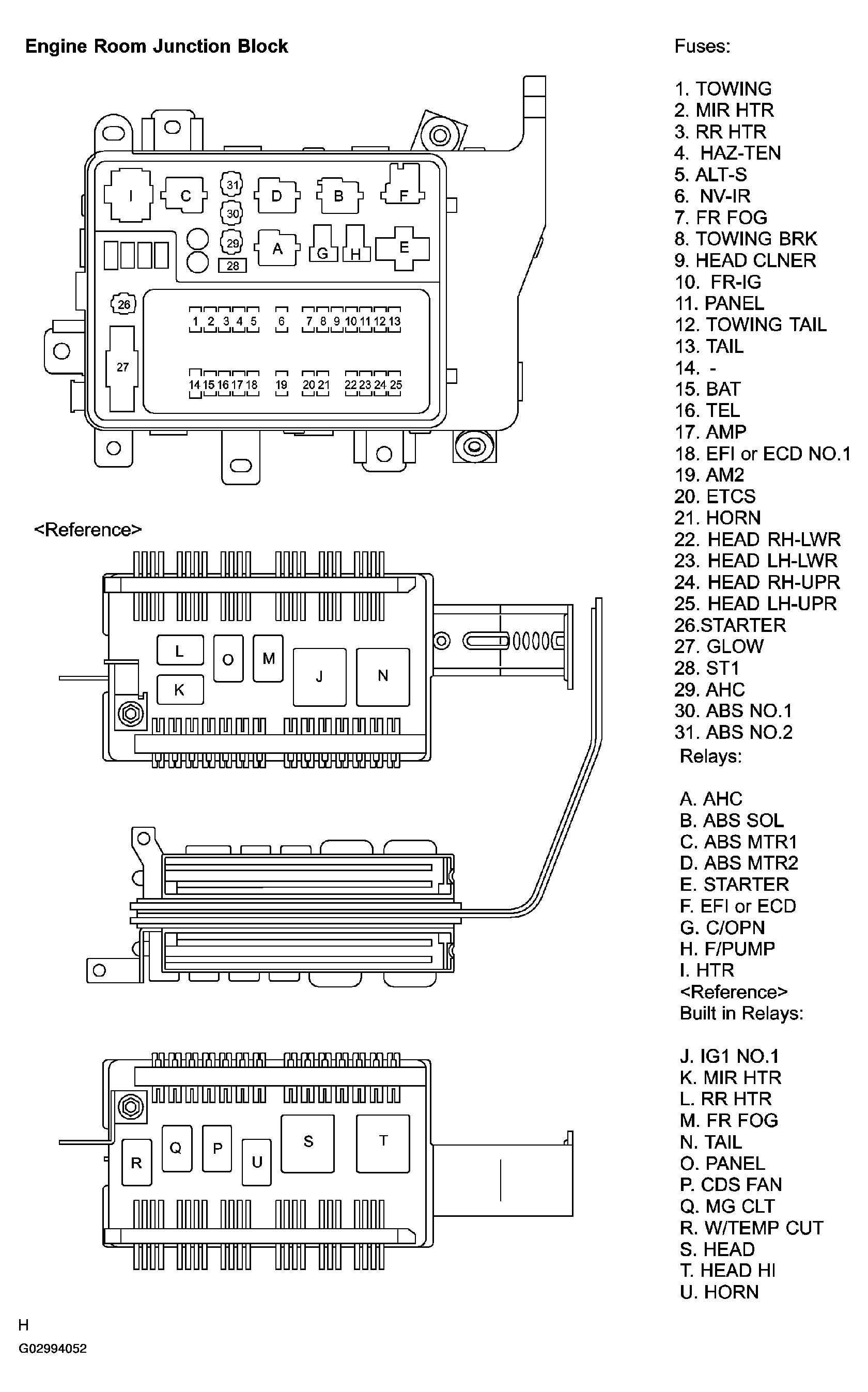

Fig 2: Identifying Engine Room Junction Block
G02994052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

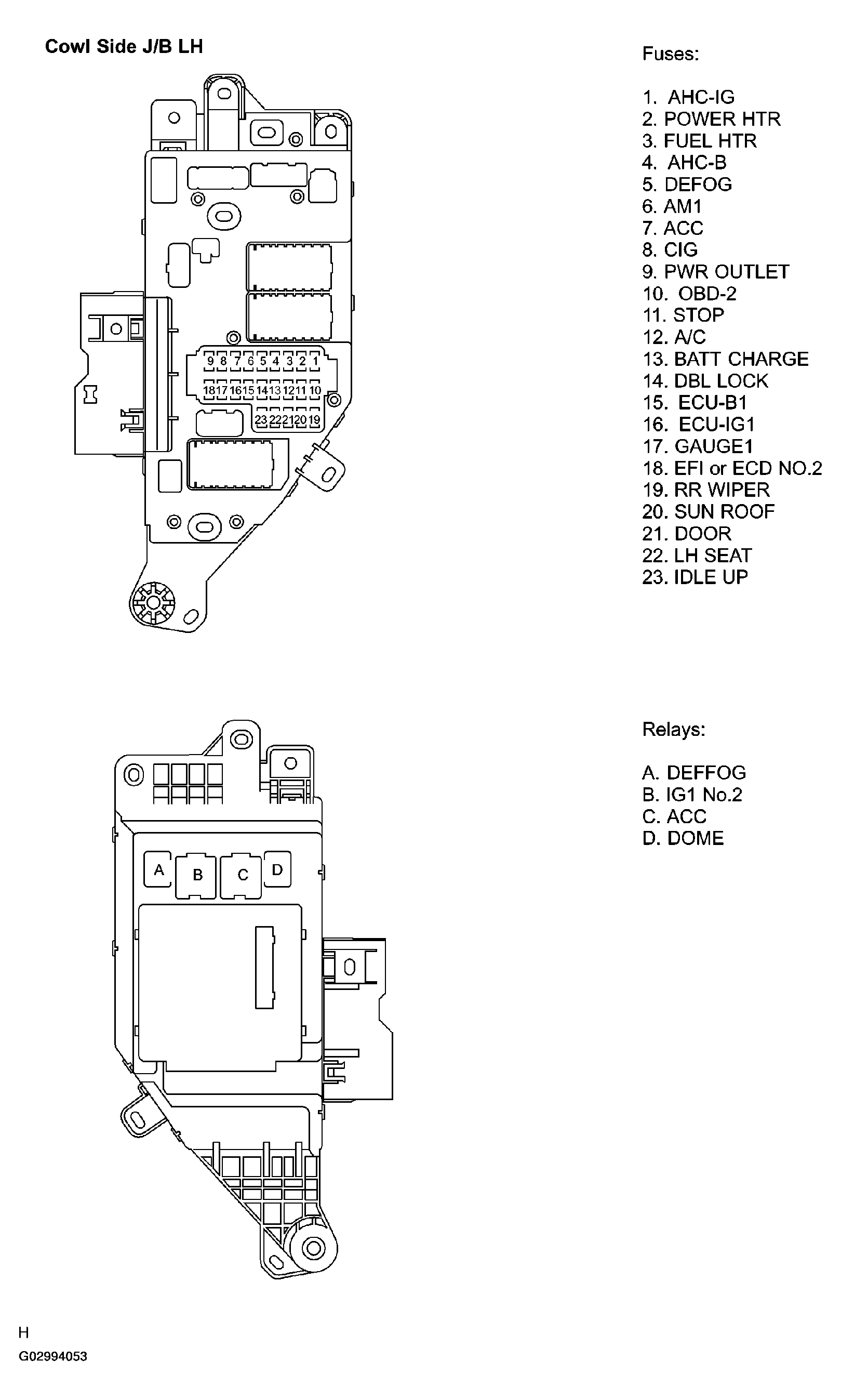

Fig 3: Identifying Cowl Side J/B LH
G02994053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

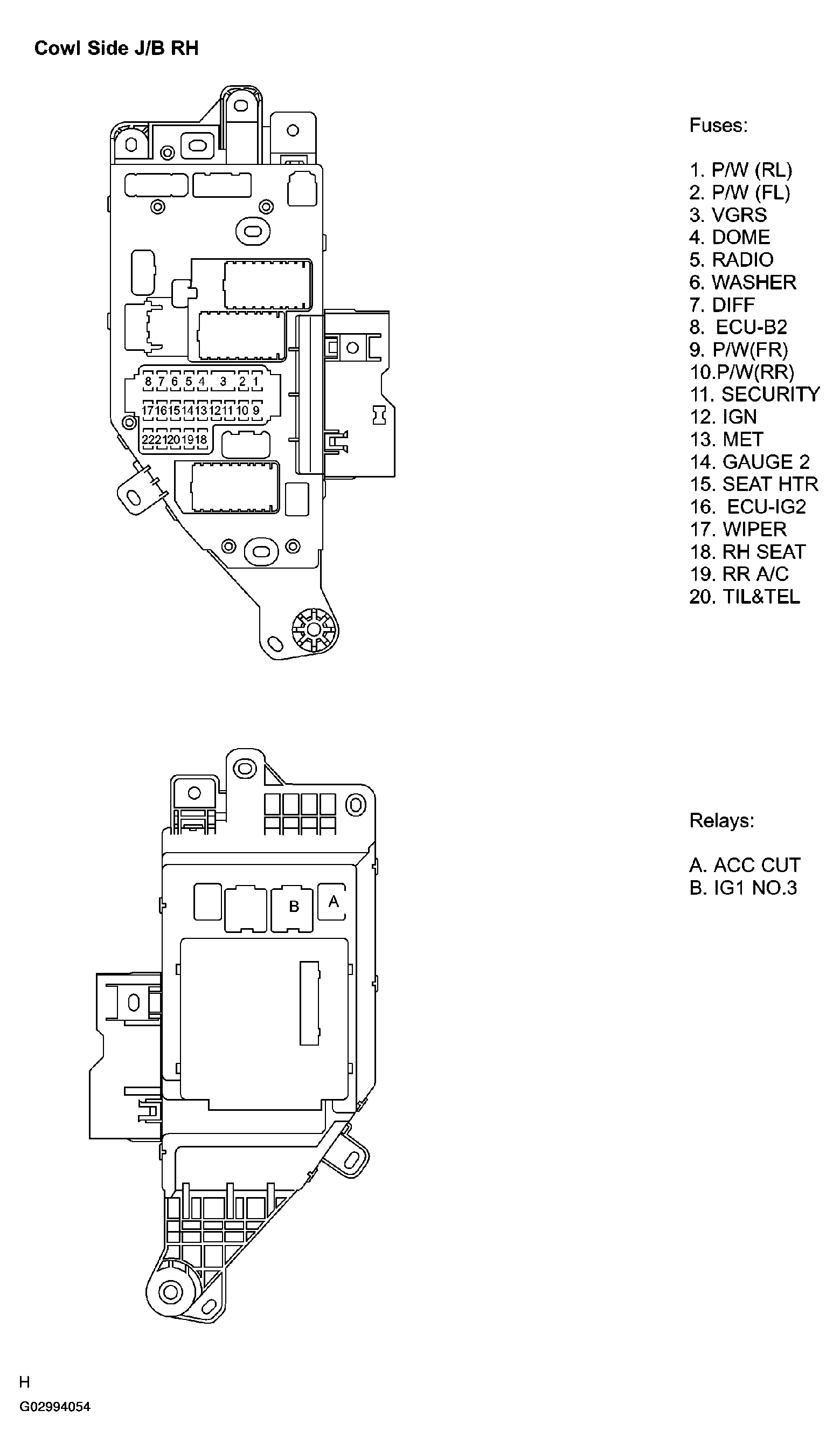

Fig 4: Identifying Cowl Side J/B RH
G02994054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
