Instrument Panel: Components

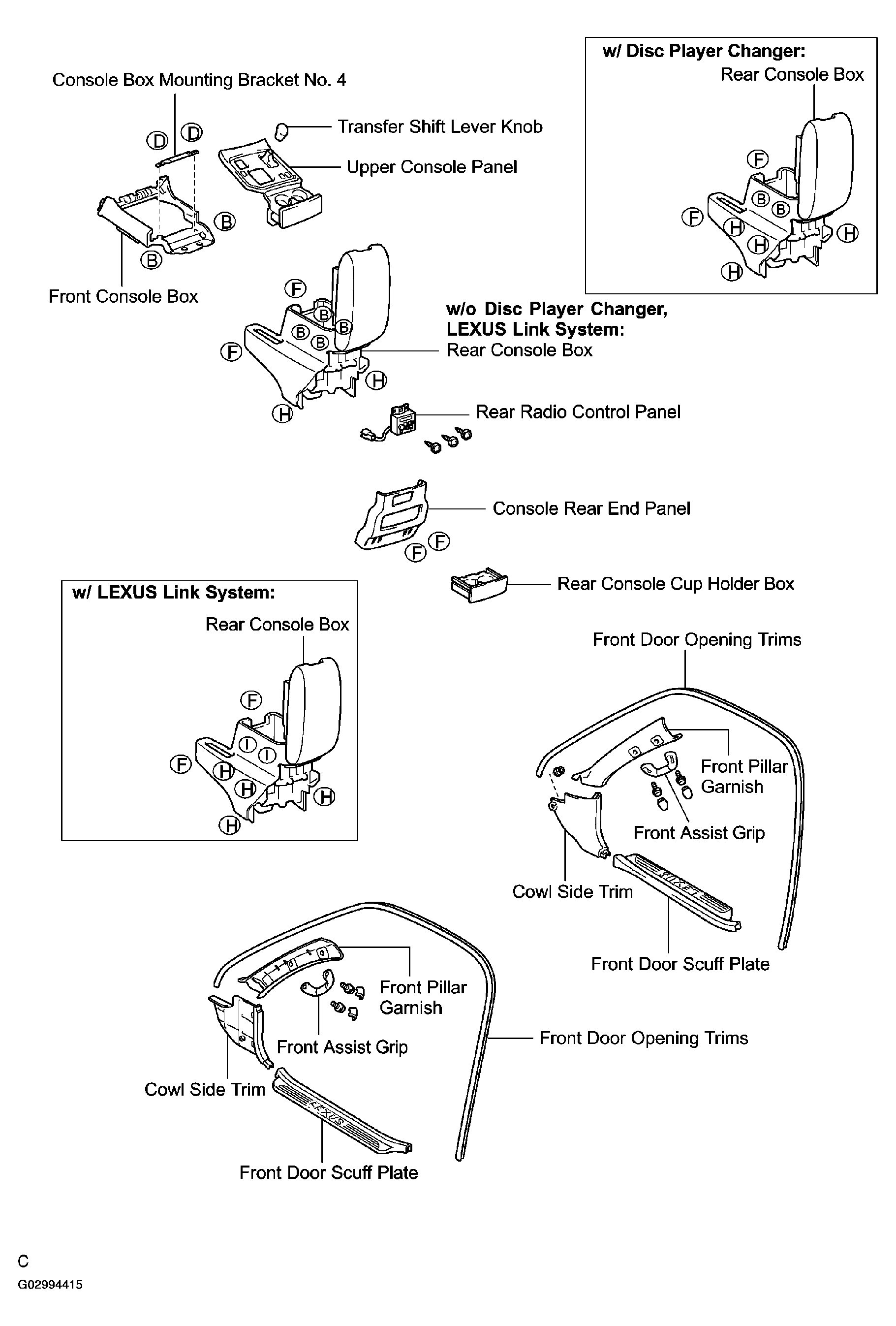

Fig 1: Identifying Instrument Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

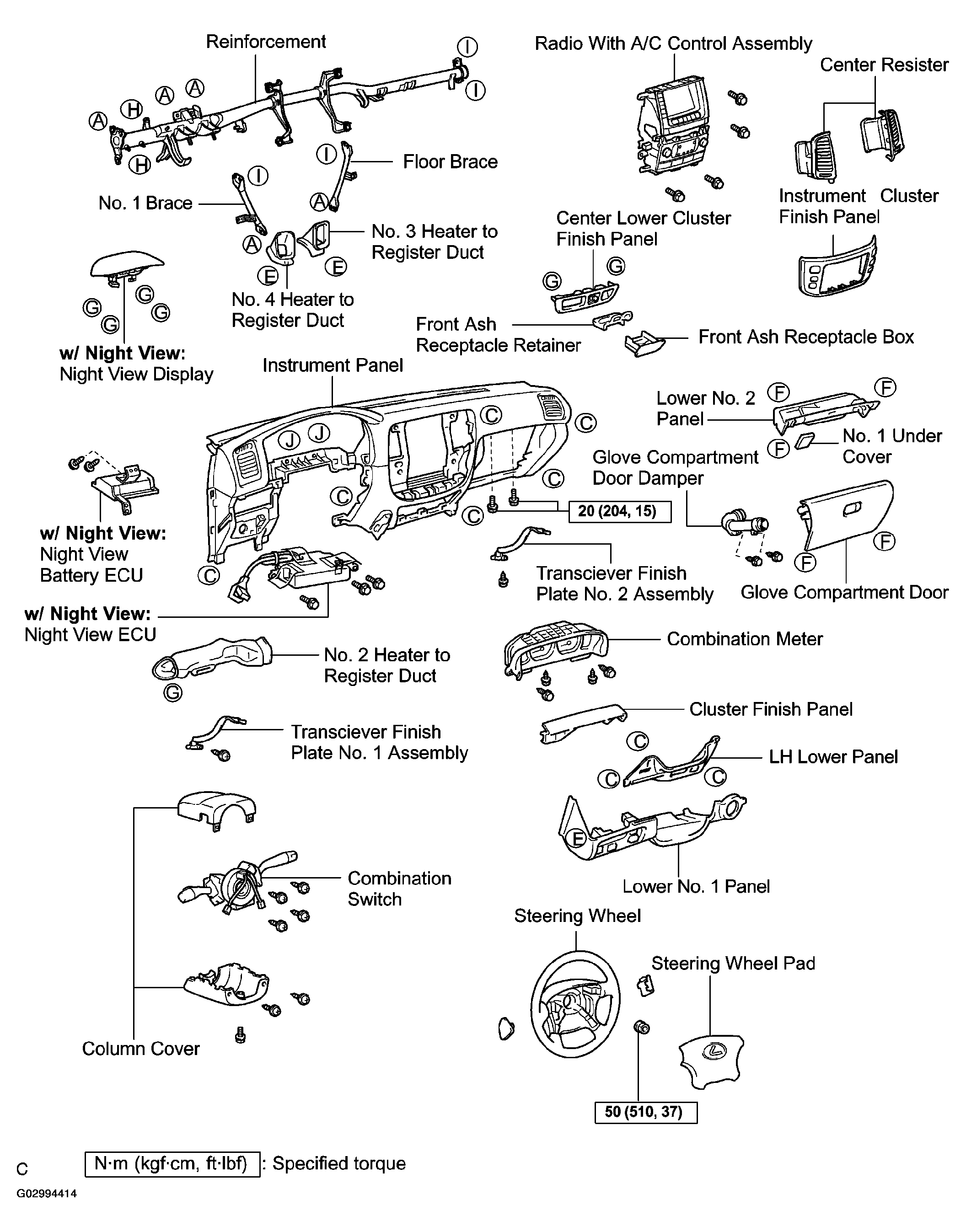

Fig 2: Identifying Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

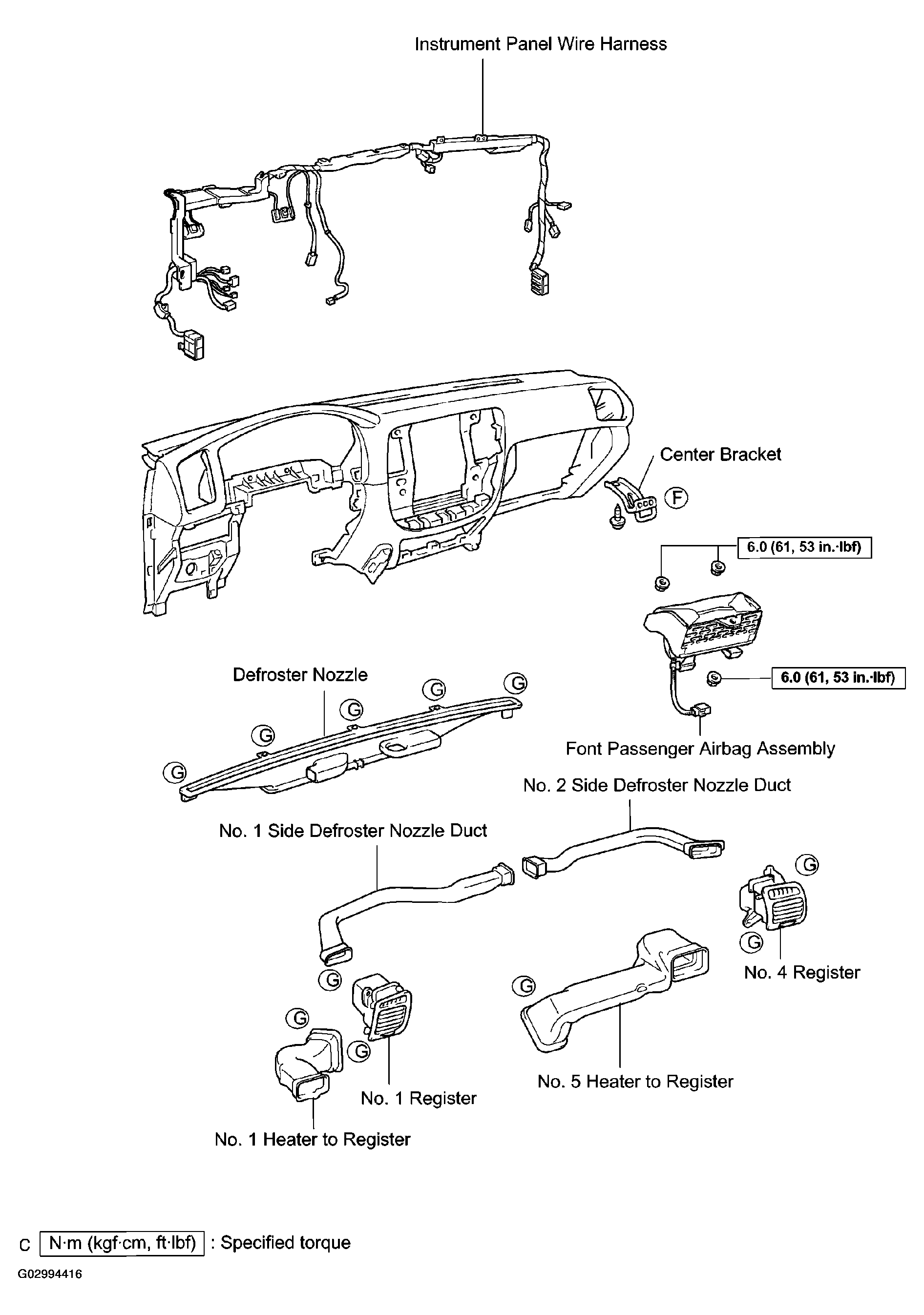

Fig 3: Identifying Instrument Panel Components (3 Of 3)

HINT:

Screw shapes and sizes are indicated in the table below. The codes ("A" - "I") correspond to those indicated on the previous page.

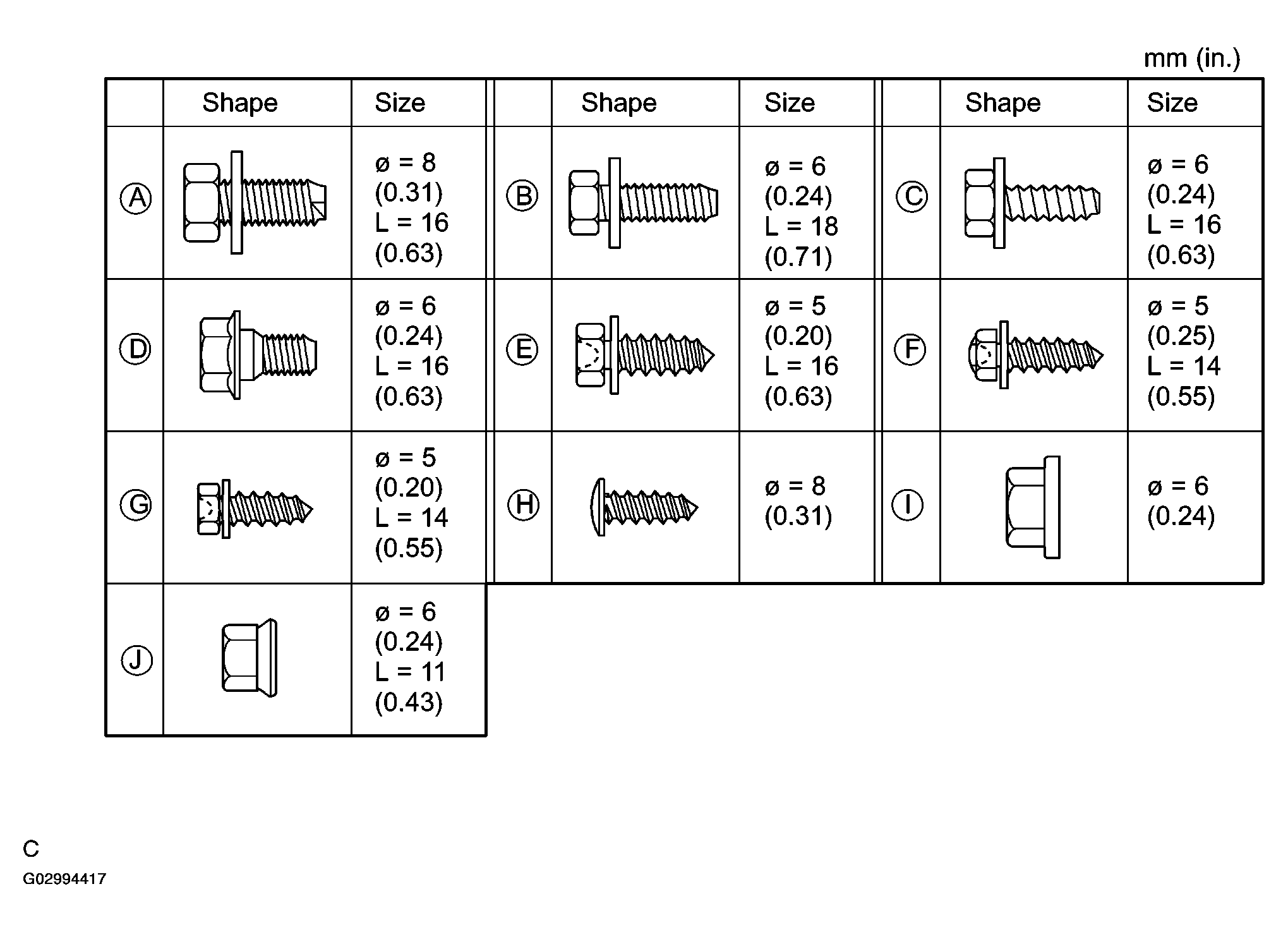

Fig 4: Screw Shapes And Sizes Specification
