Oil Pump: Components

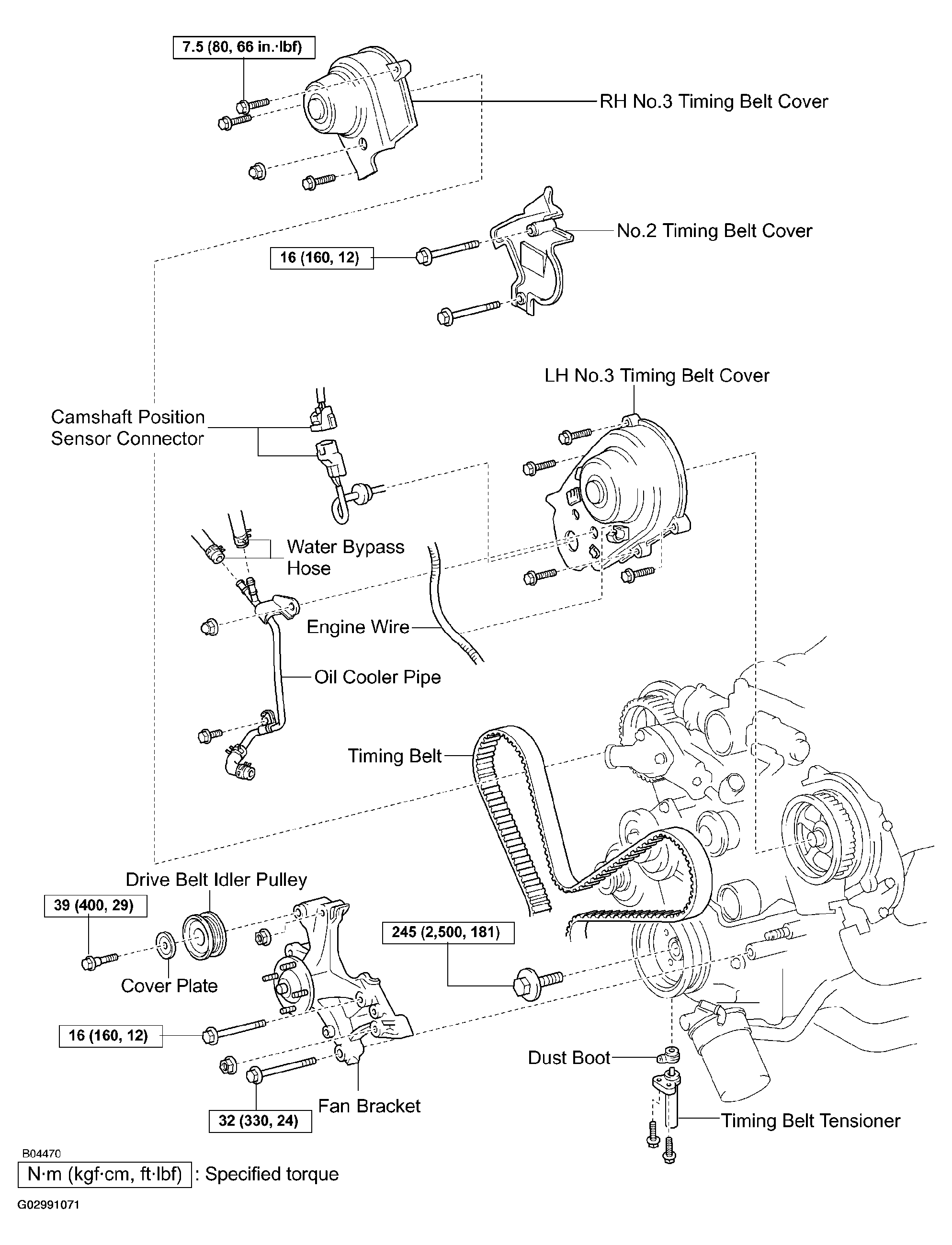

Fig 1: Exploded View Of Lubrication Oil Pump Components (1 Of 4)
G02991071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

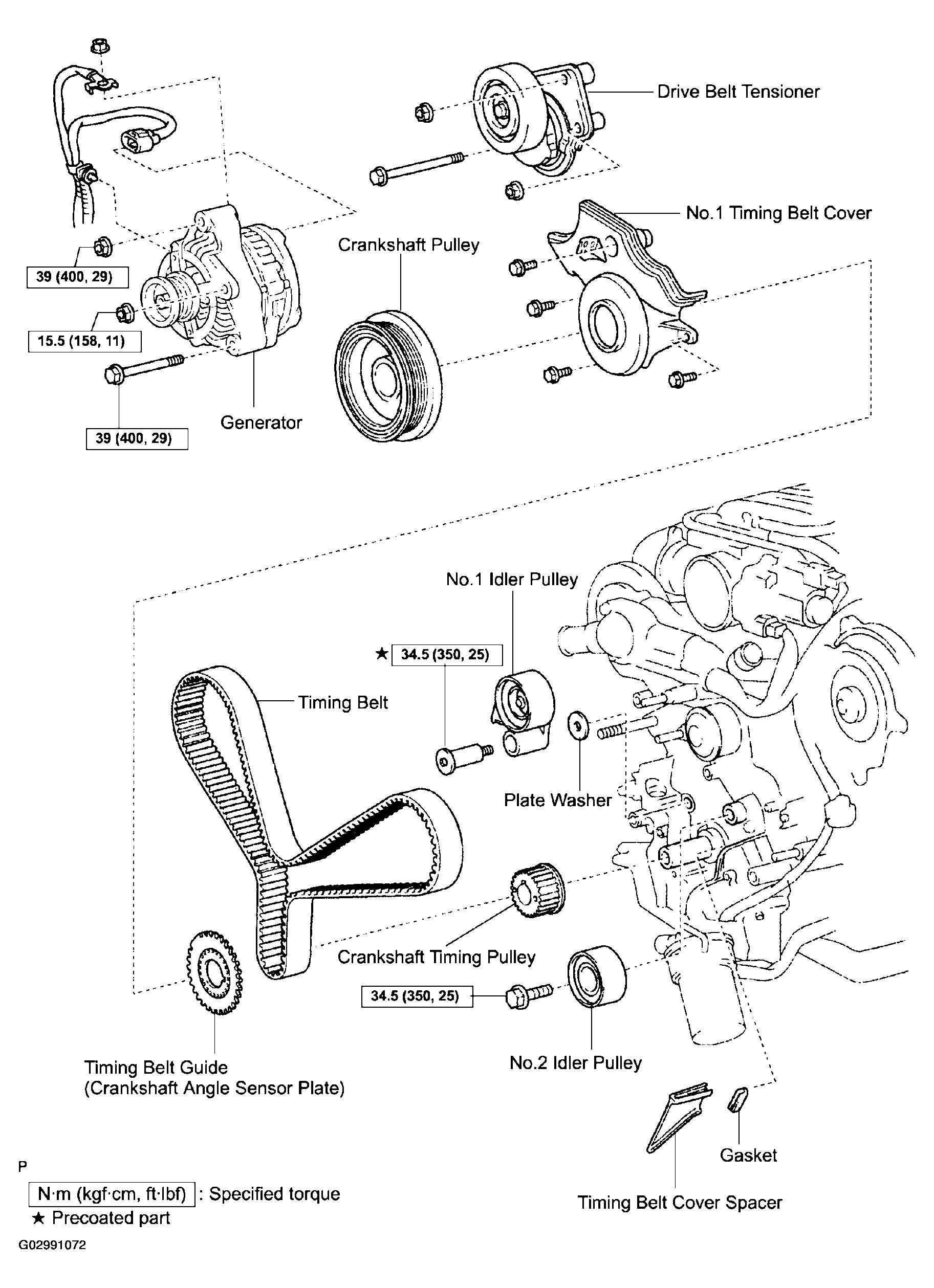

Fig 2: Exploded View Of Lubrication Oil Pump Components (2 Of 4)
G02991072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

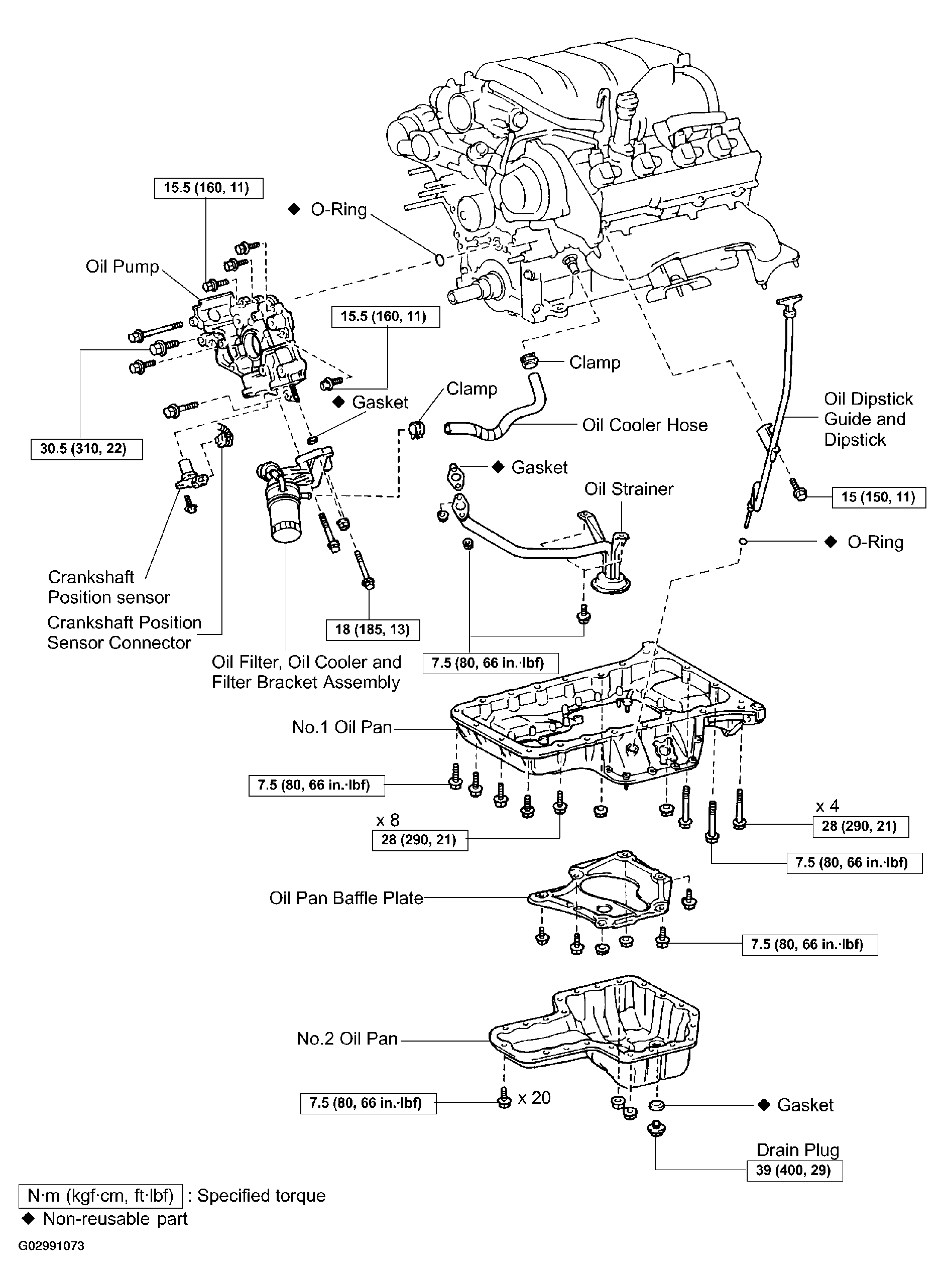

Fig 3: Exploded View Of Lubrication Oil Pump Components (3 Of 4)
G02991073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

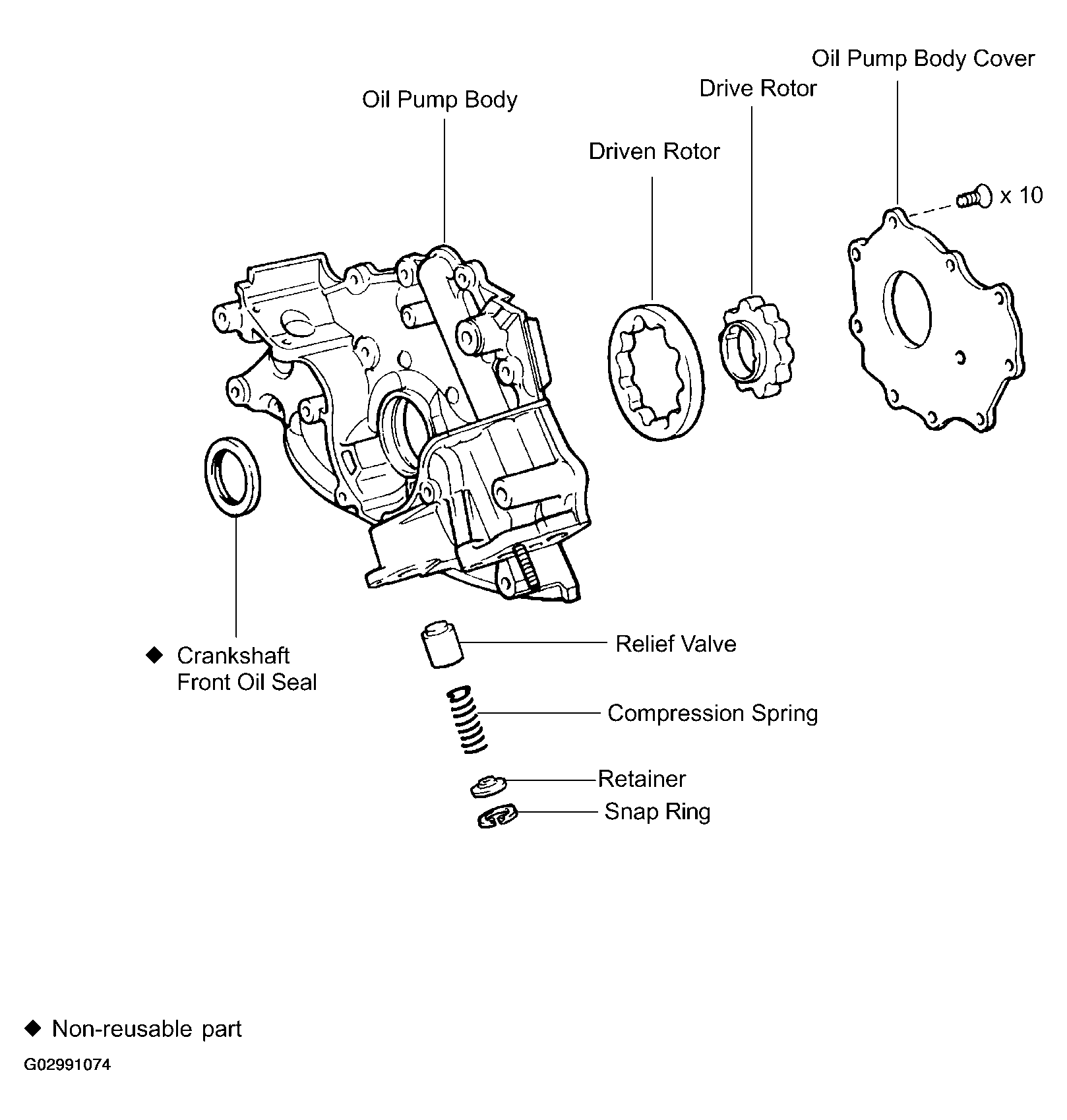

Fig 4: Exploded View Of Lubrication Oil Pump Components (4 Of 4)
G02991074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
