Oil Pump: Reassembly

INSTALL DRIVE AND DRIVEN ROTORS
1. Place the drive and driven rotors into the pump body with the marks facing the oil pump body cover side.

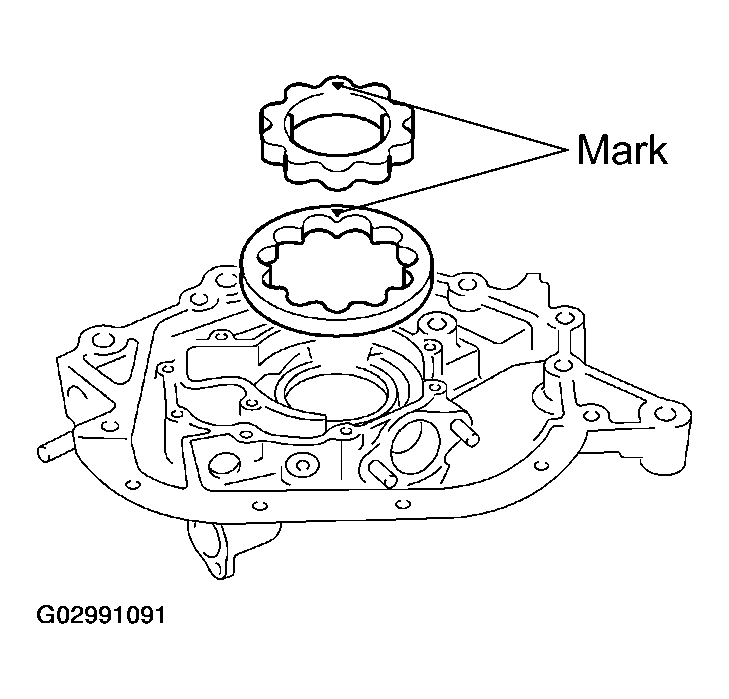

  Fig 1: Placing Drive And Driven Rotors Into Pump Body With Marks
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the oil pump body cover with the 10 screws.
  Torque: 10 N.m (105 kgf.cm, 7 ft.lbf)

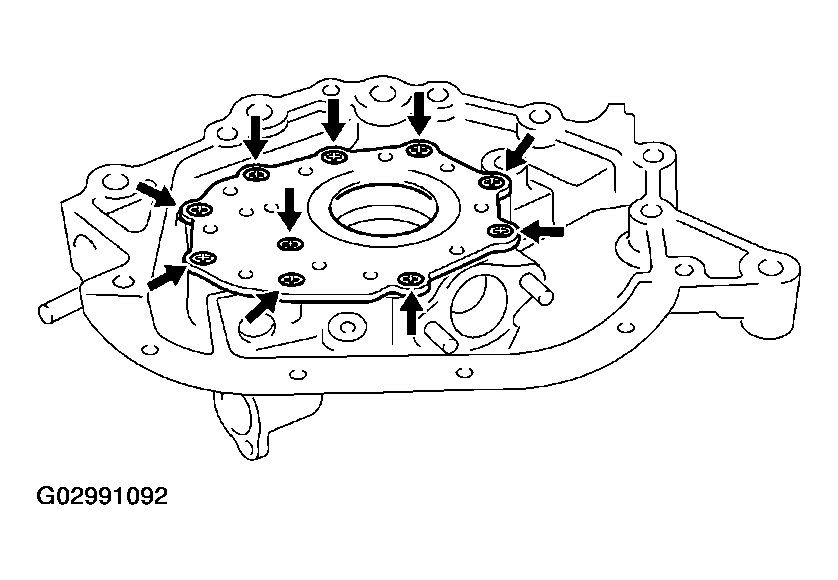

Fig 2: Installing Oil Pump Body Cover With Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RELIEF VALVE
1. Insert the relief valve, the spring and the retainer into the oil pump body hole.
2. Using snap ring pliers, install the snap ring.

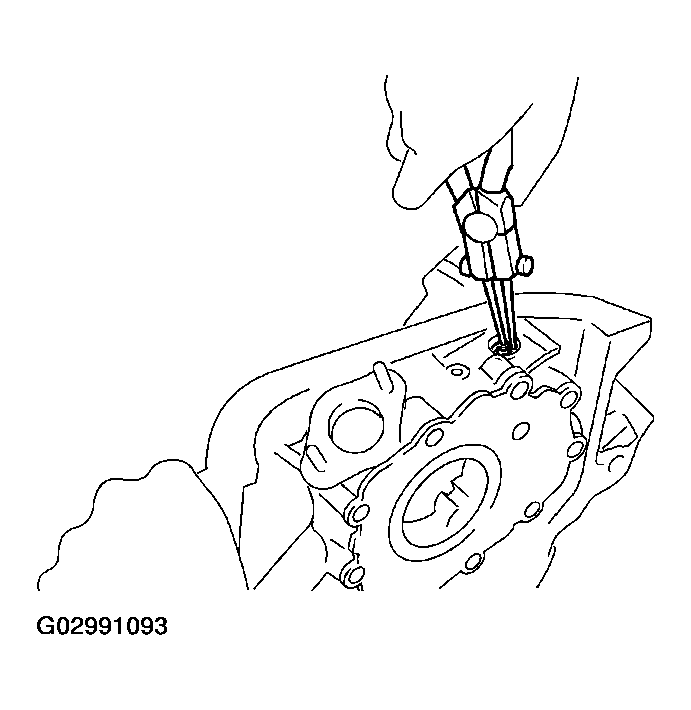

Fig 3: Installing Snap Ring Using Snap Ring Pliers
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
