Engine Mechanical: Starter: Starting: Starter: Components

Fig 1: Exploded View Of Starter Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

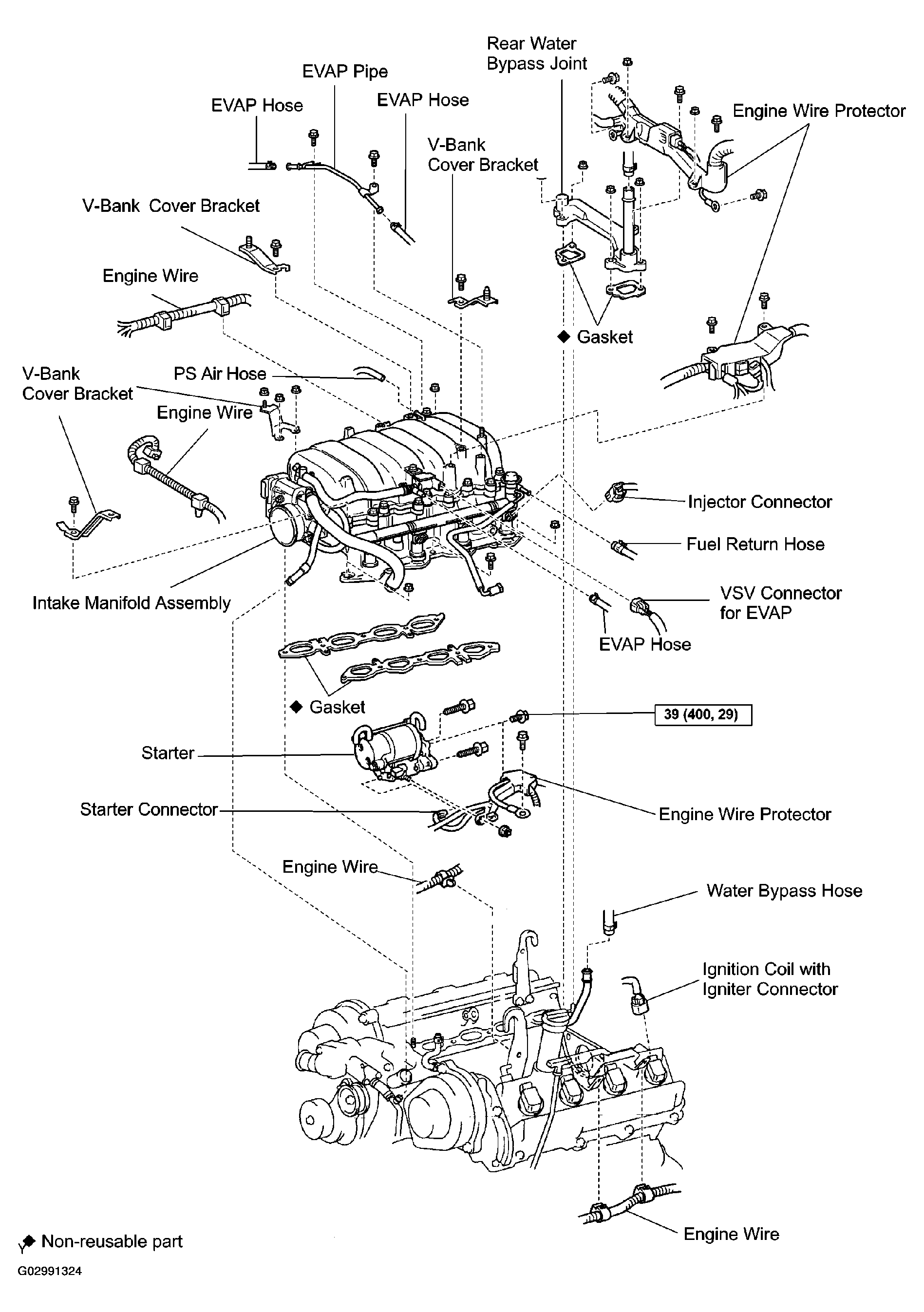

Fig 2: Exploded View Of Starter Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

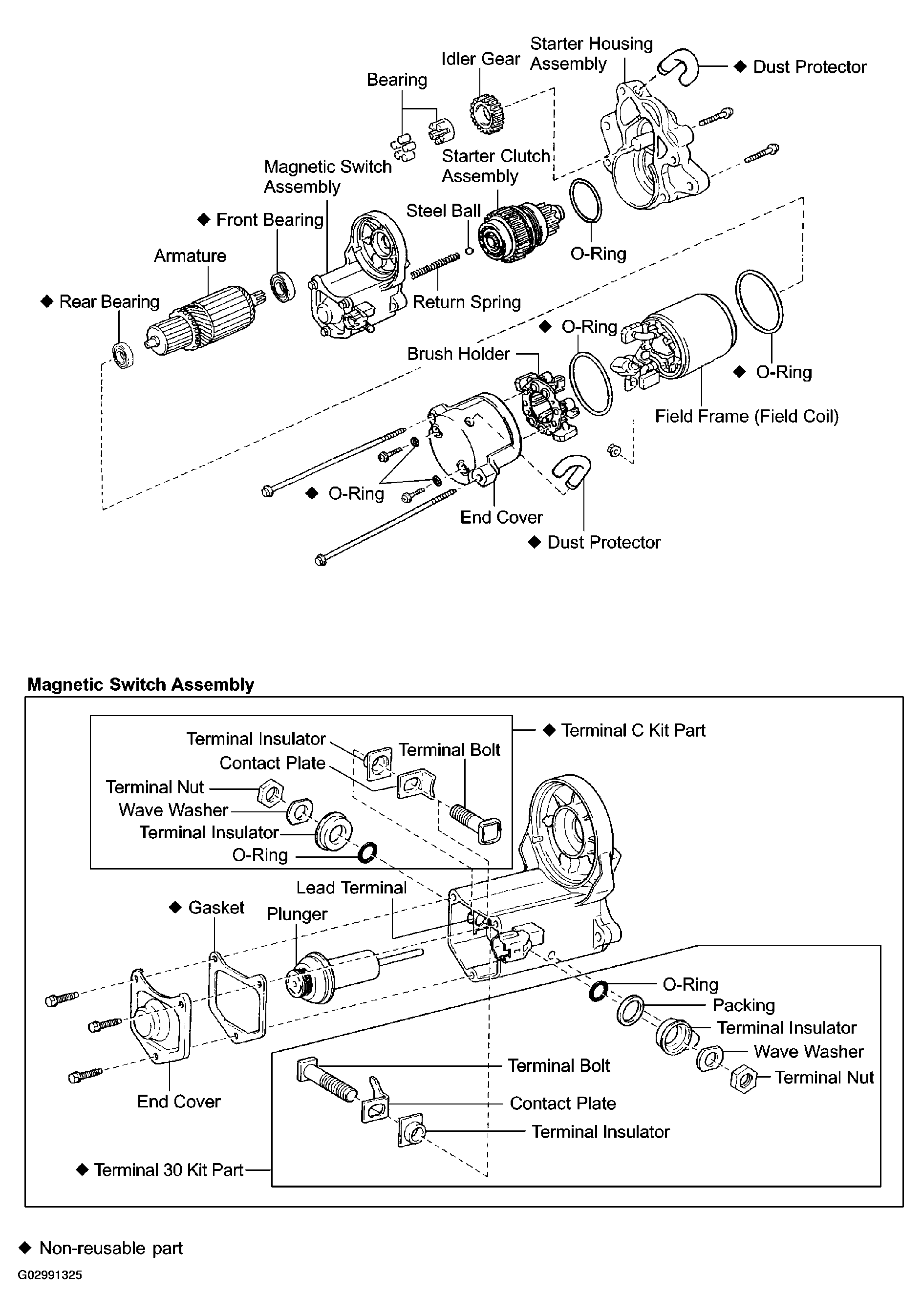

Fig 3: Exploded View Of Starter Components (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
