Engine Mechanical: Starter: Starting: Starter: Installation

1. Install the engine wire protector to the starter with the bolt.

   Torque: 9.81 N.m (100 kgf.cm, 84 in.lbf)

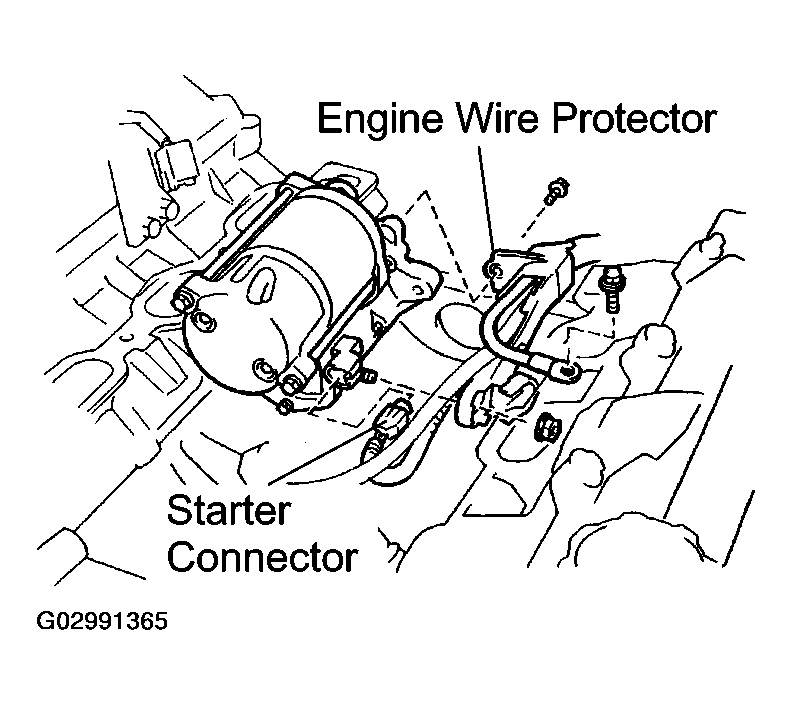

   Fig 1: Installing Engine Wire Protector To Starter

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the starter wire with the nut.

   Torque: 9.81 N.m (100 kgf.cm, 84 in.lbf)

3. Connect the starter connector.
4. Connect the starter to the cylinder block.
5. Connect the engine wire with the bolt.
6. Install the starter with the 2 bolts.

   Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

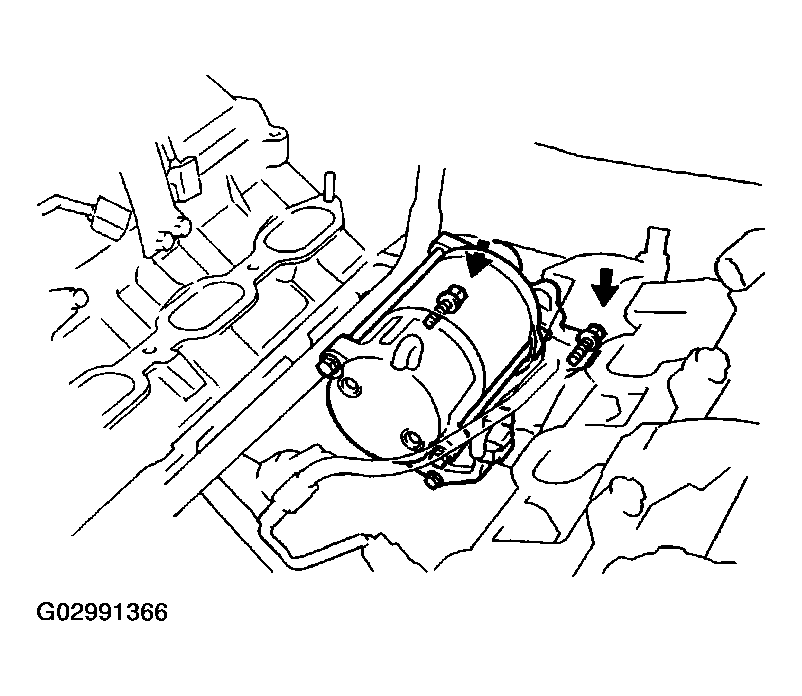

Fig 2: Installing Starter And Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See  INSTALLATION  )
