Fuel Pressure Regulator: Removal

  1. REMOVE V-BANK COVER
  2. REMOVE FUEL PRESSURE REGULATOR
    1. Disconnect these hoses from the pressure regulator:
      • Vacuum sensing hose from intake air resonator
      • Fuel return hose
      CAUTION: Put a shop rag under the pressure regulator.

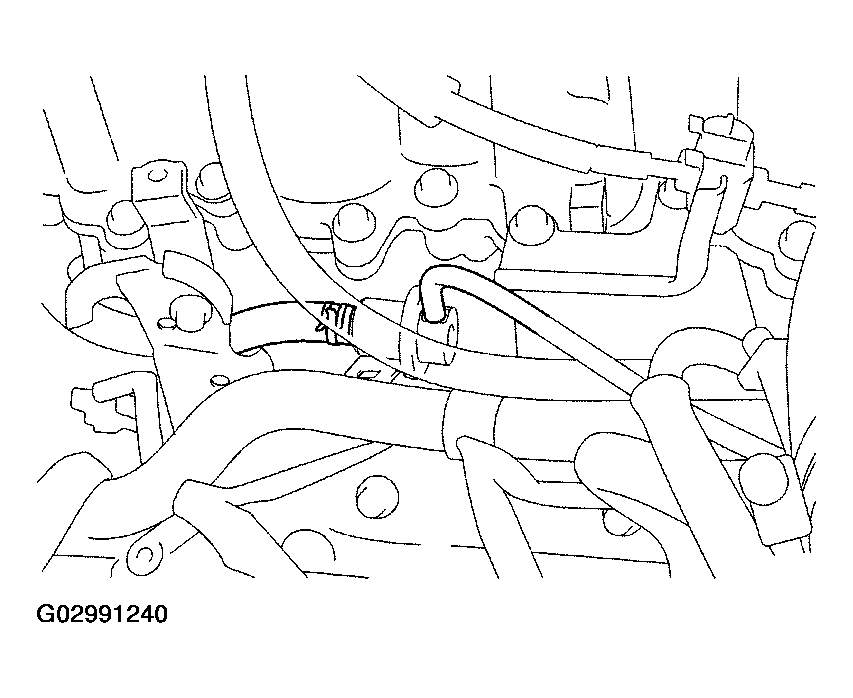

      Fig 1: Disconnecting Hoses From Pressure Regulator
      G02991240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolts, and pull out the pressure regulator.
    3. Remove the O-ring from the pressure regulator.

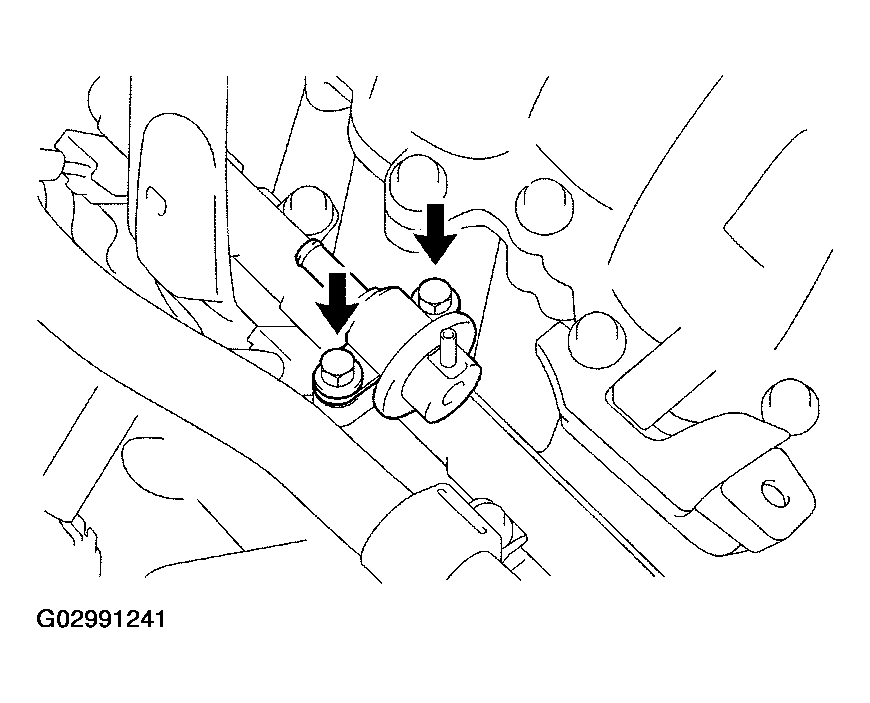

    Fig 2: Removing Bolts And Pressure Regulator
    G02991241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
