Throttle Body: Installation

  1. INSTALL THROTTLE BODY
    1. Connect the water bypass hose to the manifold thermostat on the throttle body.

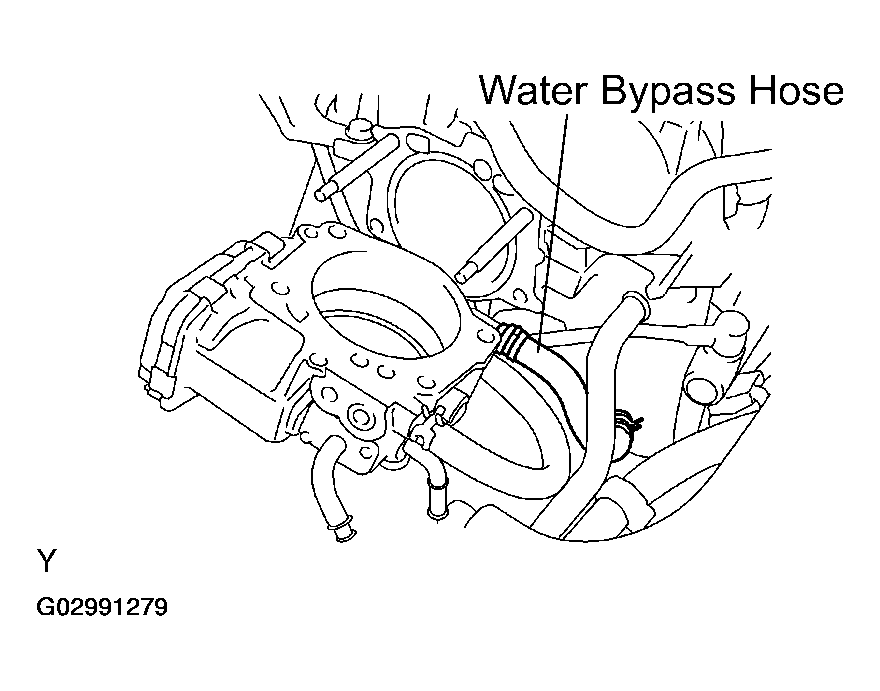

      Fig 1: Connecting Water Bypass Hose
      G02991279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install a new gasket and the throttle body with the 2 bolts and the 2 nuts.

      Torque: 18 N.m (185 kgf.cm, 13 ft.lbf)

    3. Connect the water bypass hose and the PCV hose to the throttle body.

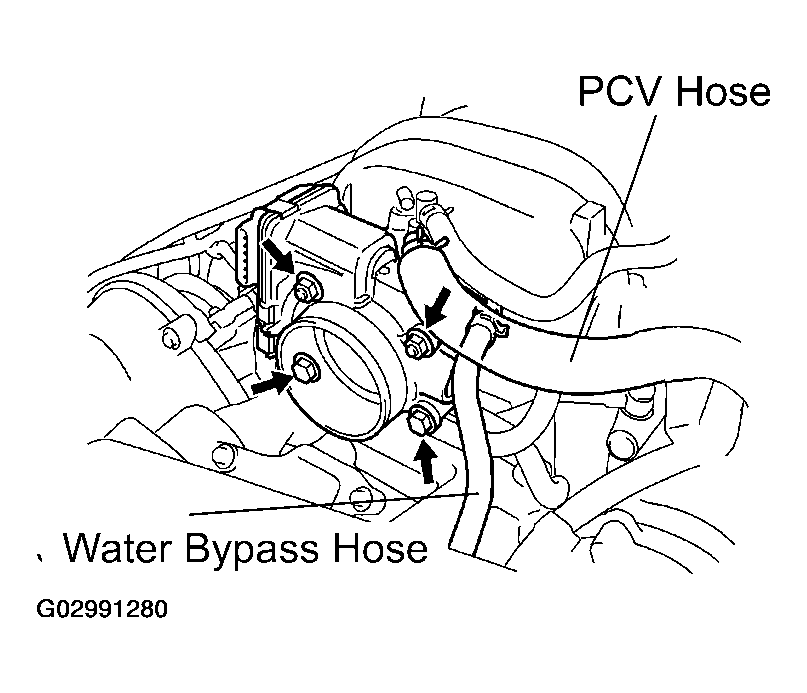

      4. Fig 2: Connecting Water Bypass Hose And PCV Hose
      G02991280Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the throttle control connector.
  2. INSTALL INTAKE AIR CONNECTOR
  3. FILL WITH ENGINE COOLANT (See  REPLACEMENT  )
  4. START ENGINE AND CHECK FOR ENGINE COOLANT LEAKS
  5. INSTALL V-BANK COVER
