Inspection Procedure

HINT:

Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data records the engine conditions when a malfunction is detected. When troubleshooting, freeze frame data can help determine if the vehicle was running or stopped, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, as well as other data from the time when a malfunction occurred.

Hand-held tester:

  1. Connect hand-held tester, and read the voltage for accelerator pedal position sensor data.

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch ON and push the hand-held tester main switch ON.
    3. Enter the following menus: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ETCS / ACCEL POS #1 and ACCEL POS #2.

    CHECK:

    Read the voltage for the accelerator pedal position sensor data.

    OK:

    VOLTAGE CHECK SPECIFIED CONDITION

    Accelerator pedal ACCEL POS #1 ACCEL POS #2
    Released 0.5 to 1.1V 1.2 to 2.0 V
    Depressed 2.6 to 4.5 V 3.4 to 5.3 V

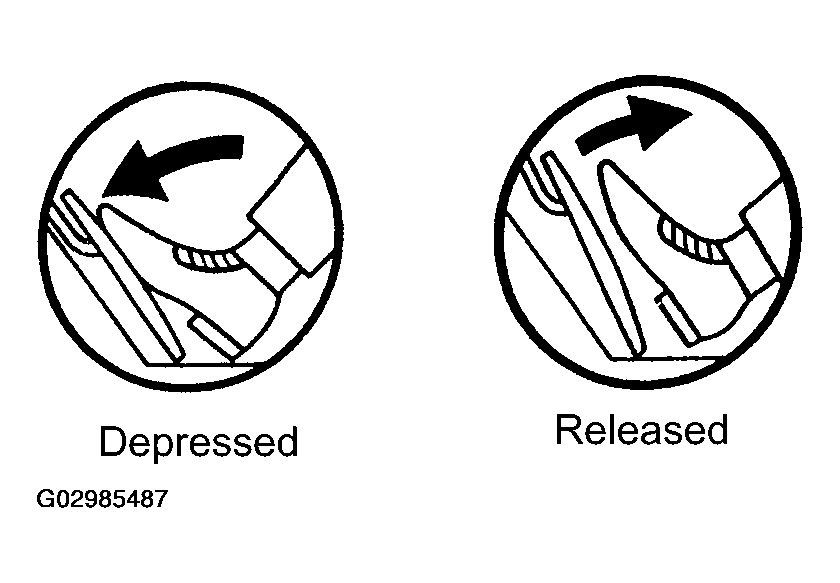

    Fig 1: Depressing And Releasing Accelerator Pedal
    G02985487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK : Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).
    2. NG : Go to Next Step.
  2. Check for open and short in harness and connector between accelerator pedal position sensor and ECM.

    PREPARATION:

    1. Disconnect the A13 accelerator pedal position sensor connector.
    2. Disconnect the E10 ECM connector.

    CHECK:

    Measure the resistance between the wire harness side connectors.

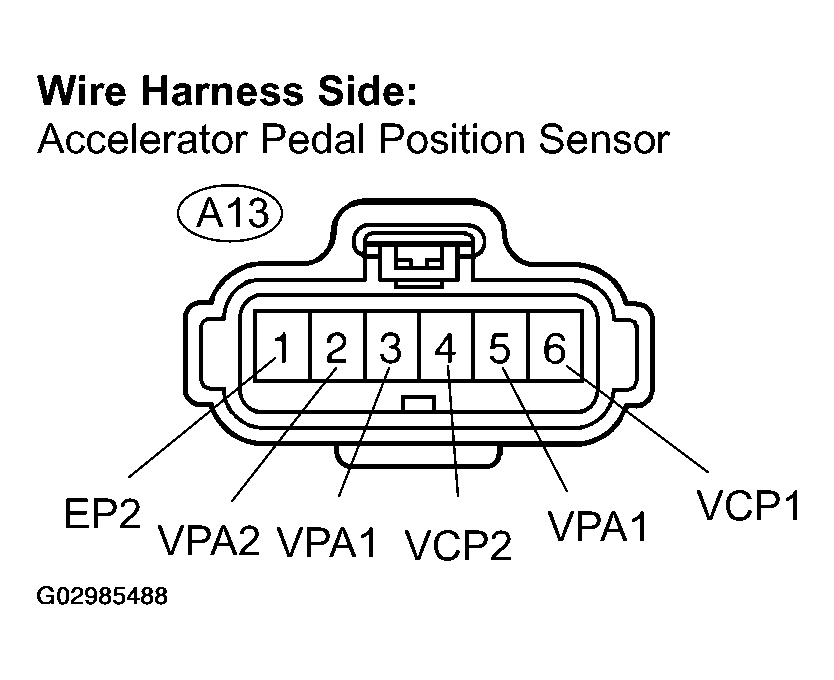

    Fig 2: Identifying A13 Accelerator Pedal Position Sensor Connector Terminals
    G02985488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    1. Standard (Check for open):
      RESISTANCE CHECK SPECIFIED CONDITION (CHECK FOR OPEN)

      Tester Connection Specified Condition
      VPA1 (A13-5) - VPA (E10-22) Below 1 Ω
      EP1 (A13-3) - EPA (E10-28) Below 1 Ω
      VCP1 (A13-6) - VCPA (E10-26) Below 1 Ω
      VPA2 (A13-2) - VPA2 (E10-23) Below 1 Ω
      EP2 (A13-1) - EPA2 (E10-29) Below 1 Ω
      VCP2 (A13-4) - VCP2 (E10-27) Below 1 Ω

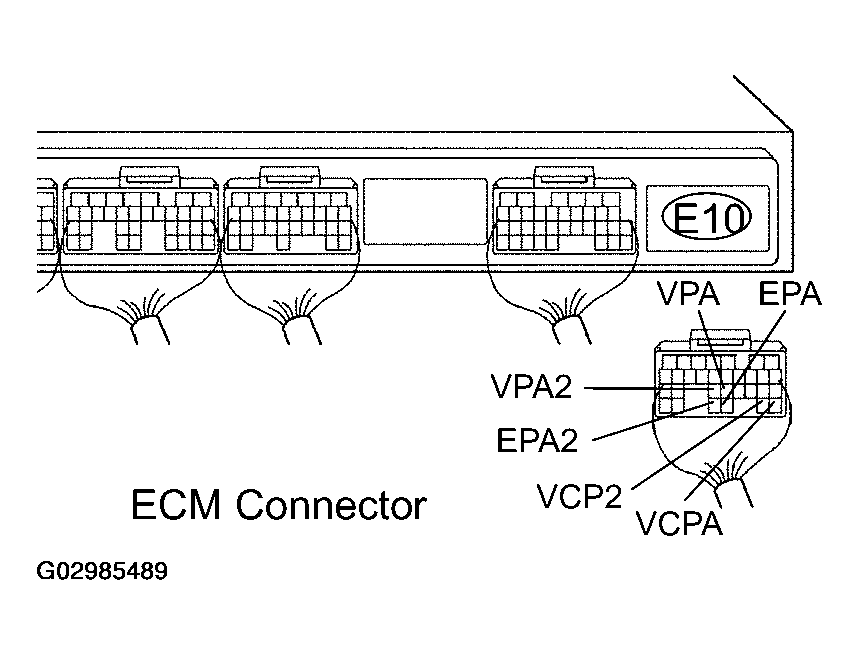

      Fig 3: Disconnecting E10 ECM Connector
      G02985489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Standard (Check for short):
      RESISTANCE CHECK SPECIFIED CONDITION (CHECK FOR SHORT)

      Tester Connection Specified Condition
      VPA1 (A13-5) or VPA (E10-22) - Body ground 10 kΩ or higher
      EP1 (A13-3) or EPA (E10-28) - Body ground 10 kΩ or higher
      VCP1 (A13-6) or VCPA (E10-26) - Body ground 10 kΩ or higher
      VPA2 (A13-2) or VPA2 (E10-23) - Body ground 10 kΩ or higher
      EP2 (A13-1) or EPA2 (E10-29) - Body ground 10 kΩ or higher
      VCP2 (A13-4) or VCP2 (E10-27) - Body ground 10 kΩ or higher
    1. NG : Repair or replace harness or connector.
    2. OK : Replace accelerator pedal assembly.

OBD II scan tool (excluding hand-held tester):

  1. Check voltage between terminals VPA and EPA, VPA2 and EPA2 of ECM connector.

    PREPARATION:

    Turn the ignition switch ON.

    CHECK:

    Measure the voltage between the specified terminals of the E10 ECM connector.

    OK:

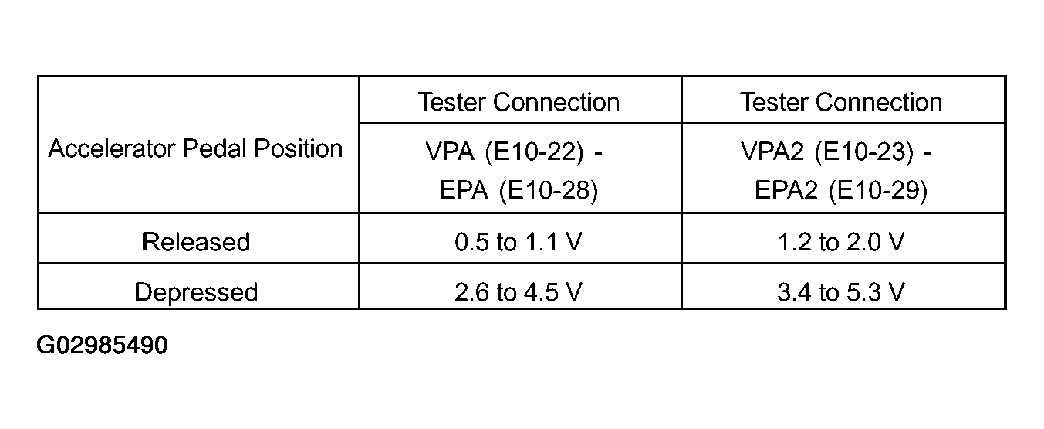

    Fig 4: Voltage Check Specified Condition
    G02985490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

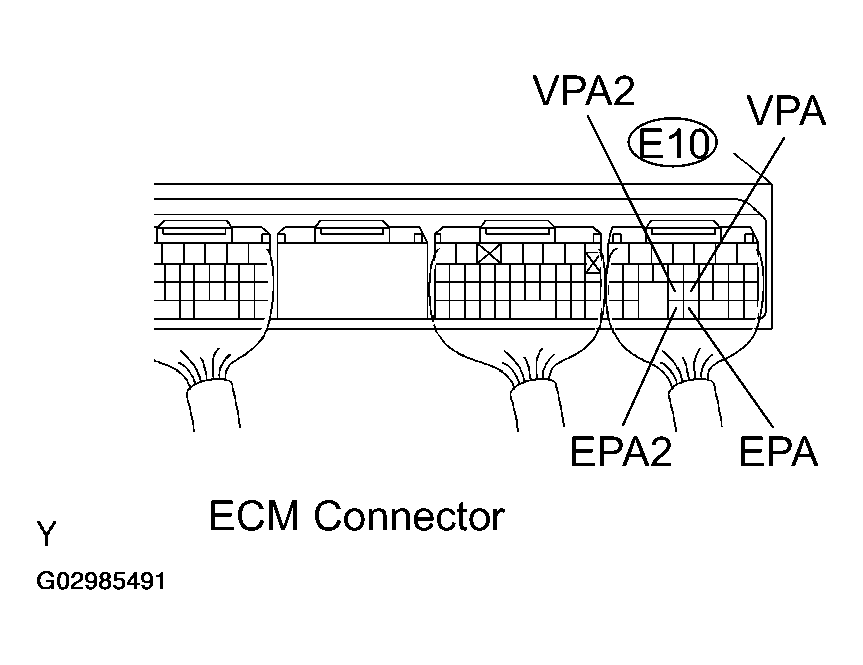

    Fig 5: Identifying Terminals VPA And EPA, VPA2 And EPA2 Of ECM Connector
    G02985491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK : Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).
    2. NG : Go to Next Step.
  2. Check for open and short in harness and connector between accelerator pedal position sensor and ECM.

    PREPARATION:

    1. Turn the ignition switch ON.
    2. Disconnect the A13 accelerator pedal position sensor connector.

    CHECK:

    Measure the voltage between the specified terminals of the E10 ECM connector.

    OK

    VOLTAGE CHECK SPECIFIED CONDITION

    Tester Connection Specified Condition
    VCPA (E10-26) - EPA (E10-28) 4.5 to 5.5 V
    VCP2 (E10-27) - EPA2 (E10-29) 4.5 to 5.5 V

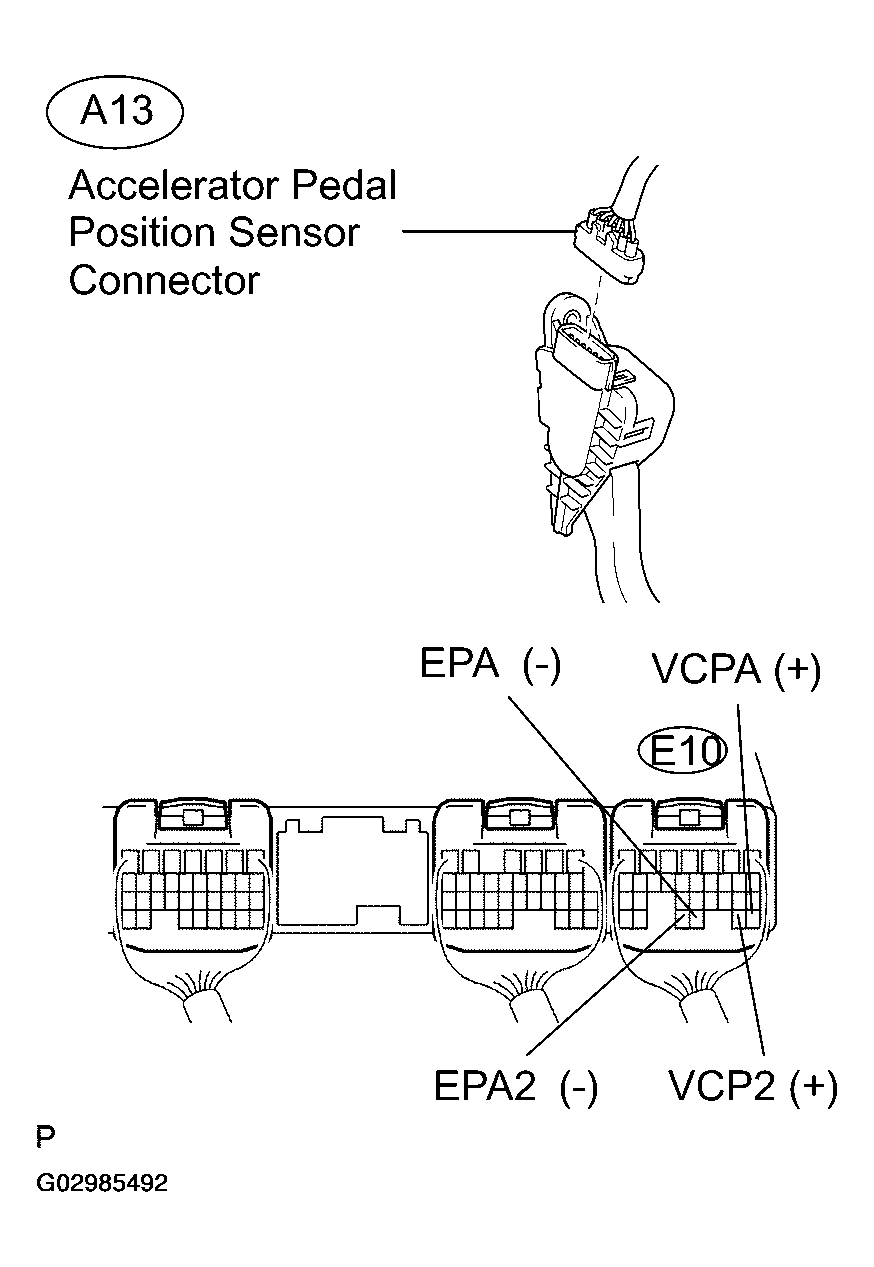

    Fig 6: Disconnecting A13 Accelerator Pedal Position Sensor Connector
    G02985492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG : Replace ECM (See  ENGINE CONTROL MODULE (ECM)  ).
    2. OK : Replace accelerator pedal assembly.
