Electrical Component Locator: Connectors
CONNECTORS LOCATION
| Component | Location |
|---|---|

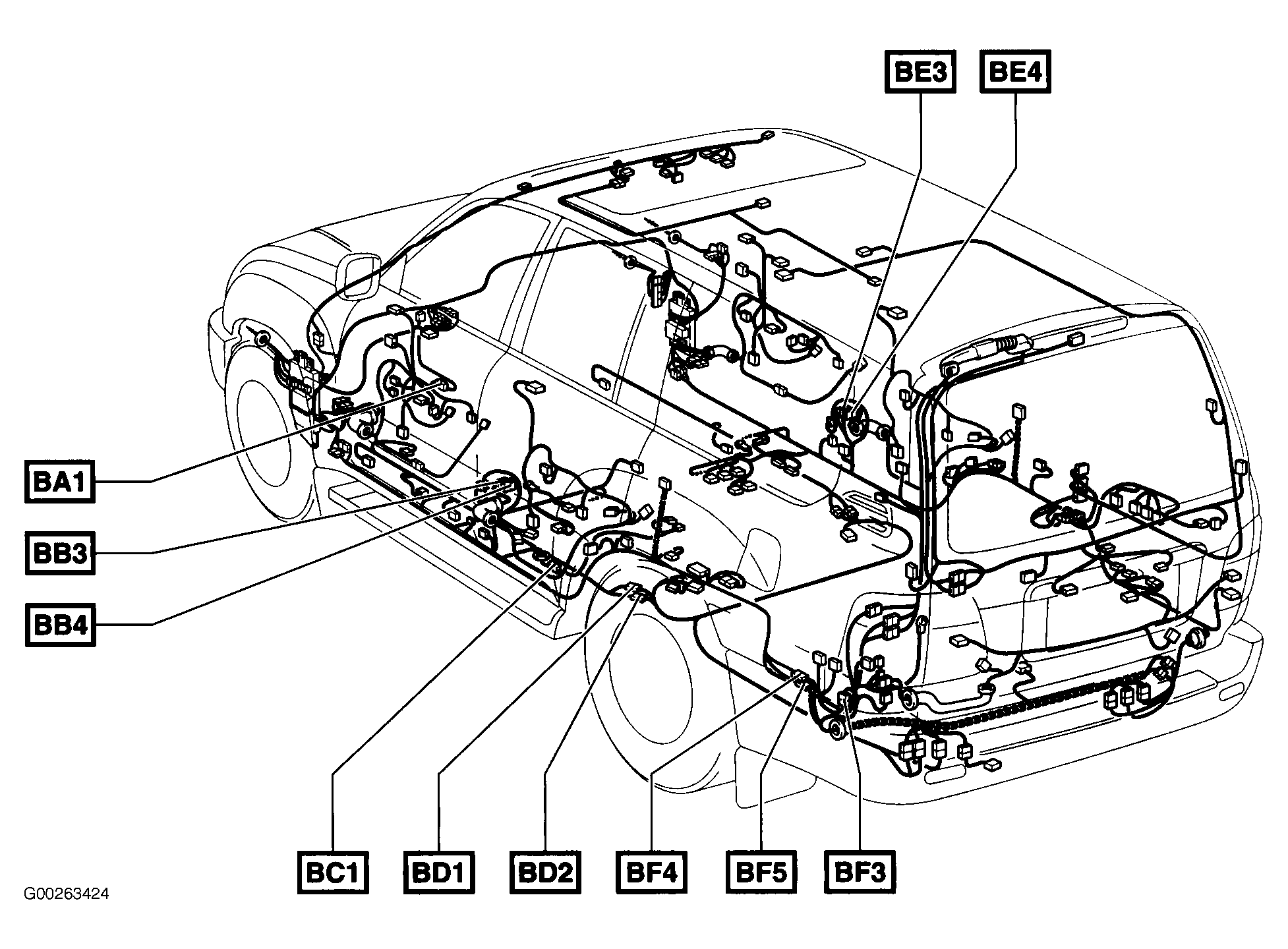

| BA1 (White, 4 Pin) | In left front door. See Figure. |
| Ba1 (White, 4 Pin) | Behind left taillight. See Figure. |
| Bb1 (Dark Gray, 4 Pin) | Right rear corner of vehicle. See Figure. |
| BB3 (Blue, 10 Pin) | At left "B" pillar. See Figure. |
| BB4 (White, 14 Pin) | At left "B" pillar. See Figure. |
| BC1 (Gray, 8 Pin) | Near fuel tank. See Figure. |

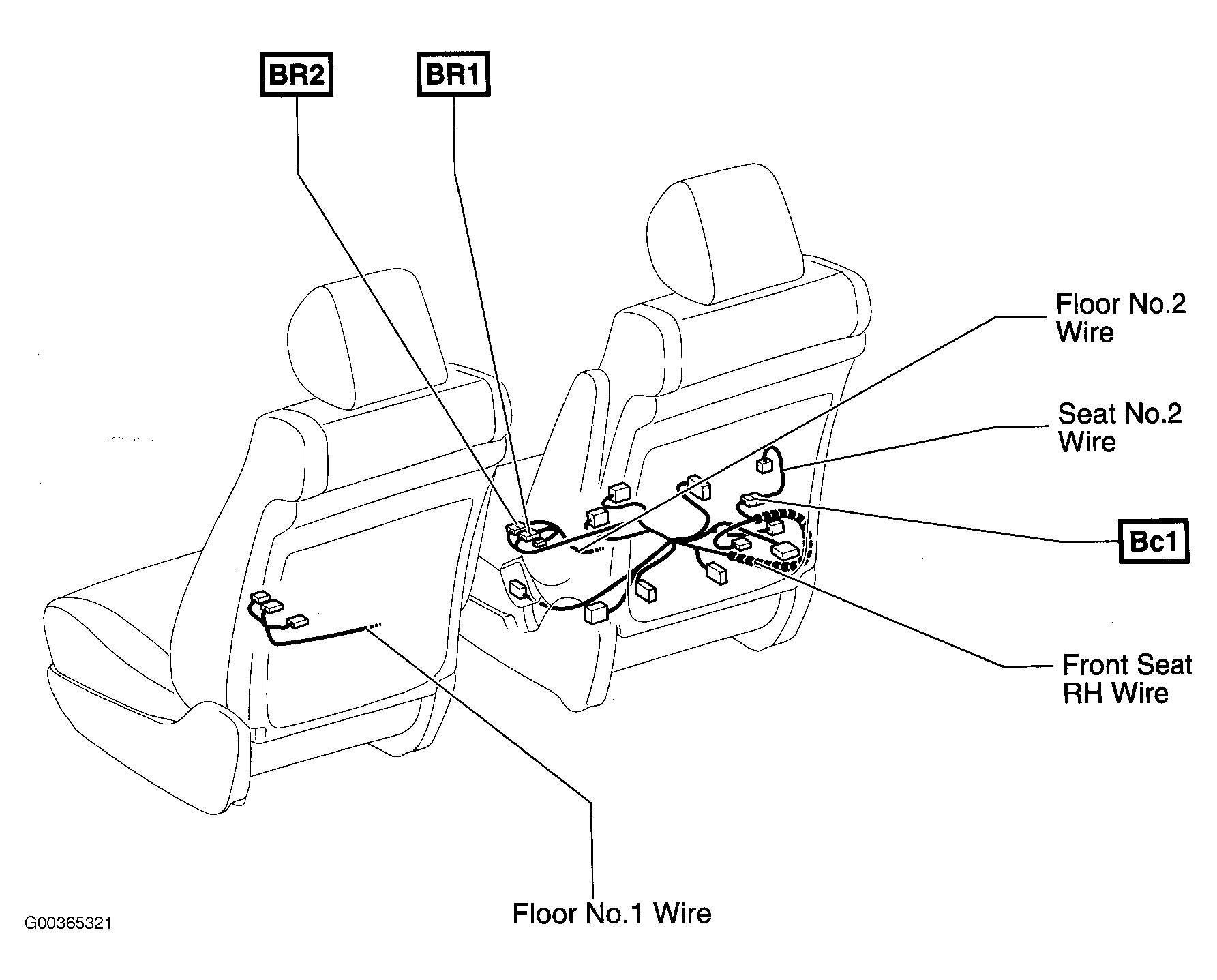

| Bc1 (White, 2 Pin) | In front passenger's seat. See Figure. |
| BD1 (Gray, 12 Pin) | Near left rear suspension support. See Figure. |
| BD2 (Gray, 6 Pin) | Near left rear suspension support. See Figure. |
| BE3 (Blue, 10 Pin) | At right "B" pillar. See Figure. |
| BE4 (White, 14 Pin) | At right "B" pillar. See Figure. |
| BF3 (Blue, 20 Pin) | At left rear quarterpanel. See Figure. |
| BF4 (White, 24 Pin) | At left rear quarterpanel. See Figure. |
| BF5 (Gray, 22 Pin) | At left rear quarterpanel. See Figure. |
| BG1 (Gray, 5 Pin) | Near right rear suspension support. See Figure. |
| BG2 (Gray, 8 Pin) | Near right rear suspension support. See Figure. |
| BI1 (Black, 11 Pin) | At left side of rear floor crossmember. See Figure. |
| BI2 (Gray, 12 Pin) | At left side of rear floor crossmember. See Figure. |
| BI3 (Gray, 8 Pin) | At left side of rear floor crossmember. See Figure. |
| BK1 (White, 6 Pin) | At left side of tailgate. See Figure. |
| BK2 (White, 5 Pin) | At left side of tailgate. See Figure. |
| BL1 (White, 2 Pin) | At right rear quarterpanel. See Figure. |
| BM1 (White, 10 Pin) | At right rear quarterpanel. See Figure. |
| BO1 (Gray, 12 Pin) | At right side of rear floor crossmember. See Figure. |
| BO2 (Gray, 8 Pin) | At right side of rear floor crossmember. See Figure. |
| BO3 (Gray, 6 Pin) | At right side of rear floor crossmember. See Figure. |
| BO4 (White, 4 Pin) | At right side of rear floor crossmember. See Figure. |
| BR1 (White, 10 Pin) | Under front of right front seat. See Figure. |
| BR2 (Gray, 5 Pin) | Under front of right front seat. See Figure. |
| BS3 (White, 8 Pin) | At left rear quarterpanel. See Figure. |
| BS4 (White, 11 Pin) | At left rear quarterpanel. See Figure. |
| BT2 (White, 10 Pin) | At left rear quarterpanel. See Figure. |
| BU1 (White, 11 Pin) | At front side of roof. See Figure. |
| BV1 (Gray, 8 Pin) | In left front door. See Figure. |
| BW1 (Gray, 8 Pin) | In right front door. See Figure. |
| BX1 (White, 5 Pin) | Near left rear suspension support. See Figure. |
| BY1 (Gray, 8 Pin) | At left side of rear floor crossmember. See Figure. |
| BZ1 (White, 5 Pin) | Near right rear suspension support. See Figure. |

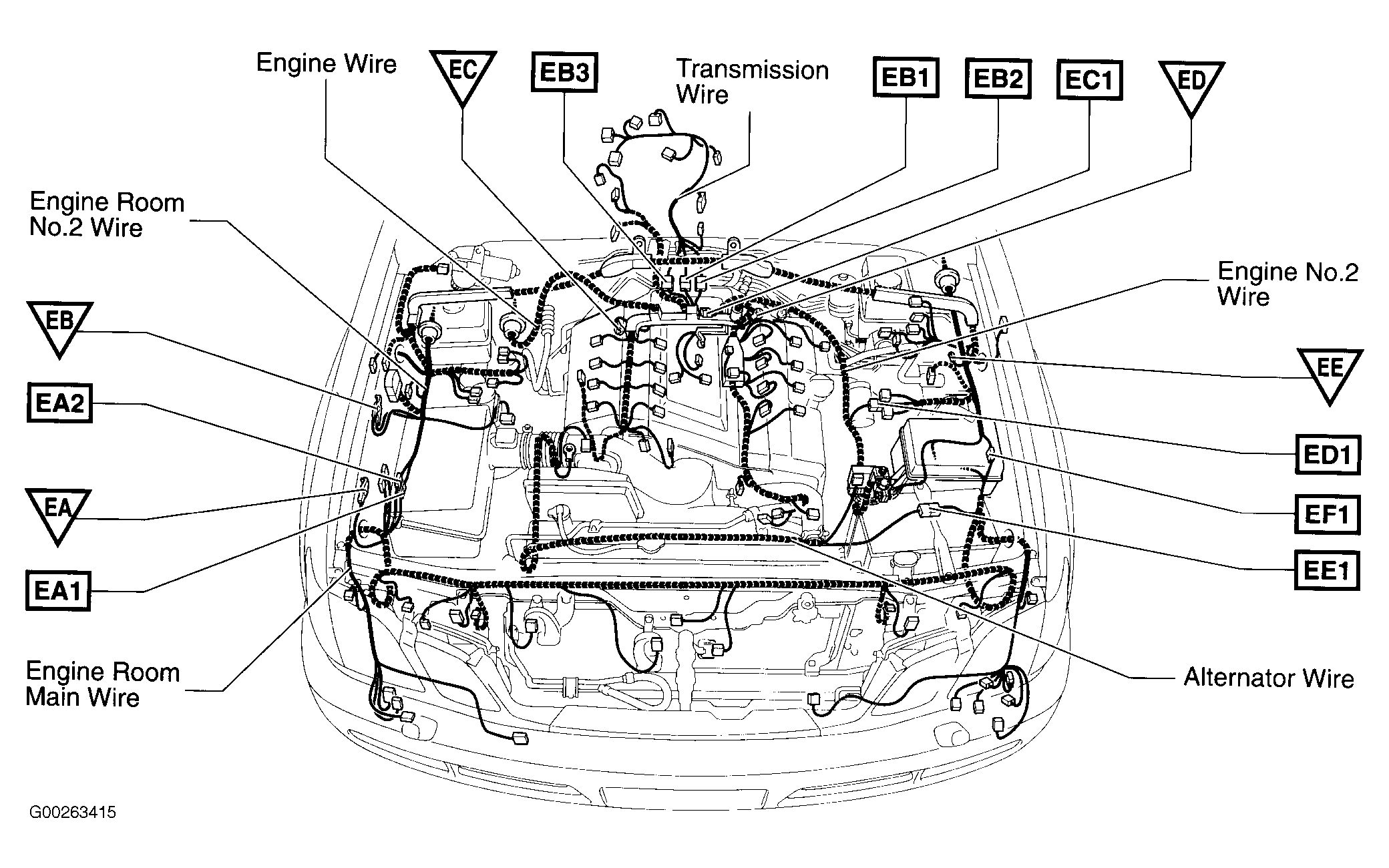

| EA1 (Yellow, 2 Pin) | At right side of engine compartment. See Figure. |
| EA2 (Gray, 6 Pin) | At right side of engine compartment. See Figure. |
| EB1 (Gray, 12 Pin) | On transmission. See Figure. |
| EB2 (Black, 11 Pin) | On transmission. See Figure. |
| EB3 (Gray, 11 Pin) | On transmission. See Figure. |
| EC1 (Black, 3 Pin) | On transmission. See Figure. |
| ED1 (Gray 1 Pin) | Near engine room J/B. See Figure. |
| EE1 (Black, 3 Pin) | Near battery. See Figure. |
| EF1 (Yellow, 2 Pin) | Under engine room J/B. See Figure. |
| Ia1 (White, 18 Pin) | Left kick panel. See Figure. |
| Ib1 (Gray, 2 Pin) | At left kick panel. See Figure. |

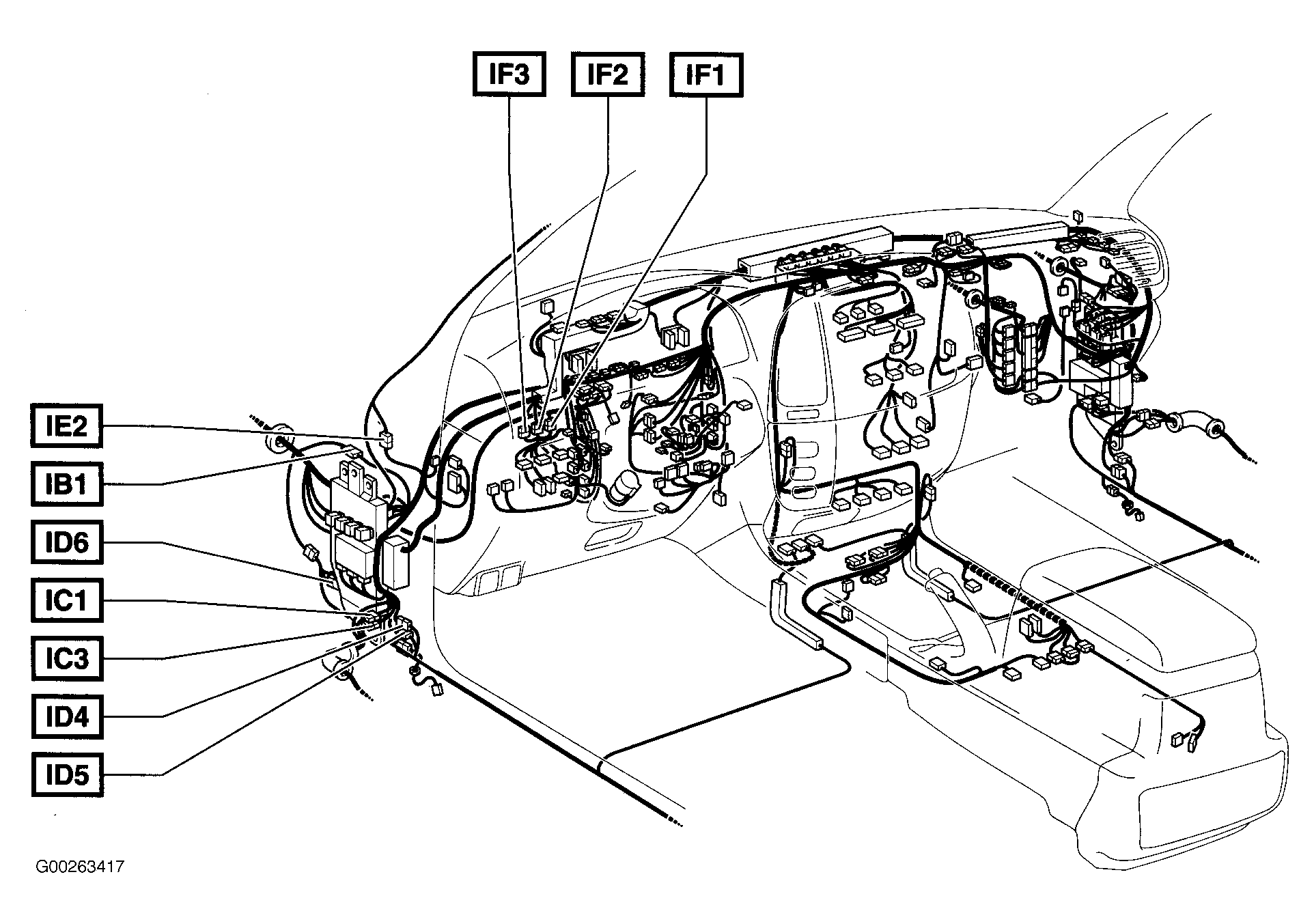

| IB1 (Yellow, 2 Pin) | At left side of dash. See Figure. |
| Ic1 (White, 5 Pin) | At left side of dash. See Figure. |
| IC1 (White, 20 Pin) | At left kick panel. See Figure. |
| IC3 (White, 18 Pin) | At left kick panel. See Figure. |
| Id1 (White, 2 Pin) | Behind instrument cluster. See Figure. |
| Id2 (White, 10 Pin) | Behind instrument cluster. See Figure. |
| ID4 (Gray, 42 Pin) | At left kick panel. See Figure. |
| Id4 (White, 2 Pin) | Behind left side of dash. See Figure. |
| ID5 (White, 9 Pin) | At left kick panel. See Figure. |
| ID6 (Gray, 22 Pin) | At left kick panel. See Figure. |
| Ie1 (White, 10 Pin) | Behind instrument cluster. See Figure. |
| Ie2 (White, 10 Pin) | Behind instrument cluster. See Figure. |
| IE2 (White, 22 Pin) | Behind left side of dash. See Figure. |
| Ie3 (White, 5 Pin) | Behind instrument cluster. See Figure. |
| IF1 (White, 18 Pin) | Behind left side of dash. See Figure. |
| IF2 (Gray, 22 Pin) | Behind left side of dash. See Figure. |

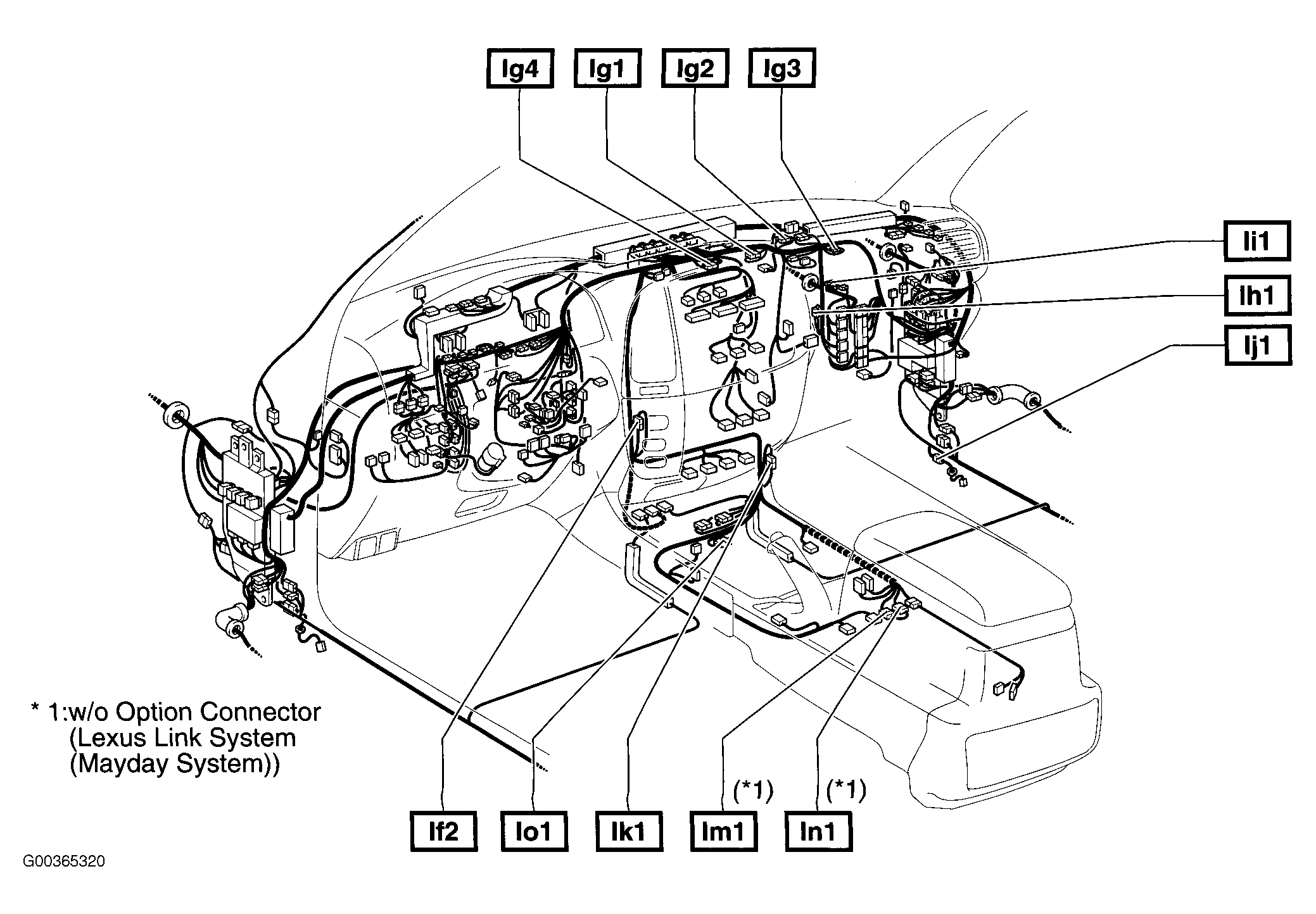

| If2 (White, 5 Pin) | Behind center of dash. See Figure. |
| IF3 (White, 8 Pin) | Behind left side of dash. See Figure. |
| Ig1 (White, 5 Pin) | Behind right side of dash. See Figure. |
| IG1 (White, 16 Pin) | Behind instrument cluster. See Figure. |
| Ig2 (White, 2 Pin) | Behind right side of dash. See Figure. |
| Ig3 (White, 4 Pin) | Behind right side of dash. See Figure. |
| Ig4 (White, 2 Pin) | Behind top center of dash. See Figure. |
| IG4 (White, 22 Pin) | Behind instrument cluster. See Figure. |
| IG5 (White, 2 Pin) | Behind instrument cluster. See Figure. |
| Ih1 (White) | Behind glove box. See Figure. |
| IH2 (White, 10 Pin) | Near ignition switch. See Figure. |
| Ii1 (White, 14 Pin) | Behind glove box. See Figure. |
| II3 (White, 14 Pin) | Near ignition switch. See Figure. |
| II4 (Yellow, 4 Pin) | Near ignition switch. See Figure. |
| II5 (Gray, 42 Pin) | Near ignition switch. See Figure. |
| Ij1 (Gray, 2 Pin) | At right kick panel. See Figure. |
| Ik1 (Gray, 42 Pin) | At right front of center console. See Figure. |
| IL3 (White, 22 Pin) | At center of dash. See Figure. |
| Im1 (White, 17 Pin) | At right front of center console. See Figure. |
| IM2 (White, 5 Pin) | At right side of dash. See Figure. |
| In1 (White, 17 Pin) | At right front of center console. See Figure. |
| Io1 (White, 5 Pin) | Under front of center console. See Figure. |
| IO3 (White, 14 Pin) | Behind glove box. See Figure. |

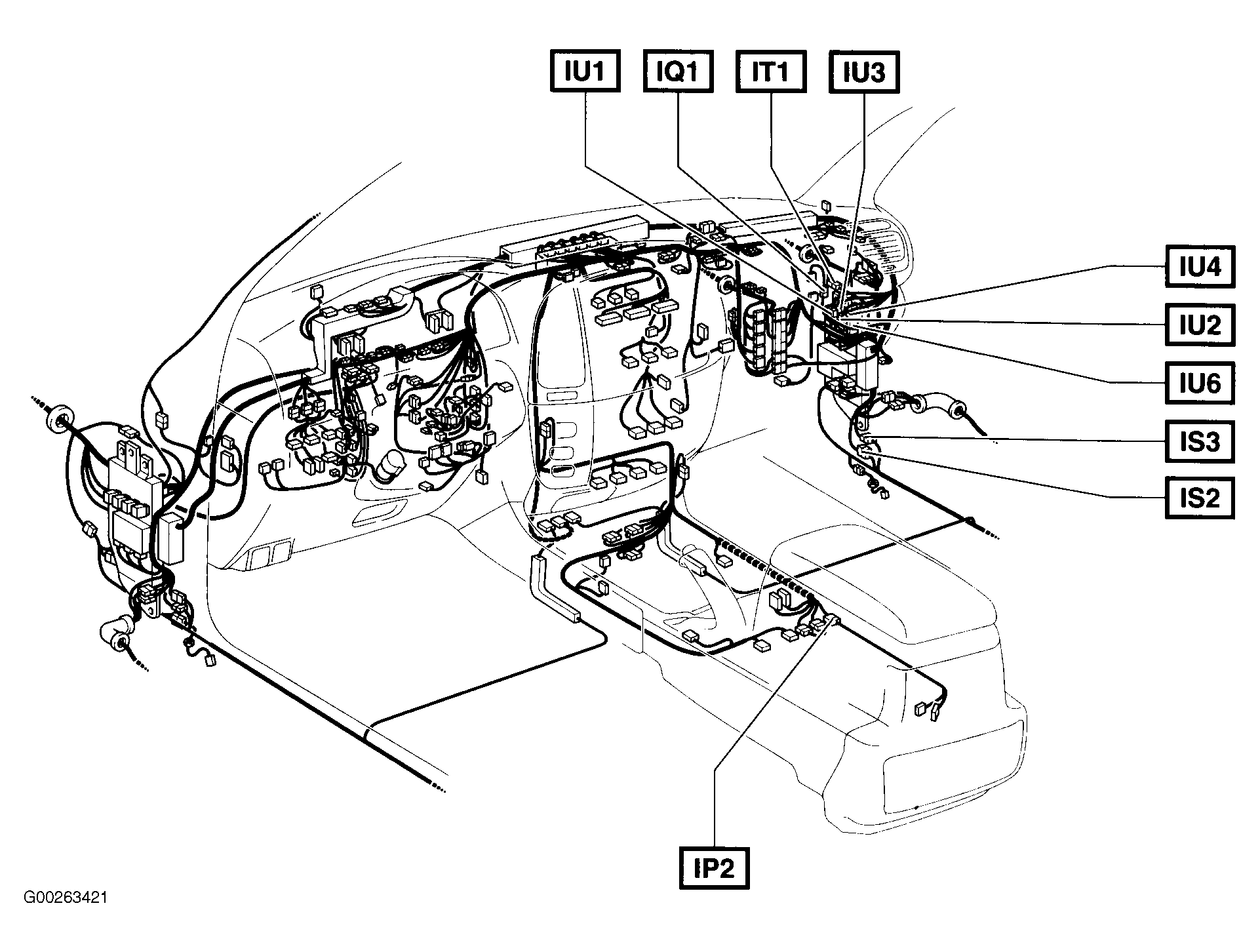

| IP2 (White, 24 Pin) | At right rear of center console. See Figure. |
| IQ1 (White, 2 Pin) | Behind glove box. See Figure. |
| IS2 (Gray, 42 Pin) | At right kick panel. See Figure. |
| IS3 (Yellow, 16 Pin) | At right kick panel. See Figure. |
| IT1 (Yellow, 2 Pin) | At right kick panel. See Figure. |
| IU1 (Gray, 22 Pin) | Behind glove box. See Figure. |
| IU2 (White, 10 Pin) | Behind glove box. See Figure. |
| IU3 (White, 18 Pin) | Behind glove box. See Figure. |
| IU4 (Blue, 14 Pin) | Behind glove box. See Figure. |
| IU6 (White, 24 Pin) | Behind glove box. See Figure. |
| IW3 (White, 13 Pin) | Behind glove box. See Figure. |
| IX1 (White, 18 Pin) | Behind glove box. See Figure. |
| IX2 (White, 10 Pin) | Behind glove box. See Figure. |
| IY3 (White, 20 Pin) | At right kick panel. See Figure. |
| IY4 (White, 18 Pin) | At right kick panel. See Figure. |
