Diagnostic Trouble Code Chart
If a DTC is displayed during the DTC check, check the circuit listed for that code in the table below.

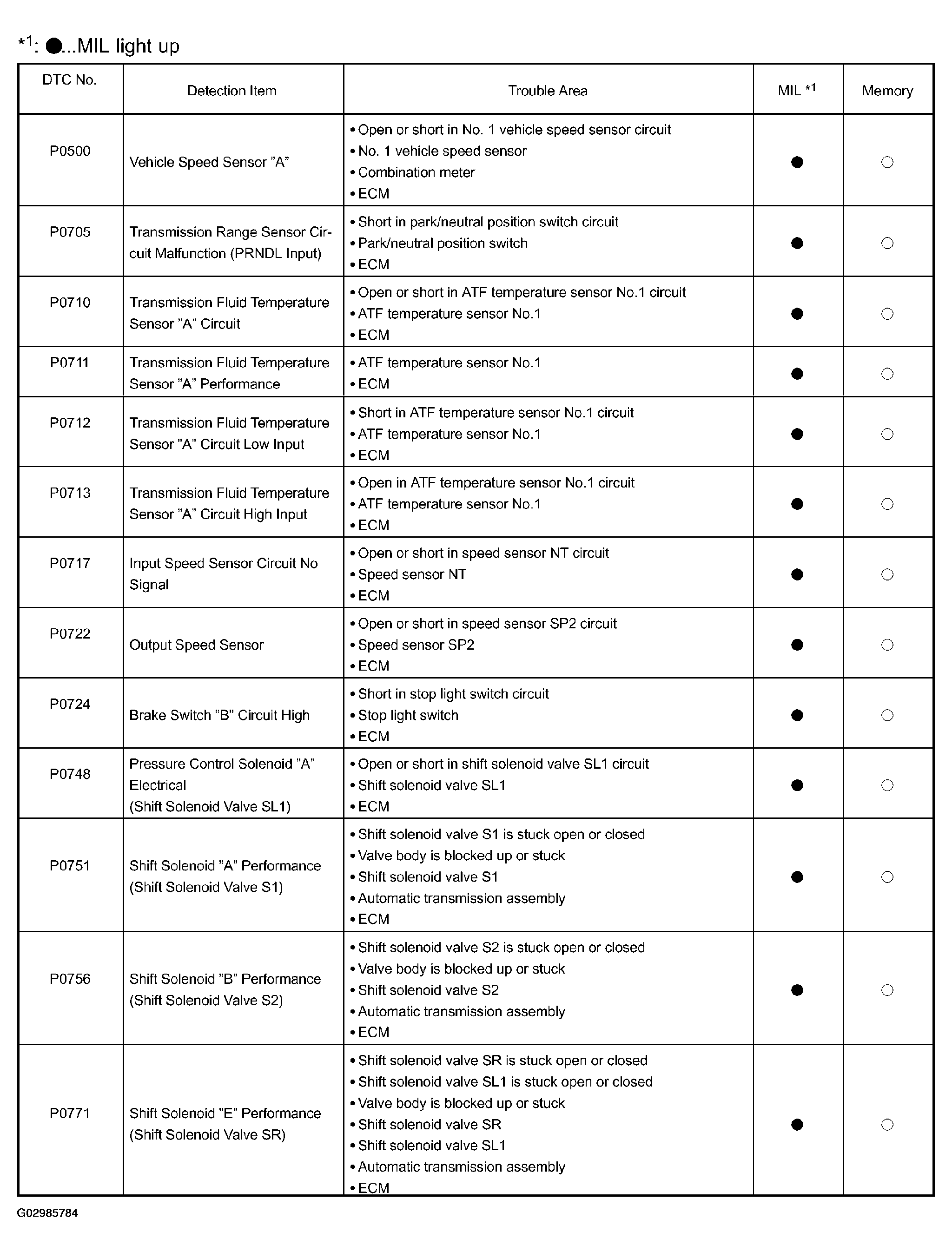

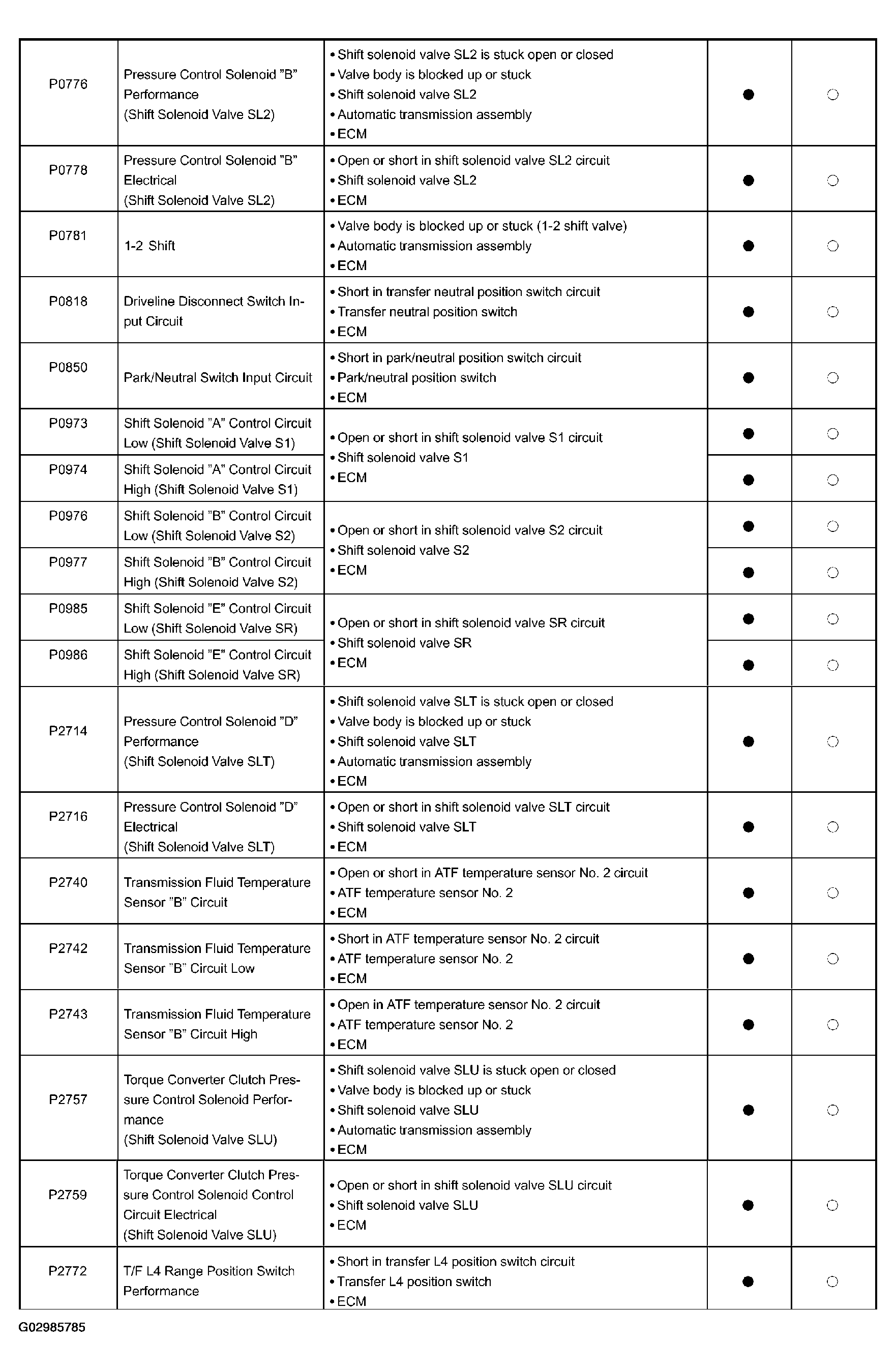

DIAGNOSTIC TROUBLE CODE CHART
| DTC | Description |
|---|---|
| DTC P0705, P0850 | Transmission Range Sensor Circuit Mal-function (PRNDL Input), Park/Neutral Switch Input Circuit |
| DTC P0710, P0712, P0713 | Transmission Fluid Temperature Sensor "A" Circuit, Transmission Fluid Temperature Sensor "A" Circuit Low/High Input |
| DTC P0711 | Transmission Fluid Temperature Sensor "A" Performance |
| DTC P0717 | Input Speed Sensor Circuit No Signal |
| DTC P0722 | Output Speed Sensor Circuit No Signal |
| DTC P0724 | Brake Switch "B" Circuit High |
| DTC P0748 | Pressure Control Solenoid "A" Electrical (Shift Solenoid Valve SL1) |
| DTC P0751 | Shift Solenoid "A" Performance (Shift Solenoid Valve S1) |
| DTC P0756 | Shift Solenoid "B" Performance (Shift Solenoid Valve S2) |
| DTC P0771 | Shift Solenoid "E" Performance (Shift Solenoid Valve SR) |
| DTC P0776 | Pressure Control Solenoid "B" Performance (Shift Solenoid Valve SL2) |
| DTC P0778 | Pressure Control Solenoid "B" Electrical (Shift Solenoid Valve SL2) |
| DTC P0781 | 1 -2 Shift |
| DTC P0818 | Driveline Disconnect Switch Input Circuit |
| DTC P0973, P0974 | Shift Solenoid "A" Control Circuit Low/High (Shift Solenoid Valve S1) |
| DTC P0976, P0977 | Shift Solenoid "B" Control Circuit Low/High (Shift Solenoid Valve S2) |
| DTC P0985, P0986 | Shift Solenoid "E" Control Circuit Low/High (Shift Solenoid Valve SR) |
| DTC P2714 | Pressure Control Solenoid "D" Performance (Shift Solenoid Valve SLT) |
| DTC P2716 | Pressure Control Solenoid "D" Electrical (Shift Solenoid Valve SLT) |
| DTC P2740, P2742, P2743 | Transmission Fluid Temperature Sensor "B" Circuit, DTC Transmission Fluid Temperature Sensor "B" Circuit Low/High Input |
| DTC P2757 | Torque Converter Clutch Pressure Control Solenoid Performance (Shift Solenoid Valve SLU) |
| DTC P2759 | Torque Converter Clutch Pressure Control Solenoid Control Circuit Electrical (Shift Solenoid Valve SLU) |
| DTC P2772 | T/F L4 Range Position Switch Performance |
