Inspection Procedure

PREPARATION:

Disconnect the pattern select switch connector.

CHECK:

Check continuity between terminals 2 and 3 of pattern select switch connector when pattern select switch is set to 2nd start switch ON and OFF.

OK:

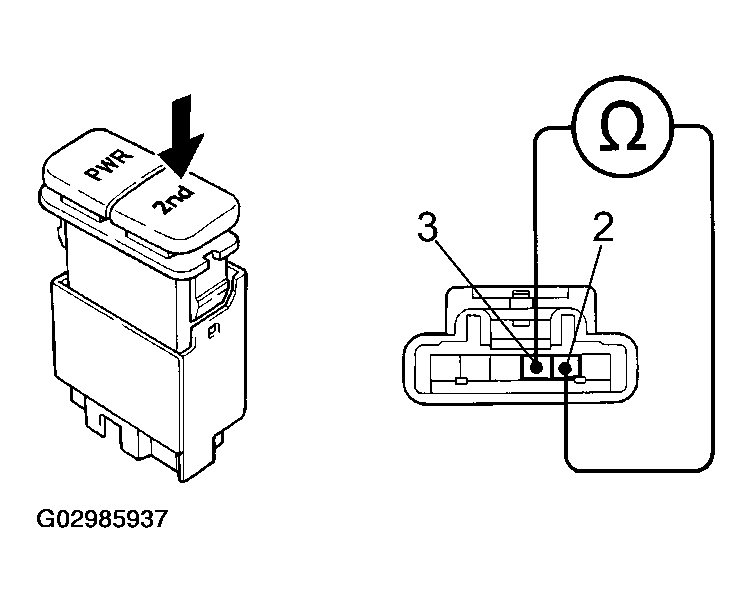

Fig 1: Checking Pattern Select Switch (2nd Start Switch)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. NG : Replace the pattern select switch.
2. OK : Go to Next Step.

PREPARATION:

1. Connect the pattern select switch connector.
2. Disconnect the connector of ECM.

CHECK:

Check continuity between terminal SNWI of ECM and body ground when the pattern select switch is set to 2nd start switch ON and OFF.

OK:

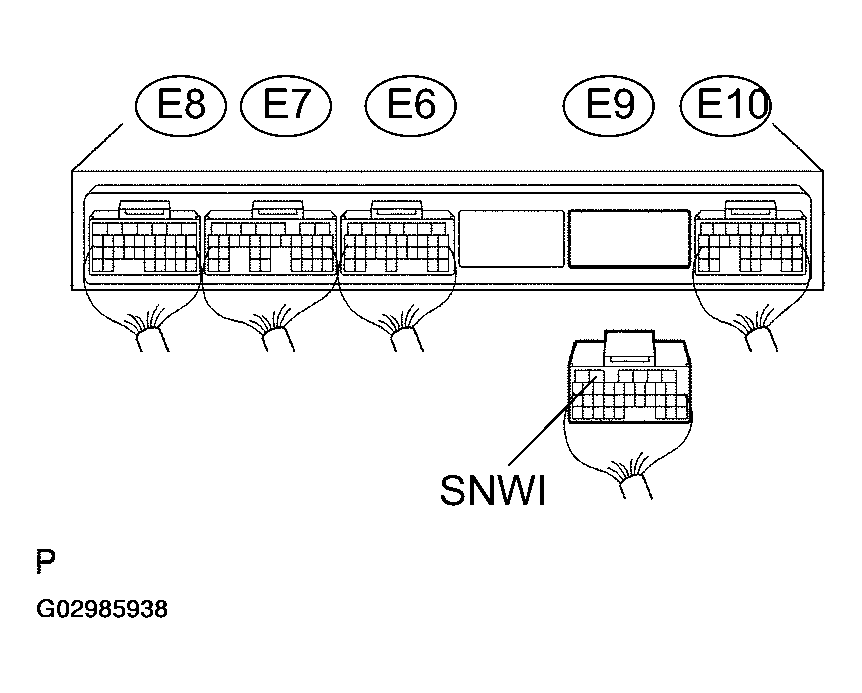

Fig 2: Identifying SNWI Terminal Of ECM And Body Ground

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. OK : Proceed to next circuit inspection shown on matrix chart (See  PROBLEM SYMPTOMS TABLE   ).
2. NG : Repair or replace harness or connector (See  PROCEDURE  ).
