Terminals Of ECM

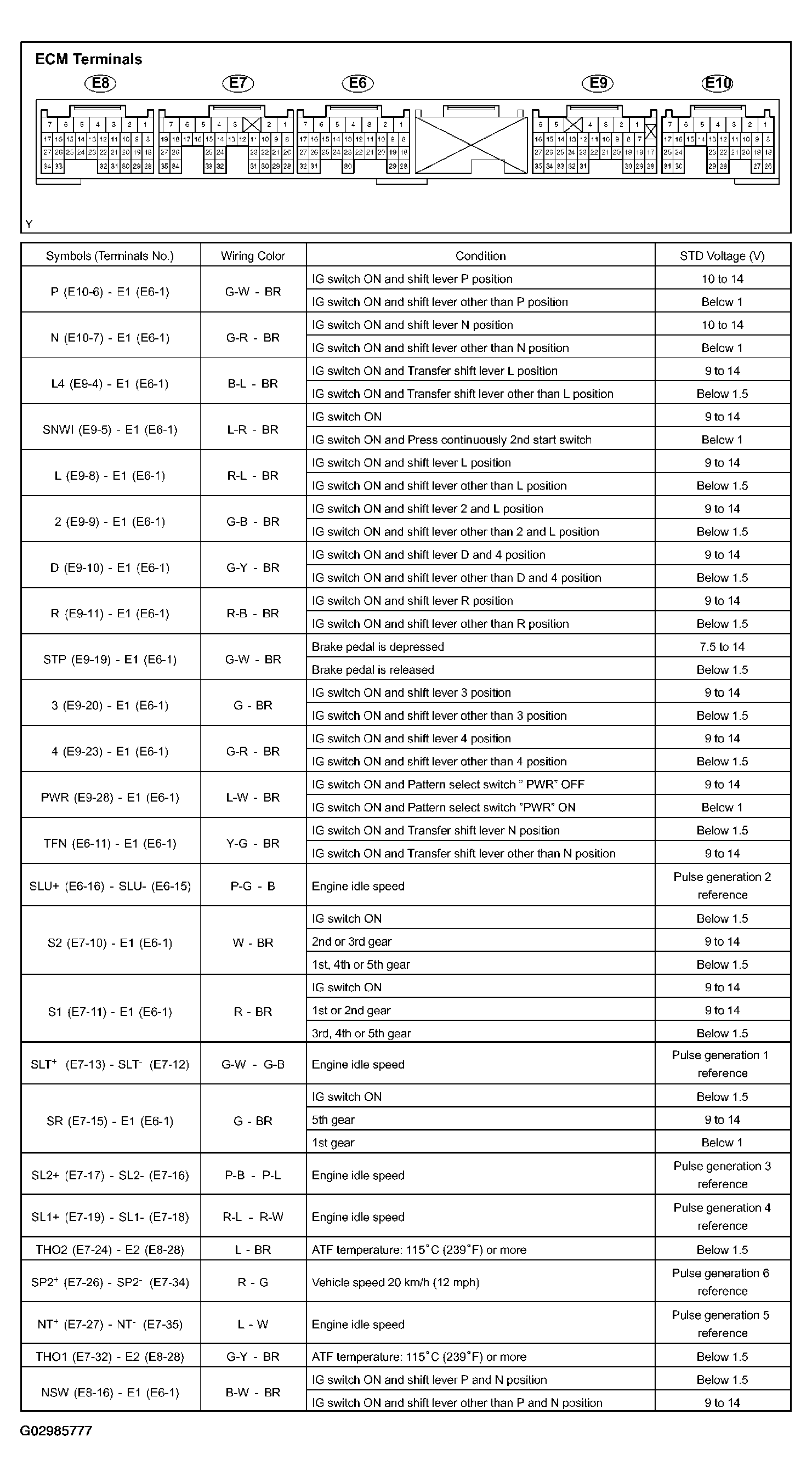

Fig 1: Identifying Terminals Of ECM

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 1

1. Reference:
   WAVE REFERENCE CHART



   Item	Condition
   Terminal	SLT+ - SLT-
   Tool setting	5V/DIV, 1ms/DIV
   Vehicle condition	Engine idle speed

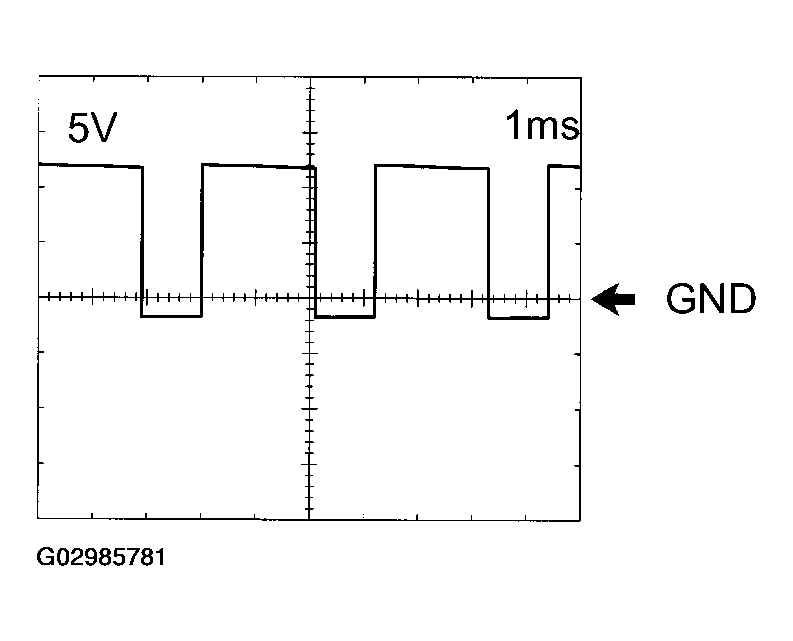

   Fig 2: Pulse Generation 1 Wave Form

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 2

1. Reference:
   WAVE REFERENCE CHART



   Item	Condition
   Terminal	SLU+ - SLU-
   Tool setting	5V/DIV, 1ms/DIV
   Vehicle condition	Engine idle speed

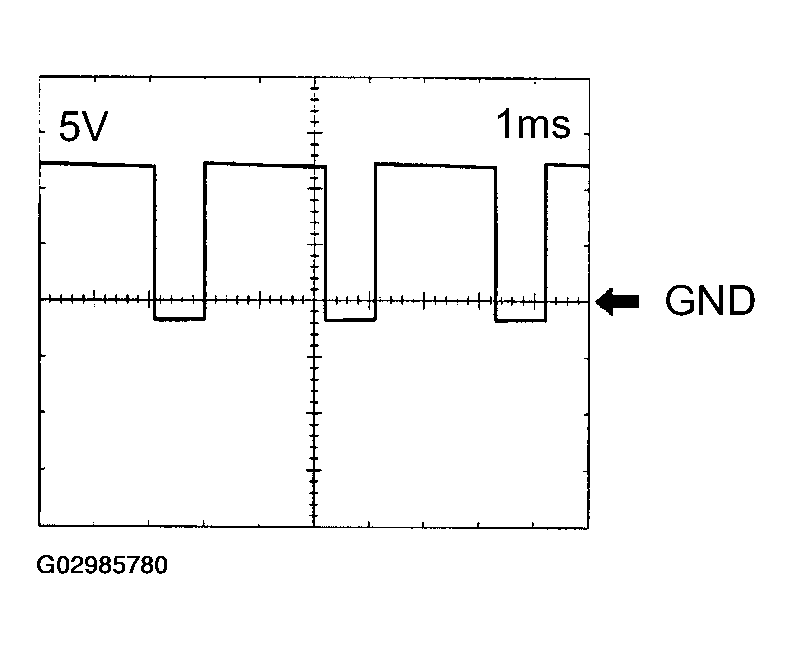

   Fig 3: Pulse Generation 2 Wave Form

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 3

1. Reference:
   WAVE REFERENCE CHART



   Item	Condition
   Terminal	SL2+ - SL2-
   Tool setting	5V/DIV, 1ms/DIV
   Vehicle condition	Engine idle speed

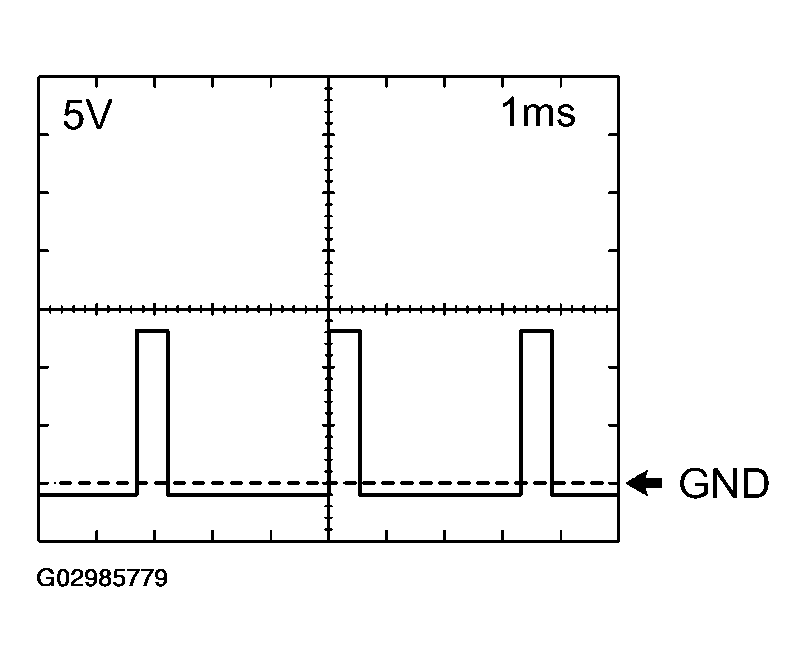

   Fig 4: Pulse Generation 3 Wave Form

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 4

1. Reference:
   WAVE REFERENCE CHART



   Item	Condition
   Terminal	SL1+ - SL1-
   Tool setting	5V/DIV, 1ms/DIV
   Vehicle condition	Engine idle speed

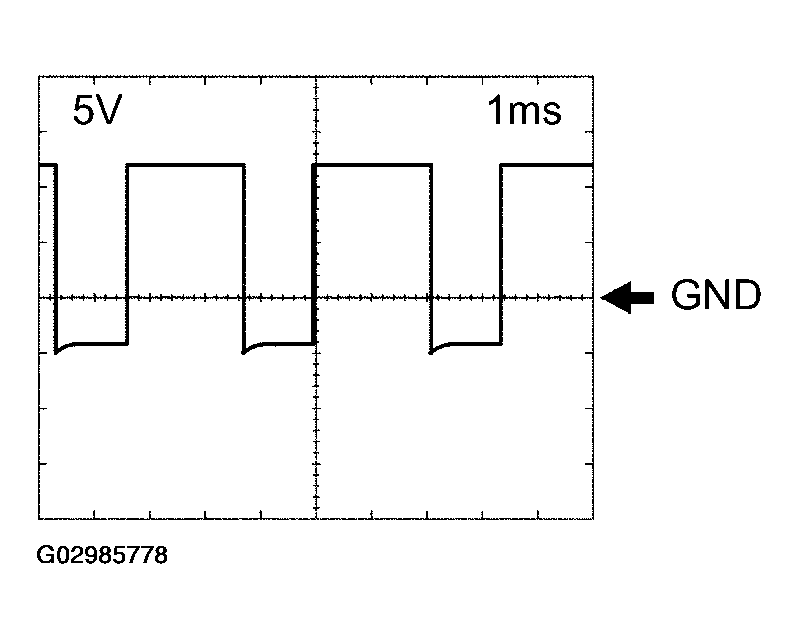

   Fig 5: Pulse Generation 4 Wave Form

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 5

1. Reference:
   WAVE REFERENCE CHART



   Item	Condition
   Terminal	NT+ - NT-
   Tool setting	1V/DIV, 2ms/DIV
   Vehicle condition	Engine idle speed

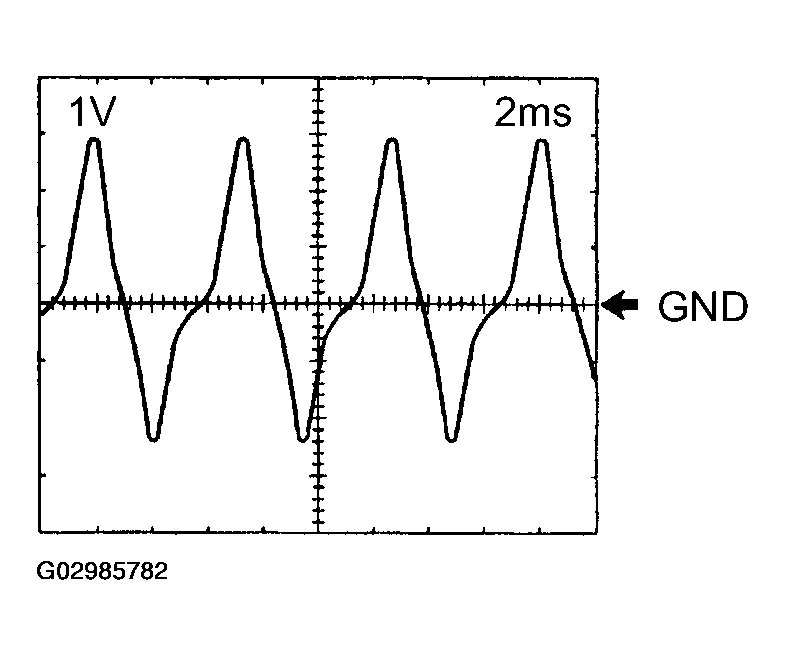

   Fig 6: Pulse Generation 5 Wave Form

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Pulse generation 6

1. Reference:
   WAVE REFERENCE CHART



   Item	Condition
   Terminal	SP2+ - SP2-
   Tool setting	2V/DIV, 20ms/DIV
   Vehicle condition	Vehicle speed 20 km/h (12 mph)

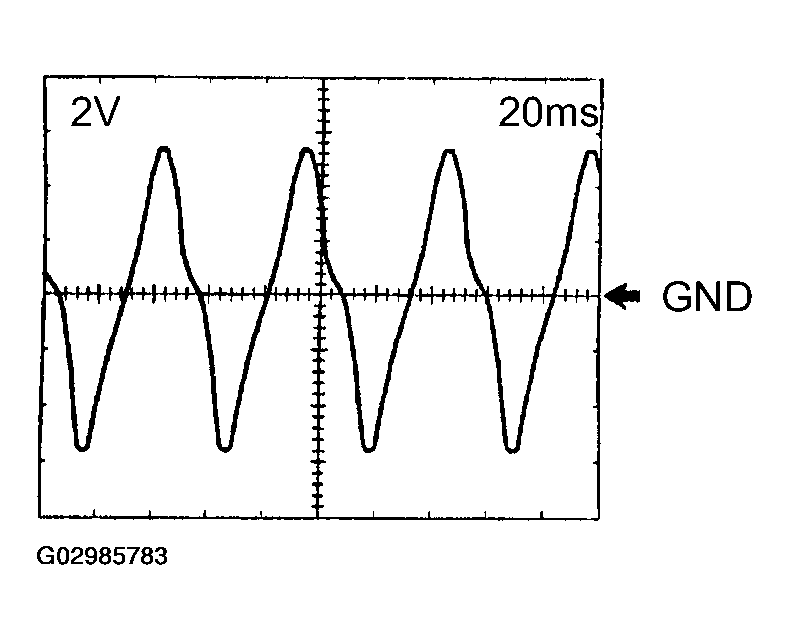

   Fig 7: Pulse Generation 6 Wave Form

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
