Front Extension Housing: Disassembly

1. Using a snap ring expander, remove the snap ring.

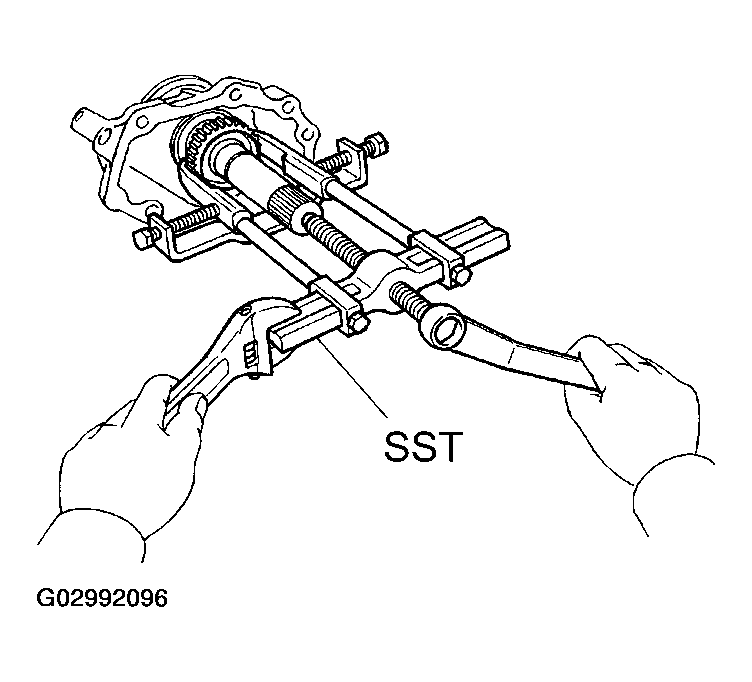

2. Using SST, remove the drive clutch hub.

   SST 09950- 40011 (09951- 04020, 09952- 04010, 09953- 04030, 09954- 04020, 09955- 04021, 09957-04010, 09958-04011)

Fig 1: Removing Drive Clutch Hub

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

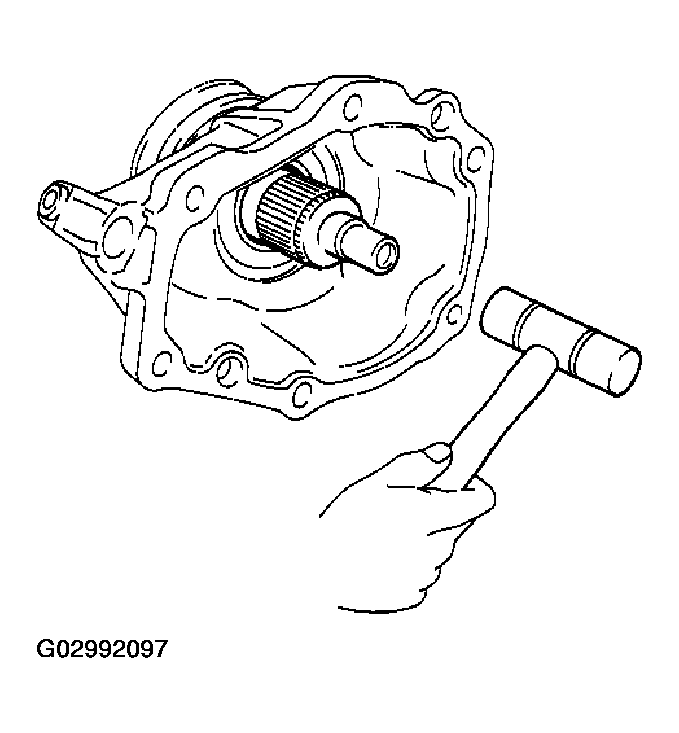

Using a plastic hammer, drive out the front output shaft.

Fig 2: Driving Out Front Output Shaft

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

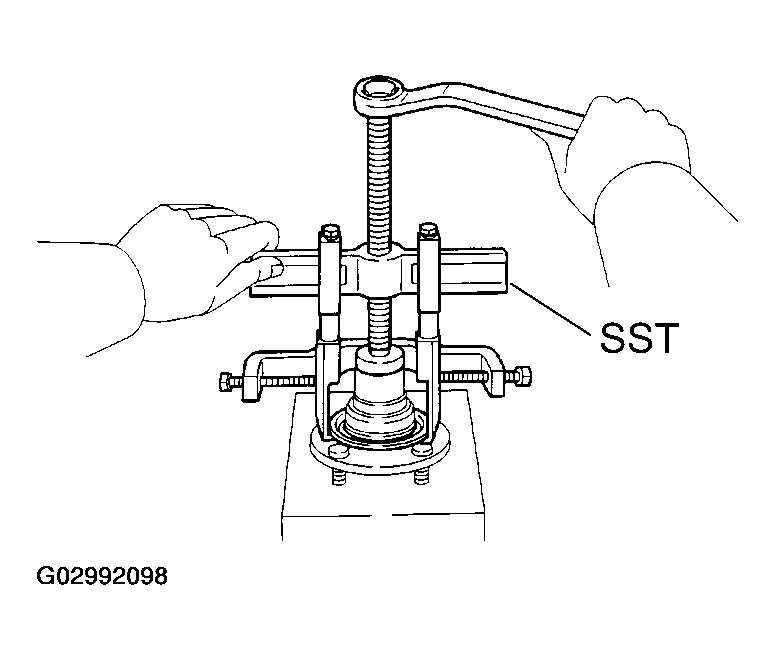

1. Using SST, remove the dust deflector.

   SST 09950- 40011 (09951- 04020, 09952- 04010, 09953- 04030, 09954- 04010, 09955-04051, 09957-04010, 09958-04011)

   Fig 3: Removing Dust Deflector

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

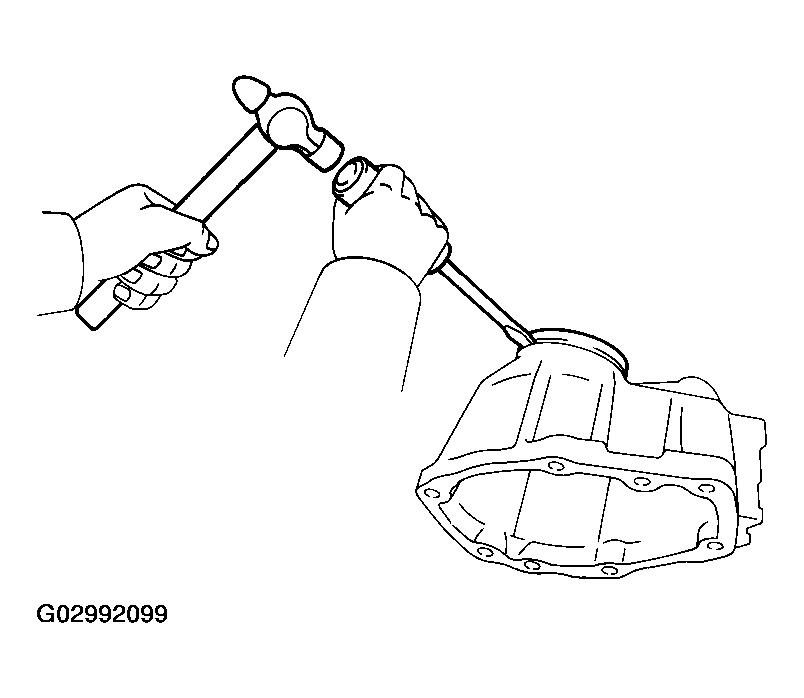

2. Using a screwdriver and hammer, tap the dust deflector and remove it from the extension housing.

Fig 4: Taping Dust Deflector And Removing From Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

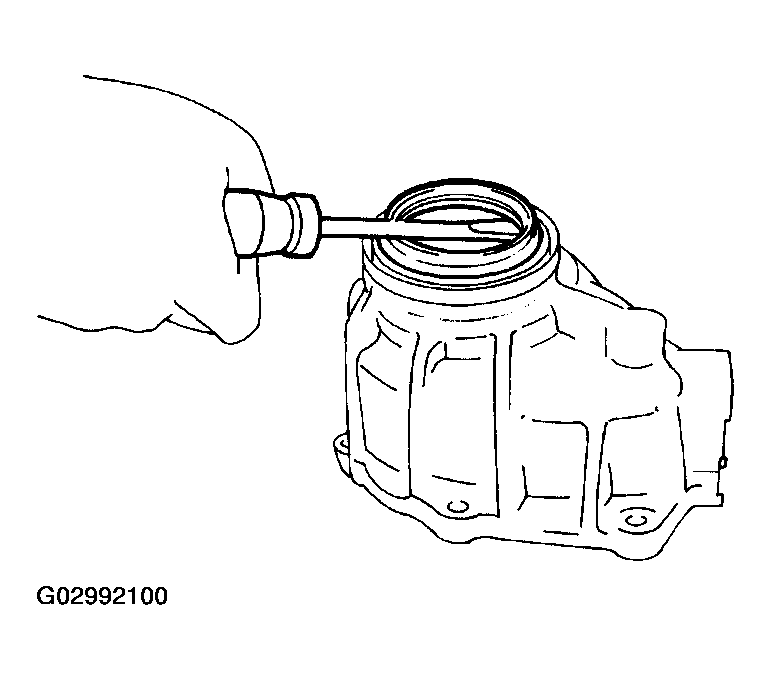

Using a screwdriver, pry out the oil seal from the front extension housing.

Fig 5: Prying Out Oil Seal From Front Extension Housing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

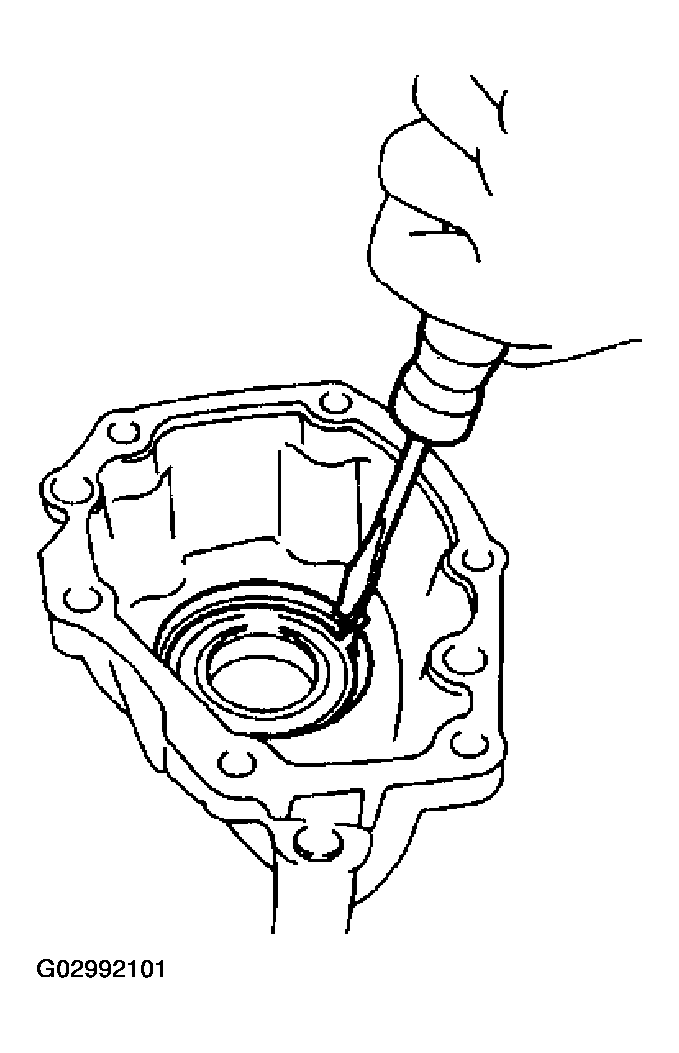

1. Using a screwdriver, remove the snap ring.
   Fig 6: Removing Snap Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, remove the ball bearing.

   SST 09316-6001 1 (09316-00011, 09316-00071)

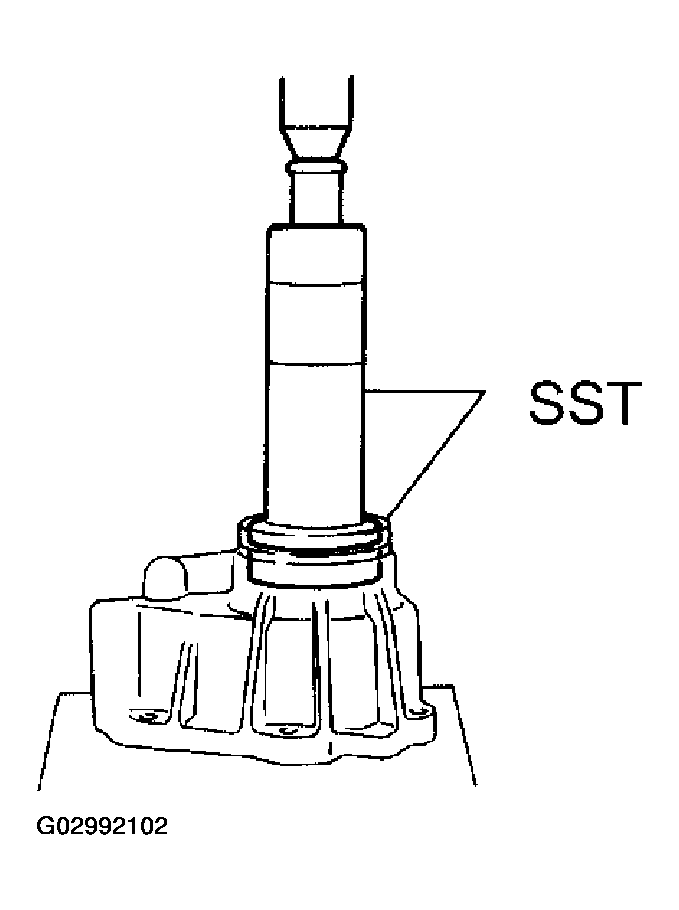

Fig 7: Removing Ball Bearing

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
